Post Your Single Turbo Setup.
05-24-10, 10:44 AM
#526
Newbie
iTrader: (9)
Join Date: Feb 2002
Location: MI
Posts: 1,171
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1993 Black R1
Engine: Base rebuild by Banzai Racing. Stock ports.
Turbo: Garrett GT35R (1.04)
Boost: 15psi
Manifold: XS Power (thanks for nothing rx7store! Will be replacing first chance I get)
Wastegate: TiAL
EMS: Power FC
RWHP: 404rwhp @15psi, was having ignition issues and the power leveled off ~7K rpms.
ET: 12.9@112mph, while only street tuned at 10psi with ignition breakup ~6300rpms.
Other details: KGParts secondary fuel rail with 1600cc injectors, KS V-mount intercooler kit, Greddy elbow, FJO injector driver, greddy profec b-II boost controller, HKS twin power, and pretty much everything deleted including air pump, AC, and PS.

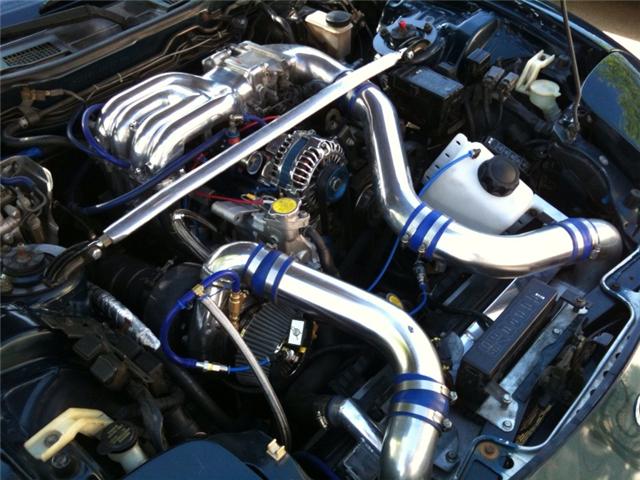

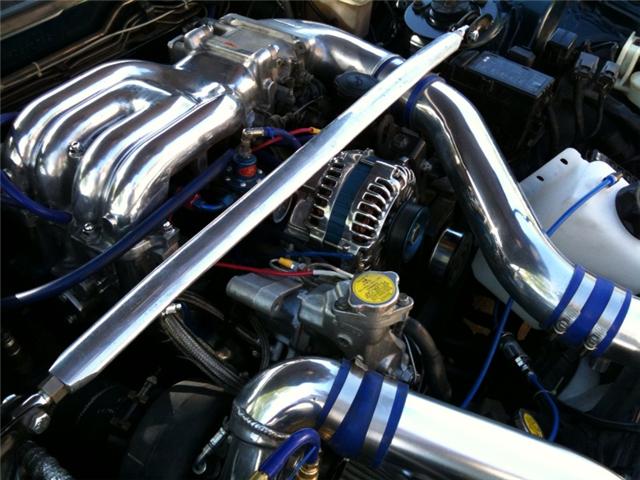

Latest picture:
Engine: Base rebuild by Banzai Racing. Stock ports.
Turbo: Garrett GT35R (1.04)
Boost: 15psi
Manifold: XS Power (thanks for nothing rx7store! Will be replacing first chance I get)
Wastegate: TiAL
EMS: Power FC
RWHP: 404rwhp @15psi, was having ignition issues and the power leveled off ~7K rpms.
ET: 12.9@112mph, while only street tuned at 10psi with ignition breakup ~6300rpms.
Other details: KGParts secondary fuel rail with 1600cc injectors, KS V-mount intercooler kit, Greddy elbow, FJO injector driver, greddy profec b-II boost controller, HKS twin power, and pretty much everything deleted including air pump, AC, and PS.
Latest picture:
05-30-10, 12:20 PM
#528
Junior Member
1985 GS 13B Turbo II Garrett T3-T4, Blow-through
I am putting the finishing touches on my Gen 1 project street car.
Here are the highlights:
1985 GS with full GSL-SE suspension, rr diff, brakes, transplant.
Alignment by West End.
Springs, Sway-bars, Shocks all upgrades.
14x6 Tacoma wheels w/205-60x14 Sumitomo.
Fresh 13B Street Port Turbo II by Ricardo Porta.
Garrett T-3/T-4 Stage 3 Turbine, 60 Compressor, External 40mm Waste gate, 3" down-pipe, Blow-through Barry Grant Mighty Demon 575BT on Racing Beat Manifold.
Walboro Fuel pump w/Aeromotive regulator.
Snow Performance Water/Methanol injection.
First Dyno pull: 246 WHP 201 ft/lb Torque @ 6800 through 2" muffler. Numerous tuning opportunities identified that will be addressed before second Dyno day.
Please stay tuned for future developments.
Look me up on Facebook/YouTube some some pictures/video on this project
Here are the highlights:
1985 GS with full GSL-SE suspension, rr diff, brakes, transplant.
Alignment by West End.
Springs, Sway-bars, Shocks all upgrades.
14x6 Tacoma wheels w/205-60x14 Sumitomo.
Fresh 13B Street Port Turbo II by Ricardo Porta.
Garrett T-3/T-4 Stage 3 Turbine, 60 Compressor, External 40mm Waste gate, 3" down-pipe, Blow-through Barry Grant Mighty Demon 575BT on Racing Beat Manifold.
Walboro Fuel pump w/Aeromotive regulator.
Snow Performance Water/Methanol injection.
First Dyno pull: 246 WHP 201 ft/lb Torque @ 6800 through 2" muffler. Numerous tuning opportunities identified that will be addressed before second Dyno day.
Please stay tuned for future developments.
Look me up on Facebook/YouTube some some pictures/video on this project
06-14-10, 06:48 AM
#529
Full Member
Join Date: Aug 2001
Location: Canberra, Australia
Posts: 50
Likes: 0
Received 0 Likes
on
0 Posts
update
car :1982 S2 RX7

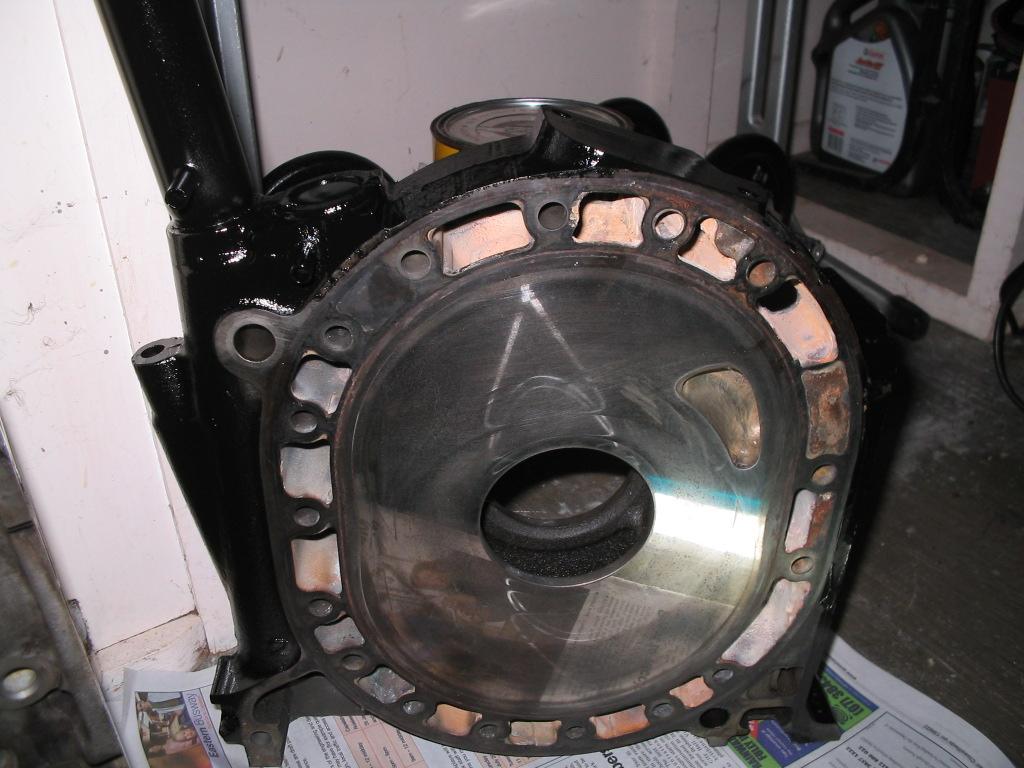

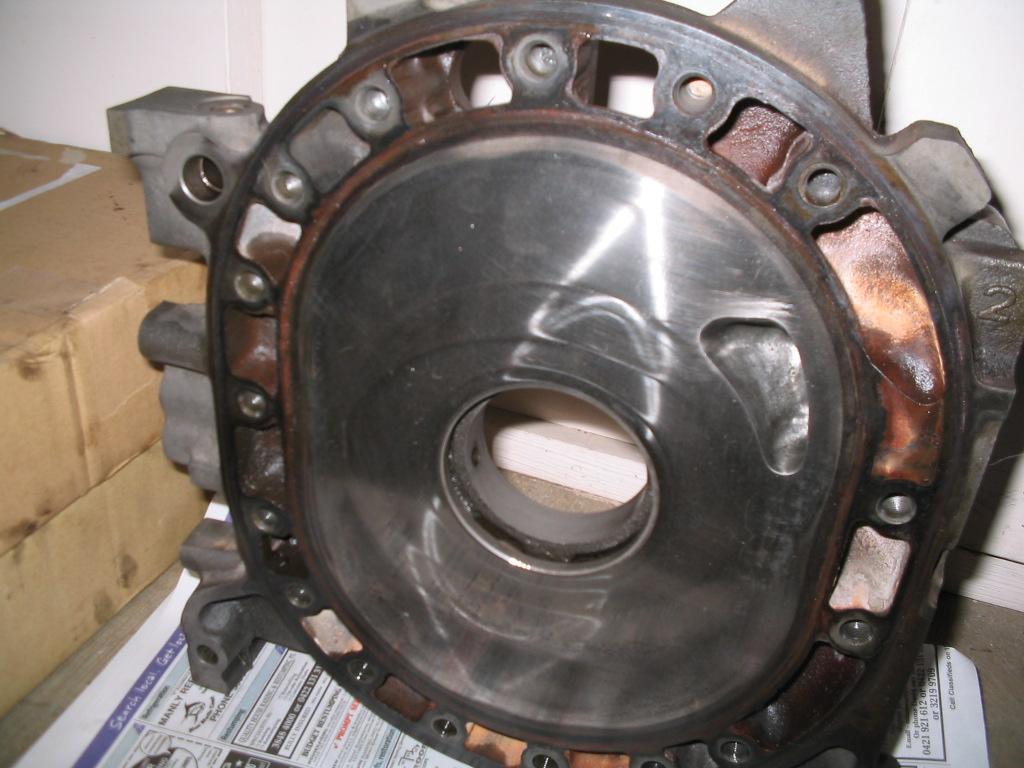

engine: 12A Turbo block, bridgeported primaries, full stud kit, isotropically finished crank, machined rotors, 3mm SCR seals, Water Injection Kit
turbo : GT4202 0.91 Rear
manifold : City Custom Racing
downpipe : City Custom Racing
wastegate :HKS 60mm Screamer pipe
exchaust :custom 3in
intercooler :custom FMIC
ecu : Microtech LT10S with X4 - 4x Bosch HEC715 Coils
injectors : 4x 1600cc indy blues (with the option of running 2 more)
Fuel pump: 2x Bosch 044
Aeromotive FPR
clutch : Custom 4 Puck solid centre
blow off valve :Monza
Got 370rwhp @ 17psi on the old setup but ran into fueling and spark issues.
Going to run E85, 25psi .... hoping for high 400's+
car :1982 S2 RX7
engine: 12A Turbo block, bridgeported primaries, full stud kit, isotropically finished crank, machined rotors, 3mm SCR seals, Water Injection Kit
turbo : GT4202 0.91 Rear
manifold : City Custom Racing
downpipe : City Custom Racing
wastegate :HKS 60mm Screamer pipe

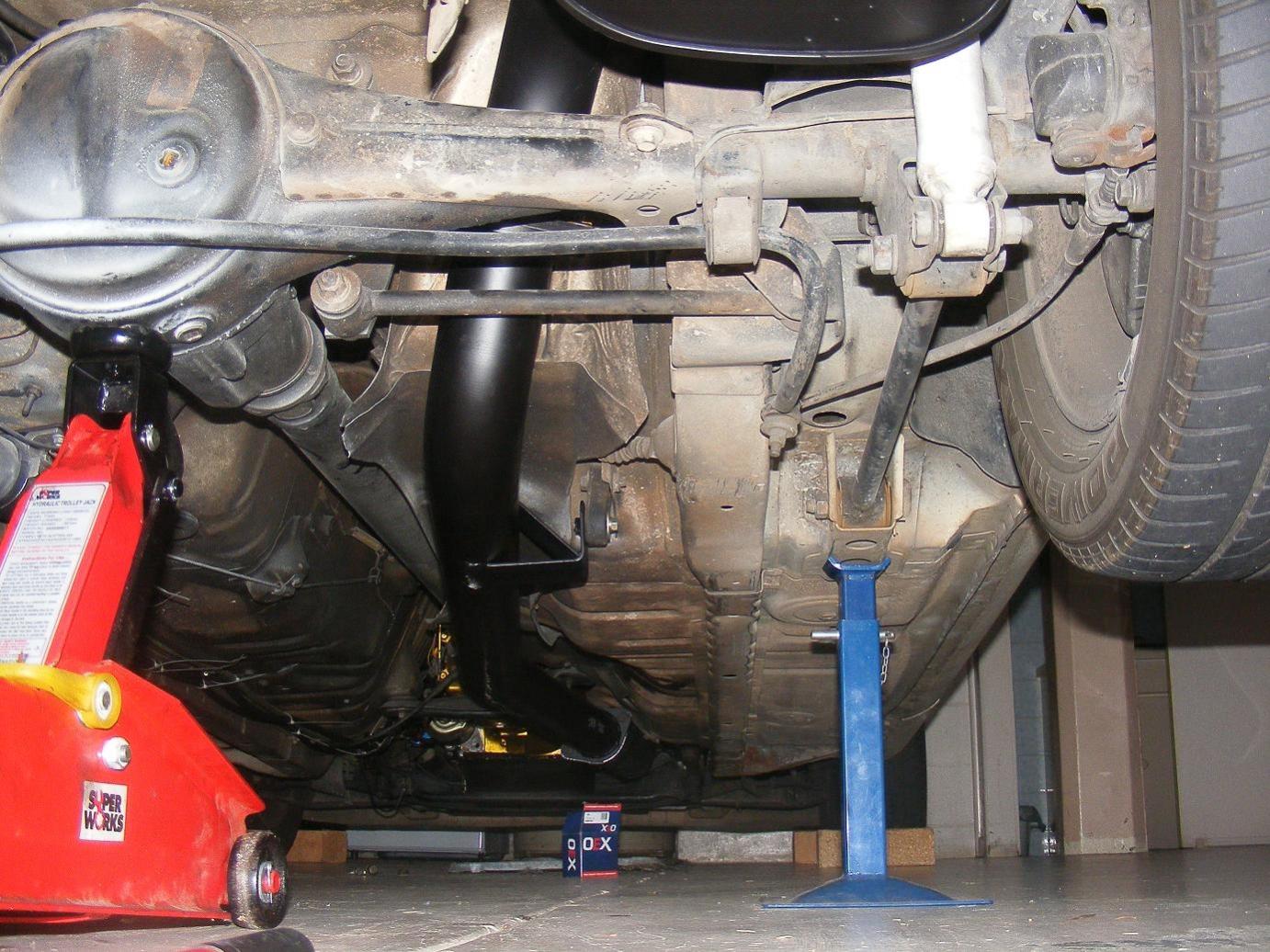

exchaust :custom 3in

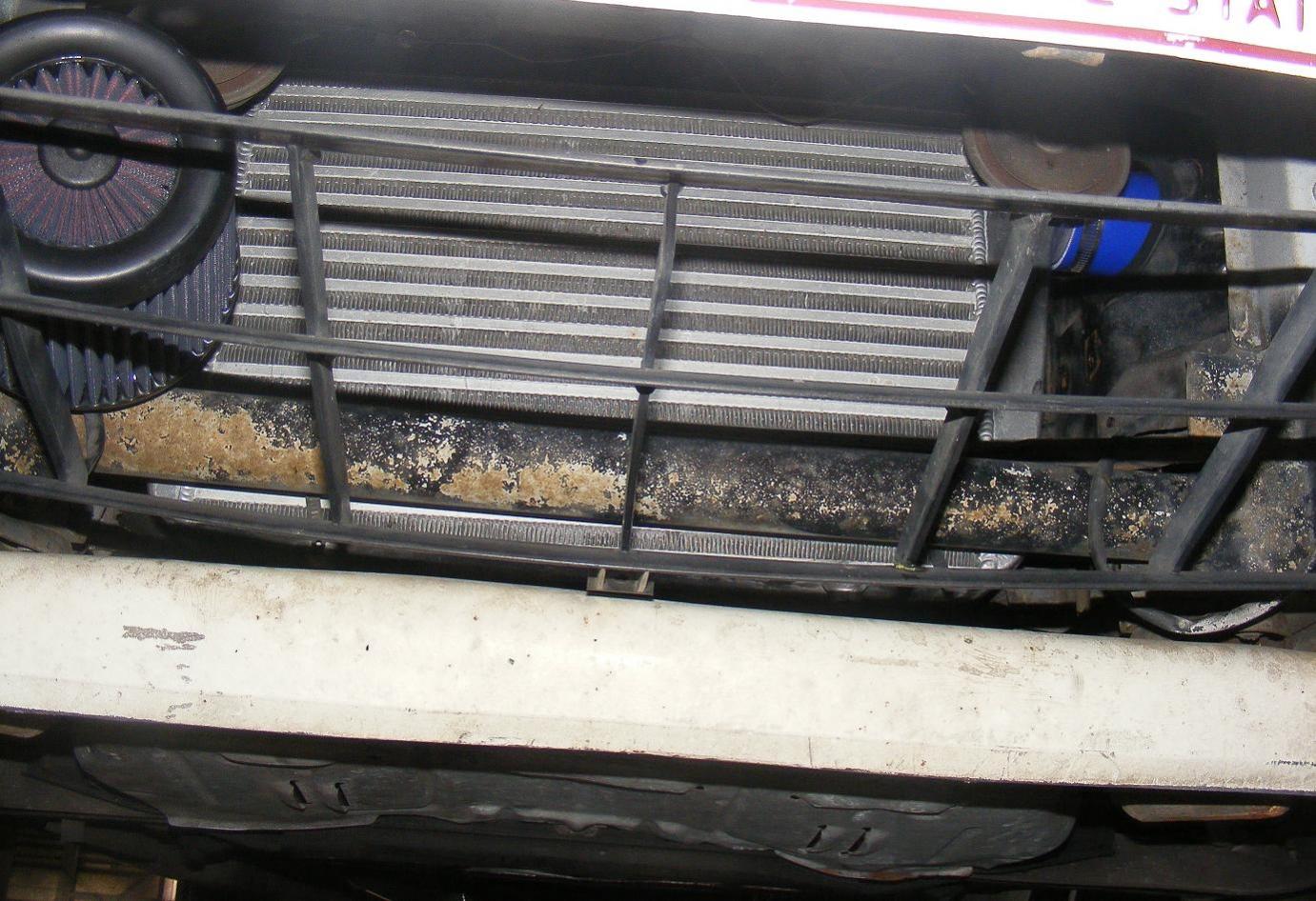

intercooler :custom FMIC
ecu : Microtech LT10S with X4 - 4x Bosch HEC715 Coils
injectors : 4x 1600cc indy blues (with the option of running 2 more)
Fuel pump: 2x Bosch 044
Aeromotive FPR
clutch : Custom 4 Puck solid centre
blow off valve :Monza
Got 370rwhp @ 17psi on the old setup but ran into fueling and spark issues.
Going to run E85, 25psi .... hoping for high 400's+
06-15-10, 08:08 AM
#530

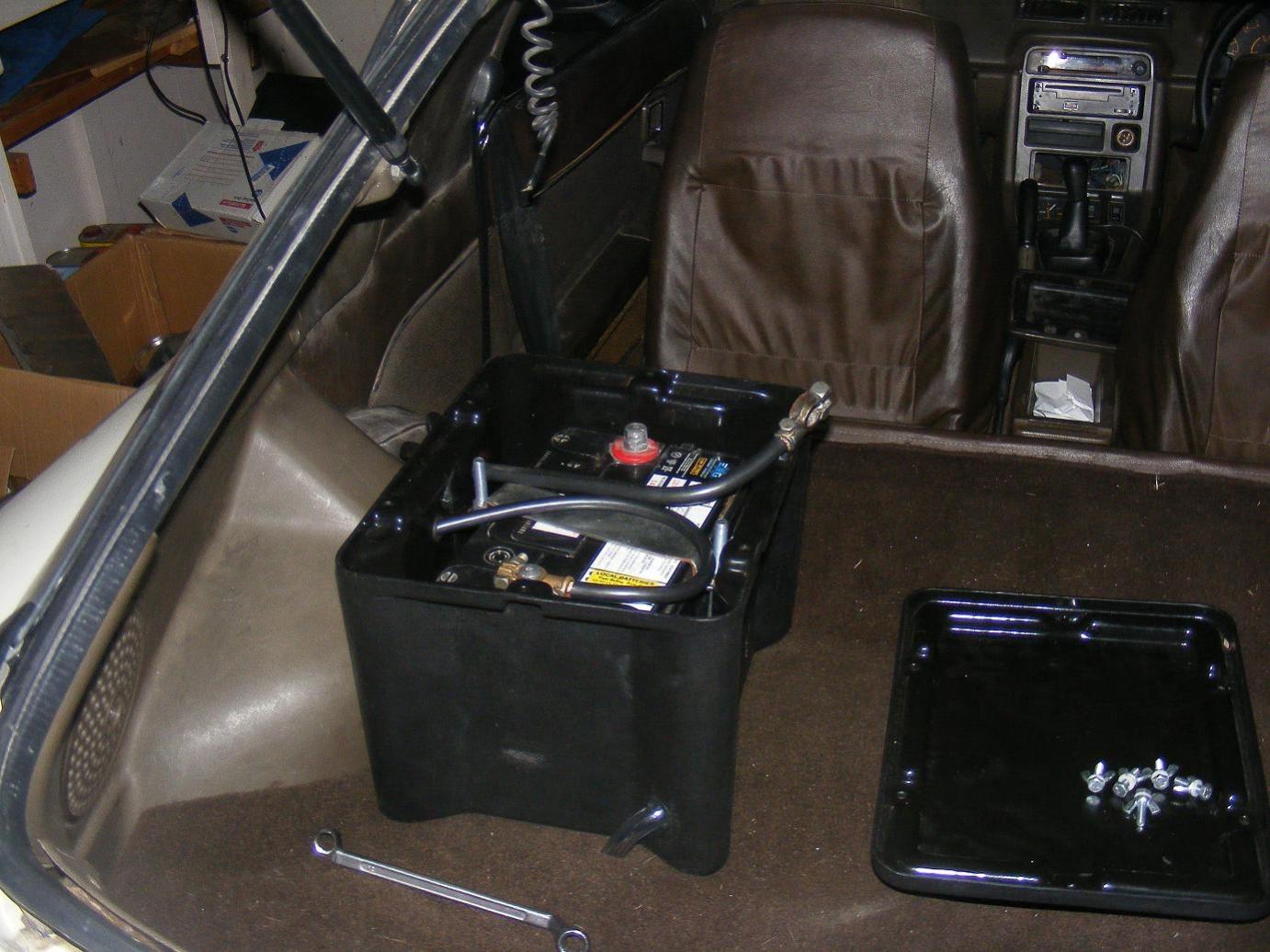

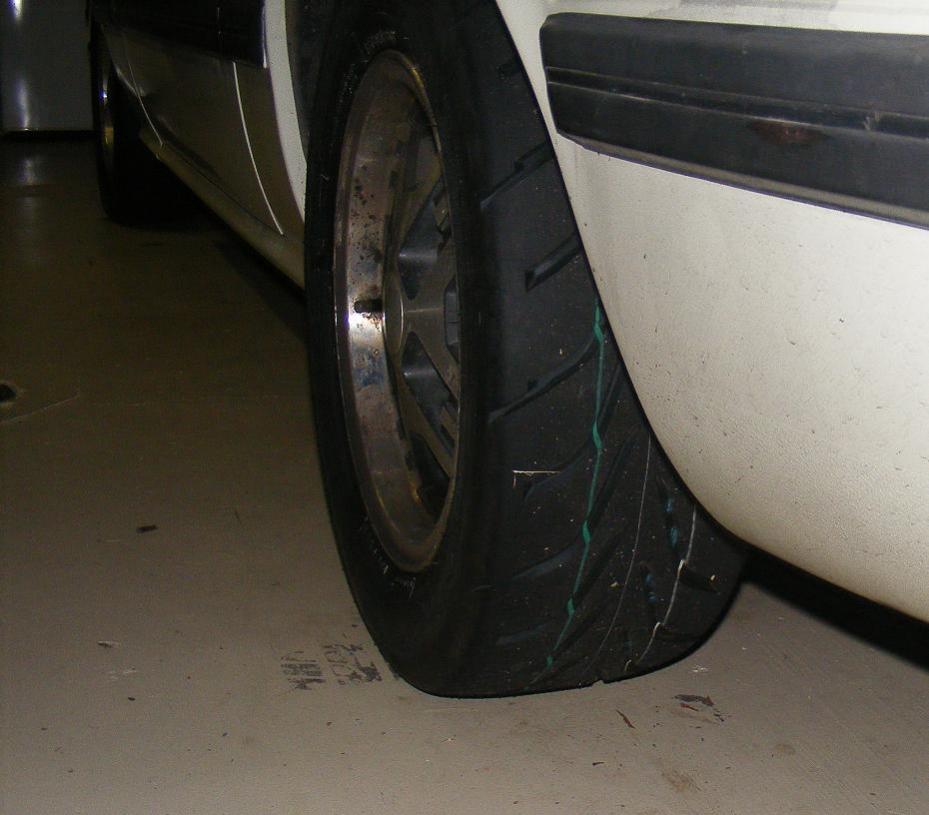

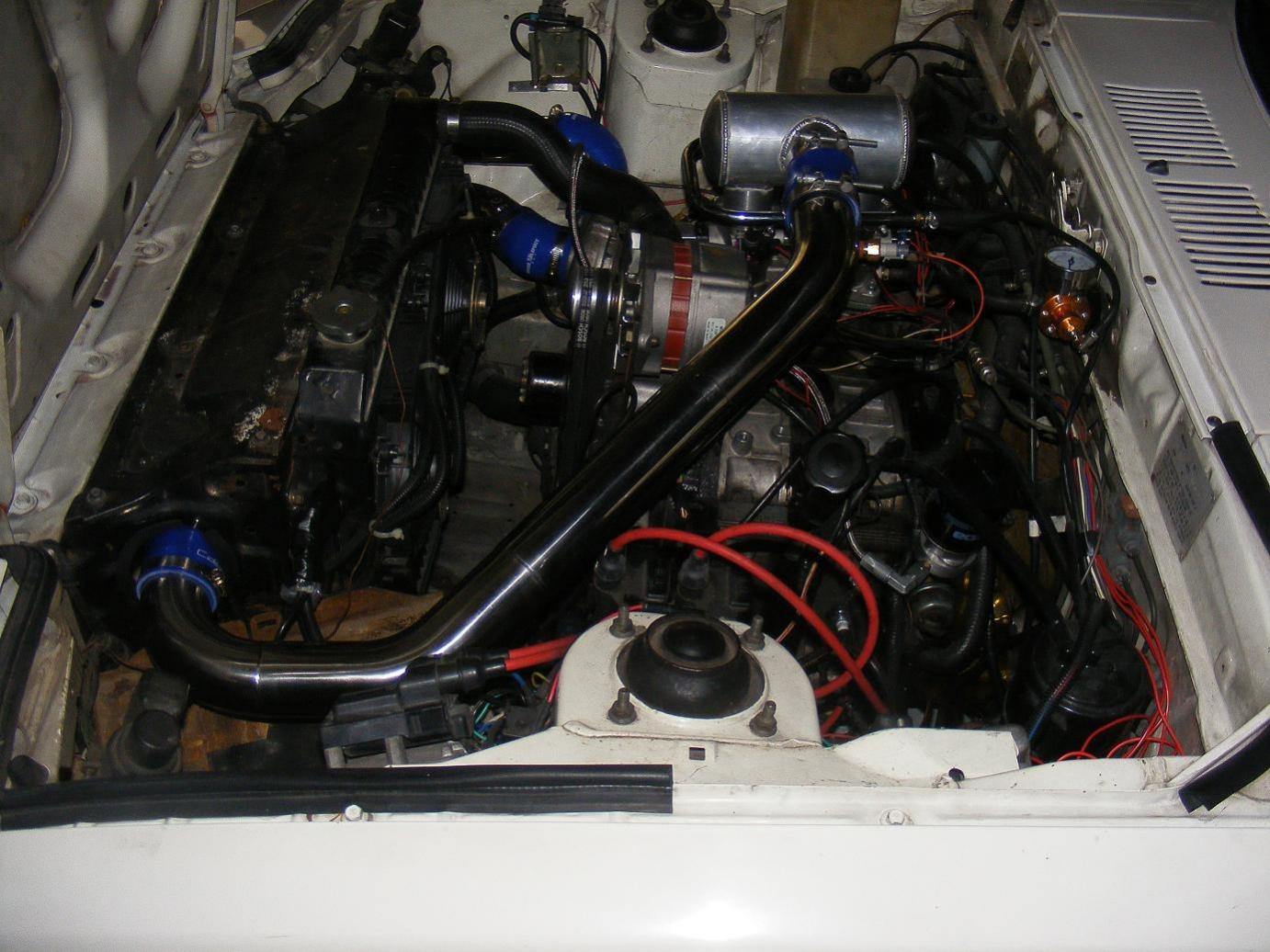

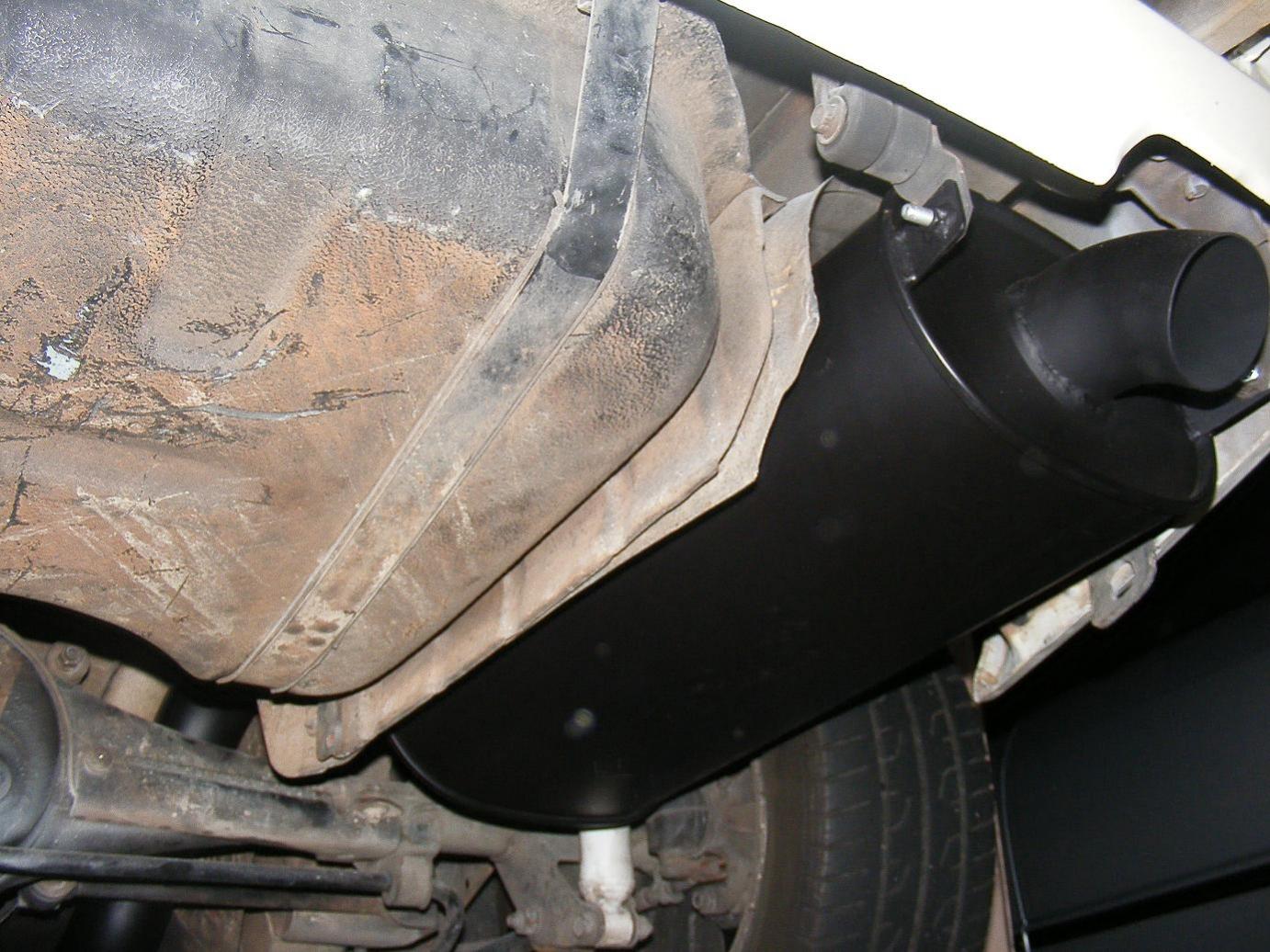

Some of you may have already seen some of my build pictures/ movies but here goes. 9.4:1 12A tallport with s5 turbo.
http://www.youtube.com/watch?v=P12jwypWL5U
http://www.youtube.com/watch?v=lSyFK_PvENc
http://www.youtube.com/watch?v=RsJp45zwUPs
http://www.youtube.com/watch?v=baPpXmgKjXo
http://www.youtube.com/watch?v=GmjTPWxI1Vk
Current PB is 13.095@112mph, weighing 2444lb, in full load its 2575lb and does 109mph. ET's are way off due to tooth pick axles and I blew a box a few weeks ago. Going to a similar spec turbo to stage2 bnr very soon.
http://www.youtube.com/watch?v=P12jwypWL5U
http://www.youtube.com/watch?v=lSyFK_PvENc
http://www.youtube.com/watch?v=RsJp45zwUPs
http://www.youtube.com/watch?v=baPpXmgKjXo
http://www.youtube.com/watch?v=GmjTPWxI1Vk
Current PB is 13.095@112mph, weighing 2444lb, in full load its 2575lb and does 109mph. ET's are way off due to tooth pick axles and I blew a box a few weeks ago. Going to a similar spec turbo to stage2 bnr very soon.
07-26-10, 04:24 PM
#532
Junior Member
Join Date: Feb 2006
Location: Orange County, Ca
Posts: 12
Likes: 0
Received 0 Likes
on
0 Posts
Mazda Rx3 Turbo Setup
Car: 74 Rx3
Engine: 89-91 SERIOUS 5 13B
Turbo: Turbonectics 62-1 .96/1.15ar Qtrim Exhaust, WET. Ceramic Ball Bearing, this thing spools!!!
Boost: 10lbs-30LBS
Manifold: Custom
Wastegate: Racegate 50mm
RWHP: never Dinoed, stock rear end ((guessing around 290-330) Lot's of wheelspin) Easily can reach 450-480 with a good rear, and suspension.
EMS: Haltech E6X
--------------------------------------------------------------------------------
Engine: 89-91 SERIOUS 5 13B
Turbo: Turbonectics 62-1 .96/1.15ar Qtrim Exhaust, WET. Ceramic Ball Bearing, this thing spools!!!
Boost: 10lbs-30LBS
Manifold: Custom
Wastegate: Racegate 50mm
RWHP: never Dinoed, stock rear end ((guessing around 290-330) Lot's of wheelspin) Easily can reach 450-480 with a good rear, and suspension.
EMS: Haltech E6X
--------------------------------------------------------------------------------
07-26-10, 08:52 PM
#533
Senior Member
Join Date: Aug 2008
Location: campbell river british columbia
Posts: 349
Likes: 0
Received 0 Likes
on
0 Posts
hey there here is my single turbo setup
car 93 r1
boosting (after tune 20psi)
motor-13brew stock ports, ported uim, emissions removed
greddy: t88-33D, ti manifold, type r wastegate, type rs bov, m spec intercooler, pulley kit
walbro 255 lph fuel pump, ss lines, russell fittings, kg parts fuel rails, 850 cc primarys, 1600cc secondarys
aeromotive fpr border racing japan burnout ti exhaust koyo n flow rad
brains: apexi power fc + datalogit, aem wideband, hks evc 6 boost controller+ turbo timer, knight sports 300+ hood
car 93 r1
boosting (after tune 20psi)
motor-13brew stock ports, ported uim, emissions removed
greddy: t88-33D, ti manifold, type r wastegate, type rs bov, m spec intercooler, pulley kit
walbro 255 lph fuel pump, ss lines, russell fittings, kg parts fuel rails, 850 cc primarys, 1600cc secondarys
aeromotive fpr border racing japan burnout ti exhaust koyo n flow rad
brains: apexi power fc + datalogit, aem wideband, hks evc 6 boost controller+ turbo timer, knight sports 300+ hood
Last edited by zxrazorxz; 07-26-10 at 08:54 PM. Reason: forgot facts
07-26-10, 09:58 PM
#534
Brappidy Brap
iTrader: (5)
Join Date: Mar 2007
Location: South Jersey
Posts: 504
Likes: 0
Received 0 Likes
on
0 Posts
Car: 87 gxl
Motor: S5 13bt
Turbo: BW S370
Boost: (est) 15 psi
Manifold:Fd tubular Greddy
Wastegate: Greddy 44mm
RWHP: yet to test
Brains:Microtech Lt12x
A lot more but u get the idea
Motor: S5 13bt
Turbo: BW S370
Boost: (est) 15 psi
Manifold:Fd tubular Greddy
Wastegate: Greddy 44mm
RWHP: yet to test
Brains:Microtech Lt12x
A lot more but u get the idea
07-29-10, 01:42 PM
#537
Car: 1993 Black R1
Engine: Base rebuild by Banzai Racing. Stock ports.
Turbo: Garrett GT35R (1.04)
Boost: 15psi
Manifold: XS Power (thanks for nothing rx7store! Will be replacing first chance I get)
Wastegate: TiAL
EMS: Power FC
RWHP: 404rwhp @15psi, was having ignition issues and the power leveled off ~7K rpms.
ET: 12.9@112mph, while only street tuned at 10psi with ignition breakup ~6300rpms.
Other details: KGParts secondary fuel rail with 1600cc injectors, KS V-mount intercooler kit, Greddy elbow, FJO injector driver, greddy profec b-II boost controller, HKS twin power, and pretty much everything deleted including air pump, AC, and PS.
Latest picture:
Engine: Base rebuild by Banzai Racing. Stock ports.
Turbo: Garrett GT35R (1.04)
Boost: 15psi
Manifold: XS Power (thanks for nothing rx7store! Will be replacing first chance I get)
Wastegate: TiAL
EMS: Power FC
RWHP: 404rwhp @15psi, was having ignition issues and the power leveled off ~7K rpms.
ET: 12.9@112mph, while only street tuned at 10psi with ignition breakup ~6300rpms.
Other details: KGParts secondary fuel rail with 1600cc injectors, KS V-mount intercooler kit, Greddy elbow, FJO injector driver, greddy profec b-II boost controller, HKS twin power, and pretty much everything deleted including air pump, AC, and PS.
Latest picture:
07-31-10, 07:47 PM
#538
DeathSquad Penguin
iTrader: (4)
Join Date: Oct 2009
Location: Cerritos
Posts: 132
Likes: 0
Received 0 Likes
on
0 Posts

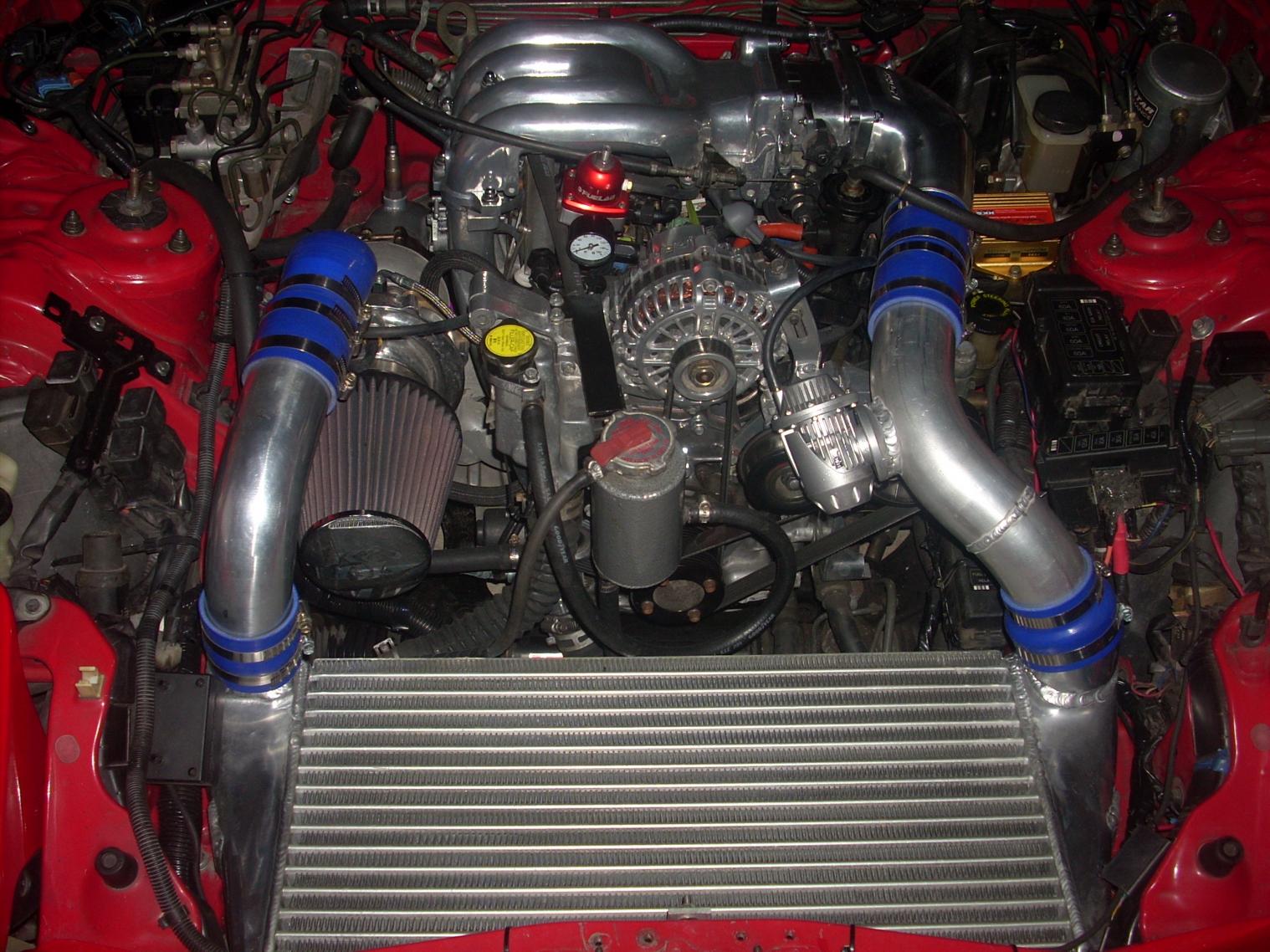

Heres my set up that just got done....waiting on a tune now......
Setup:
S5 TII
To4b 1.0 A/R Exh
Custom V-mount
CX racing Manifold
3in Custom Downpipe With a flex pipe
Hks ssq BOV
550 pri, 750 Sec
Haltech e8 EMS
HP: not tuned yet
Setup:
S5 TII
To4b 1.0 A/R Exh
Custom V-mount
CX racing Manifold
3in Custom Downpipe With a flex pipe
Hks ssq BOV
550 pri, 750 Sec
Haltech e8 EMS
HP: not tuned yet
08-02-10, 12:52 AM
#539
Senior Member
Join Date: Sep 2007
Location: troutdale,OR
Posts: 250
Likes: 0
Received 0 Likes
on
0 Posts
Hey everyone,
I have a 90 S5 FC with a pineapple rebuild w/ small street port.
i've been told that if i want to go turbo i should get a different engine.
I want something that will have a high acceleration, mainly for uphill mountain climbs and drifting.
I do have a spare S4 engine that im not using currently.
SO i need suggestions as to what setups to run and an estimate on cost.
I'm about to deploy so time is somewhat important; but money isnt.
Thank you!
I have a 90 S5 FC with a pineapple rebuild w/ small street port.
i've been told that if i want to go turbo i should get a different engine.
I want something that will have a high acceleration, mainly for uphill mountain climbs and drifting.
I do have a spare S4 engine that im not using currently.
SO i need suggestions as to what setups to run and an estimate on cost.
I'm about to deploy so time is somewhat important; but money isnt.
Thank you!
10-13-10, 11:59 AM
#548

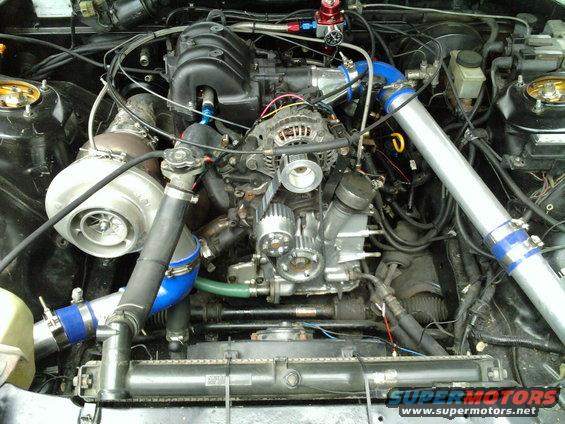

-Garrett GTX4294R
-SS Manifold Fabricated by Elliot @ Turblown
-4" Downpipe Fabricated by Elliot @ Turblown
This guy does amazing fabrication. If you want something custom and trick, this guy is the man to talk to.
-SS Manifold Fabricated by Elliot @ Turblown
-4" Downpipe Fabricated by Elliot @ Turblown
This guy does amazing fabrication. If you want something custom and trick, this guy is the man to talk to.
10-31-10, 02:54 AM
#550
Car: 93 base
Turbo: Garret GT35R
Boost: 14 currently.. 21/22 comming soon
Manifold: whatever came with rx7store kit lol
Wastegare: Tial
RWHP: guessing 485ish
EMS: Apexi Power FC
extras: FJO Fuel injector driver, hks twin power ignition, rx7store's ultimate fuel setup. greddy front mount, race port, aviation seals, profec b spec 2, supra pump, plenty more..
Turbo: Garret GT35R
Boost: 14 currently.. 21/22 comming soon
Manifold: whatever came with rx7store kit lol
Wastegare: Tial
RWHP: guessing 485ish
EMS: Apexi Power FC
extras: FJO Fuel injector driver, hks twin power ignition, rx7store's ultimate fuel setup. greddy front mount, race port, aviation seals, profec b spec 2, supra pump, plenty more..
