New Guy needs 13B Help

Old 07-04-19, 04:03 PM
  #1
Junior Member
Thread Starter

Join Date: Nov 2018
Location: CA
Posts: 5
Likes: 0
Received 0 Likes on 0 Posts
New Guy needs 13B Help

Long story short I got a sand rail from my dad who hasn't had time to get it running. The rail had a Subaru motor in it and he was going to switch to a 13B turbo motor in it. Well long story short hes older and now I'm trying to finish it for him.

Anyways I need some help. I'm trying to just figure out some basic stuff so I can start ordering parts.

Can anyone tell me what year motor this is?

Its was built but who knows what is done to it. I know it's not studded as it has bolts in the back holding it together.

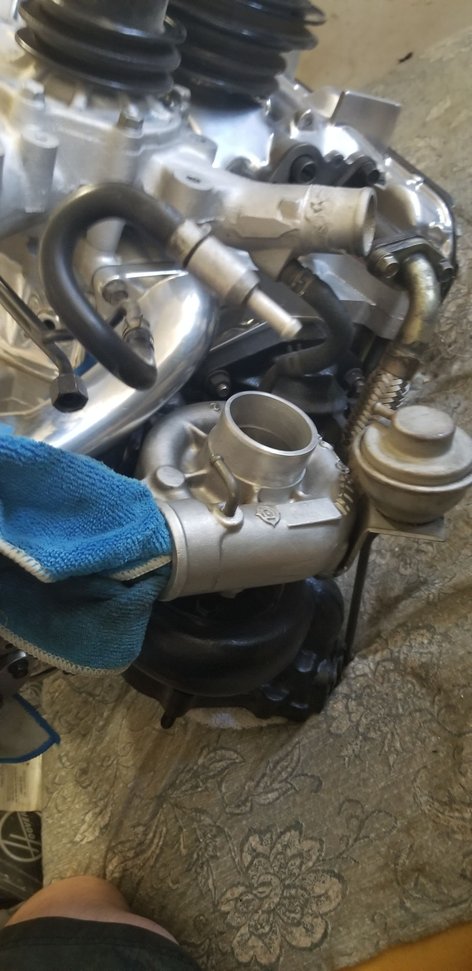

How much power can you make on the turbo that's on it. Looks stock to me?

I will be going e85 and pre mix

What size Injectors should I get and what fuel rails?

What ECU?






Any other info you guys can give me would be great

Thanks
Brent
Boost2311 is offline
Old 07-04-19, 09:24 PM
  #2
malignant narcissist
iTrader: (2)

diabolical1's Avatar

Join Date: Feb 2002
Location: FL
Posts: 9,532
Received 61 Likes on 57 Posts
welcome to the board, Brent.

the only thing i can see from the photos that might be suspect are the rotor housings. it looks like you may have a mix of S4 and S5, which is not ideal - possibly detrimental. there's really no point discussing power limit, with or without E85, until this is confirmed/addressed.

other than that, t just looks like a Gen 2 Turbo block. i'm not savvy enough to visually distinguish between S4 and S5 side housings without the engine apart, so i can't get more specific. maybe someone else can. water pump would suggest an S5 engine, but it's no guarantee given the mismatched rotor housings.

that said, research on your turbo question can start here:

1. https://www.rx7club.com/2nd-generati...k-turbo-88589/

2. https://www.rx7club.com/time-slips-d...-turbo-731841/
diabolical1 is offline
Old 07-04-19, 09:52 PM
  #3
Junior Member
Thread Starter

Join Date: Nov 2018
Location: CA
Posts: 5
Likes: 0
Received 0 Likes on 0 Posts




S4 by the 2 bolt holes?
Boost2311 is offline
Old 07-04-19, 09:57 PM
  #4
Junior Member
Thread Starter

Join Date: Nov 2018
Location: CA
Posts: 5
Likes: 0
Received 0 Likes on 0 Posts
I have a zeki intake in a box of parts of that helps
Boost2311 is offline
Old 07-04-19, 10:22 PM
  #5
Junior Member
Thread Starter

Join Date: Nov 2018
Location: CA
Posts: 5
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by diabolical1 View Post
welcome to the board, Brent.

the only thing i can see from the photos that might be suspect are the rotor housings. it looks like you may have a mix of S4 and S5, which is not ideal - possibly detrimental. there's really no point discussing power limit, with or without E85, until this is confirmed/addressed.

other than that, t just looks like a Gen 2 Turbo block. i'm not savvy enough to visually distinguish between S4 and S5 side housings without the engine apart, so i can't get more specific. maybe someone else can. water pump would suggest an S5 engine, but it's no guarantee given the mismatched rotor housings.

that said, research on your turbo question can start here:

1. https://www.rx7club.com/2nd-generati...k-turbo-88589/

2. https://www.rx7club.com/time-slips-d...-turbo-731841/

Thanks for the help. I'm trying to learn. Right now I just need to get the motor installed. Need to fab up some motor mounts to get it in the chassis.

Is there any difference in fuel rail setups on the different year 13b?
Boost2311 is offline
Old 07-05-19, 02:30 AM
  #6
malignant narcissist
iTrader: (2)

diabolical1's Avatar

Join Date: Feb 2002
Location: FL
Posts: 9,532
Received 61 Likes on 57 Posts
Originally Posted by Boost2311 View Post
Is there any difference in fuel rail setups on the different year 13b?
between S4 and S5? no.

everything except the injectors themselves are exactly the same.
diabolical1 is offline
Old 07-05-19, 11:10 AM
  #7
Rotary Madness
iTrader: (2)

rxtasy3's Avatar

Join Date: Jun 2002
Location: Spartanburg, SC
Posts: 7,546
Likes: 0
Received 64 Likes on 60 Posts
Originally Posted by diabolical1 View Post
everything except the injectors themselves are exactly the same.
and this difference is that one uses low imp injectors and the other high imp? or is there more to it?
rxtasy3 is offline
Old 07-05-19, 12:56 PM
  #8
Lapping = Fapping
iTrader: (12)

Jeff20B's Avatar

Join Date: Aug 2001
Location: Near Seattle
Posts: 15,616
Received 36 Likes on 34 Posts
Those rotor housings should not be used together in the same engine. The rear iron is S4.
Jeff20B is offline
Old 07-05-19, 04:29 PM
  #9
malignant narcissist
iTrader: (2)

diabolical1's Avatar

Join Date: Feb 2002
Location: FL
Posts: 9,532
Received 61 Likes on 57 Posts
Originally Posted by rxtasy3 View Post
and this difference is that one uses low imp injectors and the other high imp? or is there more to it?
that, and the connectors.

my understanding of it is as follows (someone please correct me if i am wrong)

1986-87 - low impedance with standard Bosch connectors (the square ones, i think they are designated EV1)

1989-92 - high impedance with standard Denso connectors

1988 - had the standard Bosch EV1, but depending on build date, you can have low impedance or high impedance
diabolical1 is offline
Old 07-06-19, 07:02 PM
  #10
malignant narcissist
iTrader: (2)

diabolical1's Avatar

Join Date: Feb 2002
Location: FL
Posts: 9,532
Received 61 Likes on 57 Posts
Originally Posted by Jeff20B View Post
The rear iron is S4.
what's the tell?
diabolical1 is offline
Old 07-07-19, 12:52 PM
  #11
Lapping = Fapping
iTrader: (12)

Jeff20B's Avatar

Join Date: Aug 2001
Location: Near Seattle
Posts: 15,616
Received 36 Likes on 34 Posts
The S4 rear iron has two threaded holes for the upper inspection cover. He shows where it was rotated slightly, revealing the "tell". You see, the S5 needed clearance right there for the VDI type of intake manifold because it is more bulky there than S4. So they eliminated that hole. Cosmo and FD rears also lack that hole.
Jeff20B is offline
Old 07-08-19, 01:45 PM
  #12
Sponsor
RX7Club Vendor
iTrader: (41)

IRPerformance's Avatar

Join Date: Apr 2003
Location: NJ
Posts: 11,014
Received 57 Likes on 49 Posts
Looks like you have a mix of s4 and s5 parts, particularly the rotor housings. They have different spark plug spacing, which will affect the timing. I would not run that motor as is.
__________________
http://irperformance.com
Engine builds, single turbo kits, parts sales, performance upgrades, maintenance, tuning
732-662-1794 [email protected]
Brand new Mazda oem 13brew motors available. $4699 NO CORE FEE. VERY LIMITED. Check out our new turbo kits http://www.irperformance.com/product...zda/rx7/turbo/
IRPerformance is offline
Old 07-12-19, 09:12 PM
  #13
Junior Member
Thread Starter

Join Date: Nov 2018
Location: CA
Posts: 5
Likes: 0
Received 0 Likes on 0 Posts
Thank you all. I see they are different as for spark plug spacing. Dont know why a rotary shop would build it this way. Well I guess I will get the engine in and then pull the engine apart and fix it. It's a fresh build so it shouldn't be to big of a deal unless they messed something up internal
Boost2311 is offline
Old 07-13-19, 04:42 PM
  #14
Senior Member

psyaddict's Avatar

Join Date: Oct 2012
Location: Tallinn, Estonia
Posts: 456
Received 3 Likes on 3 Posts
i thought only s4 usdm n/a housings have the spark plug holes closer together...?
psyaddict is offline
