Dyno Graphs
Please post your HP numbers and modifications. If you have your Dyno sheet please upload it.

Jason
Jason is offline
Reply Like
The following users liked this post:
lucastyle23 (01-29-22)
Old 10-04-03, 11:59 PM
  #2
The one
Thread Starter
iTrader: (5)

Jason's Avatar

Join Date: Jul 2001
Location: Fort Worth, TX
Posts: 3,862
Likes: 0
Received 4 Likes on 4 Posts
458 RWHP 340 Torque
458 RWHP 340 Torque at 16lbs of boost.

Modifications include:
Large Port
T-78 Turbo
HKS Twin Power
1000cc/1600cc injectors
Power FC
Aeromotive fuel pump, -8 lines, SX FPR
Greddy 3 row intercooler
Apexi GT Spec Exhaust
Rx7store midpipe
Tuned by rx7store.net

Jason
Jason is offline
Reply Like
Old 10-06-03, 03:26 AM
  #3
WTB** Very Low Miles 94-95


artguy's Avatar

Join Date: Jul 2001
Location: Tejas
Posts: 3,298
Likes: 0
Received 0 Likes on 0 Posts
see the sig...

www.conceptart.org/dyno

j
artguy is offline
Reply Like
Old 10-06-03, 11:35 AM
  #4
The Power of 1.3


911GT2's Avatar

Join Date: Aug 2001
Location: Shrewsbury, Massachusetts
Posts: 2,837
Likes: 0
Received 0 Likes on 0 Posts
260.2 rwhp 228.3 lb. ft.
Relevant Mods:
KDR rebuit motor, rebuilt turbos setup full non-sequential, (both ~4000 miles) Steve Kan tuned APEXi Power FC and commander, ACT streep/strip clutch, HKS downpipe, APEXi intake, GReddy Profec B.

260.2 rwhp 228.3 lb. ft. @12 psi

Dyno Graph:
http://images.fotopic.net/?id=136241...ze=1&nostamp=1
911GT2 is offline
Reply Like
Old 10-06-03, 12:50 PM
  #5
Senior Member


Conv.WS6's Avatar

Join Date: Apr 2001
Location: Winchester, VA
Posts: 352
Likes: 0
Received 0 Likes on 0 Posts
See Sig
Conv.WS6 is offline
Reply Like
Old 10-11-03, 10:32 PM
  #6
Senior Member

iTrader: (5)

mako's Avatar

Join Date: Apr 2001
Location: Dallas, Tx
Posts: 446
Likes: 0
Received 0 Likes on 0 Posts
297 rwhp 237 rwtq on 8psi should have the updated #s when my boost controller gets in. there wideband was having issues.

dyno sheet http://206.54.188.4/dyno.jpg

James
mako is offline
Reply Like
Old 10-11-03, 11:22 PM
  #7
The one
Thread Starter
iTrader: (5)

Jason's Avatar

Join Date: Jul 2001
Location: Fort Worth, TX
Posts: 3,862
Likes: 0
Received 4 Likes on 4 Posts
506 RWHP 383 RWTQ
Update: 506 RWHP 383 RWTQ
New numbers at 19 PSI with an 11.0 A/F

https://www.rx7club.com/attachment.p...postid=2224452

Modifications include:
Large Port
T-78 Turbo
HKS Twin Power
1000cc/1600cc injectors
Power FC
Aeromotive fuel pump, -8 lines, SX FPR
Greddy 3 row intercooler
Apexi GT Spec Exhaust
Rx7store midpipe
Tuned by rx7store.net
Jason is offline
Reply Like

Trending Topics

Old 10-24-03, 10:37 PM
  #8
Tej
Newbie

Join Date: Oct 2003
Location: Washington
Posts: 1
Likes: 0
Received 0 Likes on 0 Posts
@24psi 654hp 382ftbs to the Fly!!
1/4 9.94 @ 135.4

Weight 2735lbs
Speed 155.32mph
Tires 22.5
Gears 3.88
RPM 9000
Compression Ratio 8.5:1

.: Modificationz :.
Modz Tababe Suspention
Bonez Brakez
Mazda LSD
MS RPP Frame
AEM Plug and Play
TD07 25G-17cm (Boosted)
Greddy Intercooler-w/Pipin'
Greddy Blow off Valves
Jet Chip
Apex Sealz (3mm)
Apex ITC
Injectorz -
-720cc Primez,
-1600cc 2nd
Competition Reg and
-Fuel Pump
HKS Intake
High Flow Throttle Body
Alum. Fly Wheel
Fluidyne Radiator
Clutch Master FX300
Jacobz Pro Pak
VITEK Wirez
HKS Plugz
Bonez 3" Full Cat Kit
Sep. Tank
Lrg. Bridge Port
Veilside C1 Body Kit

GOD DAMN I LOVE THIZ FUKKEN CAR!!
Special Thankz To Atkins Rotary!!
Tej is offline
Reply Like
Old 11-05-03, 10:47 AM
  #9
I swear my car hates me!


RedX7's Avatar

Join Date: Jun 2002
Location: San Diego, CA
Posts: 629
Likes: 0
Received 0 Likes on 0 Posts
312.6rwhp and 248.9ft-lbs @ 12psi
I will scan my dyno sheet as soon as possible. Mods in sig. My j-spec tail lights add at least 10hp.
RedX7 is offline
Reply Like
Old 11-13-03, 05:25 PM
  #10
Full Member

iTrader: (1)

myR1's Avatar

Join Date: Apr 2003
Location: Cincinnati
Posts: 247
Likes: 0
Received 0 Likes on 0 Posts
390 RWHP 329RWTQ
15 PSI 10.5 A/F stock motor

Mods:
HKS T04R kit
HKS Twin Power
Fuel system (pump, 1600 sec., regulator)
Greddy FMIC
rx7store mp
Apexi N1 exhaust
Power FC

*thanks rx7store
myR1 is offline
Reply Like
Old 11-15-03, 09:01 PM
  #11
Looking for 10's

iTrader: (63)

fastrx7man's Avatar

Join Date: Nov 2001
Location: Lantana, Texas
Posts: 3,568
Received 1 Like on 1 Post
See sig...mustang dyno.
fastrx7man is offline
Reply Like
Old 12-19-03, 02:02 PM
  #12
Boricua


machinis's Avatar

Join Date: Sep 2002
Location: Fernandina Beach, FL
Posts: 148
Received 0 Likes on 0 Posts
Originally posted by JonathanJuan
im looking to make about 650-700 hp at the crank on my fd...can someone help me?
machinis is offline
Reply Like
Old 01-09-04, 10:03 PM
  #13
Junior Member


bill p's Avatar

Join Date: Aug 2003
Location: deltona, fl
Posts: 11
Likes: 0
Received 0 Likes on 0 Posts
431 RWHP/335RWTQ @ 14 psi
Mod:
lg street port
xs-t04s turbo
apex-i gt spec fmic
hks waste gate
apex-i bov
apex-i down pipe
holley fuel pump
k&n intake
pettit ecu
pettit pullies
koyo rad.
performance clutch masters stagelll clutch
s-afc
midpipe
aeromotive fpr
super dragger exhaust
tuned by garage advance
550cc/1100cc inj
Last edited by bill p; 01-09-04 at 10:09 PM.
bill p is offline
Reply Like
Old 02-09-04, 06:28 PM
  #14
Senior Member


Dragonz818's Avatar

Join Date: May 2002
Location: NJ
Posts: 492
Likes: 0
Received 0 Likes on 0 Posts
I made like 280 but need tons of tuning
Dragonz818 is offline
Reply Like
Old 02-19-04, 03:44 PM
  #15
Junior Member


rx7ttlm's Avatar

Join Date: Feb 2004
Location: San Diego CA
Posts: 13
Likes: 0
Received 0 Likes on 0 Posts
JonathanJuan- get ahold of sean and SR Motorsports, but get your check book ready lol ever consider a 3 rotor swap?
rx7ttlm is offline
Reply Like
Old 03-04-04, 03:43 PM
  #16
3rd motors a charm I hope


fastcarfreak's Avatar

Join Date: Apr 2003
Location: Central New York
Posts: 2,054
Likes: 0
Received 0 Likes on 0 Posts
403 rwhp
340 rwt

19 psi on stock motor with mods in sig and kdr anti detonation device
fastcarfreak is offline
Reply Like
Old 03-11-04, 05:09 PM
  #17
Ee / Cpe


XSTransAm's Avatar

Join Date: Jan 2003
Location: Gaithersburg, MD / WVU
Posts: 2,843
Likes: 0
Received 2 Likes on 2 Posts
before and after a midpipe
https://www.rx7club.com/attachment.p...postid=2429807

mods:
apexi intake
dp mp cb
haltech e6k
non-seq
running 15psi
tuned by me
Last edited by XSTransAm; 03-11-04 at 05:12 PM.
XSTransAm is offline
Reply Like
Old 03-15-04, 05:25 PM
  #18
Full Member


drift-sport's Avatar

Join Date: Feb 2003
Location: Dallas, TX
Posts: 206
Likes: 0
Received 0 Likes on 0 Posts
All the basic motor and safety mods. Running .9 bar, no air pump, no cats, stock motor with 22000 miles, stock twins and front mount.

Attached is the dyno sheet
Attached Thumbnails Dyno Graphs-evan_radler_dyno.jpg
drift-sport is offline
Reply Like
Old 03-16-04, 09:33 PM
  #19
Senior Member


wiblergt's Avatar

Join Date: Sep 2003
Location: Scottsdale, AZ
Posts: 444
Likes: 0
Received 0 Likes on 0 Posts
HKS intake
DP
Pettit highflo cat
HKS Carbon-Ti cat back
efini Y-pipe (if that makes a difference)
stock ECU
7k on new motor w/ no port, stock boost setting with a 12 psi spike on the first turbo

1st pull... 295 Max Power @7000 235.5 torque @3000
2nd pull...301 Max Power @7000 242 torque @3000

mustang dynamometer

i was impressed... only expecting 280-285RWHP
wiblergt is offline
Reply Like
Old 03-18-04, 09:40 AM
  #20
Photo Diety


rx7tt95's Avatar

Join Date: Mar 2001
Location: Florida
Posts: 2,311
Likes: 0
Received 0 Likes on 0 Posts
406rwhp
at 15.6psi, 11.1:1 a/f ratio
no idea on torque
https://www.rx7club.com/forum/showth...hreadid=283479
Cosmo 13B street port
FD upper and lower intake manifold
Undivided GReddy exhaust manifold
Garrett GT40(82) plain bearing turbo
See my sig for the rest of the mods
rx7tt95 is offline
Reply Like
Old 03-30-04, 02:32 PM
  #21
Junior Member


94RXse7en's Avatar

Join Date: Apr 2002
Location: Utah
Posts: 39
Likes: 0
Received 0 Likes on 0 Posts
332.1 rwhp @ 6,000 rpm
303.4 rwt @ 5,600 rpm

mustang dyno in Utah at 4,300 ft

http://www.brodiepeterson.com/94rxSe...hpScan-800.jpg

0.76 bar primary
0.92 bar secondary
with a sloppy transition that i can not seem to work out
drops to 0.35 bar and slowly builds back up to 0.92 by about 4,700rpm

stock motor, stock seq twins, 1300cc secondaries, Apex'i Power FC, M2 Medium IC, M2 carbon fiber intake, dp, N-tech high flow cat, Apex'i Dual N1, and a bunch of other stuff that does not make hp
Last edited by 94RXse7en; 03-30-04 at 02:39 PM.
94RXse7en is offline
Reply Like
Old 04-14-04, 01:50 PM
  #22
Administrative Me


Red-Rx7's Avatar

Join Date: Feb 2001
Location: Kansas
Posts: 1,370
Likes: 0
Received 0 Likes on 0 Posts
http://home.comcast.net/~mhaun5/rx7/13psiDyno.jpg

13.6 psi.
Red-Rx7 is offline
Reply Like
Old 05-31-04, 02:09 PM
  #23
Rotary Enthusiast


spoolin's Avatar

Join Date: Aug 2001
Location: Memphis, TN - wishin' i was back in Ft Worth
Posts: 1,024
Likes: 0
Received 1 Like on 1 Post
474rwhp 370tq
19psi
large gotham racing streetport
stage 2 gotham racing manifold/twin tial 38mm wastegates
to4r w/1.00 a/r divided
3" downpipe
greddy 2 row fmic
tial bov
550/1600cc injectors
sx fpr
powerfc and dataloggit
supra tt pump
pettit resonated mp
gotham racing titanium catback
pwr radiator
hks twin power
techedge diy o2 wideband
exedy twin disc clutch
gotham racing pulley kit
STEVE KAN TUNING

http://www.gothamracing.com/pics/Ste...rbo%20kit1.jpg
Last edited by spoolin; 05-31-04 at 02:11 PM.
spoolin is offline
Reply Like
Old 06-03-04, 03:08 AM
  #24
Senior Member


Rx_treme's Avatar

Join Date: Feb 2001
Location: Glendale, AZ
Posts: 337
Likes: 0
Received 0 Likes on 0 Posts
here's mine

Stock S4 Jspec
HKS manifold, w/g
3" turbo back to N1 Duals
Turbonetics 60-1 .96 rear
550/1680cc
Haltech E6K
Spearco FMIC

1 bar over 2 years ago on 93 pump gas.
381 rwhp / 317 rwtq
http://www.idahorotary.com/Jasondyno.jpg

1.4 bar last month on leaned out 117 with advanced timing.
400 rwhp / 335 rwtq
http://www.idahorotary.com/dyno399.jpg

Hmmm someone was getting tired....

Then blew it up on 1.6 bar.
Last edited by Rx_treme; 06-03-04 at 03:11 AM.
Rx_treme is offline
Reply Like
Old 06-03-04, 03:18 AM
  #25
Senior Member


Rx_treme's Avatar

Join Date: Feb 2001
Location: Glendale, AZ
Posts: 337
Likes: 0
Received 0 Likes on 0 Posts
My friends car!

Big Streetport S4
HKS div ss manifold, T'netics W/G
T'netics T70 .84 hotside
Greddy 32 row FMIC
3" back to Racing Beat duals
Microtec lt8
720/1680cc


Up to 19 psi dropping to 16 by redline
110 octane, advanced timing
Wayyy toooo much fuel

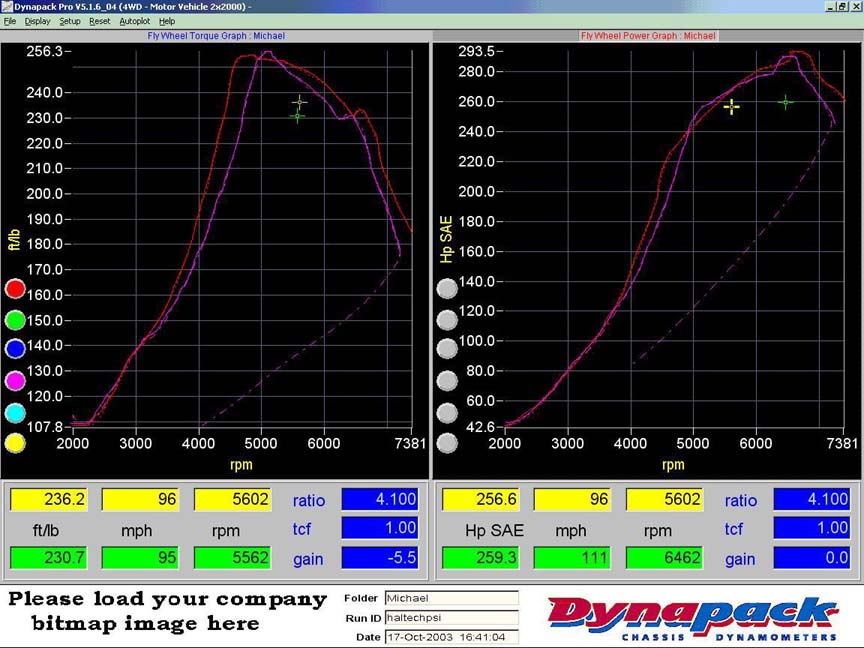

449 rwhp / 347 rwtq
http://www.idahorotary.com/dyno448.jpg
Last edited by Rx_treme; 06-03-04 at 03:21 AM.
Rx_treme is offline
Reply Like



Advanced Search
Quick Reply: Dyno Graphs


Reply Closed Thread Share

All times are GMT -5. The time now is 05:31 AM.
