That looks like a jamnut pass through. Why did you have to weld on the circular piece?



Whats a jamnut pass through?

Well I didn't want to use bolts and screws and i didn't want to use an adhesive either.. so We just tacked it on there. It won't go anywhere



So that large ring was part of the connector?

A jam nut bulkhead connector just has a large nut around the entire connector on the interior side of the firewall. So you just cut a hole the diameter of the connector and use the jam nut on the back side.



Ohh okay.. that makes more sense. I actually just cut the Giant ring out of some scrap steel that was sitting around. Its about 2 1/2 Inches-ish. The Cannon plug had a ring that screwed on one side and a little rubber seal that goes on the backside.. Rywire supplied all that with the harness. I believe they come standard with the Cannon/plug option.



Are you running EGTs? If so how are you running them to the ECU or Gauge?



^ hey shawn!

I'm running dual EGT's from Powered By Max/GT factory. They have their own individual electronic guages i'll be making a custom little display in my cabin. I'll post pics soon!

Little update:

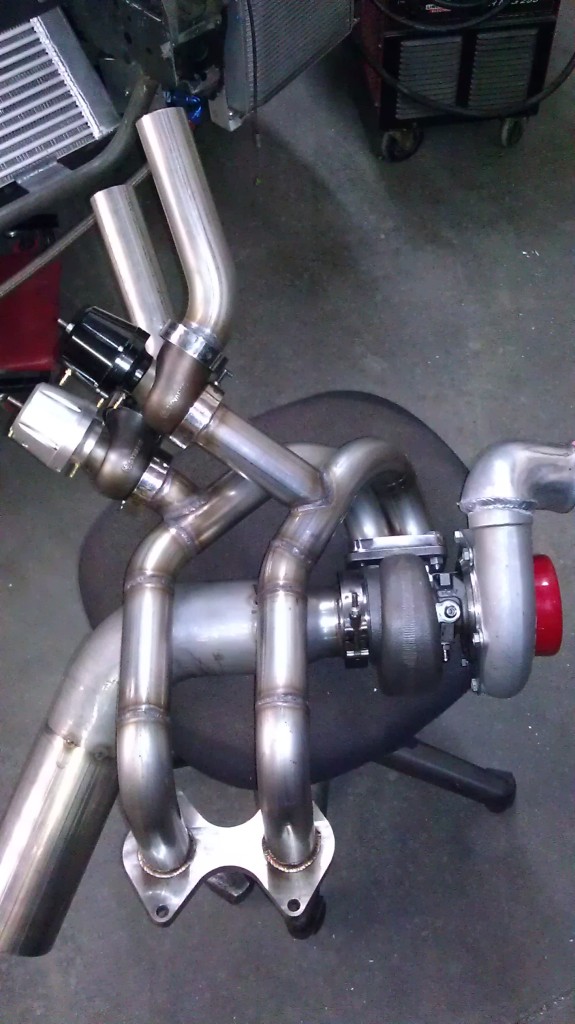

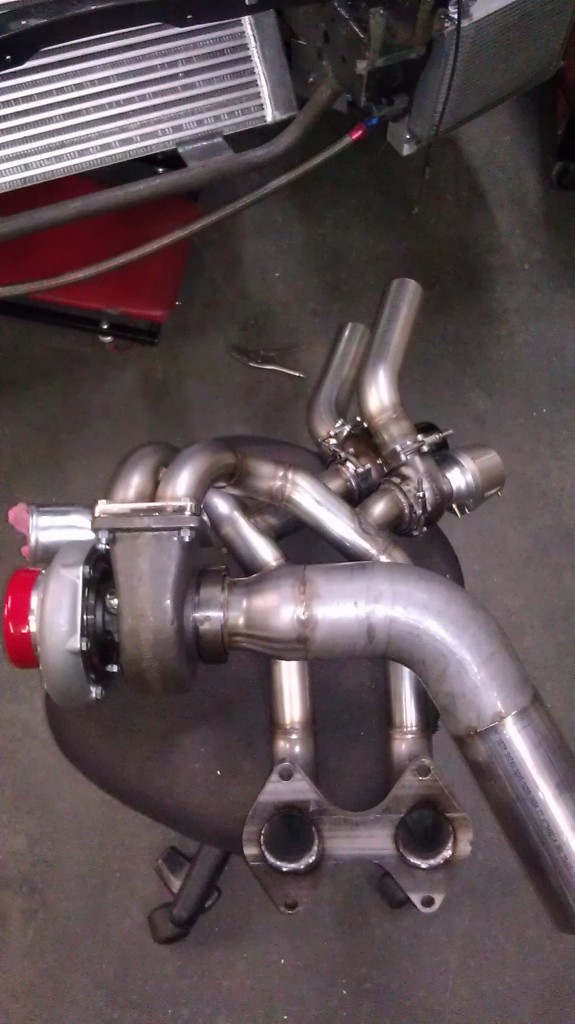

as promised here is a picture of the almost complete manifold. And my almost complete I mean we need to do a little blending on the turbo flange side. Note the length of the runners! Thermal expansion =win! very excited what this combined with my long runner UIM will do as far as hp/tq ratio! If everything works out i'll have one hell of a useable powerband =-)

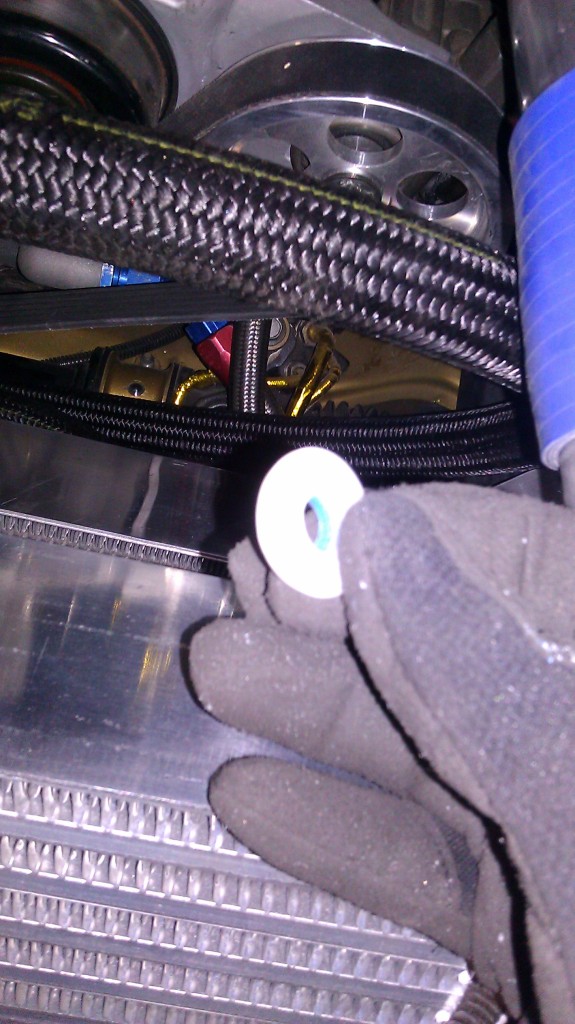

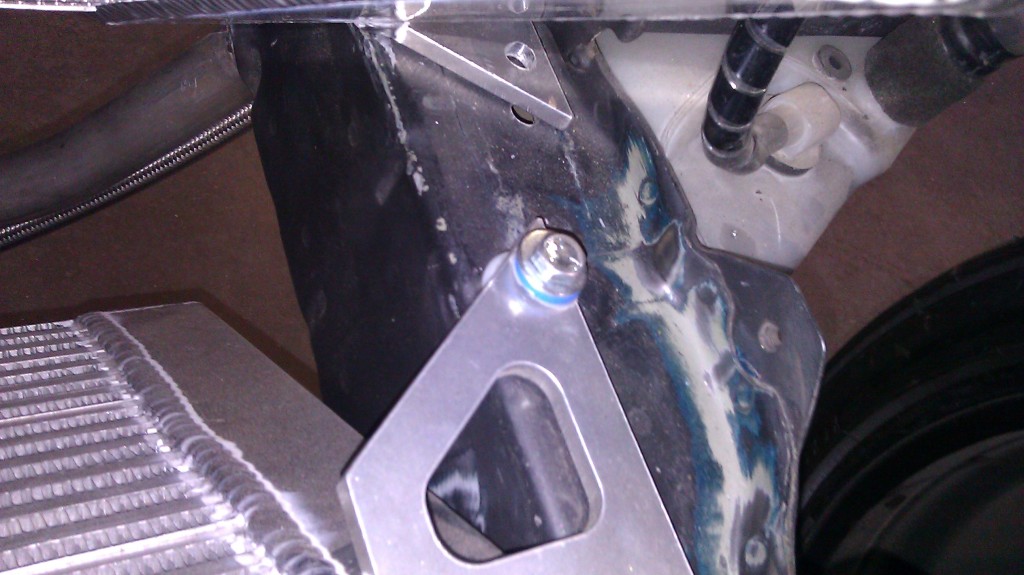

Bought some Skateboard "shorty's Doh-Doh's truck bushings and shaved them down a little bit for my radiator mounts.. Came out good! I may look for some sweet colored ones down the line but these do the job well. I used the softest bushings I could find as they were pretty stiff but after cutting them I think they'll provide just the right amount of support. Used a little washer just to disperse the load and whaaalaah!

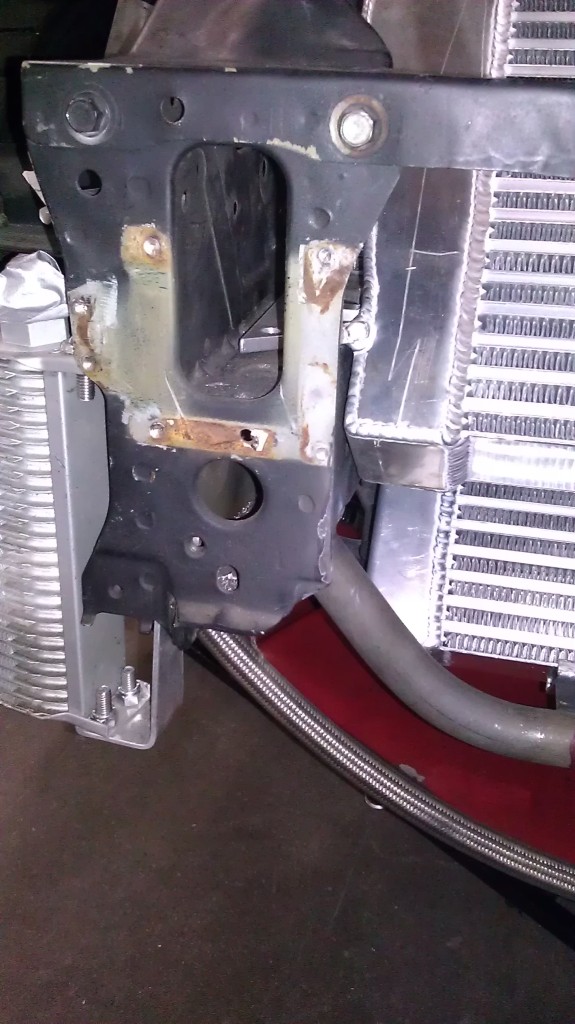

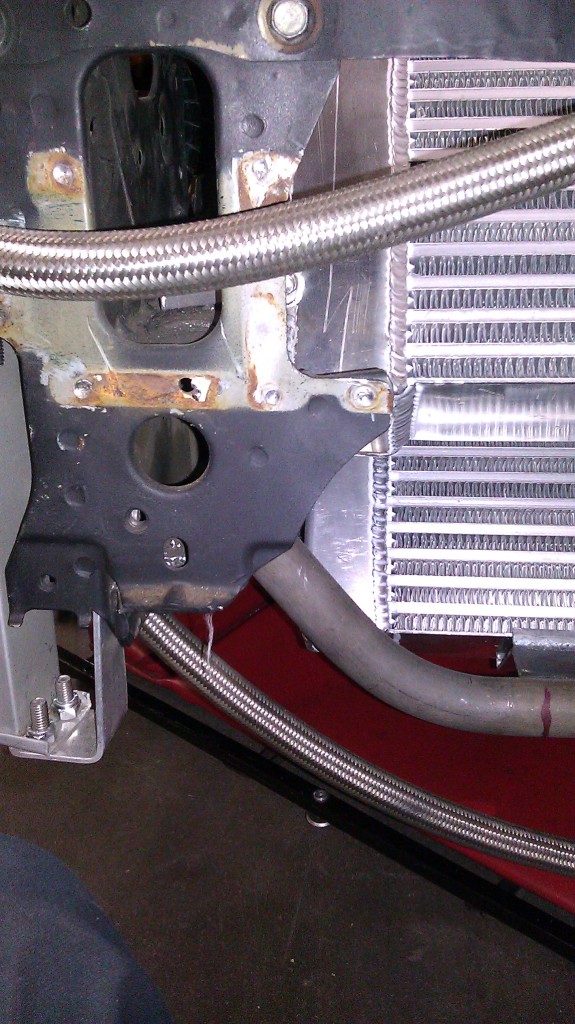

Then I decided to clean up the front end in prep for my Bash bar. Cut some loose ends smoothed it out with the grinder. Then cut some plates and welded them together. Utilizing scrap metal and puting it to use because I'm cheap and metal is expensive haha and today i'll be doing the mounts for them.
Before

After.....did the same to each side

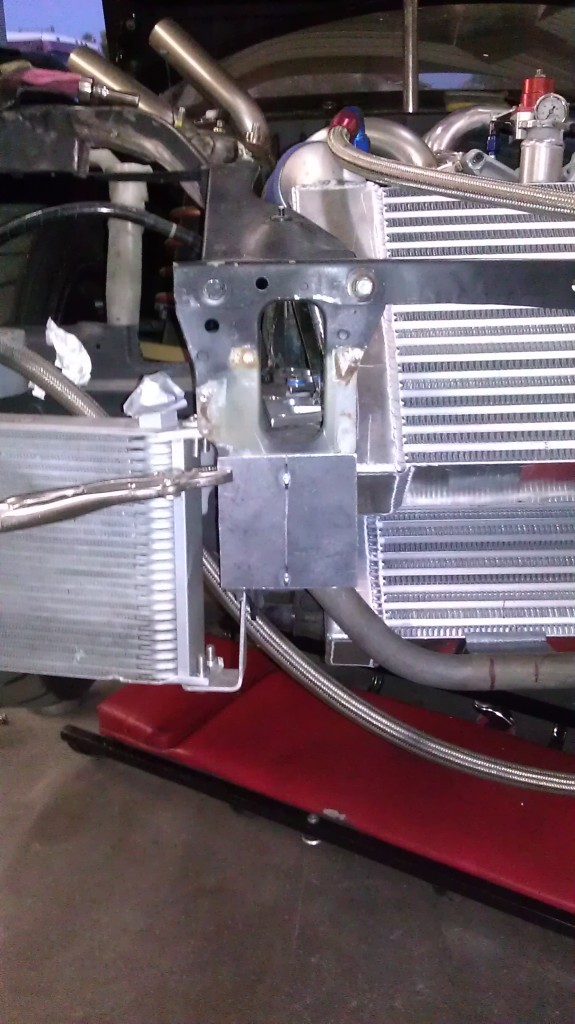

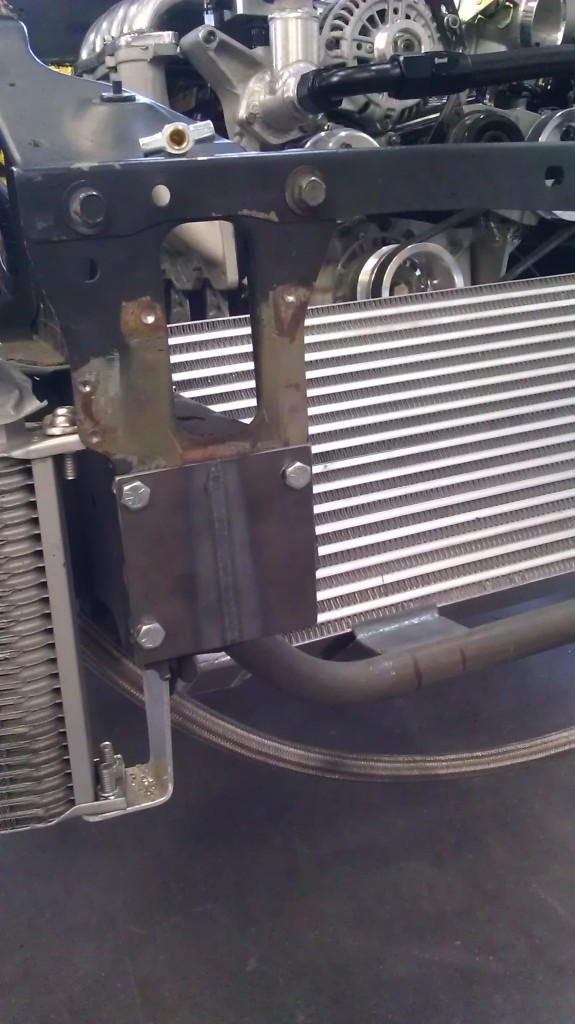

4x4 plates cut and welded

whey they will be mounted


Thats all for now.. more updates....hopefully a lot more this weekend!



p.s....the plates are fully welded together all the way down the seam...just didn't take a pic of it.



oh you fancy huh



^;-)



I was more wondering how you are going to have it go through that quick release connector. I am assuming you cant cut the cable because that would give in accurate readings?



Nothing more willbe going through the harness area hole.
I'm going to go through my AC line for those and the Boost guage



I was thinking about doing the quick release connect was sure about the EGT cables... I had an idea to trace out a piece of cardboard and then have a shop create a sheet metal plate and then rivet it to my firewall to fill in the heater/AC holes.

Is your boost gauge not electric?



That would be cool man! I'm not sure exactly if you can do the EGT sensors... but it would be cool. Maybe you could run pins through some of the un-used cannon plug holes to be able to run them through that as well?



your car/build is hot dirty sex



^ haha thanks man!
Just ordered a couple parts.... Everything is so expensive!! I coughed and 800 dollars disappeared....shiiiiii. Oh well...what's next!?



I am coughing 1200$ in a week I know how you feel!



This build thread is better then some of the books I have read.I actually took a break from working on my FD to read this. Keep up the good work man.



im pretty sure this is going to have a horrible powerband.......go ahead and ditch it. ill pm you with my address for u to dump into my trash can ^^)b



^^ haha...thanks guys!! Glad your enjoying the journey with me!

Little Update:

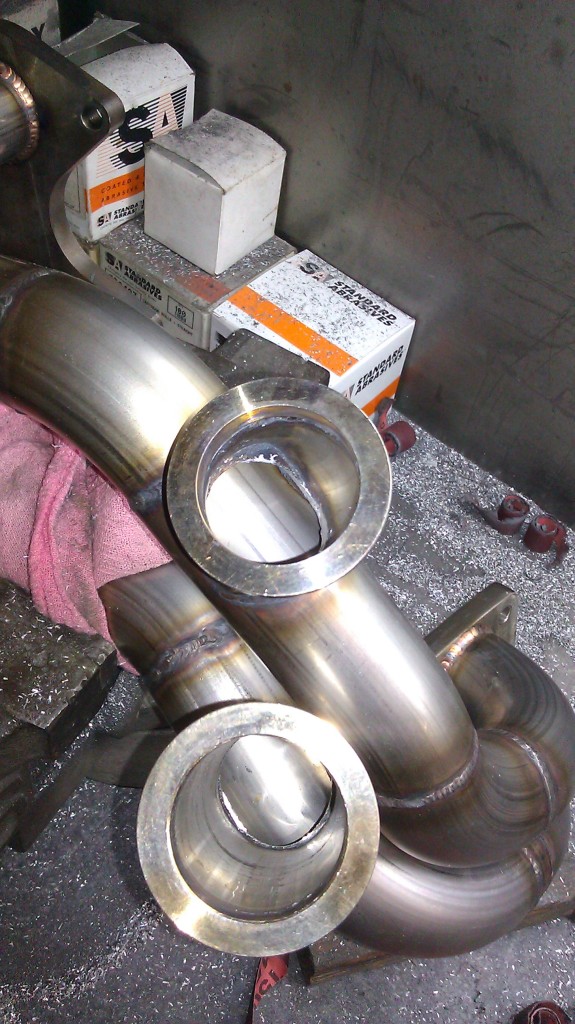

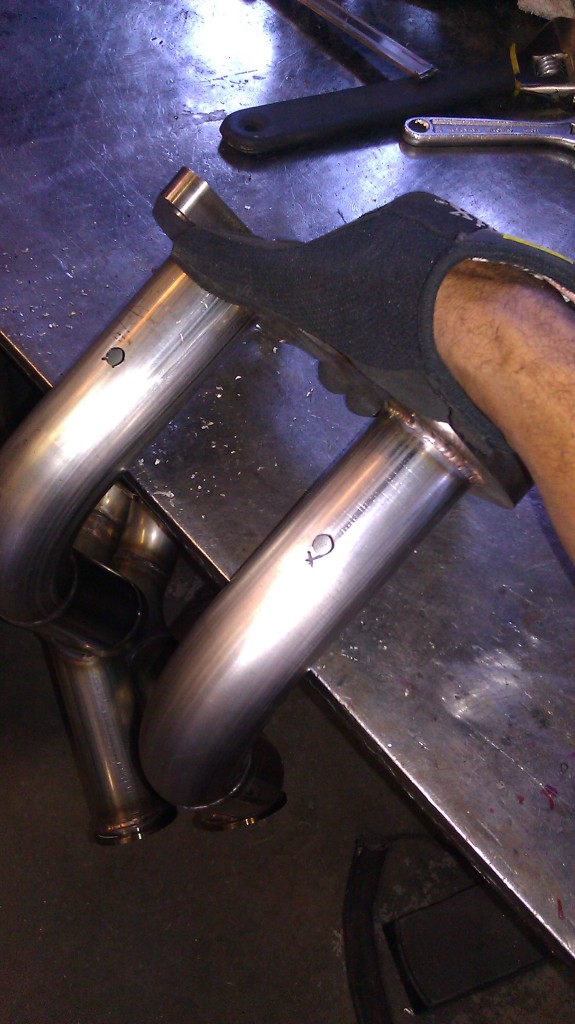

I cant remember but here is a picture of the manifold 99% done. If i could do it again I'd chagne a couple things. I'd make the transition flow a little more through the 90 degree bends straight out of the motor. And I'm still uncertain if i'm going to run the synapse gates. I may sell them and go with a couple Tial MVR's... we'll see.

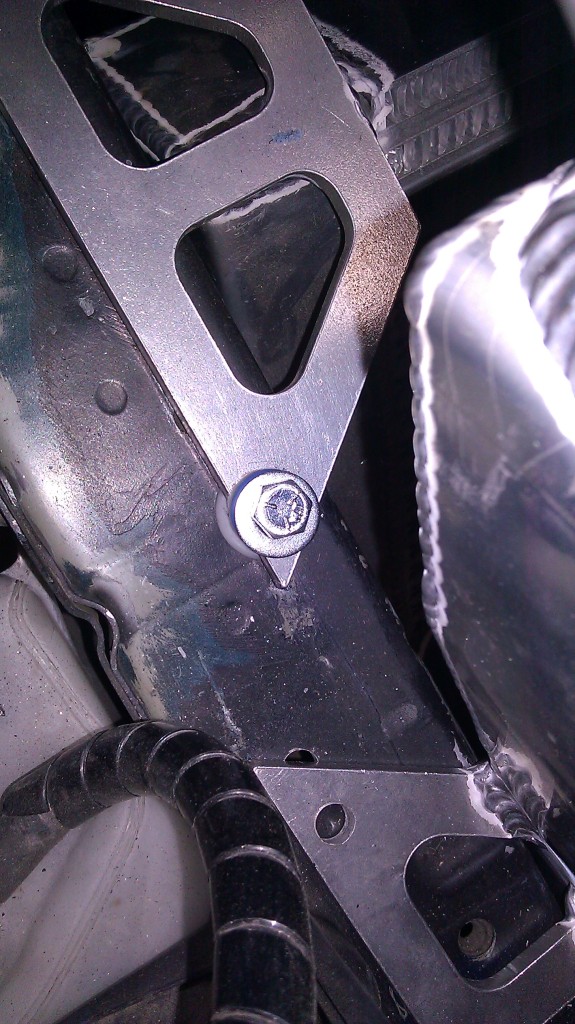

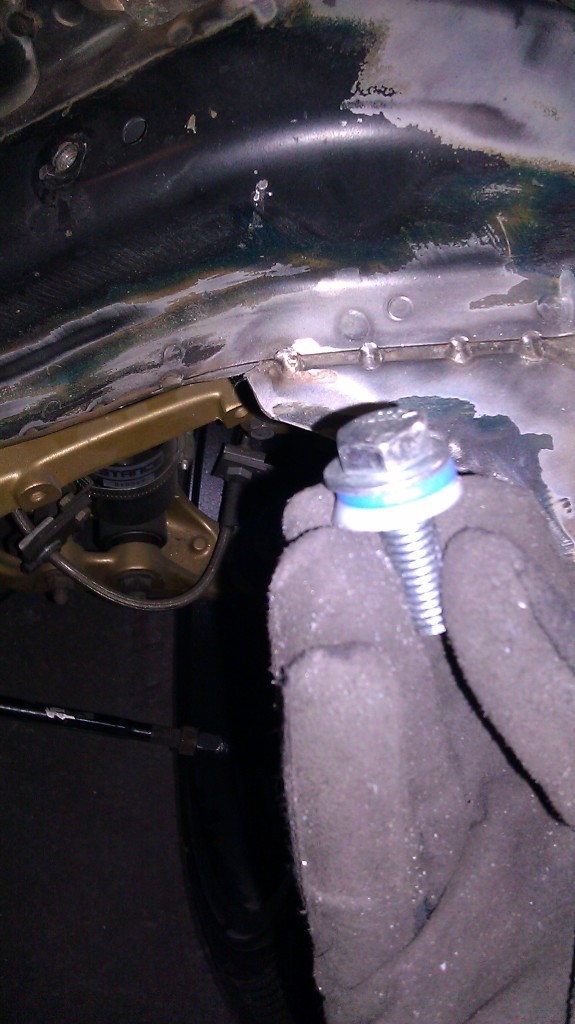

Drilled out the bolts holes for the Bolt on Bash Bar. THis way if it gets jacked up I can just make a new one and bolt it on

Drilled out the holes for the wastegate. Was going to use the porting tool to smooth out the inside but Bj said he wants to do it haha...

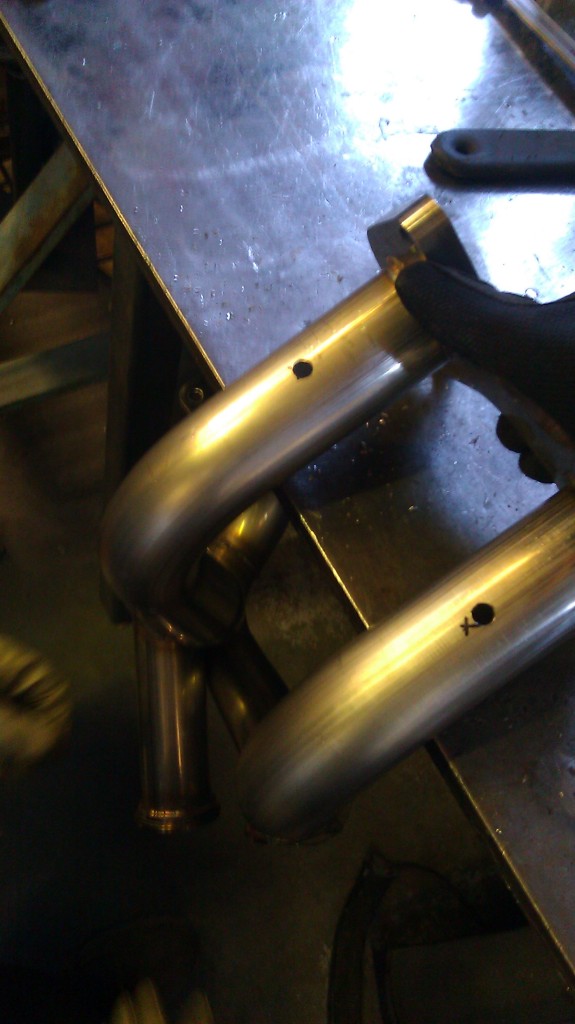

EGT bung hole marks

EGT bung holes drilled. Forgot to take a pic of the finished products..but you guys know bj and how he welds so i'll leave it up to the imagination

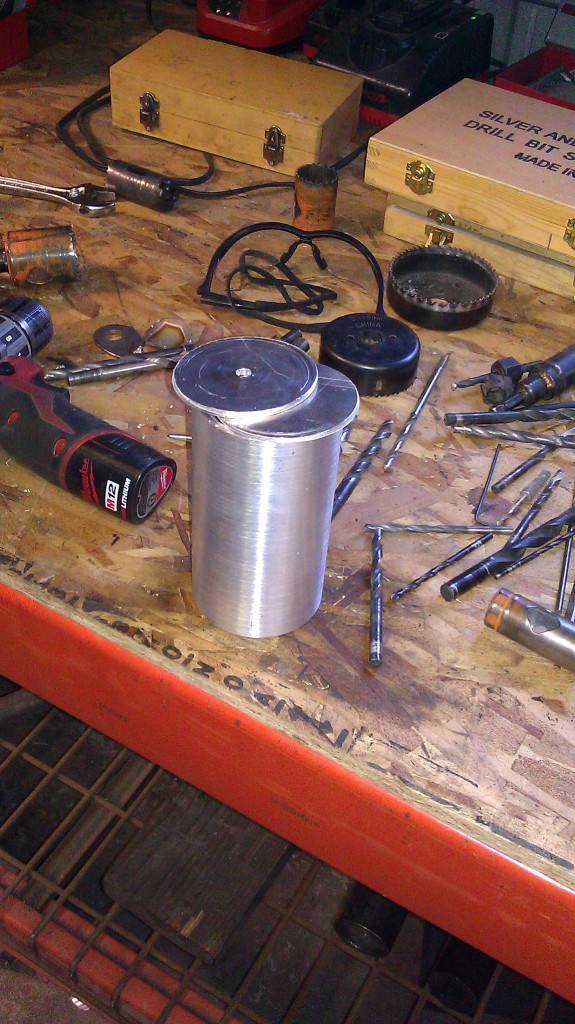

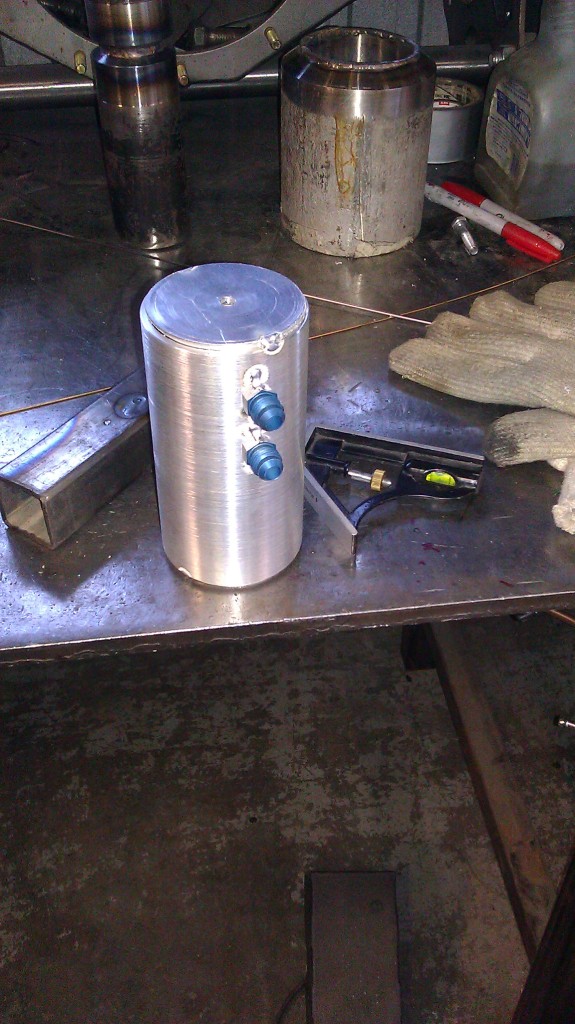

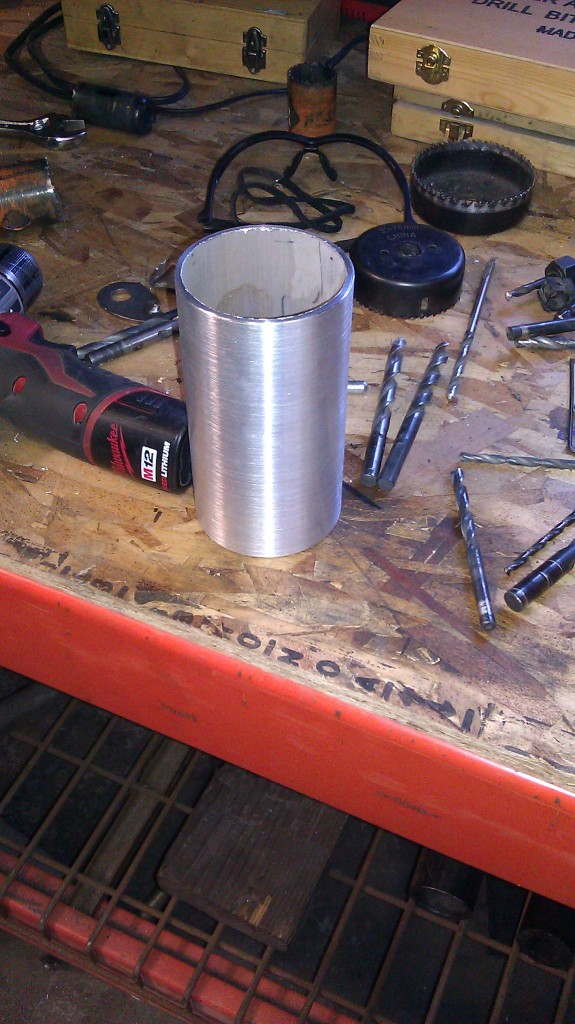

Found some spare alum pipe laying around... so decided to use it to make a catch can. Bj put it on the lathe to clean it up

and johnny cut some alum for the top and bottom

and 2x -6 AN bungs for the inlets. Going to route one to the oil filler neck and the other one to the back Iron on the passenger side. Still need a little breather and a "view." i'll find something for those later on.


More updates this week...stay tuned!!



Put some baffles in that tank to make it functional. Just a couple of overlapping pieces of aluminum stock. You can also stuff some steel wool in there to make it work even better.



^already planned on it! thanks!



Great build! Very courageous to undertake a major project like this with so many in-house/hand made fabrications... it epitomizes the definition of a "build".

I can't help but think, "that looks expensive... that looks expensive... that also looks expensive" while reading through all of this. I'm sure you're getting better rates having everything done at one place, but we all know how quickly things can add up.

Anyway, best of luck. It should be exciting to see your endgame realized and this car on the track & streets.



Hey thanks a lot! You know I've had a lot of help from friends and the shop owner has become one hell of a resource. We'v become pretty good friends and I've realized there will be days that I show up at the shop and get nothing done what so ever on my car... but we've made progress on other peoples cares/projects so to me.. it all balances out. He hasn't charged me for the majority of materials/work he's done besides the initial manifold and even then it wasn't a hefty bill. What i've gotten out of it is a hell of a lot of knowledge about fabrication, welding and a whole lot more. I've become sort of a shop hand and in turn he helps me out with my project. I pitch in for shop materials, sand blast glass and all sorts of other things that help him keep the shop running and in turn....he's told me that whatever I need welded he'll do for free as long as i do the hard work in cutting/measuring/drilling/etc. It's been a great experience. The hardest part was trying to make things that I won't have to replace if they brake. Certain things are just best left bought from the market ya know? But other than that, I wouldn't change a thing. It has been expensive for a lot of parts but most of the stuff That I could manage to find used... I did. There were a few things that I just couldn't justify purchasing used and that I really wanted to get new. I'll post a full list of everything i've purchased at the end of the build... it's long and its pretty depressing to know I could've put a downpayment down on a house lol. Anyways... i'll get some updates soon!
