94 Build... GT35R, RE Vmount and a whole lot more............ NOW WITH PISTONS!!

Reply



Old 10-14-12, 11:29 PM
  #251
Eats, Sleeps, Dreams Rotary
10 Year Member
Thread Starter
iTrader: (52)

XLR8's Avatar

Join Date: Oct 2001
Location: NJ
Posts: 3,906
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by silverfdturbo6port View Post
I think its funny when people waste their time and make a thread and then delete their photos from their photo host. Then the thread becomes useless.
Thanks for the thoughtful and friendly reminder.

I was organizing my photobucket a few days ago and forgot about my thread links. I'll get those fixed.
XLR8 is offline
Reply With Quote
Old 10-14-12, 11:39 PM
  #252
Eats, Sleeps, Dreams Rotary
10 Year Member
Thread Starter
iTrader: (52)

XLR8's Avatar

Join Date: Oct 2001
Location: NJ
Posts: 3,906
Thanks: 0
Thanked 0 Times in 0 Posts
UPDATE:

Started pulling the engine bay apart today. It should be ready to head to the paint shop by next week. Pulling everything off the bay walls and firewall for fresh paint.

Very excited to see my new body pieces installed with a proper base coat clear coat!!

As far as the bay goes, as mentioned I will be changing things up a bit. Not only am I trying to make everything as clean as possible, but more functional. With this, the intercooler is getting positioned for a more filter friendly setup.

Name:  IMAG0205.jpg
Views: 9
Size:  80.1 KB
Name:  IMAG0204.jpg
Views: 7
Size:  83.4 KB
XLR8 is offline
Reply With Quote
Old 10-15-12, 12:55 AM
  #253
No phonebook but OG calls
iTrader: (30)

BurntOrangeT2's Avatar

Join Date: Aug 2008
Location: Kansas City, MO
Posts: 1,010
Thanks: 0
Thanked 2 Times in 2 Posts
Ohh daddy like, daddy definitely like.....
BurntOrangeT2 is offline
Reply With Quote
Old 10-15-12, 01:03 AM
  #254
Registered User
iTrader: (6)

Join Date: Sep 2009
Location: Union City, CA
Posts: 1,105
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by XLR8 View Post
UPDATE:

Started pulling the engine bay apart today. It should be ready to head to the paint shop by next week. Pulling everything off the bay walls and firewall for fresh paint.

Very excited to see my new body pieces installed with a proper base coat clear coat!!

As far as the bay goes, as mentioned I will be changing things up a bit. Not only am I trying to make everything as clean as possible, but more functional. With this, the intercooler is getting positioned for a more filter friendly setup.

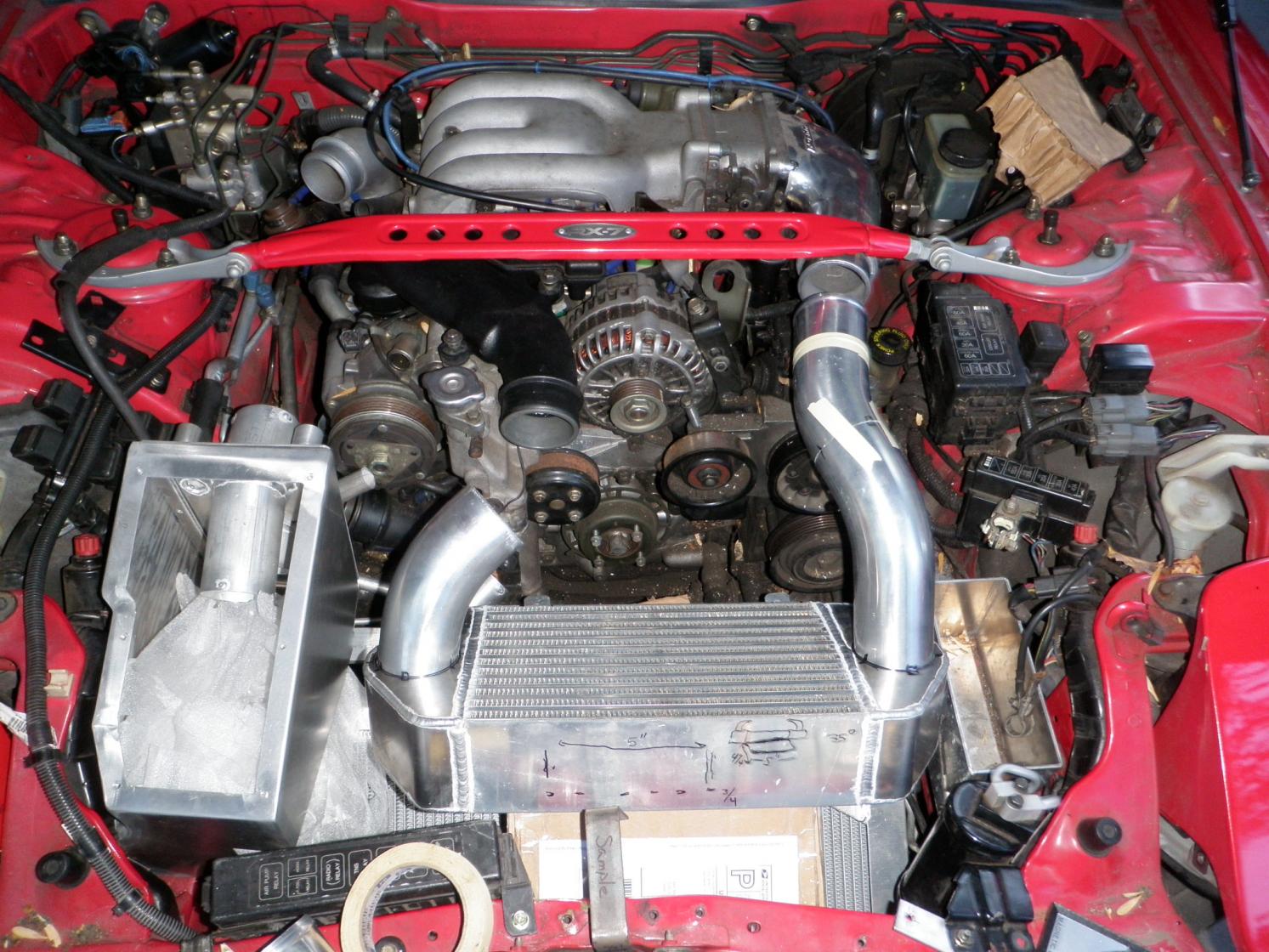

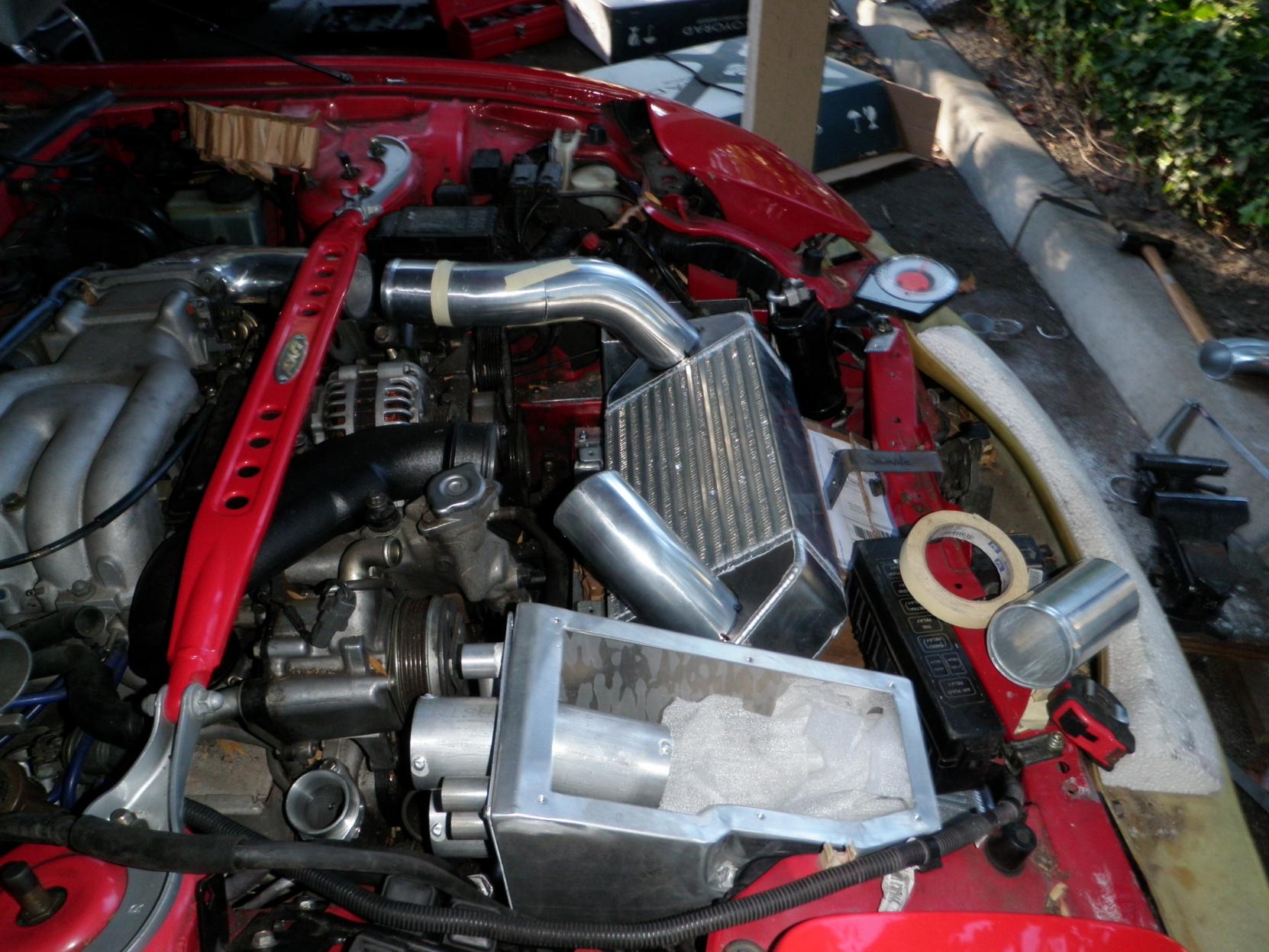

lol, thanks for giving a sneak peek to what my next design update is to my track kits.


the baby vm ( the street / autox) is already done. Twin track and single track are next.

also the kits will come with basic ducting.

monster vm core is too big to do this with.

the ps cooler will also be places at angle behind the top of the IC. The change will also be made to clear the mocal thermostat that comes off the front cover that people use with upgraded coolers.

Thanks for the real estate in your thread.

For questions for me, please pm me so we dont hog up josh's thread..

Ben[/QUOTE
Attached Thumbnails 94 Build... GT35R, RE Vmount and a whole lot more............ NOW WITH PISTONS!!-pa070028.jpg   94 Build... GT35R, RE Vmount and a whole lot more............ NOW WITH PISTONS!!-pa070029.jpg

Last edited by Rotary Extreme Sales 1; 10-15-12 at 01:10 AM.
Rotary Extreme Sales 1 is offline
Reply With Quote
Old 10-15-12, 05:25 PM
  #255
Eats, Sleeps, Dreams Rotary
10 Year Member
Thread Starter
iTrader: (52)

XLR8's Avatar

Join Date: Oct 2001
Location: NJ
Posts: 3,906
Thanks: 0
Thanked 0 Times in 0 Posts
^ Looks great Ben! I have more than one FD owner that will be hitting you up for the new setup.
XLR8 is offline
Reply With Quote
Old 10-16-12, 04:00 AM
  #256
Registered User
iTrader: (6)

Join Date: Sep 2009
Location: Union City, CA
Posts: 1,105
Thanks: 0
Thanked 0 Times in 0 Posts
cool, right on!
Rotary Extreme Sales 1 is offline
Reply With Quote
Old 10-20-12, 10:20 PM
  #257
Eats, Sleeps, Dreams Rotary
10 Year Member
Thread Starter
iTrader: (52)

XLR8's Avatar

Join Date: Oct 2001
Location: NJ
Posts: 3,906
Thanks: 0
Thanked 0 Times in 0 Posts
Car is ready to head to paint. Stripped and ready to get a fresh coat

Lots of work ahead!!

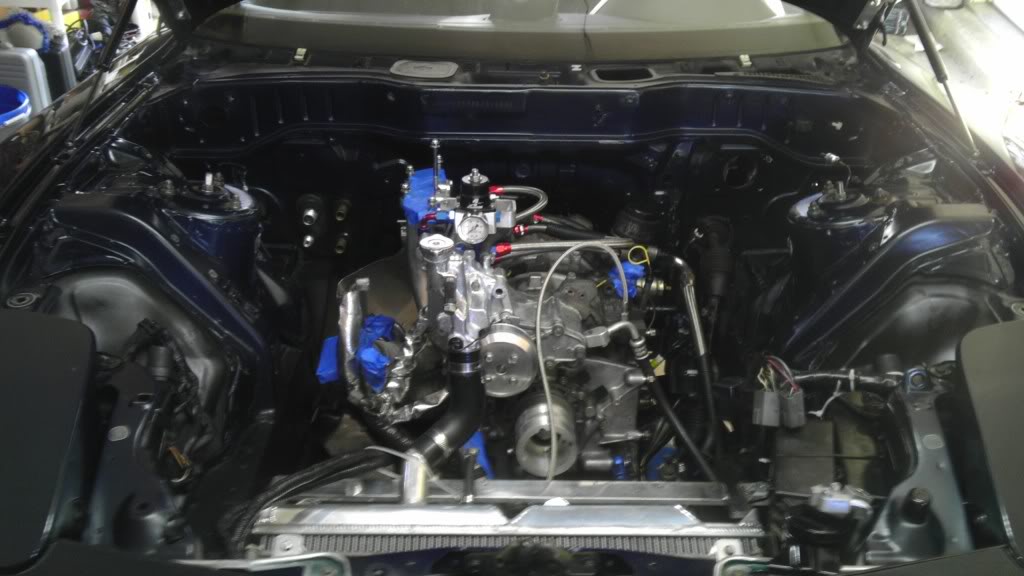

Name:  IMAG0214.jpg
Views: 7
Size:  78.3 KB

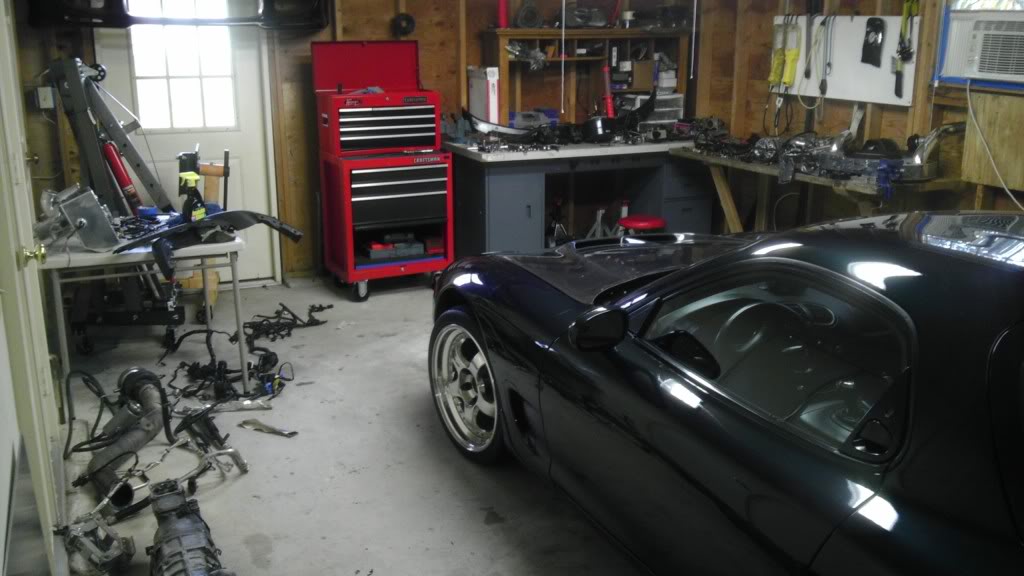

Name:  IMAG0215.jpg
Views: 6
Size:  81.7 KB
XLR8 is offline
Reply With Quote
Old 10-25-12, 01:20 AM
  #258
Bubblicious DEF.
5 Year Member
iTrader: (35)

muibubbles's Avatar

Join Date: May 2008
Location: 732
Posts: 4,252
Thanks: 0
Thanked 0 Times in 0 Posts
looking good !
muibubbles is offline
Reply With Quote
Old 10-25-12, 08:32 AM
  #259
Junior Member

Join Date: Oct 2011
Location: iowa
Posts: 34
Thanks: 0
Thanked 0 Times in 0 Posts
sexy *** car and sounds great
1987turbo..II is offline
Reply With Quote
Old 10-25-12, 08:36 AM
  #260
HAHA V8
iTrader: (9)

PDViper77's Avatar

Join Date: Jul 2004
Location: West Palm Beach - FL
Posts: 2,945
Thanks: 0
Thanked 0 Times in 0 Posts
Thats a nice setup.
PDViper77 is offline
Reply With Quote
Old 10-25-12, 12:42 PM
  #261
Junior Member

Join Date: Oct 2012
Location: Riverside, CA
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
Sooo clean. Very nice build!
johnZX6R is offline
Reply With Quote
Old 10-25-12, 06:43 PM
  #262
Eats, Sleeps, Dreams Rotary
10 Year Member
Thread Starter
iTrader: (52)

XLR8's Avatar

Join Date: Oct 2001
Location: NJ
Posts: 3,906
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by muibubbles View Post
looking good !
Originally Posted by 1987turbo..II View Post
sexy *** car and sounds great
Originally Posted by PDViper77 View Post
Thats a nice setup.
Originally Posted by johnZX6R View Post
Sooo clean. Very nice build!
Thanks guys!

It's at the paint shop as we speak. A few details of what is being done.

- Complete repaint of exterior, door jams, and engine bay in Montego Blue
- Anti-chip lower strip smoothed and removed
- Feed Type I bumper fitted
- Ganador mirrors fitted
- Antenna hole shaved
- Badges removed except Efini emblems
- New headlight lids
- New vent on driver side (missing the little grill. Pricey at $140 each!)
- New windshield
- Fenders rolled

From there I will be going to work!!

- New Rywire harness with integrated water injection wiring
- Wire tuck
- Vmount repositioning and add ducting
- Ceramichrome as much as possible (bolt heads, brackets, alternator, fuel rails, fittings, WI tank and coolant piping)
- New ported shroud for my 35R (should get at least 5lbs of air)
- Turbo inspected & possible CHRA replace
- Relocate EGT probe to manifold
- Rewrap header, and DP then paint with DEI 1500deg silicone paint

I'm sure there is more.....

Come Spring, it should be ROCKING!!
XLR8 is offline
Reply With Quote
Old 11-08-12, 09:01 PM
  #263
Eats, Sleeps, Dreams Rotary
10 Year Member
Thread Starter
iTrader: (52)

XLR8's Avatar

Join Date: Oct 2001
Location: NJ
Posts: 3,906
Thanks: 0
Thanked 0 Times in 0 Posts
Just picked up a Gt35R T4 with a P-trim hotside. Very stoked to get it retuned at 25psi. I feel I will finally hit my 500whp goal, or come a bit closer.

Back from paint soon!
XLR8 is offline
Reply With Quote
Old 11-08-12, 10:34 PM
  #264
Wastegate John
iTrader: (13)

RENESISFD's Avatar

Join Date: Feb 2008
Location: Long Island NY 11746
Posts: 2,977
Thanks: 0
Thanked 0 Times in 0 Posts
TD61? What A/R?
RENESISFD is offline
Reply With Quote
Old 11-08-12, 11:50 PM
  #265
Junior Member

Join Date: Oct 2012
Location: Canada
Posts: 13
Thanks: 0
Thanked 0 Times in 0 Posts
wheres the pics??
4ages is offline
Reply With Quote
Old 11-08-12, 11:50 PM
  #266
Junior Member

Join Date: Oct 2012
Location: Canada
Posts: 13
Thanks: 0
Thanked 0 Times in 0 Posts
like for the first few pages and the chassis part?
4ages is offline
Reply With Quote
Old 11-09-12, 09:41 AM
  #267
I'm the Juggernaut BITCH!
10 Year Member
iTrader: (7)

RXtacy's Avatar

Join Date: Feb 2004
Location: Rockville MD
Posts: 1,333
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by XLR8 View Post
Just picked up a Gt35R T4 with a P-trim hotside. Very stoked to get it retuned at 25psi. I feel I will finally hit my 500whp goal, or come a bit closer.

Back from paint soon!
I saw that you grabbed that from Logan. Quite the steal
RXtacy is offline
Reply With Quote
Old 11-09-12, 04:48 PM
  #268
Eats, Sleeps, Dreams Rotary
10 Year Member
Thread Starter
iTrader: (52)

XLR8's Avatar

Join Date: Oct 2001
Location: NJ
Posts: 3,906
Thanks: 0
Thanked 0 Times in 0 Posts
Its a 1.0 a/r. Pics of the setup and car comming soon. Gonna go by the paint shop and snap a few pics tomorrow. All body work is done. Priming tomorrow and paint next week.

As far as my pics from my initial build, I'm trying to get my damn photobucket sorted back out.

Yes, this TD61 is gonna rock!
XLR8 is offline
Reply With Quote
Old 11-10-12, 02:20 PM
  #269
Junior Member

Join Date: Oct 2012
Location: Ohio
Posts: 14
Thanks: 0
Thanked 0 Times in 0 Posts
god I love V-mount setups!
FDreamer is offline
Reply With Quote
Old 11-11-12, 03:53 PM
  #270
Eats, Sleeps, Dreams Rotary
10 Year Member
Thread Starter
iTrader: (52)

XLR8's Avatar

Join Date: Oct 2001
Location: NJ
Posts: 3,906
Thanks: 0
Thanked 0 Times in 0 Posts
My photobucket is hosed.... I put everything back as it was and the links still aren't resolving. I'll hit up a Mod and see if they can help me sort it out.
XLR8 is offline
Reply With Quote
Old 11-11-12, 06:25 PM
  #271
Adaptronic Distributor
RX7Club Vendor
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,706
Thanked 4 Times in 4 Posts
Originally Posted by XLR8 View Post
Its a 1.0 a/r. Pics of the setup and car comming soon. Gonna go by the paint shop and snap a few pics tomorrow. All body work is done. Priming tomorrow and paint next week.

As far as my pics from my initial build, I'm trying to get my damn photobucket sorted back out.

Yes, this TD61 is gonna rock!



25psi is a lot of fun on that turbo. You will find its the realistic limit of a street car( drive-train/street tires )
Turblown is offline
Reply With Quote
Old 11-11-12, 10:22 PM
  #272
Eats, Sleeps, Dreams Rotary
10 Year Member
Thread Starter
iTrader: (52)

XLR8's Avatar

Join Date: Oct 2001
Location: NJ
Posts: 3,906
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Turblown View Post


25psi is a lot of fun on that turbo. You will find its the realistic limit of a street car( drive-train/street tires )
Yeah man, I am pumped. My power level now has been pretty crazy for the street. However, I feel this setup will be what I have been looking for.

Have you dyno'd the 1.0 a/r at high boost on any FD engines? Curious to see how it compares in spool and top end to the 1.16.
XLR8 is offline
Reply With Quote
Old 11-12-12, 07:54 AM
  #273
Adaptronic Distributor
RX7Club Vendor
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,706
Thanked 4 Times in 4 Posts
I have not dynoed a 1.0 at high boost. I've always used the 1.15 past 20psi. I have found "spool" in 4th gear on the Dyno the same as a 1.06 standard gt35r, but a lot more power with the Ptrim wheel past 5500rpms.
Turblown is offline
Reply With Quote
Old 11-12-12, 08:10 AM
  #274
Eats, Sleeps, Dreams Rotary
iTrader: (8)

RCCAZ 1's Avatar

Join Date: Jun 2002
Location: Phoenix, AZ
Posts: 3,123
Thanked 5 Times in 5 Posts
Originally Posted by XLR8 View Post
Just picked up a Gt35R T4 with a P-trim hotside. Very stoked to get it retuned at 25psi. I feel I will finally hit my 500whp goal, or come a bit closer.

Back from paint soon!
My TD61 has a 1.0 AR and made 439 RWHP at 16.5 psi. Compressor will start choking off as you near 500, so I'm not sure how much power you'll make North of 500. Friend of mine had a "stock" T3 GT35R and made 515, but I think he was pushing 25-30 psi. He was definitely just trying to make a number on that dyno run and admitted it. He never ran the car at that power level afterwards on the street.

Good luck. Keep us posted.
RCCAZ 1 is offline
Reply With Quote
Old 11-13-12, 05:55 PM
  #275
Eats, Sleeps, Dreams Rotary
10 Year Member
Thread Starter
iTrader: (52)

XLR8's Avatar

Join Date: Oct 2001
Location: NJ
Posts: 3,906
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by RCCAZ 1 View Post
My TD61 has a 1.0 AR and made 439 RWHP at 16.5 psi. Compressor will start choking off as you near 500, so I'm not sure how much power you'll make North of 500. Friend of mine had a "stock" T3 GT35R and made 515, but I think he was pushing 25-30 psi. He was definitely just trying to make a number on that dyno run and admitted it. He never ran the car at that power level afterwards on the street.

Good luck. Keep us posted.
Thanks for the insight. I expect to make high 400's and will be quite happy with that. As Turblown mentioned, it really is the realistic limit of a street car at our weight.

Keep ya postes guys.
XLR8 is offline
Reply With Quote




Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
jdayau
Build Threads
6
01-22-16 09:13 PM
bigtuna
Single Turbo RX-7's
9
10-08-15 11:01 PM
wthdidusay82
NE For Sale/ Wanted/ Classifieds
2
09-26-15 05:45 PM
Clacor
Single Turbo RX-7's
19
09-11-15 09:36 PM


Thread Tools
Search this Thread
Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -5. The time now is 06:54 PM.


All content Copyright 2007 by Internet Brands, Inc. We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
