Post Your Single Turbo Setup.
09-13-02, 03:18 AM
#101
03 Cobra Killer
Join Date: Jan 2002
Location: All Over
Posts: 1,423
Likes: 0
Received 0 Likes
on
0 Posts
yeah, I finally get to post in this thread!
car: 94 touring (silver)
turbo: garrett GT35/40 1.06a/r hot side
engine: stock ported (pineapple racing ported engine on its way)
wastgate: tial 45mm
rwhp: to be tested soon (~400rwhp @ 15psi)
ecu: PFC
car: 94 touring (silver)
turbo: garrett GT35/40 1.06a/r hot side
engine: stock ported (pineapple racing ported engine on its way)
wastgate: tial 45mm
rwhp: to be tested soon (~400rwhp @ 15psi)
ecu: PFC
09-15-02, 11:43 AM
#102
Full Member
Join Date: Mar 2001
Location: Blue Springs MO
Posts: 169
Likes: 0
Received 0 Likes
on
0 Posts
Here's mine.
Dyno'd 285.4rwhp and 275.6 lbs torque at 3500 rpm's.
12.50 on slicks, 12.88 @ 109.6 on 225 Kumho 712's.
Dyno'd 285.4rwhp and 275.6 lbs torque at 3500 rpm's.
12.50 on slicks, 12.88 @ 109.6 on 225 Kumho 712's.
Last edited by JScott; 09-15-02 at 11:46 AM.
09-25-02, 02:41 PM
#103
Full Member
Join Date: Jul 2001
Location: Cincinnati/N.KY.
Posts: 86
Likes: 0
Received 0 Likes
on
0 Posts
Car: 87TII
Turbo: Turbonetics 62-1 .7 comp. with 1.15a/r exhaust
Boost: 10 lbs. so far
Manifold: SFP mild steel tubular/ undivided
Wastegate: HKS 46mm
RWHP: As yet untested
EMS: Haltech
Turbo: Turbonetics 62-1 .7 comp. with 1.15a/r exhaust
Boost: 10 lbs. so far
Manifold: SFP mild steel tubular/ undivided
Wastegate: HKS 46mm
RWHP: As yet untested
EMS: Haltech
09-25-02, 03:10 PM
#104
1993 RX7 R1
Join Date: Jul 2001
Location: SoCal
Posts: 1,266
Likes: 0
Received 0 Likes
on
0 Posts
Still in the process of installation but this is what I am doing:
car: 93 R1
turbo: garrett GT35/40 1.06 A/R
engine: Pineapple Racing mild street port
wastegate: from the land of OZ
rwhp: hoping for 400rwhp @ 14psi
ecu: PFC
car: 93 R1
turbo: garrett GT35/40 1.06 A/R
engine: Pineapple Racing mild street port
wastegate: from the land of OZ
rwhp: hoping for 400rwhp @ 14psi
ecu: PFC
09-25-02, 07:37 PM
#105
Newbie
Join Date: Jul 2002
Location: New Jersey
Posts: 1
Likes: 0
Received 0 Likes
on
0 Posts
1996 Mazda Miata
'95 Rotary Engine, 3mm seal, custom port, 3mm seal
8.5 compression, 62-1 turbo, Wolf 3D, pulleys
5gal fuel cell, XS fuel pump, All -AN fuel line
Oil coiler, Custom Driveshaft and Rear
850 primary, 1680 secondary
11.1@134 mph
419 rwhp on pump gas
Only ran the car one time and got kicked off
'95 Rotary Engine, 3mm seal, custom port, 3mm seal
8.5 compression, 62-1 turbo, Wolf 3D, pulleys
5gal fuel cell, XS fuel pump, All -AN fuel line
Oil coiler, Custom Driveshaft and Rear
850 primary, 1680 secondary
11.1@134 mph
419 rwhp on pump gas
Only ran the car one time and got kicked off
09-25-02, 11:00 PM
#106
Senior Member
Join Date: Mar 2001
Location: NYC
Posts: 250
Likes: 0
Received 0 Likes
on
0 Posts
Rebuilt motor 3mm seals
Haltech E6k
Greddy T78 turbo
Greddy wastegate
Greddy stainless steel manifold
APEX FMIC
750/1600 injectors
ND upgraded fuel pump
SR FPR
K2RD fuel rail
HKS Twin power
Greddy Pulley kit
Magnecor wires
Custom DP/MP/APex N1 Dual
ACT street/strip clutch
9.5lb flywheel
RWHP 380 @14psi 312 @10 psi
Haltech E6k
Greddy T78 turbo
Greddy wastegate
Greddy stainless steel manifold
APEX FMIC
750/1600 injectors
ND upgraded fuel pump
SR FPR
K2RD fuel rail
HKS Twin power
Greddy Pulley kit
Magnecor wires
Custom DP/MP/APex N1 Dual
ACT street/strip clutch
9.5lb flywheel
RWHP 380 @14psi 312 @10 psi
09-30-02, 10:21 PM
#107
Full Member
iTrader: (1)
Join Date: Mar 2001
Location: The great white north
Posts: 142
Likes: 0
Received 0 Likes
on
0 Posts
Car: 93 FD
Turbo: Greddy T-78
Boost: 15-18psi
Manifold: Greddy stainless
Wastegate: Greddy Type R
Exhaust: Pettit 3" mid-pipe, Thermal R&D cat-back, 3" DP
RWHP: 410@ 15lbs (old engine), dyno on new engine with larger exhaust ports coming this friday
EMS:Haltech e6K
Ignition: HKS Twin Power
Injectors: 550 primary, 1600 secondary
Fuel pump: Aeromotive A1000 (the blender
)
Turbo: Greddy T-78
Boost: 15-18psi
Manifold: Greddy stainless
Wastegate: Greddy Type R
Exhaust: Pettit 3" mid-pipe, Thermal R&D cat-back, 3" DP
RWHP: 410@ 15lbs (old engine), dyno on new engine with larger exhaust ports coming this friday
EMS:Haltech e6K
Ignition: HKS Twin Power
Injectors: 550 primary, 1600 secondary
Fuel pump: Aeromotive A1000 (the blender
)
10-09-02, 08:36 AM
#108
Senior Member
Join Date: Jun 2002
Location: US
Posts: 357
Likes: 0
Received 0 Likes
on
0 Posts
Greddy Profec B Boost controller
Greddy Turbo Timer
Microtech MTX8 ECU
4 MSD 6A Ignitions
4 MSD ignition coils
Greddy T88 Turbo kit with 1.15 housing
Greddy Sp Exhaust
4 Inch DP
Bosch external race fuel pump
Supra intank fuel pump
fuel lines all around
850cc Primary injectors(Flow Benched)
1600cc Secondary Injectors(Flow Benched)
HKS Fuel rail
Ported and polished upper and lower intake manifold(port matched)(Polished Exterior)
Greddy FMIC
HKS wastegate
Aluminum AST(Polished Exterior)
Polished Waterpump
Polished aftermarket Pulleys
Polished Brackets
Ported Motor by MVA Motorsports Dynoed 601.8rwhp@26psi
Greddy Turbo Timer
Microtech MTX8 ECU
4 MSD 6A Ignitions
4 MSD ignition coils
Greddy T88 Turbo kit with 1.15 housing
Greddy Sp Exhaust
4 Inch DP
Bosch external race fuel pump
Supra intank fuel pump
fuel lines all around
850cc Primary injectors(Flow Benched)
1600cc Secondary Injectors(Flow Benched)
HKS Fuel rail
Ported and polished upper and lower intake manifold(port matched)(Polished Exterior)
Greddy FMIC
HKS wastegate
Aluminum AST(Polished Exterior)
Polished Waterpump
Polished aftermarket Pulleys
Polished Brackets
Ported Motor by MVA Motorsports Dynoed 601.8rwhp@26psi
10-10-02, 11:37 PM
#109
Newbie
Join Date: May 2002
Location: New JEru
Posts: 3
Likes: 0
Received 0 Likes
on
0 Posts
Car: 93 Rx7
Turbo: Greddy t-78
manifold: Greddy
Wastegate: Greddy
FMIC: HUGE Apex 3 row
BOOST: 10-25
RWHP: 589
EMS: MIcrotech LTx8
Daily Driven 10 sec. car with full body kit and stereo system. but its for sale =0( get back to me any1. Luck
Turbo: Greddy t-78
manifold: Greddy
Wastegate: Greddy
FMIC: HUGE Apex 3 row
BOOST: 10-25
RWHP: 589
EMS: MIcrotech LTx8
Daily Driven 10 sec. car with full body kit and stereo system. but its for sale =0( get back to me any1. Luck
10-13-02, 12:53 AM
#110
Junior Member
Join Date: Oct 2002
Location: South Australia
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
BLack S6 350rear wheel kilowatts
gt3540
dowelled, 3mm
extend port
750cc primary, 1000cc secondary injectors
turbosmart wastegate
greddy inlet pipe
trust/re amemiya intercooler
wold 3d version 4
3.5inch straight thru system
re amemiya upright radiator
direct twin plate clutch
dowelled, 3mm
extend port
750cc primary, 1000cc secondary injectors
turbosmart wastegate
greddy inlet pipe
trust/re amemiya intercooler
wold 3d version 4
3.5inch straight thru system
re amemiya upright radiator
direct twin plate clutch
10-29-02, 11:24 PM
#112
Full Member
Join Date: Jan 2002
Location: Australia
Posts: 53
Likes: 0
Received 0 Likes
on
0 Posts
SII RX3 coupe
Microtech LTX8
Tourbonetics T66
S4 block with all the mods
S6 manifold and throttle body
turbo port
3mm seals
490RWHP @ 18PSI
Once I have a boost controller I am expecting to see 575-600RWHP @ 25PSI
Microtech LTX8
Tourbonetics T66
S4 block with all the mods
S6 manifold and throttle body
turbo port
3mm seals
490RWHP @ 18PSI
Once I have a boost controller I am expecting to see 575-600RWHP @ 25PSI
10-30-02, 06:59 PM
#113
Rotary Enthusiast
iTrader: (6)
Join Date: Aug 2001
Location: Cincinnati
Posts: 948
Likes: 0
Received 0 Likes
on
0 Posts
93 RX-7
XS T04s
Street Port with Hurley's
1300 and 550
Power FC and Datalogit
HKS Twin Power
Greddy FMIC
9LB flywheel + act clutch
Midpipe
Power Extreme
B&M shorty, Engine Torque Brace, Poly mounts
Dyno 400Rwhp
XS T04s
Street Port with Hurley's
1300 and 550
Power FC and Datalogit
HKS Twin Power
Greddy FMIC
9LB flywheel + act clutch
Midpipe
Power Extreme
B&M shorty, Engine Torque Brace, Poly mounts
Dyno 400Rwhp
11-03-02, 09:01 PM
#114
84 mazda rx7 gslse
engine: stock gslse engine with 96,00 miles
turbo: stock s4 turbo
intercooler: small npr intecooler
injectors: 550cc primaries 720cc secondaries
exaust: racing beat 2.5" down pipe, 2.5" pipe, dinomax cat, built4race n1 stile muffer
boost: expacting from 8 to 12 psi
cpu: haltech f10
dyno: expecting 210 to 240whp
engine: stock gslse engine with 96,00 miles
turbo: stock s4 turbo
intercooler: small npr intecooler
injectors: 550cc primaries 720cc secondaries
exaust: racing beat 2.5" down pipe, 2.5" pipe, dinomax cat, built4race n1 stile muffer
boost: expacting from 8 to 12 psi
cpu: haltech f10
dyno: expecting 210 to 240whp
11-11-02, 03:14 PM
#115
FD-Kai NZ
Join Date: Jan 2002
Location: N.Z.
Posts: 81
Likes: 0
Received 0 Likes
on
0 Posts
Car: 91 FD
Turbo: GT35
Boost: 1.2 bar
Manifold: MS racing stainless
Wastegate: Tial 46mm
Exhaust: 3" mid-pipe, 3" stainless DP, MS catback.
RWHP: 371@ 1.2 bar
EMS:Power FC with FC-Datalogit
Injectors: 550 primary, 4 x 850 secondary
Fuel pump: 2 x stock with SX regulator.
10.5 NGKR6725 plugs.
Turbo: GT35
Boost: 1.2 bar
Manifold: MS racing stainless
Wastegate: Tial 46mm
Exhaust: 3" mid-pipe, 3" stainless DP, MS catback.
RWHP: 371@ 1.2 bar
EMS:Power FC with FC-Datalogit
Injectors: 550 primary, 4 x 850 secondary
Fuel pump: 2 x stock with SX regulator.
10.5 NGKR6725 plugs.
11-11-02, 09:25 PM
#117
Senior Member

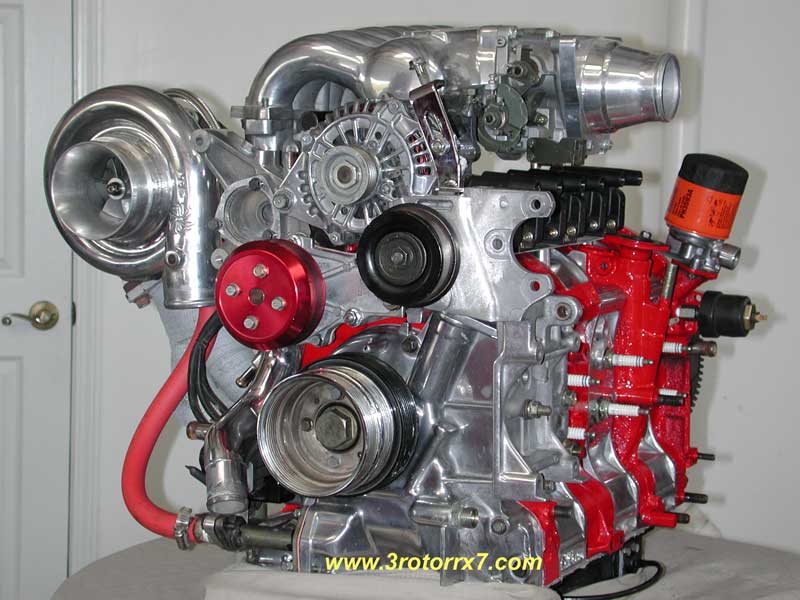

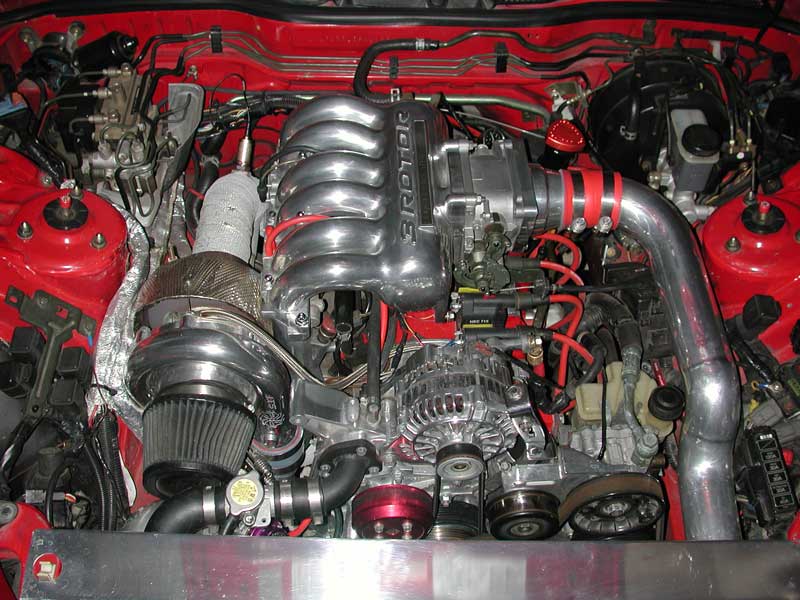

Single GT-66 update
Car: 93 FD Red
Engine: 20B
Turbo: GT-66, .96 AR - ITS
Manifold: custom- Axis Engineering
Wastegate: ITS Indygate
RWHP: 390 RWHP @ 8psi/7Krpm - 381 ft/lbs Torque!
(With A/C On! Hey it was hot ok??!!)
Waiting to test it with more boost now that the 20B has been pinned, Street-ported and all intake ports polished and matched and exhaust restrictors removed! (And broken in!)
ECU: Microtech MTX-12
http://www.3rotorrx7.com
Engine: 20B
Turbo: GT-66, .96 AR - ITS
Manifold: custom- Axis Engineering
Wastegate: ITS Indygate
RWHP: 390 RWHP @ 8psi/7Krpm - 381 ft/lbs Torque!
(With A/C On! Hey it was hot ok??!!)
Waiting to test it with more boost now that the 20B has been pinned, Street-ported and all intake ports polished and matched and exhaust restrictors removed! (And broken in!)
ECU: Microtech MTX-12
http://www.3rotorrx7.com
11-11-02, 09:40 PM
#118
Senior Member
11-16-02, 02:42 AM
#119
Newbie
Join Date: Oct 2002
Location: Gardena,CA or Waip'z,HI =)
Posts: 1
Likes: 0
Received 0 Likes
on
0 Posts
11-24-02, 08:03 AM
#120
1JZ powered
Join Date: Jul 2001
Location: Where there's only two seasons, hot and wet! I love Okinawa
Posts: 4,423
Likes: 0
Received 0 Likes
on
0 Posts
Now it's my turn!
Turbonetics 62-1 a/r .70 compressor, a/r 1.00 exhaust,p-trim wheel
PP Racing Manifold
HKS Racing wastegate w/ 1.00 kilo spring(boosting off of the wastegate)
FEED FMIC
850cc primary/1680cc secondary
-6 w/AN fittings and Aeromotive FPR
RP Fuel pump(soon to be dual stock FD fuel pumps)
Power FC w/ Datalogit
HKS twinpower
Borla XR-1 Midpipe
JIC Bullet Exhaust
Greddy Pulley Kit
OS Giken Twin Plate Clutch
FC spark plug wires(for coil relocation to the ABS bracket)
Turbonetics 62-1 a/r .70 compressor, a/r 1.00 exhaust,p-trim wheel
PP Racing Manifold
HKS Racing wastegate w/ 1.00 kilo spring(boosting off of the wastegate)
FEED FMIC
850cc primary/1680cc secondary
-6 w/AN fittings and Aeromotive FPR
RP Fuel pump(soon to be dual stock FD fuel pumps)
Power FC w/ Datalogit
HKS twinpower
Borla XR-1 Midpipe
JIC Bullet Exhaust
Greddy Pulley Kit
OS Giken Twin Plate Clutch
FC spark plug wires(for coil relocation to the ABS bracket)
12-07-02, 07:00 PM
#121
Junior Member
Join Date: Aug 2001
Location: austin
Posts: 6
Likes: 0
Received 0 Likes
on
0 Posts
car: 93 Silver Touring hardtop, dropped w/265 on rear stock rims, twin tip RB exhaust, sleek headlight kit turbo: Turbonetics T72 Compressor, Q trim, clipped, 2" silver bullet, Garrett .96 exhaust, non-divided tangential housing
manifold: PR custom made Stainless (extra-long) wastgate: Teal 45mm
FMIC: Greddy
boost: 10-22
RWHP: 420 @ 16 lbs on 93 pump gas
EMS:Power FC 850cc primaries/1250cc secondaries
manifold: PR custom made Stainless (extra-long) wastgate: Teal 45mm
FMIC: Greddy
boost: 10-22
RWHP: 420 @ 16 lbs on 93 pump gas
EMS:Power FC 850cc primaries/1250cc secondaries
12-11-02, 11:20 AM
#122
Twin Turbo LSX
93 R1
Streetported w/ 3mm Hurley racing seals
Greddy T-78 w/ Garrett GT79 compressor wheel
Pettit cool charge III intercooler
Power FC w/ datalogit
Profec B
850cc primaries / 1600cc secondaries
-6 w/AN fittings and Aeromotive FPR
Walbro 255 pump
9's leading 10's trailing
Pettit resonated mid-pipe
Apexi N1 Exhaust
Clutch master stage one clutch
RB 9.5lb flywheel
I ran the car on 11.5psi (wastegate spring)
I touched the rev-limiter in3rd
nasty wheel spin on bald street tires
12.55 @ 117mph 1/4
8.4 @ 95mph 1/8
2.4 '60
I guess this is ok for such low boost on an untuned car.
Any comments?
The car has only been running for a couple weeks.
I'm changing and/or adding the following..
changing to either a weldon or aeromotive fuel pump
Sumping the fuel tank
-8 line from the sump to the block under the hood
installing a ACT ext pressure plate w/ RB six puck disk
thinking about a custom front mount/ verticle radiator setup.
Streetported w/ 3mm Hurley racing seals
Greddy T-78 w/ Garrett GT79 compressor wheel
Pettit cool charge III intercooler
Power FC w/ datalogit
Profec B
850cc primaries / 1600cc secondaries
-6 w/AN fittings and Aeromotive FPR
Walbro 255 pump
9's leading 10's trailing
Pettit resonated mid-pipe
Apexi N1 Exhaust
Clutch master stage one clutch
RB 9.5lb flywheel
I ran the car on 11.5psi (wastegate spring)
I touched the rev-limiter in3rd
nasty wheel spin on bald street tires
12.55 @ 117mph 1/4
8.4 @ 95mph 1/8
2.4 '60
I guess this is ok for such low boost on an untuned car.
Any comments?
The car has only been running for a couple weeks.
I'm changing and/or adding the following..
changing to either a weldon or aeromotive fuel pump
Sumping the fuel tank
-8 line from the sump to the block under the hood
installing a ACT ext pressure plate w/ RB six puck disk
thinking about a custom front mount/ verticle radiator setup.
Last edited by 1point3liter; 12-11-02 at 11:23 AM.
12-22-02, 08:54 AM
#123
Ken, 58 years young
'94 white, pep, red leather,
mods: Hayes/KDR street port & polished,
3mm Hurley racing seals,
upgraded coolant seals,
Power FC ecu, Commander, Datalogit,
XS T04e single turbo kit,
GReddy SMIC (400+cu.in.),
Aquamist 2s water injection kit,
Pettit ss resonated MP,
Pettit ss cat-back,
RP Racing fuel pump,
1600cc injectors,
Profec B(15&22psi),
3-Bar Map Sensor,
Centerforce clutch,
Racelogic Traction Control,
Under pulley kit (no air pump),
Pettit short shifter kit,
LaBreck's bushings,
Evans Coolant
http://nopistons.com/luv94rx7.html
http://flathat.woodstream.net/LUV94RX7/
'94 white, pep, red leather,
mods: Hayes/KDR street port & polished,
3mm Hurley racing seals,
upgraded coolant seals,
Power FC ecu, Commander, Datalogit,
XS T04e single turbo kit,
GReddy SMIC (400+cu.in.),
Aquamist 2s water injection kit,
Pettit ss resonated MP,
Pettit ss cat-back,
RP Racing fuel pump,
1600cc injectors,
Profec B(15&22psi),
3-Bar Map Sensor,
Centerforce clutch,
Racelogic Traction Control,
Under pulley kit (no air pump),
Pettit short shifter kit,
LaBreck's bushings,
Evans Coolant
http://nopistons.com/luv94rx7.html
http://flathat.woodstream.net/LUV94RX7/
12-24-02, 08:14 AM
#124
Rotary Enthusiast
Join Date: Nov 2002
Location: Jax, FL
Posts: 1,060
Likes: 0
Received 0 Likes
on
0 Posts
Silver 84GS
87 Turbo 2 block
T-76
Cartech intercooler
IDF Blow Through
4.38 Rear end
Centerforce 2
Mazdatrix short shifter
Getting soon:
JDM Aluminum flywheel
Wish list:
TWM Throttle Body
Haltech E6K
87 Turbo 2 block
T-76
Cartech intercooler
IDF Blow Through
4.38 Rear end
Centerforce 2
Mazdatrix short shifter
Getting soon:
JDM Aluminum flywheel
Wish list:
TWM Throttle Body
Haltech E6K
12-25-02, 10:30 PM
#125
Senior Member
Join Date: Sep 2001
Location: California
Posts: 373
Likes: 0
Received 0 Likes
on
0 Posts
Car: 93 R1
Turbo: XS Eng T04E
Boost: 15 psi
Manifold:XS Eng cast (looks like a mod'd HKS to me)
Wastegate:HKS racing
IC: M2 Perf med SM
RWHP: est 400 rwhp
EMS:PFC
Turbo: XS Eng T04E
Boost: 15 psi
Manifold:XS Eng cast (looks like a mod'd HKS to me)
Wastegate:HKS racing
IC: M2 Perf med SM
RWHP: est 400 rwhp
EMS:PFC
