1984 series 3 13b turbo... wastegate position... pics

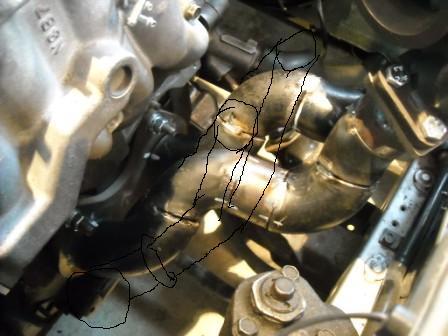

hey all, im currently putting a series 6 turbo block into my series 3 RX7, have motor and gar box etc all mounted etc. Now, i've got a to4e turbo mounted up on a manifold i made up the other day, my question is how important is the position of the pipes that lead off to the wastegate (have a 48mm Turbosmart). Do i want to have 2 seperate pipes coming off the extractor pipes merging into one, or just one pipe coming out from under the turbo inlet flange... retty sure i'm going to go with the first option (2 pipes into 1), but just curious
Cheers
have made the manifold out of 2" steam-pipes bends
The car as it is now has...
series 6 turbo block (standard internals)
series 5 turbo gearbox
toyota hilux diff
series 5 rear calipers and discs
to4e turbo
series 4 oil cooler
new series 1 3-core radiator
12" SPAL fan with shroud
850cc pimary and 1650cc secondary injectors
2 litre surge tank
front coilover suspension
front series 6 calipers with honda prelude rotors
16" motoforms
450x300 intercooler (will have 3" piping)
have since changed this slightly, moved the threaded sleeve down another 80mm and shortened the strut body for a shorter bodied shock by 40mm, added some keeper springs, to allow the car to sit nice and low but still have travel,
as it sits here i still have 2" of travel
shortened the gearlever position by fitting the series 3 gearlever housing and shoreneing the shifter rod to suit.
made up some adapters for the front calipers
the old 12a bridgeport that it was running, did 3000kms then sold it to make way for the turbo
Cheers
have made the manifold out of 2" steam-pipes bends
The car as it is now has...
series 6 turbo block (standard internals)
series 5 turbo gearbox
toyota hilux diff
series 5 rear calipers and discs
to4e turbo
series 4 oil cooler
new series 1 3-core radiator
12" SPAL fan with shroud
850cc pimary and 1650cc secondary injectors
2 litre surge tank
front coilover suspension
front series 6 calipers with honda prelude rotors
16" motoforms
450x300 intercooler (will have 3" piping)
have since changed this slightly, moved the threaded sleeve down another 80mm and shortened the strut body for a shorter bodied shock by 40mm, added some keeper springs, to allow the car to sit nice and low but still have travel,
as it sits here i still have 2" of travel
shortened the gearlever position by fitting the series 3 gearlever housing and shoreneing the shifter rod to suit.
made up some adapters for the front calipers
the old 12a bridgeport that it was running, did 3000kms then sold it to make way for the turbo
#2
Moderator
iTrader: (3)
if i am understanding your description of the two options you're considering, i'd say go with the first option.
however, if you want a more "professional" opinion, i'd browse the single turbo forum and find a knowledgable source. off the top of my head, you can seek advice from 1Revvin7, Jason, Enzo250, ErnieT and a host of others. perhaps try writing a PM to one of them.
good luck.
however, if you want a more "professional" opinion, i'd browse the single turbo forum and find a knowledgable source. off the top of my head, you can seek advice from 1Revvin7, Jason, Enzo250, ErnieT and a host of others. perhaps try writing a PM to one of them.
good luck.
#4
Full Member
Thread Starter
Join Date: Feb 2008
Location: P.Nth NZ
Posts: 73
Likes: 0
Received 0 Likes
on
0 Posts
yea thats wat i was thinking, except have the pipes carrying on forward with the second bends and have the wastegate inbetween the top and bottom radiator hoses up by the radiator. Of course there will be clearance so they dont melt etc. Am going to mock something up this week so will post some pics.
Cheers for your thoughts fullas
#6
Full Member
Thread Starter
Join Date: Feb 2008
Location: P.Nth NZ
Posts: 73
Likes: 0
Received 0 Likes
on
0 Posts
got it all finished and welded up this weekend, including the wastegate piping
heres a few pics
finished product, used 1 7/8" pipes for it the wastegate
had the wastegate mounted up by the radiator and the dump pie infront of the crossmember
made up some coilovers for it aswell
