My Budget Peripheral Port/80mm Turbo/60mm ITB/Intake Manifold/Fuel System Build
Thread Starter
Joined: May 2003
Posts: 1,428
Likes: 0
From: Marion, Ohio
I promised NOTHING!
but here are a few anyways. I didn't get as much done as I wanted to, of course, but these are going to have to hold you over until I can finish putting everything together. I addressed many other issues since my last update, but I will wait until I have finished installing them before pictures.

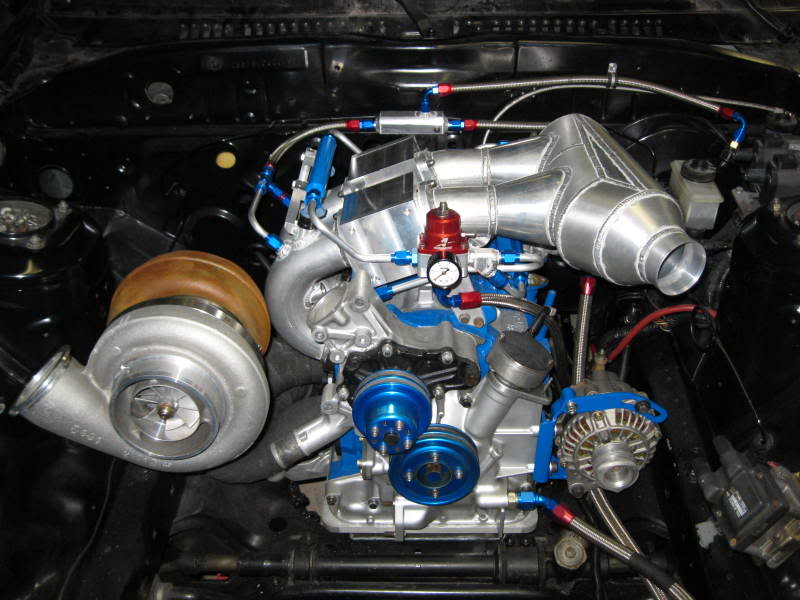

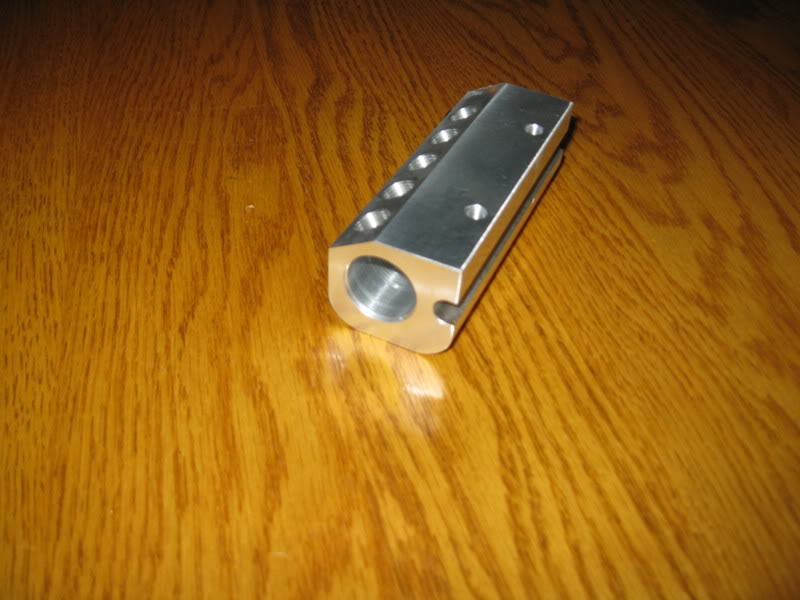

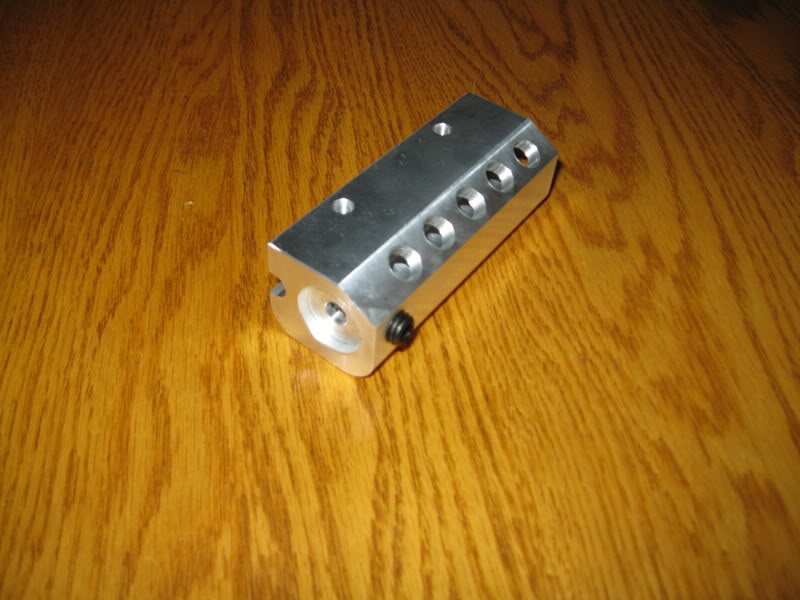

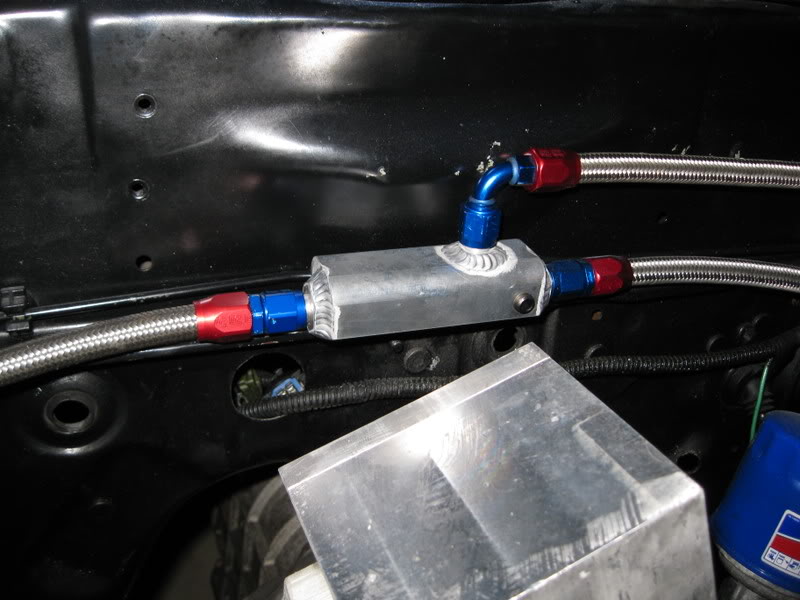

I machined a vacuum distribution block out of a piece of aluminum. 1/8" NPT holes for nipples, -6 bungs for TB bypass and brake booster. The set screw provides idle control, in theory, by bypassing the TB between the plenum and post-TB runners.
A1000 fuel pump, with pre and post filters.
but here are a few anyways. I didn't get as much done as I wanted to, of course, but these are going to have to hold you over until I can finish putting everything together. I addressed many other issues since my last update, but I will wait until I have finished installing them before pictures.
I machined a vacuum distribution block out of a piece of aluminum. 1/8" NPT holes for nipples, -6 bungs for TB bypass and brake booster. The set screw provides idle control, in theory, by bypassing the TB between the plenum and post-TB runners.
A1000 fuel pump, with pre and post filters.
Rotary Apprentice
Joined: Jan 2005
Posts: 2,181
Likes: 0
From: USA
I promised NOTHING!
but here are a few anyways. I didn't get as much done as I wanted to, of course, but these are going to have to hold you over until I can finish putting everything together. I addressed many other issues since my last update, but I will wait until I have finished installing them before pictures.
but here are a few anyways. I didn't get as much done as I wanted to, of course, but these are going to have to hold you over until I can finish putting everything together. I addressed many other issues since my last update, but I will wait until I have finished installing them before pictures.
I will count this as your birthday present to me, since today is my birthday and this is awesome.
He actually goes to the university of cincinnati with me. The shop in the pics is at his co-op job where I used to work as well.
MMM Bacon to face!
Joined: Jan 2006
Posts: 72
Likes: 0
From: Silver Spring MD
Since everyone else has been posting about the amazing work, I think I'll point out something a little less obvious. That turbo could almost swallow that alternator 0.o
You're a lucky man, I'll be doing the exact same thing when I head off for school. Wanna send over the solidworks file for the intake port? =D
You're a lucky man, I'll be doing the exact same thing when I head off for school. Wanna send over the solidworks file for the intake port? =D
where did you get that fuel cooler from? Never seen one that style. It would be interesting to see how well it works ... Also aren't you a little worried that it might get caught on things down there?
Joined: Dec 2006
Posts: 2,859
Likes: 13
From: Sterling Heights, MI
It's coming along really well, I can't wait to hear how it sounds
.
Thread Starter
Joined: May 2003
Posts: 1,428
Likes: 0
From: Marion, Ohio

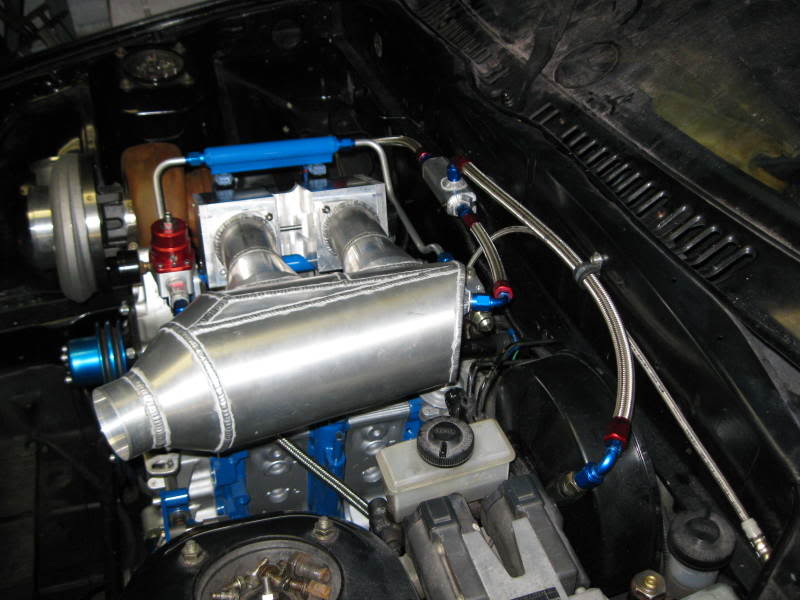

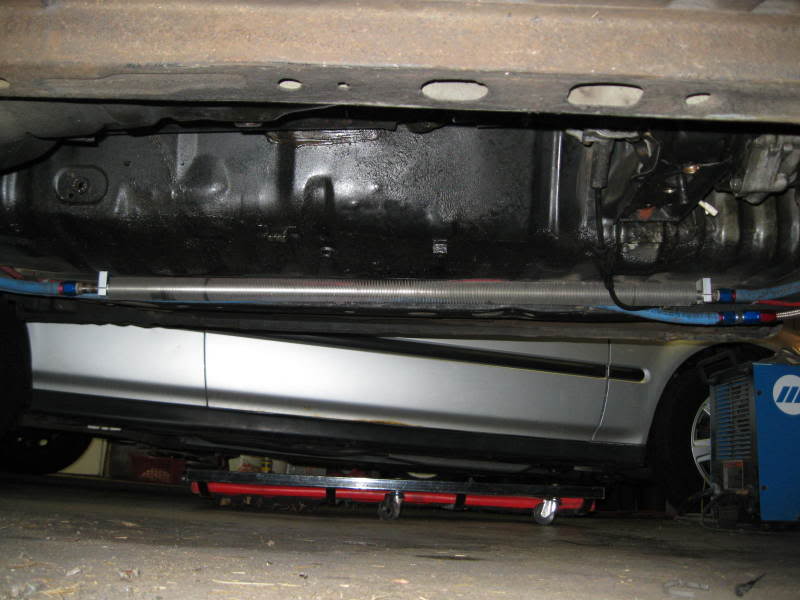

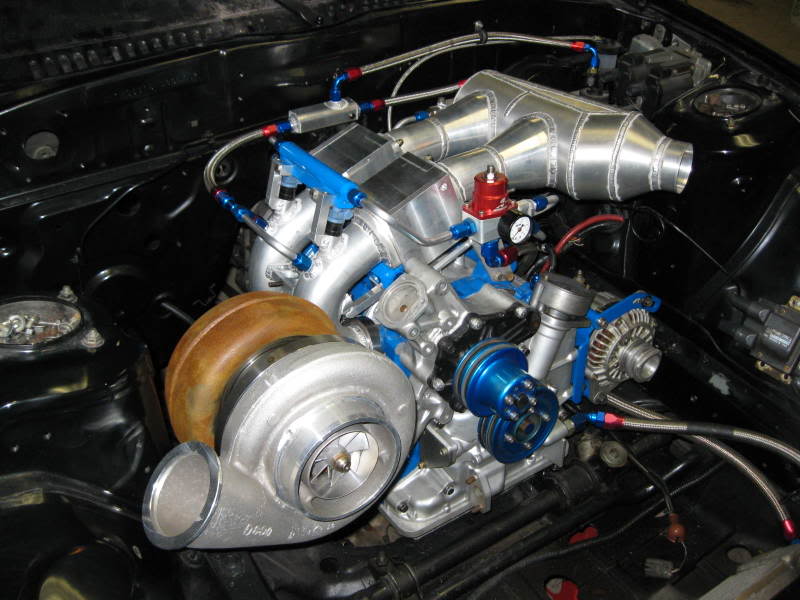

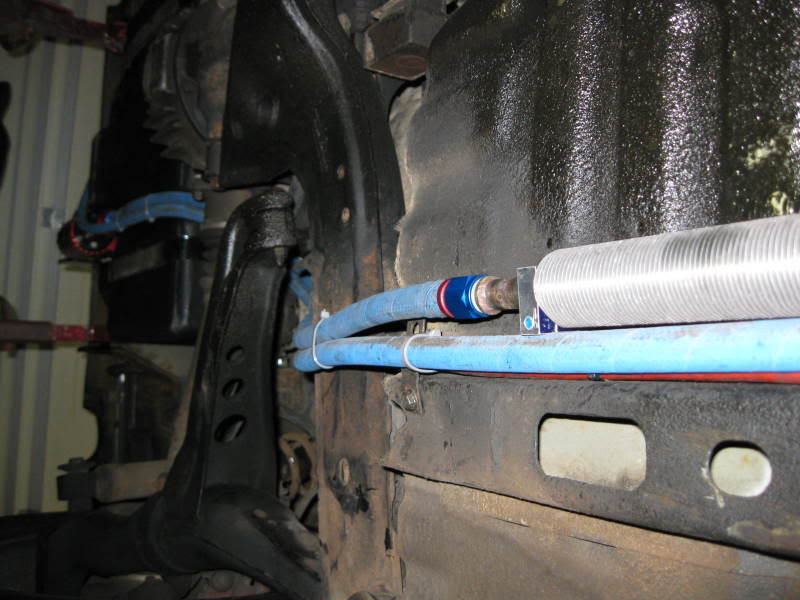

I picked up the fuel cooler for $3 at a scrapyard and welded steel fittings on the ends. It is just a stainless steel tube with aluminum fins wound around it. No idea where you could find another; I have never seen one before or since.
