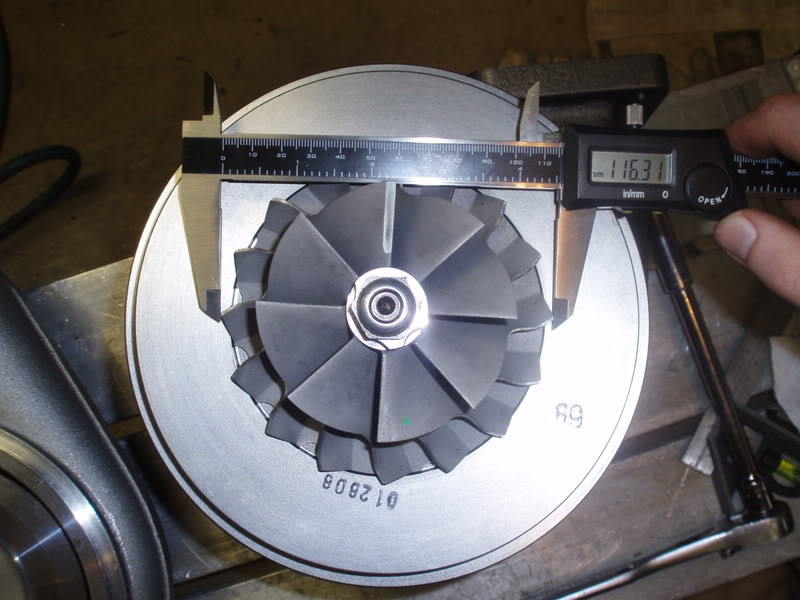

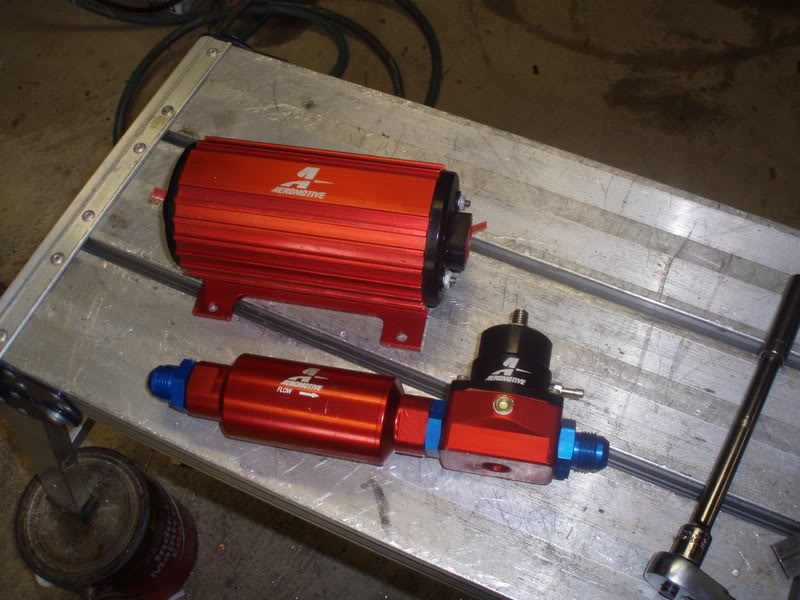

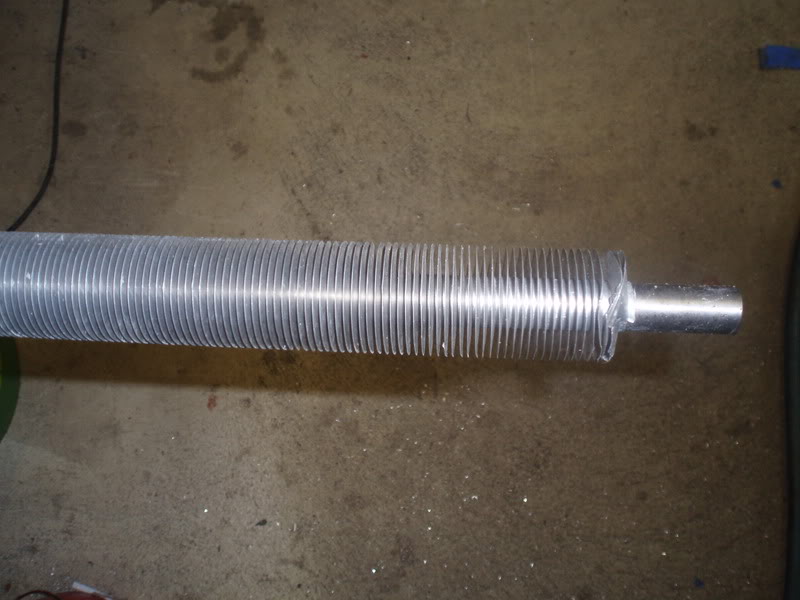

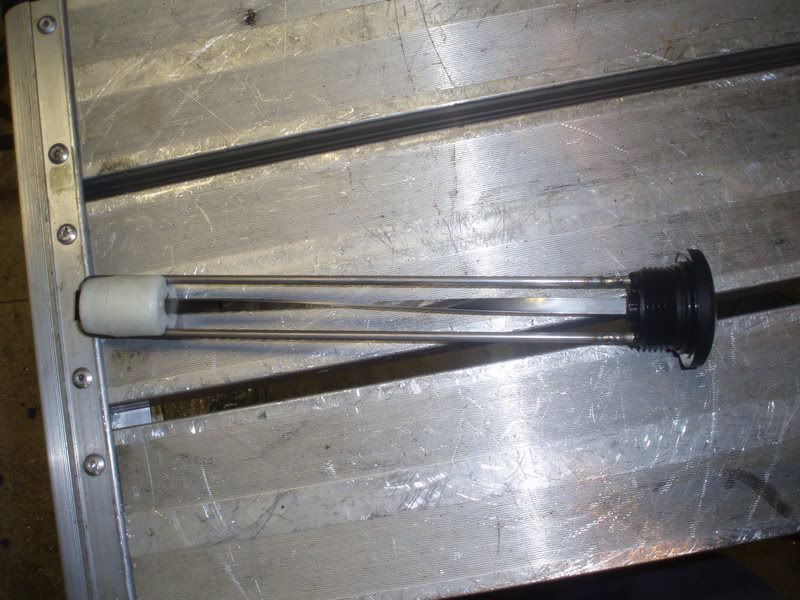

Fuel stuff for the gasoline part: Aeromotive A1000, reg, filter, 16 gallon fuel cell. I acquired a nifty sealed mechanical fuel level gauge from work, had to cut it up and rework it for my application though. I will make an o-ringed aluminum bulkhead fitting for it sometime. I found a cool heat exchanger at the scrapyard that I am going to make a fuel cooler out of. It's about 5 ft long, so I will cut it down and put it under the car in the feed line running from the cell to the engine.

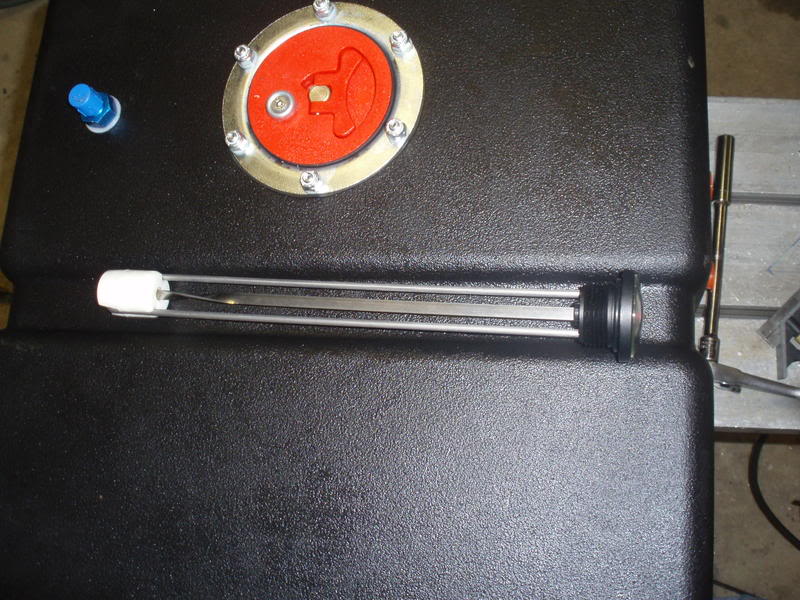

Before:

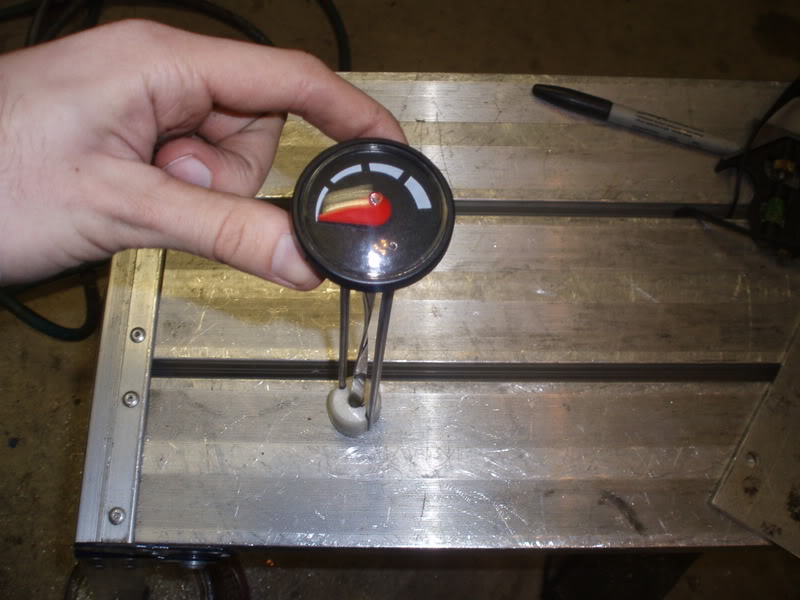

Reworked:

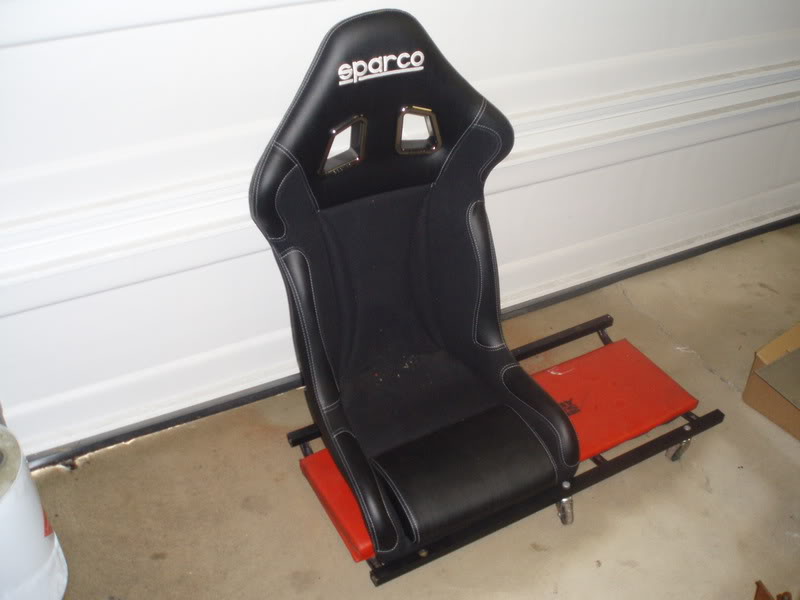

Driver side seat. Getting a Kirkey for the passenger, might have to sell the Sparco and get a Kirkey for the driver side too because it doesn't have a submarine belt hole.

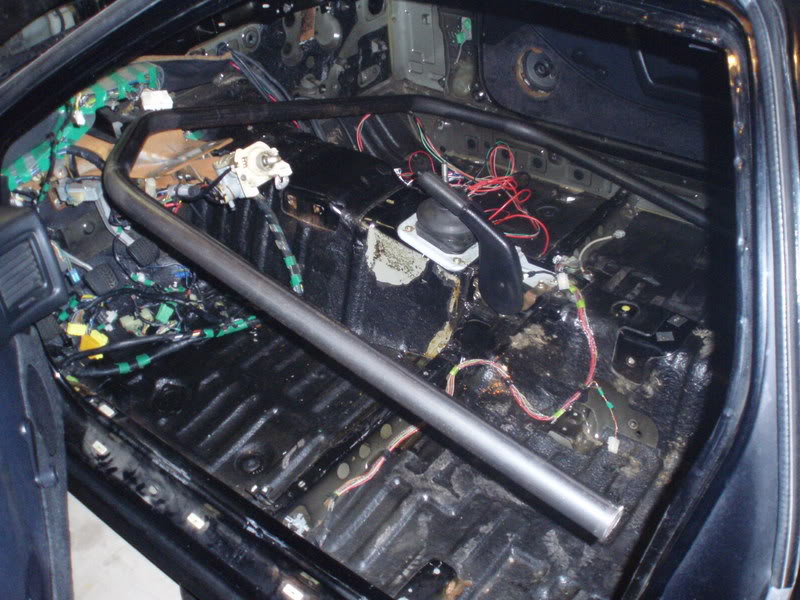

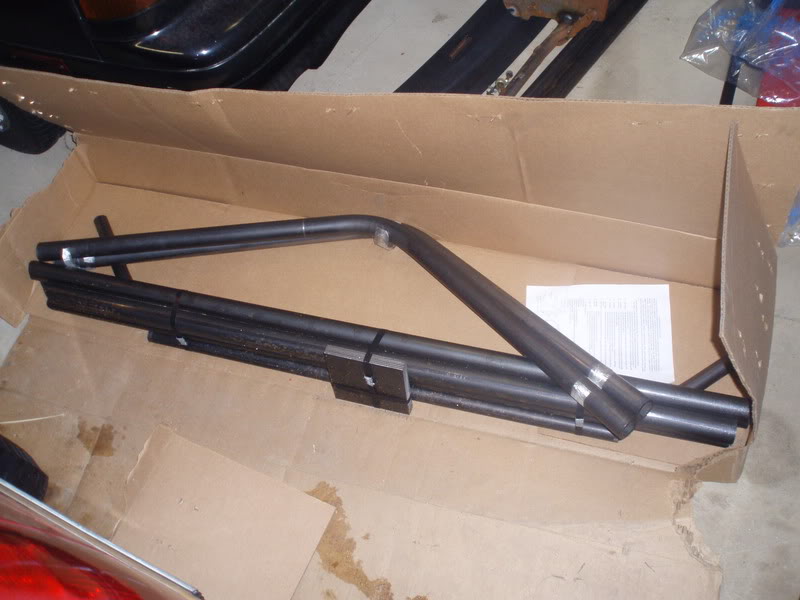

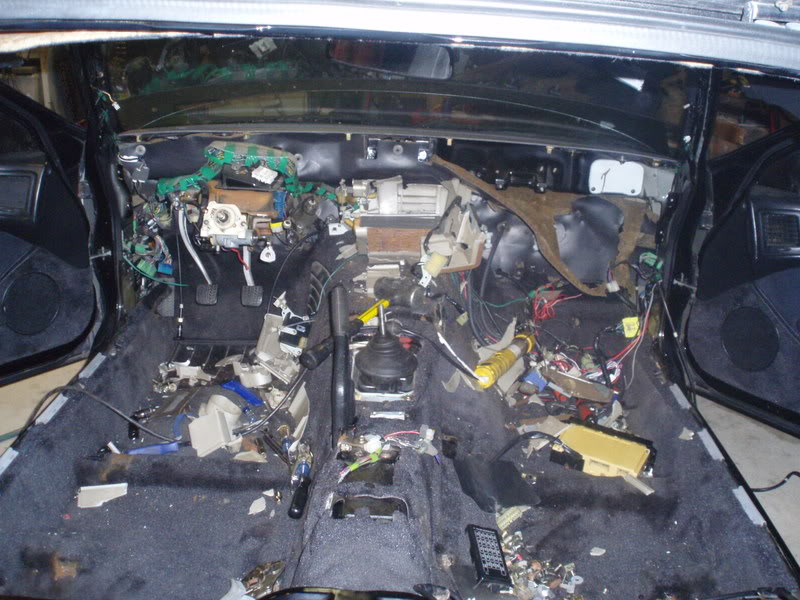

Ripped the interior out in preparation for the cage. I was really tired and the heater core wouldn't come out, so it got the hammer. Turns out I had the engine side capped with clamps, came right out after I took them off. Cage is a Jegster 10 point kit. Crappy ERW mild tubing, but it was only like $250 and NHRA legal.
