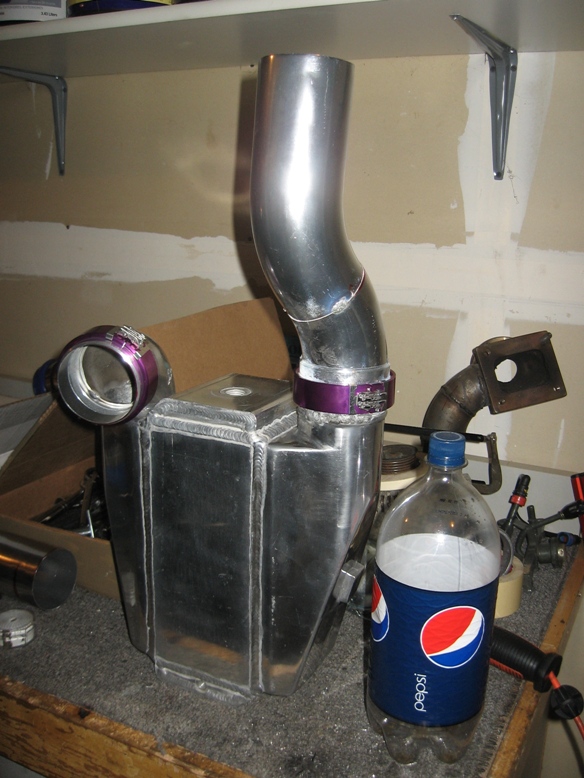

Following in Stylemon's footsteps, I finally decided to getting around to working on the red car some and am in the process of converting over to Hot-Air. I'm running a Master Power T70 w/ a 0.96 A/R P-Trim hotside. The compressor on that turbo has a 2.5" discharge. On the old setup I was running had a 2.25" pipe coming off the turbo (reduced via coupler off the turbo) that was then reduced even further (1.75") to the stock top mounted intercooler. I was also using the S4 factory throttle body inlet. On the older turbo (60-1hifi) I made about 440rwhp and over 360ft/lbs torque with the same hardware. Ever since switching to the T70 though, I've wondered whether or not if the stock top mount was even doing anything as I can't imagine it being efficacious at all as a charge cooler. I've also wondered whether or not the smaller pipe (not to mention the stock top mount) was a big restriction to overall flow.

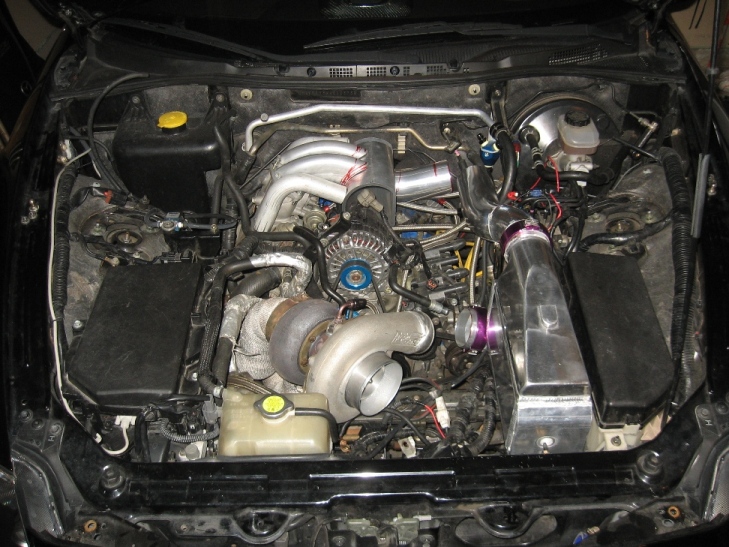

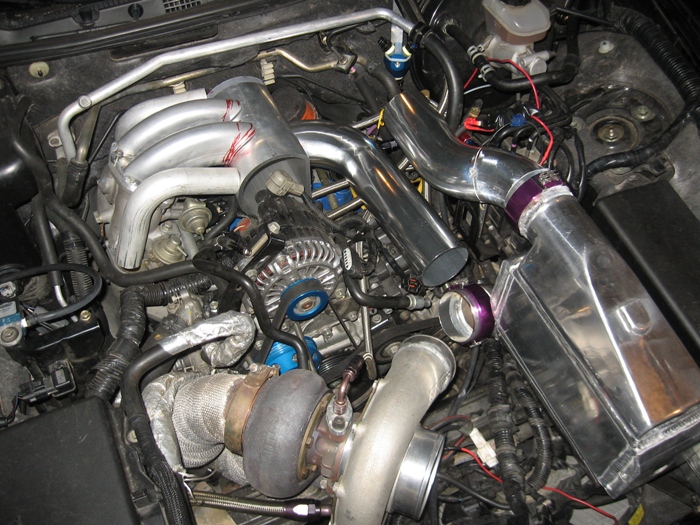

The new pipe setup is 2.5" and goes straight from the turbo to the throttle body via the new throttle body inlet adaptor. The new adaptor is a mystery piece that I found that I've evidently had for several years. I've got no idea where it came from but it wound up working out just fine. It's basically a machined aluminum flange with a 3" aluminum 'pipe' welded to it that fits directly on the factory throttle body. It had a flat, right-angular exit that I went ahead and did some bevel work on it since I was told that it wouldn't be for airflow transitioning from the adaptor to the throttle body. I'm using a 3" to 2.5" reducer coupler from the adaptor to the pipe. The two Alkycontrol M10 nozzles are located on the pipe a couple of inches prior to the reducer coupler. The aim of the overall setup here is to prove that AI can act as a "chemical intercooler" similar to what Stylemon's doing on his FD w/ TO4 and WI but on a higher power output w/ a larger turbo.
Ari Yallon at Rotary Performance (http://www.rx7.com) did the pipe and welding work. I'm very happy with it. It came out quite nice for something that's not exactly common and done more-or-less on a whim.
I also changed the oil filler neck setup. I took a factory 2nd gen filler base and had it shortened (cut and re-welded) to make it as short as possible. I replaced the filler tube with a Cosmo 13B-RE unit that's rounded but taller. Added a 5/16" hose from the filler neck to the catch can. I made the change to the filler neck to make sure a 2.5" pipe could go straight into the TB adaptor.
Here's a link to all of the photos. Don't make fun of my rusted-on-the-surface-but-almost-brand-new water pump. The only other thing left to do is get the BOV welded on the pipe somewhere. Not sure exactly where to put it.
http://bdc.cyberosity.com/v/ProjectC...AirConversion/
The new pipe setup is 2.5" and goes straight from the turbo to the throttle body via the new throttle body inlet adaptor. The new adaptor is a mystery piece that I found that I've evidently had for several years. I've got no idea where it came from but it wound up working out just fine. It's basically a machined aluminum flange with a 3" aluminum 'pipe' welded to it that fits directly on the factory throttle body. It had a flat, right-angular exit that I went ahead and did some bevel work on it since I was told that it wouldn't be for airflow transitioning from the adaptor to the throttle body. I'm using a 3" to 2.5" reducer coupler from the adaptor to the pipe. The two Alkycontrol M10 nozzles are located on the pipe a couple of inches prior to the reducer coupler. The aim of the overall setup here is to prove that AI can act as a "chemical intercooler" similar to what Stylemon's doing on his FD w/ TO4 and WI but on a higher power output w/ a larger turbo.
Ari Yallon at Rotary Performance (http://www.rx7.com) did the pipe and welding work. I'm very happy with it. It came out quite nice for something that's not exactly common and done more-or-less on a whim.
I also changed the oil filler neck setup. I took a factory 2nd gen filler base and had it shortened (cut and re-welded) to make it as short as possible. I replaced the filler tube with a Cosmo 13B-RE unit that's rounded but taller. Added a 5/16" hose from the filler neck to the catch can. I made the change to the filler neck to make sure a 2.5" pipe could go straight into the TB adaptor.
Here's a link to all of the photos. Don't make fun of my rusted-on-the-surface-but-almost-brand-new water pump. The only other thing left to do is get the BOV welded on the pipe somewhere. Not sure exactly where to put it.
http://bdc.cyberosity.com/v/ProjectC...AirConversion/
