Was wondering if maybe someone had some info on this this setup. I've heard that some grinding of the manifold must be done in order to fit properly. Since this is my Daily was hoping someone had some info or pictures on this. (to minimize down time) I would like to have this performed while at the machine shop before the ceramic coating. ANY info on this would be very much appreciated. Thanks
#2
Rotary Enthusiast
iTrader: (5)
Just call Brian @ BNR and I'm sure he could answer that for you.
On top of that, if clearance is an issue, I'm sure, for a fee, you could send him your X-LIM and he could resolve the clearance issue you speak of.
If you're getting your turbos redone by Brian, you're going to have to send him your Y-pipe that he extends. I'm sure he could figure something out for the LIM to make it fit.
On top of that, if clearance is an issue, I'm sure, for a fee, you could send him your X-LIM and he could resolve the clearance issue you speak of.
If you're getting your turbos redone by Brian, you're going to have to send him your Y-pipe that he extends. I'm sure he could figure something out for the LIM to make it fit.
#3
~17 MPG
iTrader: (2)
I'm not familiar with the differences between BNR turbos and stock twins, but I've been running an Xcessive LIM with stock twins for a few years now. There were some modifications required to make everything fit, including bending the oil and coolant hard lines, removing some material from the LIM to add clearance for the y-pipe, and reshaping the turbo heat shield with a hammer. For me the toughest part was re-clocking the turbos to add clearance for the y-pipe... that is how Dan Chadwick made his fit but I never figured out how to do it. Instead I ground off part of the lower Y-pipe flanges to make it work. I think I posted some photos in a build thread on another rotary car club forum, but I'm having trouble finding them via a google search.
#4

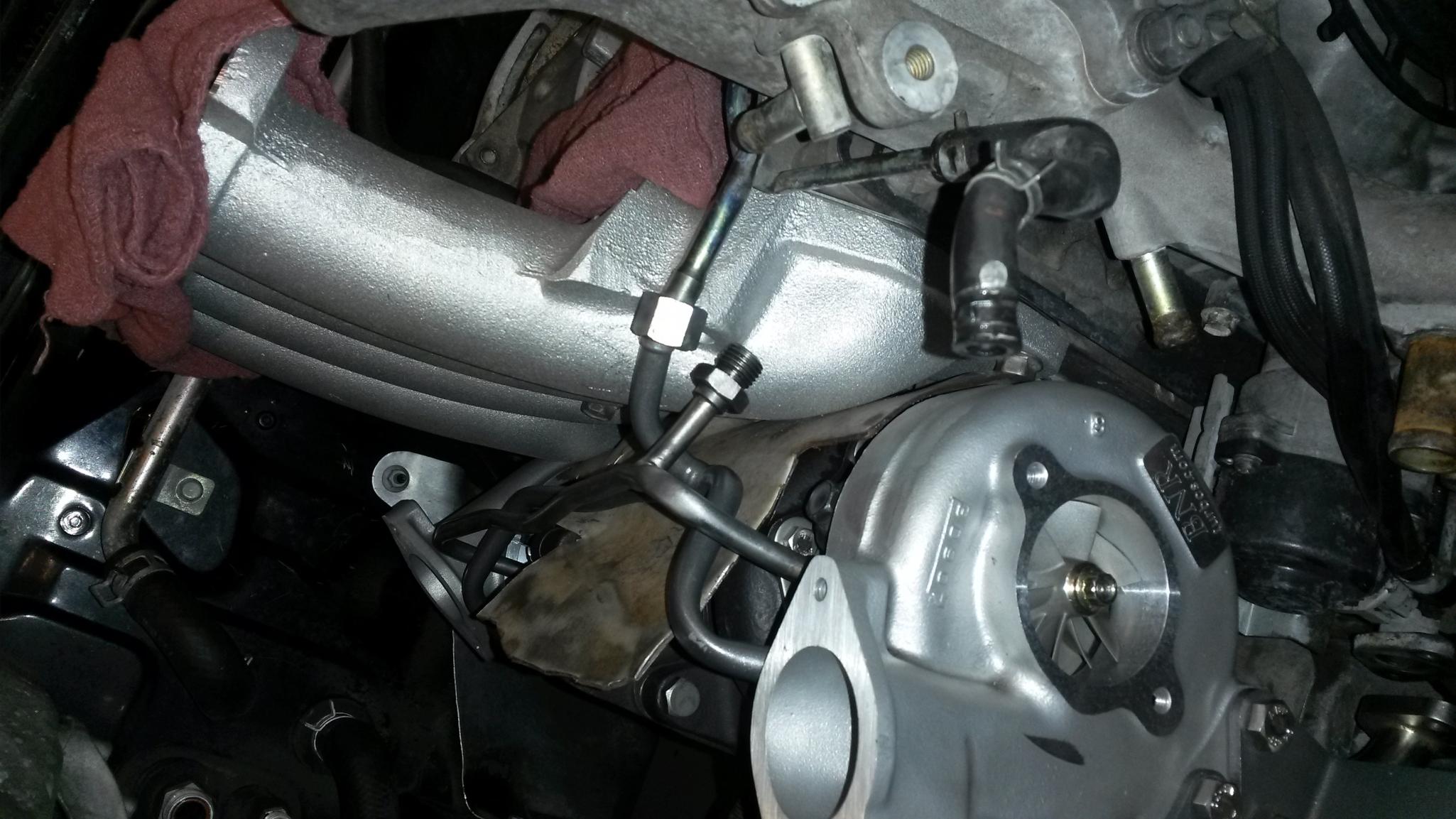

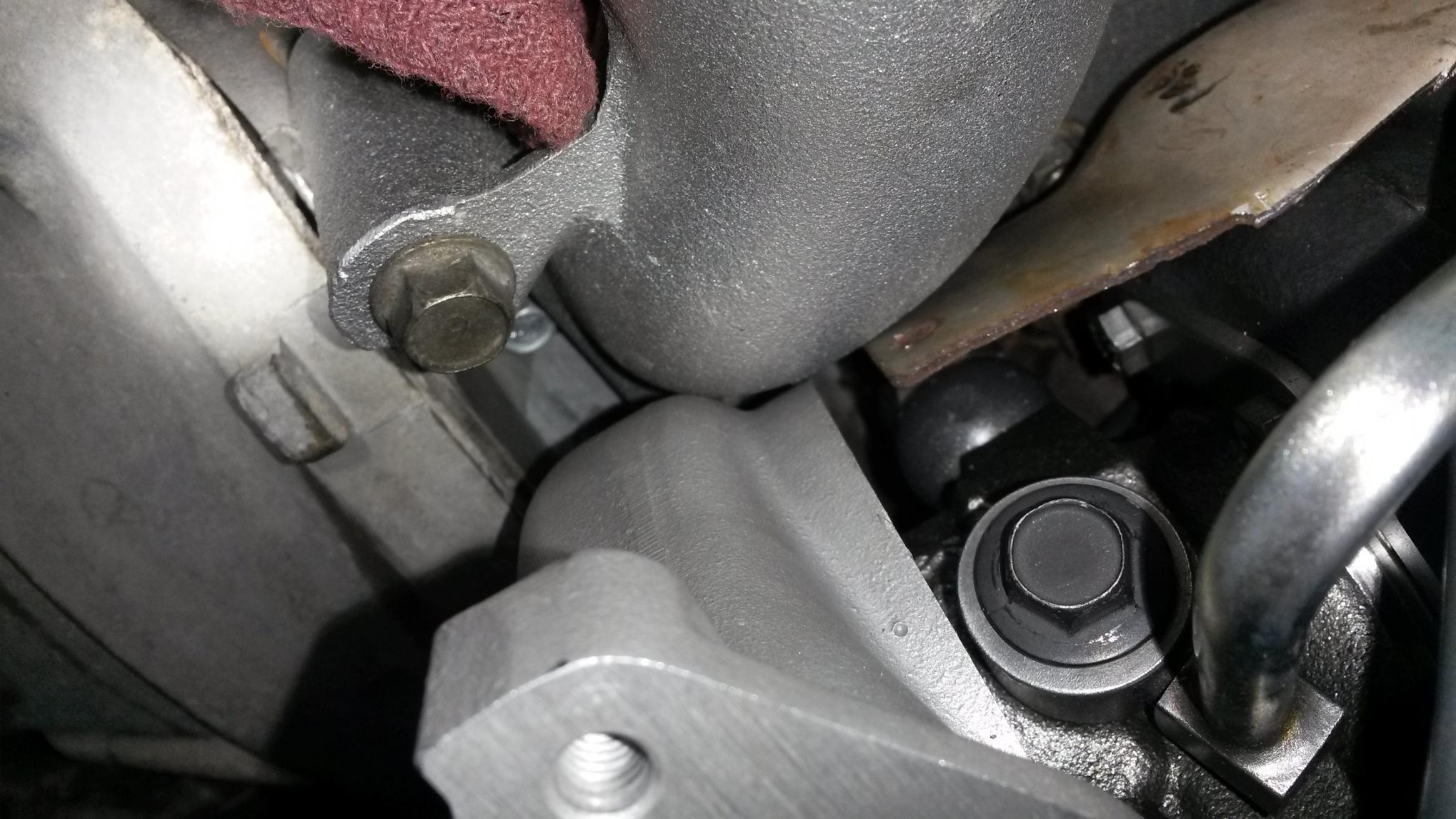

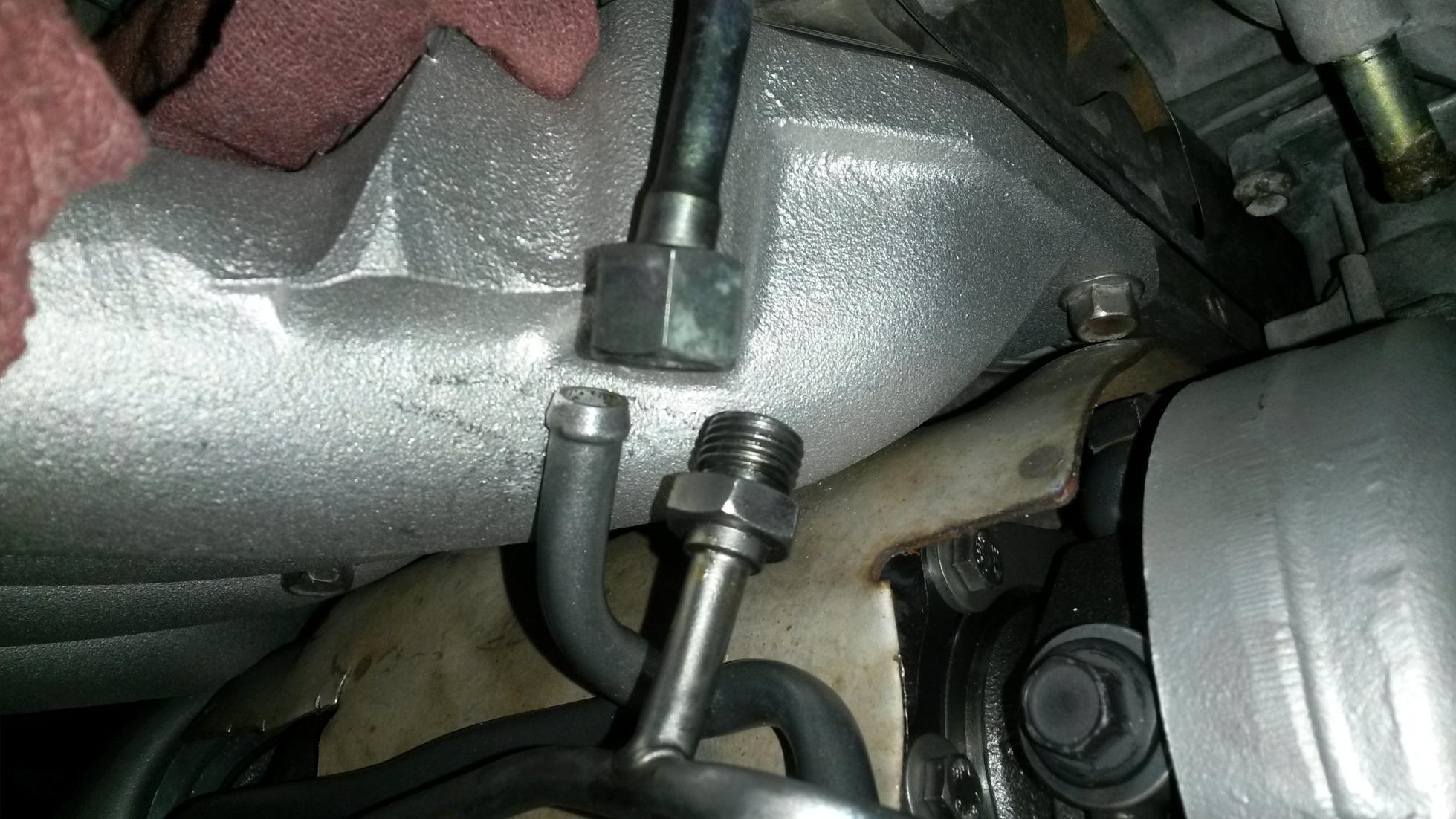

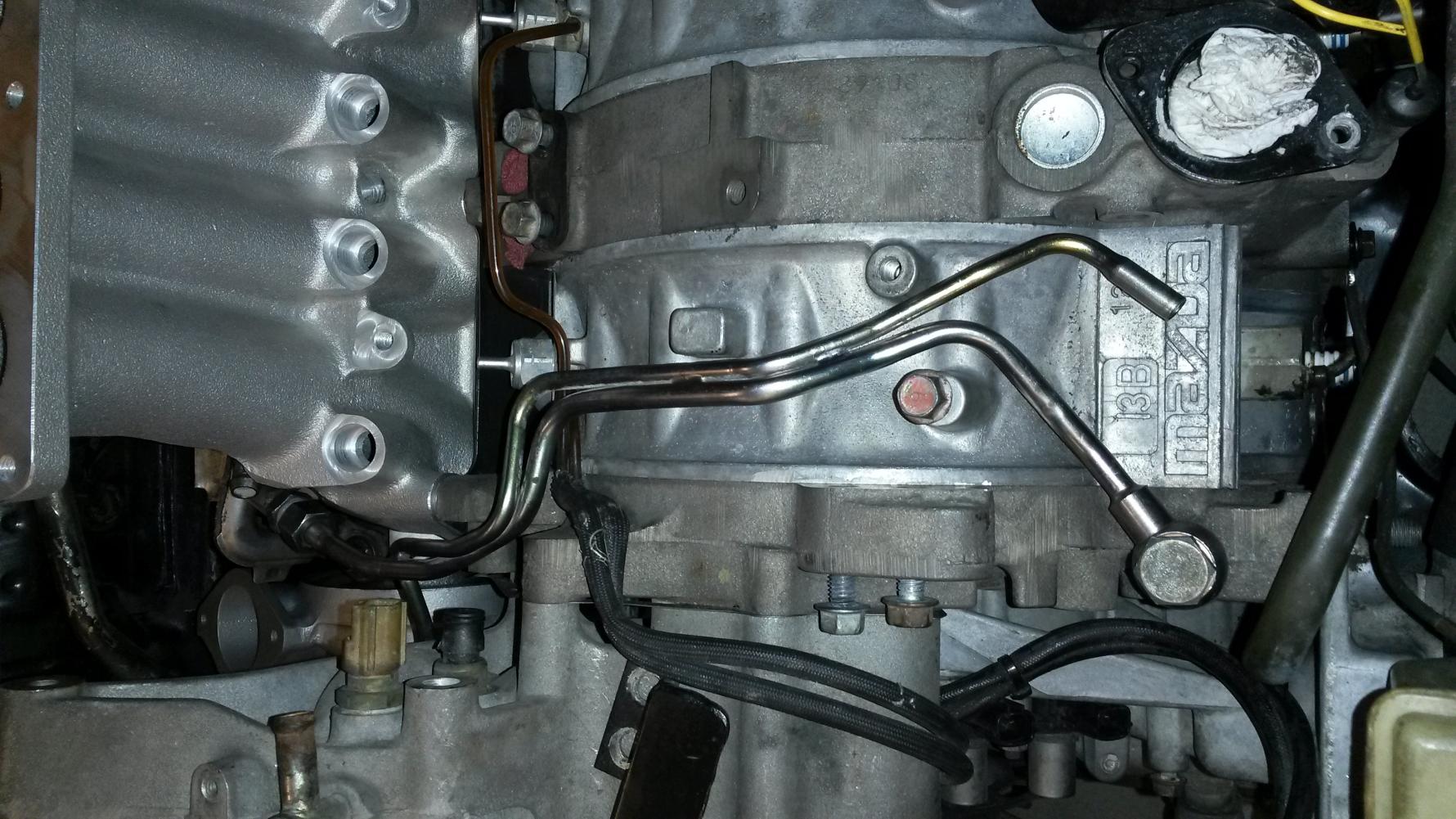

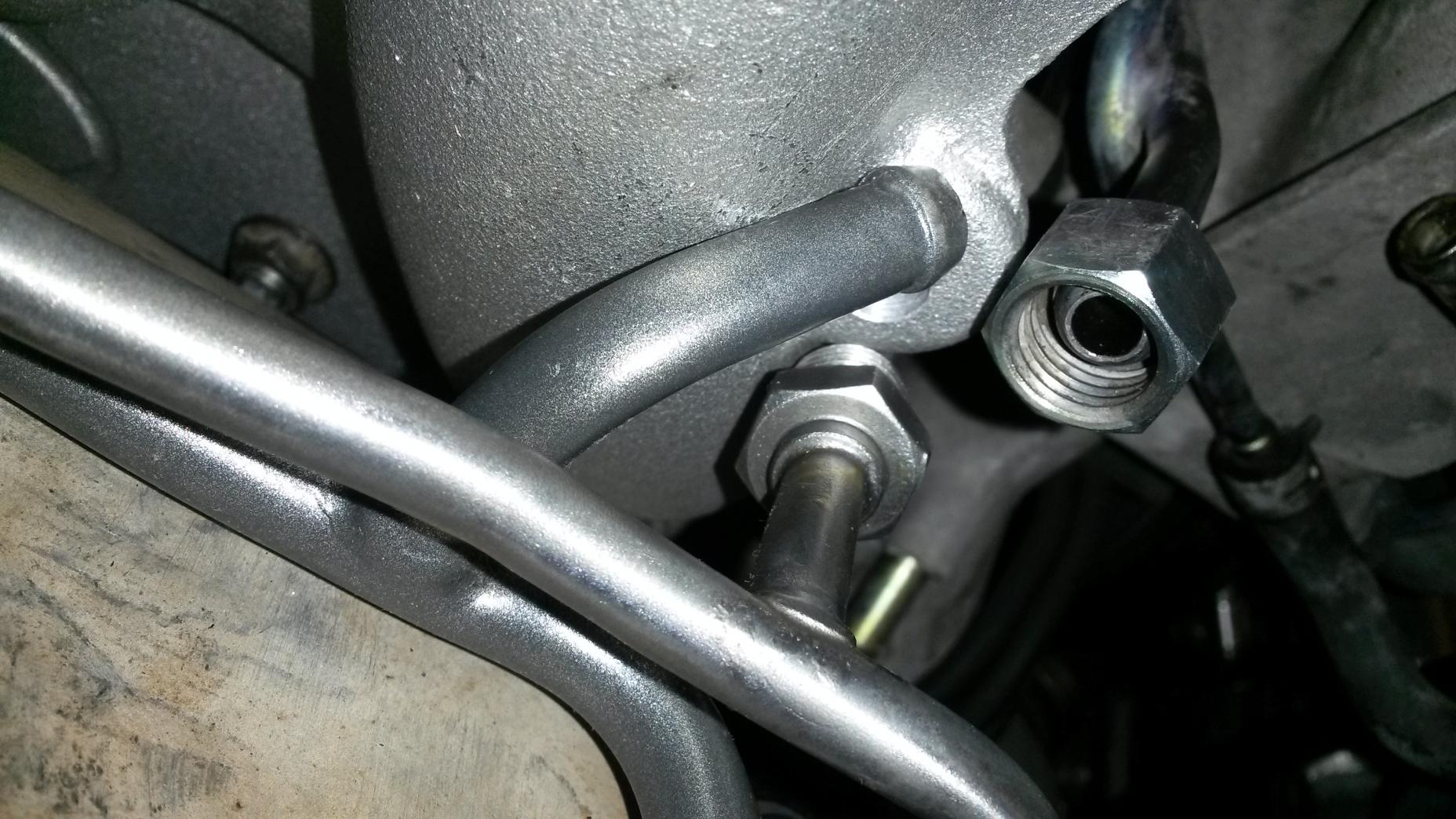

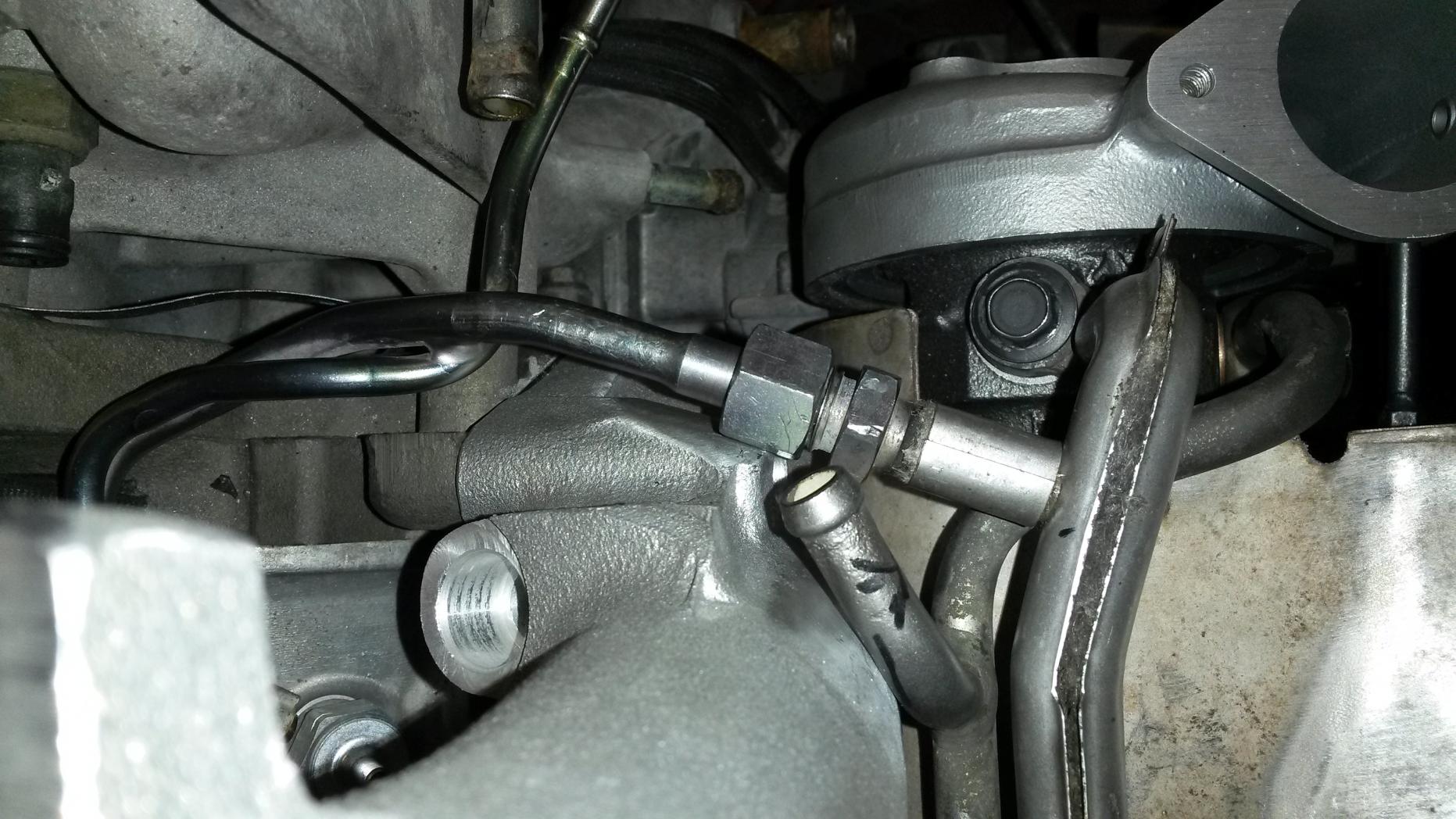

Thanks for the info fellas, I performed a mock up and did have some minor clearance problems. Thought I should just share some pics and info. Nothing major, it's just a really tight fit. Probably just grind a tad bit . However my concern is now with the coolant and oil lines. Is this the normal "need to bend the lines" or do I need to re clock the turbo's first? Hoping someone could share there experiences with me. Thanks
Trending Topics
#8
Full Member
Join Date: Mar 2013
Location: New Zealand
Posts: 59
Likes: 0
Received 0 Likes
on
0 Posts
Hi there,
It is a tight fit! I have fitted mine with the stock twins. Here is what I needed to do:

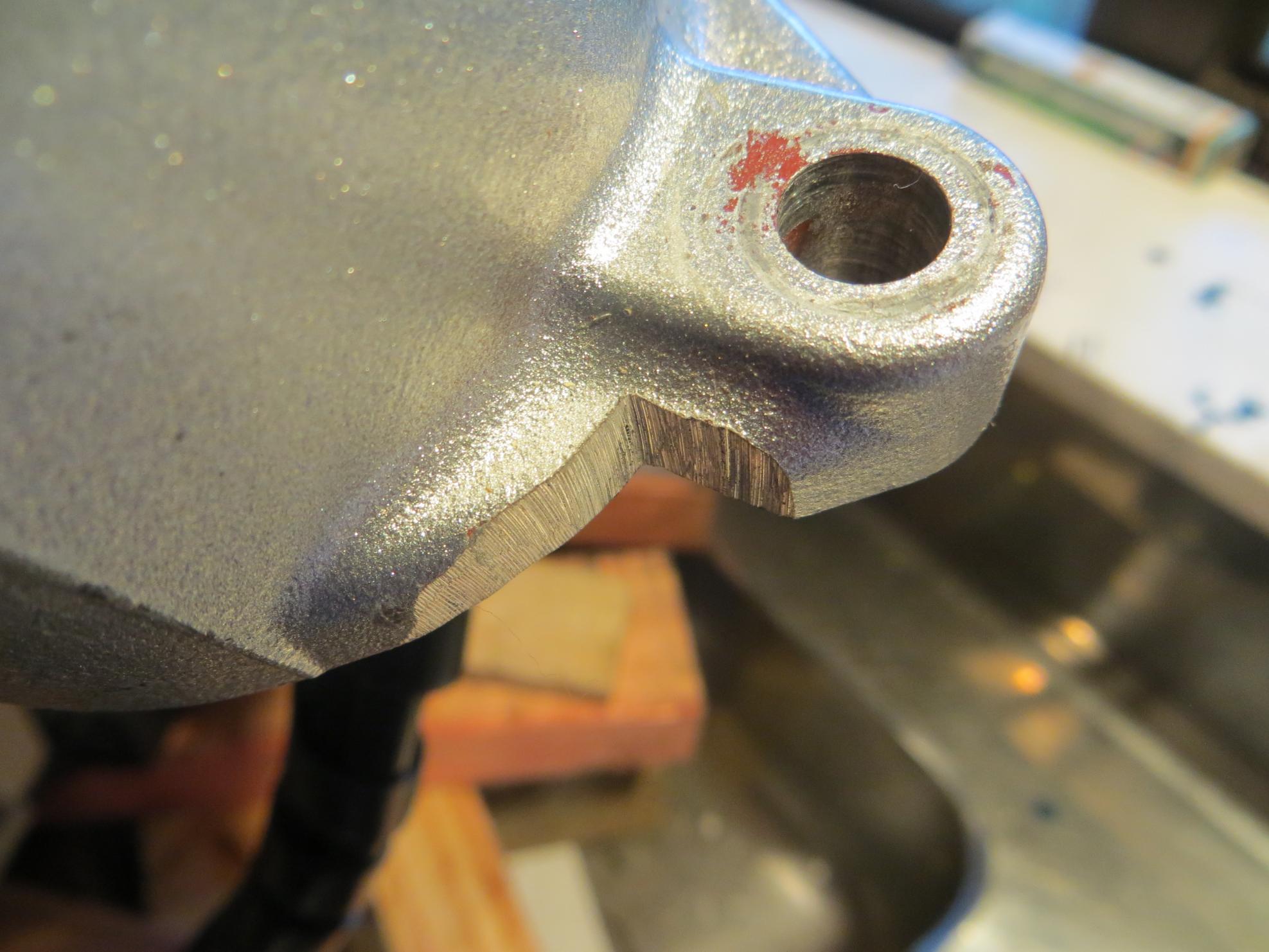

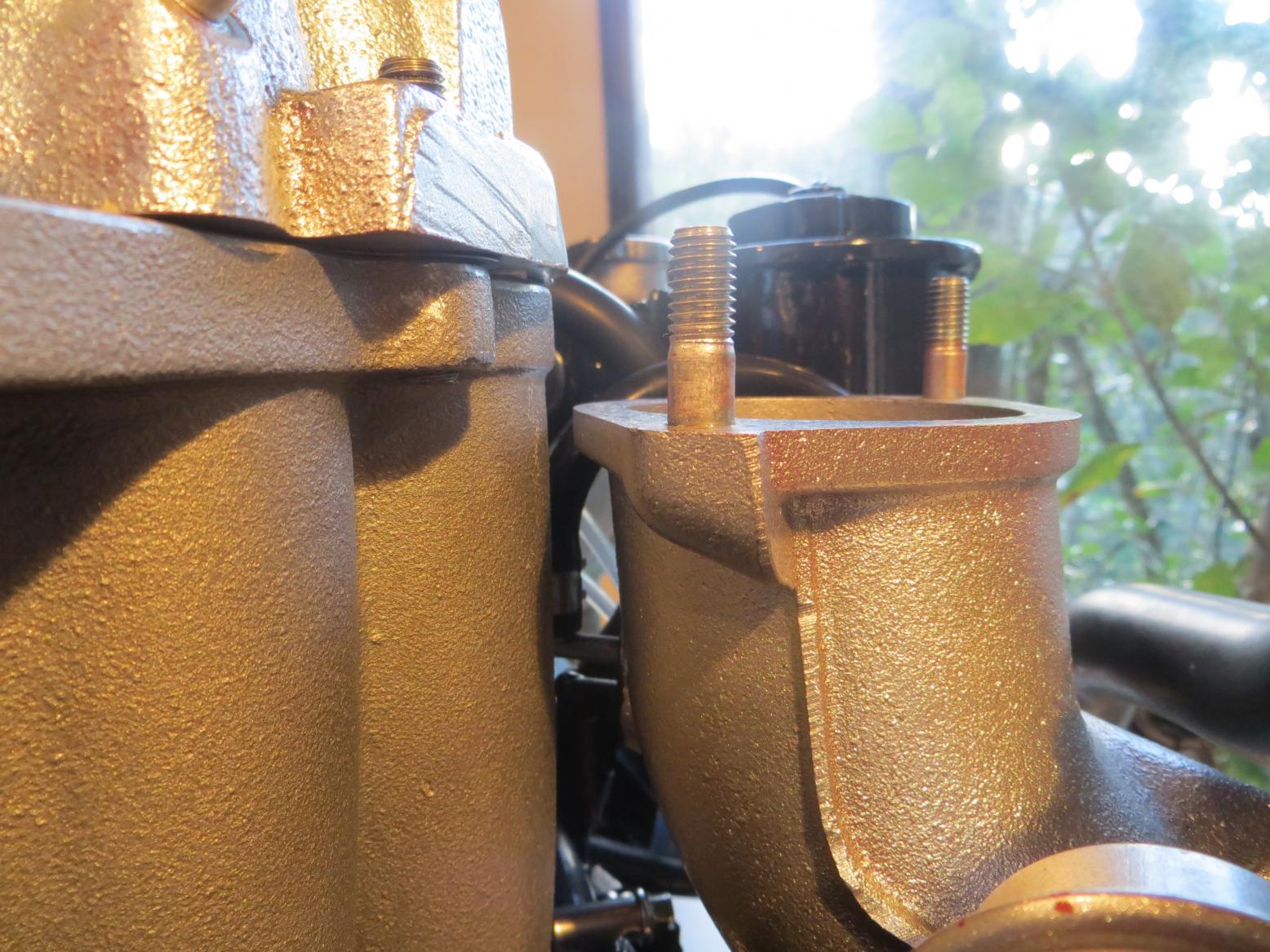

1 - grind some material off the rear runner and the turbo to get clearance - as per the issue in your 2nd photo. Do both the turbo housing and the LIM, little bit at a time. I have about 3mm clearance now.

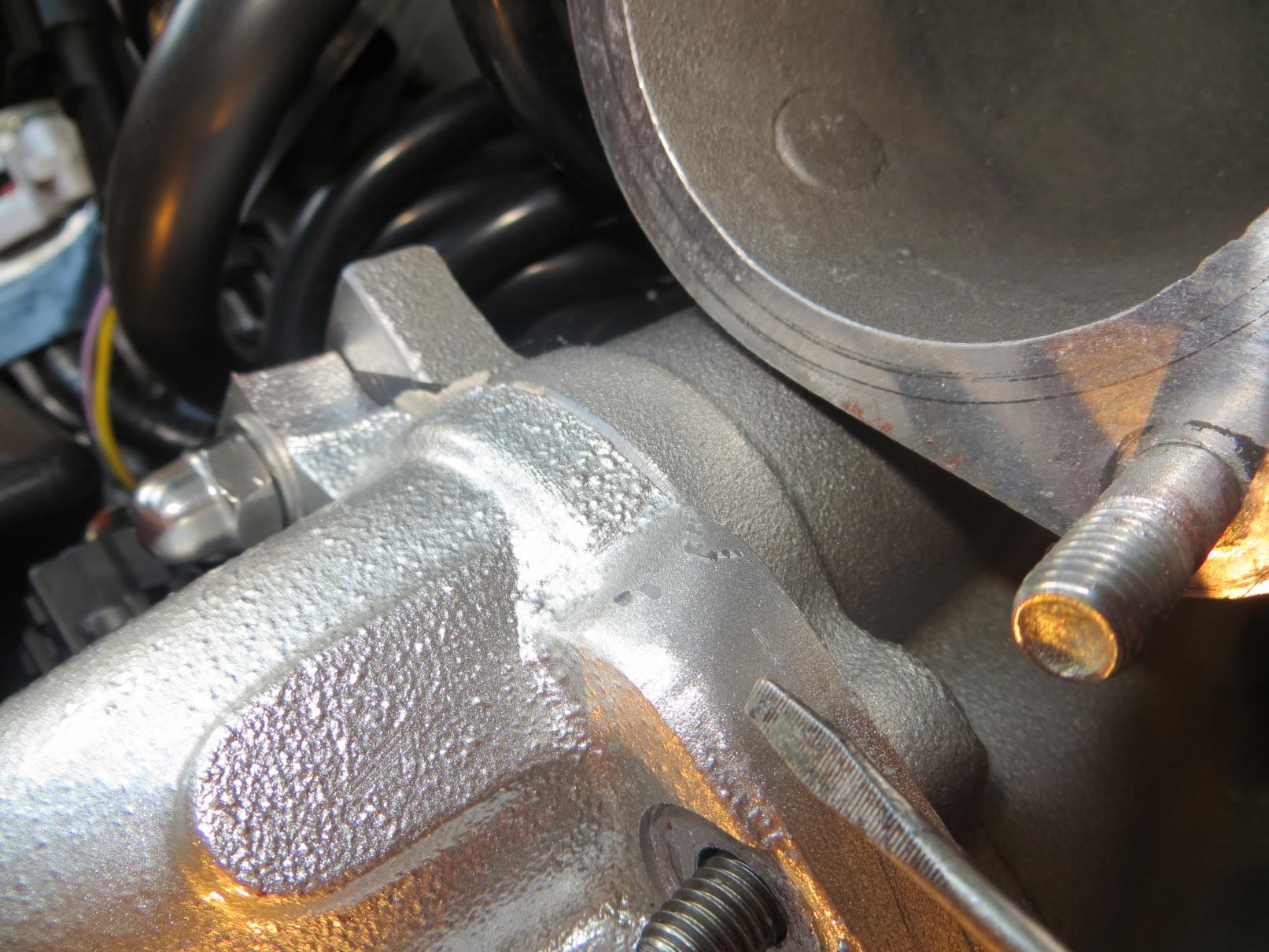

2 - water feed pipe/ hardline - photo 3 - I actually cut this off an clocked it forward & refitted. I tig welded it - you could braze it.
3 - the turbo oil line - well I actually cut the threaded bit off with a grinder, then welded on steel AN-6 fitting, and then made a custom line back to the front iron. I still needed to 'bend' this hardline forward quite a bit.
4 - as you are keeping sequential, I found that I had to make some custom 'spacers' to refit all the hardpipes/ vacuum lines, that was the most challenging bit I think! I also needed to move the wastegate and pre control solenoid rack 'up' - but I think that was to clear the xcessive LIM fuel rail......
Hope thats helpful - shout out if you want anything else/photos.
Rusty
It is a tight fit! I have fitted mine with the stock twins. Here is what I needed to do:
1 - grind some material off the rear runner and the turbo to get clearance - as per the issue in your 2nd photo. Do both the turbo housing and the LIM, little bit at a time. I have about 3mm clearance now.
2 - water feed pipe/ hardline - photo 3 - I actually cut this off an clocked it forward & refitted. I tig welded it - you could braze it.
3 - the turbo oil line - well I actually cut the threaded bit off with a grinder, then welded on steel AN-6 fitting, and then made a custom line back to the front iron. I still needed to 'bend' this hardline forward quite a bit.
4 - as you are keeping sequential, I found that I had to make some custom 'spacers' to refit all the hardpipes/ vacuum lines, that was the most challenging bit I think! I also needed to move the wastegate and pre control solenoid rack 'up' - but I think that was to clear the xcessive LIM fuel rail......
Hope thats helpful - shout out if you want anything else/photos.
Rusty
#10
Full Member
Join Date: Mar 2013
Location: New Zealand
Posts: 59
Likes: 0
Received 0 Likes
on
0 Posts
put a slide show together of the photos I think will help you most:
Library Slideshow by rusty13B | Photobucket
Cheers, Rusty
Library Slideshow by rusty13B | Photobucket
Cheers, Rusty
#12
Thanks Rusty 13B . From what I see I'm going to have clearance issues with the 99 spec y pipe hitting the xcessive lim. Did you run across this issue? neit_jnf I thought about flange / spacers however i would need some for the oil lines and possible problems with downpipe fitment since i would be moving everything over.
#13
Full Member
Join Date: Mar 2013
Location: New Zealand
Posts: 59
Likes: 0
Received 0 Likes
on
0 Posts
Hi again,
yes - I needed to solve those clearance issues. Solved with a combination of:

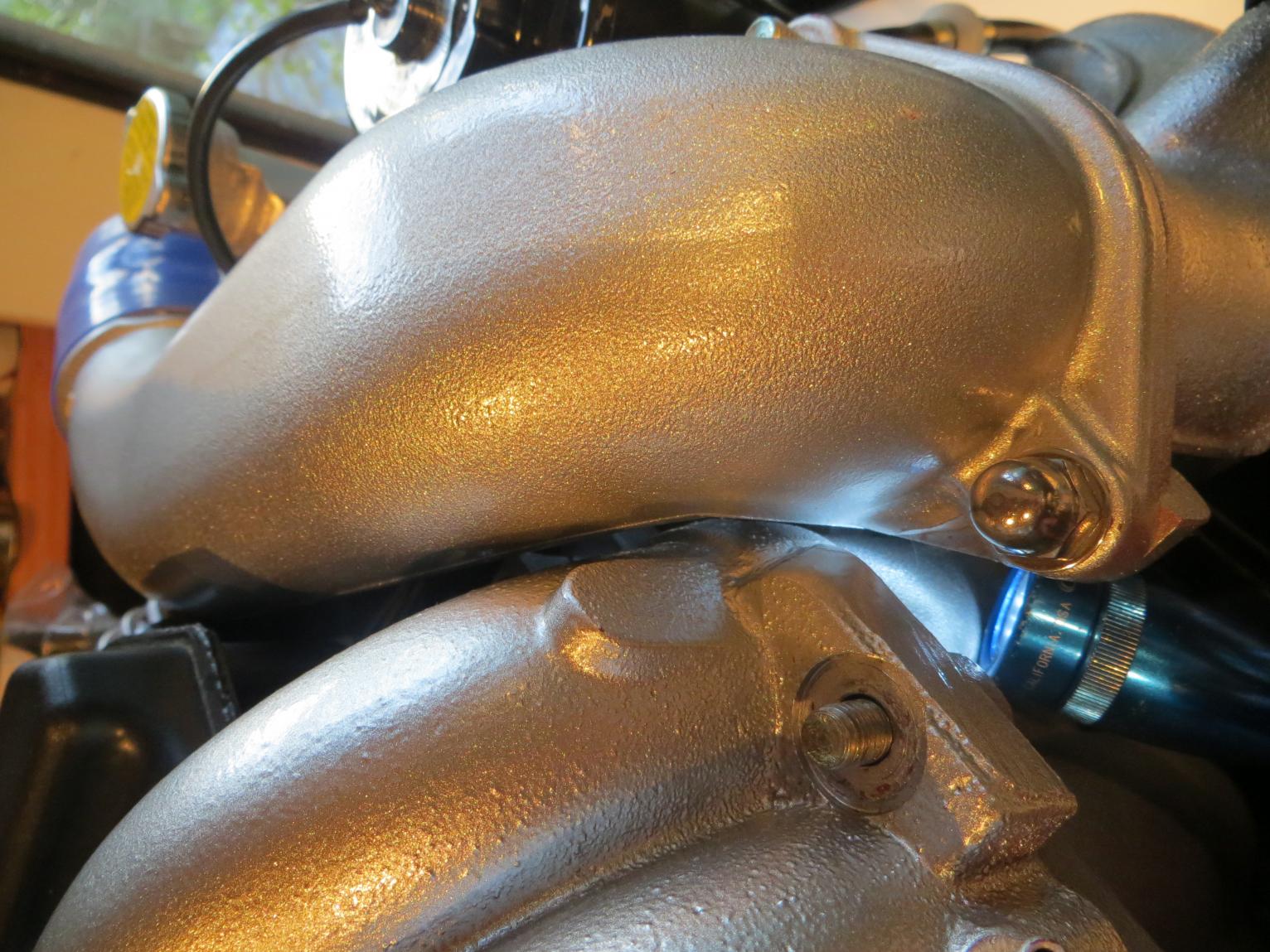

1 - grinding a sharp 'angle' off the front of the Upper LIM (see photo with screw driver)
