1979 Dashboard Gauge voltage regulator
Hey all,
I've got a '79 SA, all stock. The temp and fuel gauges read low, dash lighting also seems low (been this way since I bought it last summer). If I ground the wire that goes to the temp sensor the gauge will go all the way to the top as it should. With the ignition on, that wire is at about 7v, measured from the temp sensor wire to the battery ground terminal.. From the diagram in my Haynes manual that voltage should be the output of the regulator in the cluster. Some research shows that 9v is a very common voltage for this circuitry in other cars. Does anyone know what the voltage should be? I suspect the regulator is bad and putting out a low voltage but I don't want to tear it apart without knowing what to replace it with. Thanks!
I've got a '79 SA, all stock. The temp and fuel gauges read low, dash lighting also seems low (been this way since I bought it last summer). If I ground the wire that goes to the temp sensor the gauge will go all the way to the top as it should. With the ignition on, that wire is at about 7v, measured from the temp sensor wire to the battery ground terminal.. From the diagram in my Haynes manual that voltage should be the output of the regulator in the cluster. Some research shows that 9v is a very common voltage for this circuitry in other cars. Does anyone know what the voltage should be? I suspect the regulator is bad and putting out a low voltage but I don't want to tear it apart without knowing what to replace it with. Thanks!
#2
Junior Member
Thread Starter

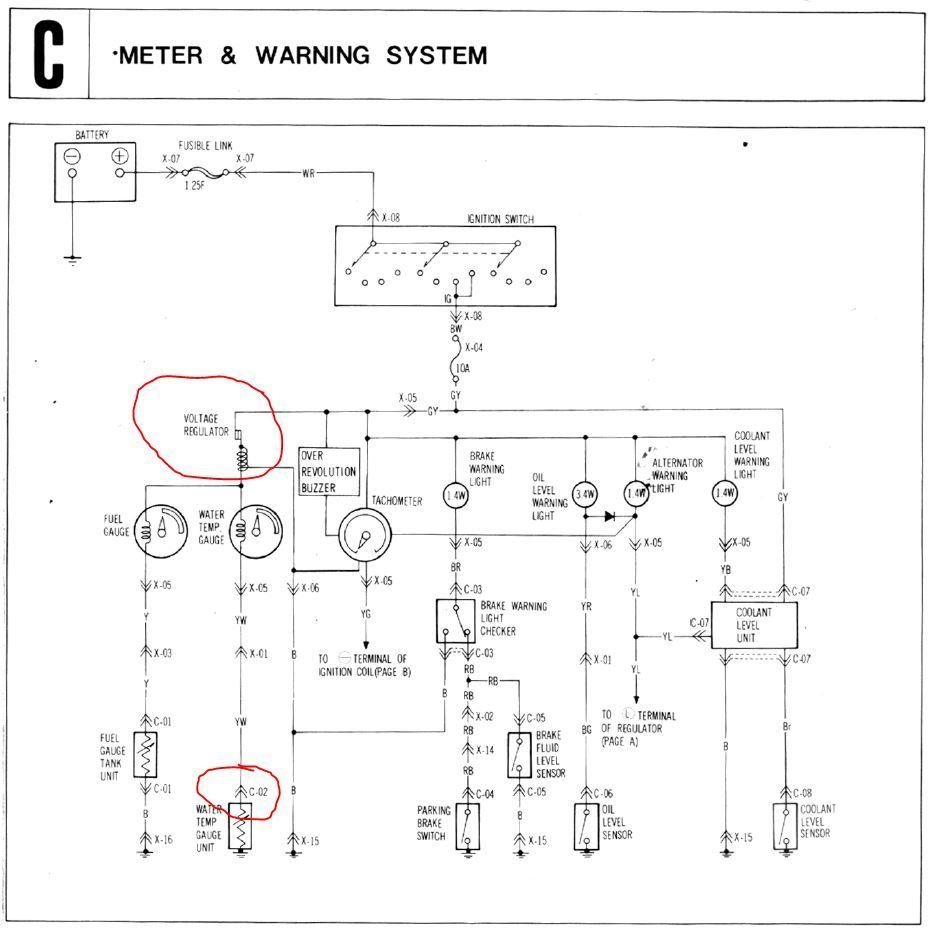

I would also be interested/appreciative if anyone could check their voltage on the temp sensor wire with the ignition on to see how it compares to my 7v reading. Maybe I'm misinterpreting the (very simplified) diagram. Thanks!
Further research shows the p/n of the regulator may be 8871-55-482, but the mighty Google comes up empty on that... :-(
Further research shows the p/n of the regulator may be 8871-55-482, but the mighty Google comes up empty on that... :-(
Last edited by Kid_Zer0; 04-25-24 at 03:48 PM. Reason: add p/n
#3
Rotary Enthusiast
I think 7V is what the cluster voltage regulator is designed to put out.
See the photo in this post, it shows 7V etched into the cluster's PCB:
https://www.rx7club.com/1st-gen-gene.../#post12600162
See the photo in this post, it shows 7V etched into the cluster's PCB:
https://www.rx7club.com/1st-gen-gene.../#post12600162
#4
Junior Member
Thread Starter

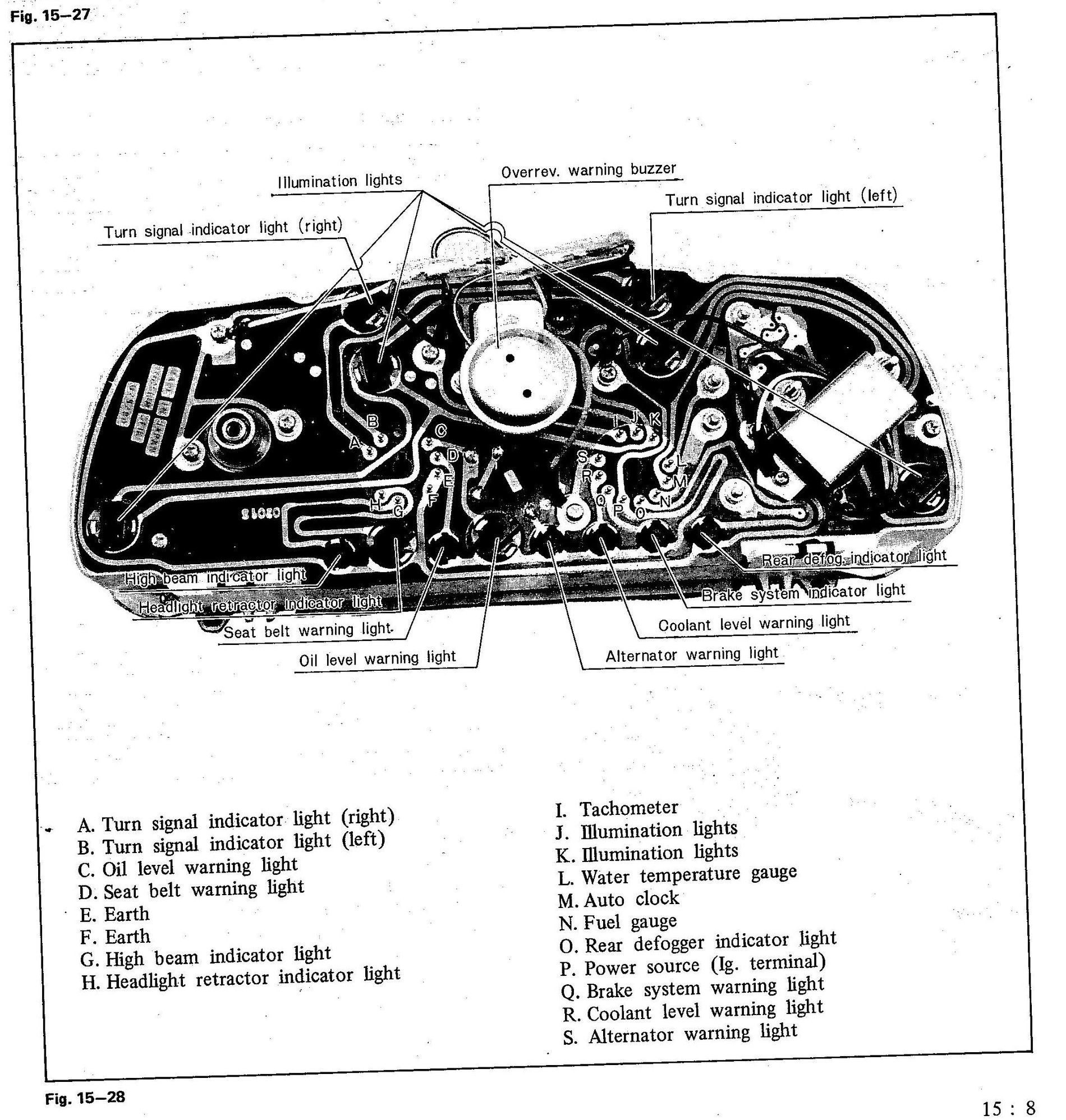

It appears that link is to a 1985 FB dash, much different than the picture in my 1979 workshop manual. I'm hoping someone with an SA and a voltmeter can measure the voltage on their temp sensor wire for comparison... (Sorry about the skew, don't yet have decent image software on my "new" PC...) I'm guessing the big metal box is the voltage regulator.
#6
Junior Member
Thread Starter
Thanks! I'm using a digital multimeter to test. With the ignition on I'm measuring from the yellow wire that connects to the temp sensor (below the oil filter on the engine block) to the battery ground. I get about 7v. I've attached photos of the testing.
Negative lead of DMM to battery ground
Positive lead of DMM to connector
The voltage i see

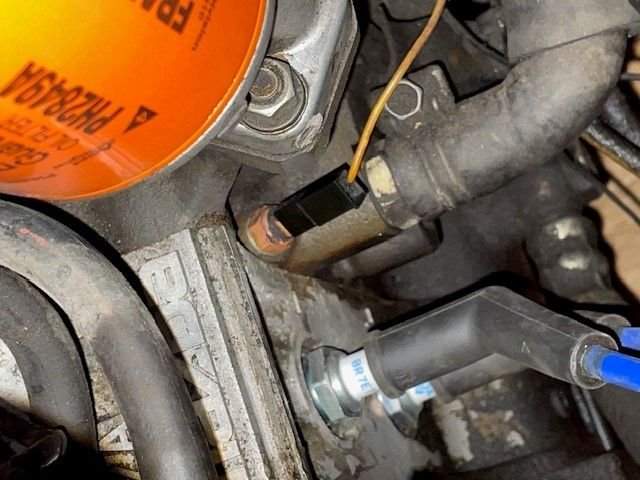

Wire on the sensor
Negative lead of DMM to battery ground
Positive lead of DMM to connector
The voltage i see
Wire on the sensor
#7
I have a 79 SA dash and the regulator puts out 7V and the etching on the PCB is 7V.
I've run a few quick tests of the fuel and temperature gauges with the following results. Note that the gauges are thermal and slow to respond so I may not have waited long enough for them to settle. I also only have a 100 ohm potentiometer so I could not get the temperature gauge down to the lower peg. I was interested in the fuel gauge reading as I now have a Haltech ECU reading the stock fuel sender and wanted to fine tune the fuel level displayed on it. This validated the research I found as to the fuel sender resistance range.
Note that grounding the temperature sender wire will overrange the temperature gauge so that is only a quick test that validates the wiring.
Temperature:
55 ohm gauge resistance measured
100% (High peg) - 14 ohm simulated sensor input (1.4V at gauge terminal)
1 needle width up into the white band - 100 ohm sensor simulated input (4.5 v at gauge terminal)
Fuel
55 ohm gauge resistance measured
100% - 6.6 ohm simulated sensor input (0.74V at gauge terminal)
50% - 31 ohm simulated sensor input (2.5V at gauge terminal)
0% - 85 ohm simulated sensor input (4.27V at gauge terminal)
I've run a few quick tests of the fuel and temperature gauges with the following results. Note that the gauges are thermal and slow to respond so I may not have waited long enough for them to settle. I also only have a 100 ohm potentiometer so I could not get the temperature gauge down to the lower peg. I was interested in the fuel gauge reading as I now have a Haltech ECU reading the stock fuel sender and wanted to fine tune the fuel level displayed on it. This validated the research I found as to the fuel sender resistance range.
Note that grounding the temperature sender wire will overrange the temperature gauge so that is only a quick test that validates the wiring.
Temperature:
55 ohm gauge resistance measured
100% (High peg) - 14 ohm simulated sensor input (1.4V at gauge terminal)
1 needle width up into the white band - 100 ohm sensor simulated input (4.5 v at gauge terminal)
Fuel
55 ohm gauge resistance measured
100% - 6.6 ohm simulated sensor input (0.74V at gauge terminal)
50% - 31 ohm simulated sensor input (2.5V at gauge terminal)
0% - 85 ohm simulated sensor input (4.27V at gauge terminal)
