CZeroMedia's LS6 Wide Body Race Car Build

Old 08-11-15, 01:55 PM
  #1
Full Member
Thread Starter
iTrader: (3)

Join Date: Aug 2013
Location: under the car
Posts: 51
Received 0 Likes on 0 Posts
MI CZeroMedia's LS6 Wide Body Race Car Build

Well i just picked up a very banged up barely running wiring hell 93 FD.
I will be turning this into more of a streetable race car with some type of wide body.
The goal is to make about 500whp with a reliable platform.

Motor

2002 LS6 crate engine
239 cam, 601/ 604 lift
7956 Comp Push Rods 7.450 .080
Improved racing oil pan baffle
F-Body ECU w/ PEZ Harness
1 7/8" long tube headers (JTR) to custom fab single exhaust.
Samburg custom sub-frame and transmission brace.
Samburg custom aluminum radiator / air intake
MSD 8.5mm Super Conductor Spark Plug Wires

Drivetrain

Rebuilt T-56 Transmission,
Fidanza Lightweight LS2 flywheel
LS7 Clutch
B&M short shifter kit
Wilwood 7/8 clutch master cylinder
SS LSx clutch line
929 Brake Master Cylinder
Hinson Supercars LSX V8 RX7 Driveshaft
Hinson Supercars Rear Diff/ Transmission Brace

Suspension

Stop Tech Front brakes, Mazda 99 JDM spec rears
CCW Classics 17x10 all 4 corners. 275/40 Nitto NT01s
Koni Yellow Struts with Static Springs. 800F/550R
Solid urethane suspension bushings all around
Front Sway Bar Mounts Upgraded

Interior

Kirk 4pt bolt in roll bar with I/O port camera mount
3QT Accumsump with manual valve
Sparco Seats
Sparo wheel

Misc

Sokie Tech Hood Damper

Name:  IMG_3705_zpshubonioj.jpg
Views: 110469
Size:  236.1 KB
Name:  IMG_3586_zps0agdpklp.jpg
Views: 110440
Size:  203.3 KB
Name:  IMG_3585_zpskmltff3c.jpg
Views: 110344
Size:  183.1 KB



BNR34RB26DETT is offline
Old 08-11-15, 01:56 PM
  #2
Full Member
Thread Starter
iTrader: (3)

Join Date: Aug 2013
Location: under the car
Posts: 51
Received 0 Likes on 0 Posts
BNR34RB26DETT is offline
Old 08-11-15, 01:57 PM
  #3
Full Member
Thread Starter
iTrader: (3)

Join Date: Aug 2013
Location: under the car
Posts: 51
Received 0 Likes on 0 Posts
BNR34RB26DETT is offline
Old 08-11-15, 05:06 PM
  #4
That one guy
iTrader: (5)

4g63rotary's Avatar

Join Date: Feb 2012
Location: SoCal
Posts: 202
Received 0 Likes on 0 Posts
Vlog FTW nice project keep us posted!!
4g63rotary is offline
Old 08-31-15, 09:08 AM
  #5
Wiring Specialties sales
iTrader: (8)

93singlesnailRX7's Avatar

Join Date: Feb 2009
Location: Manassas, VA
Posts: 50
Likes: 0
Received 0 Likes on 0 Posts
Looks like you have alot of work ahead, but great progress so far!!! love the build
93singlesnailRX7 is offline
Old 09-14-15, 04:31 PM
  #6
Full Member
Thread Starter
iTrader: (3)

Join Date: Aug 2013
Location: under the car
Posts: 51
Received 0 Likes on 0 Posts
BNR34RB26DETT is offline
Old 09-15-15, 11:00 PM
  #7
wett
5 Year Member
iTrader: (6)

calicos's Avatar

Join Date: Aug 2008
Location: 626
Posts: 397
Likes: 0
Received 0 Likes on 0 Posts
following on here and on norotors. this build should be good!
calicos is offline
Old 09-16-15, 04:52 PM
  #8
Full Member
Thread Starter
iTrader: (3)

Join Date: Aug 2013
Location: under the car
Posts: 51
Received 0 Likes on 0 Posts
Originally Posted by calicos View Post
following on here and on norotors. this build should be good!
thank you sir!!

BNR34RB26DETT is offline
Old 09-17-15, 01:48 PM
  #9
That one guy
iTrader: (5)

4g63rotary's Avatar

Join Date: Feb 2012
Location: SoCal
Posts: 202
Received 0 Likes on 0 Posts
"Because it's a race car" My favorite line!!!

keep up the great work!
4g63rotary is offline
Old 10-05-15, 08:49 PM
  #10
Full Member
Thread Starter
iTrader: (3)

Join Date: Aug 2013
Location: under the car
Posts: 51
Received 0 Likes on 0 Posts
BNR34RB26DETT is offline
Old 10-06-15, 01:27 AM
  #11
Senior Member

RuffRx7's Avatar

Join Date: May 2013
Location: Johannesburg, South Africa
Posts: 301
Likes: 0
Received 0 Likes on 0 Posts
Nice!!!
RuffRx7 is offline
Old 12-01-15, 10:49 PM
  #12
Full Member
Thread Starter
iTrader: (3)

Join Date: Aug 2013
Location: under the car
Posts: 51
Received 0 Likes on 0 Posts
Name:  7b0e048f-f180-4c43-80cd-80b84ac9cd2f_zpscwddtggf.jpg
Views: 110126
Size:  285.3 KB
Name:  8cd7f07f-7b9e-4e76-b5d1-d2d595092ffa_zpsh8ilx9df.jpg
Views: 110032
Size:  177.0 KB
Name:  1ffba0d3-4ae8-4f76-b30c-b52bbb00484a_zpsu2gnzlvj.jpg
Views: 109961
Size:  211.9 KB

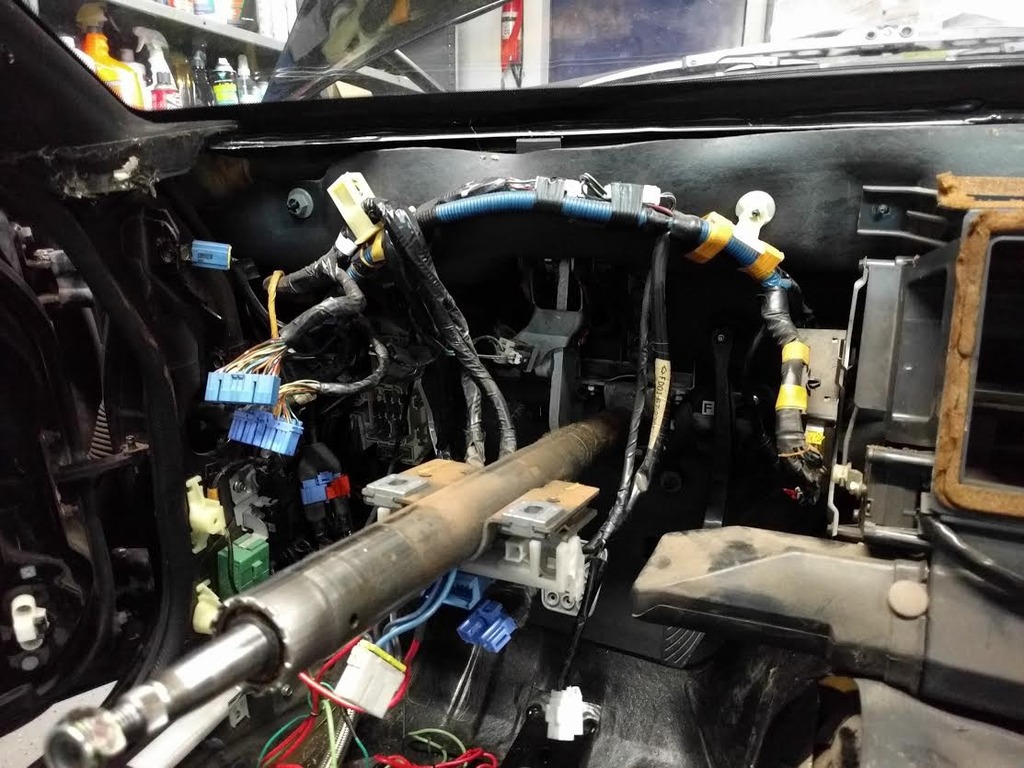

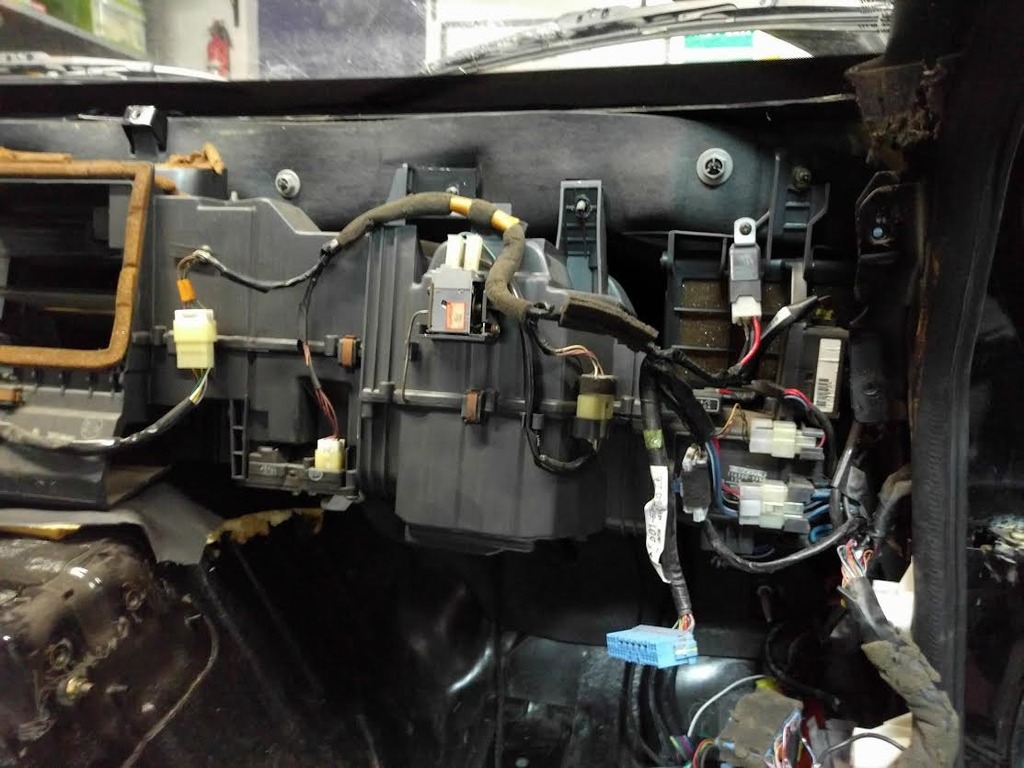

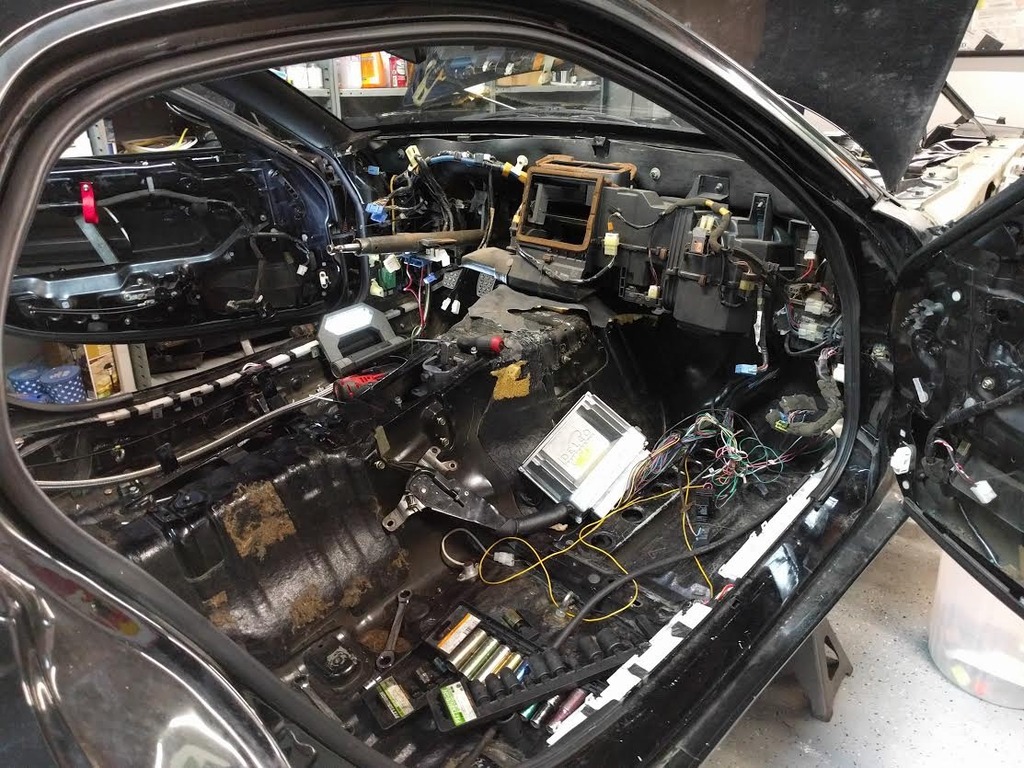

Dash removal begins!
BNR34RB26DETT is offline
Old 12-06-15, 08:37 PM
  #13
Full Member
Thread Starter
iTrader: (3)

Join Date: Aug 2013
Location: under the car
Posts: 51
Received 0 Likes on 0 Posts

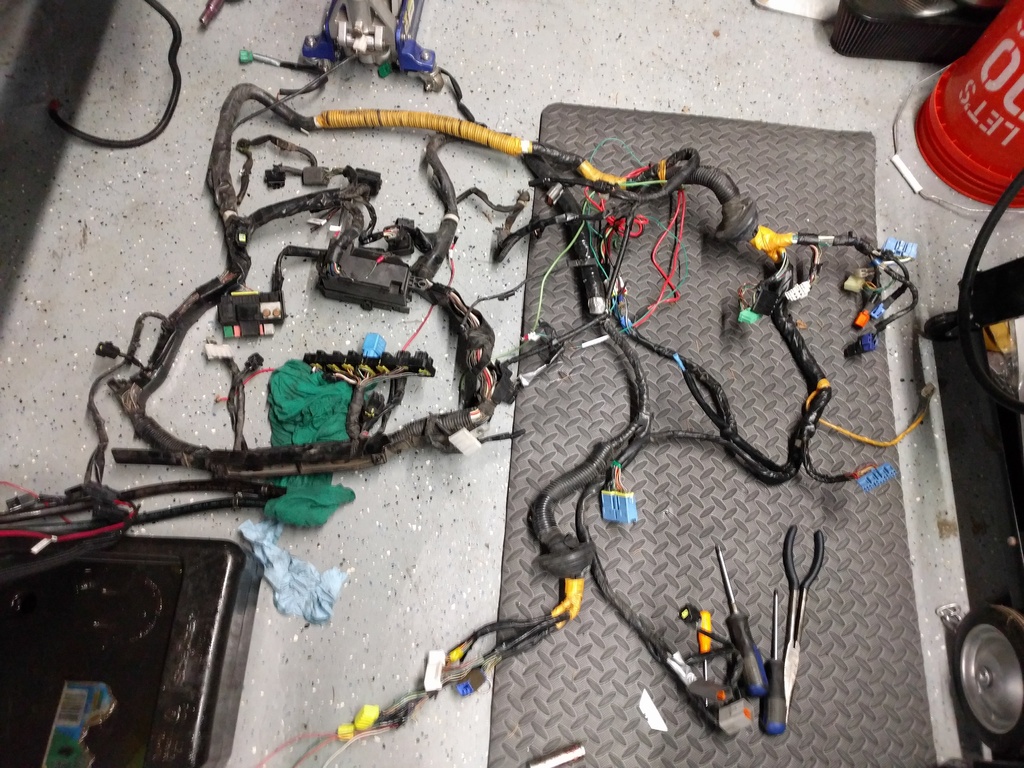

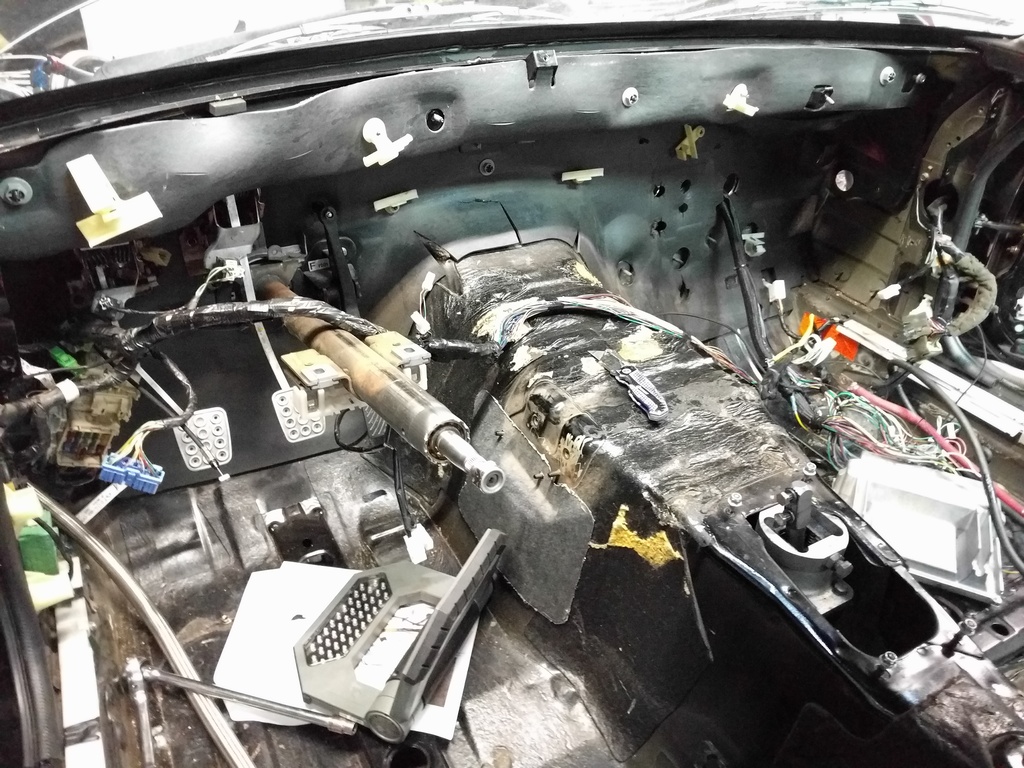

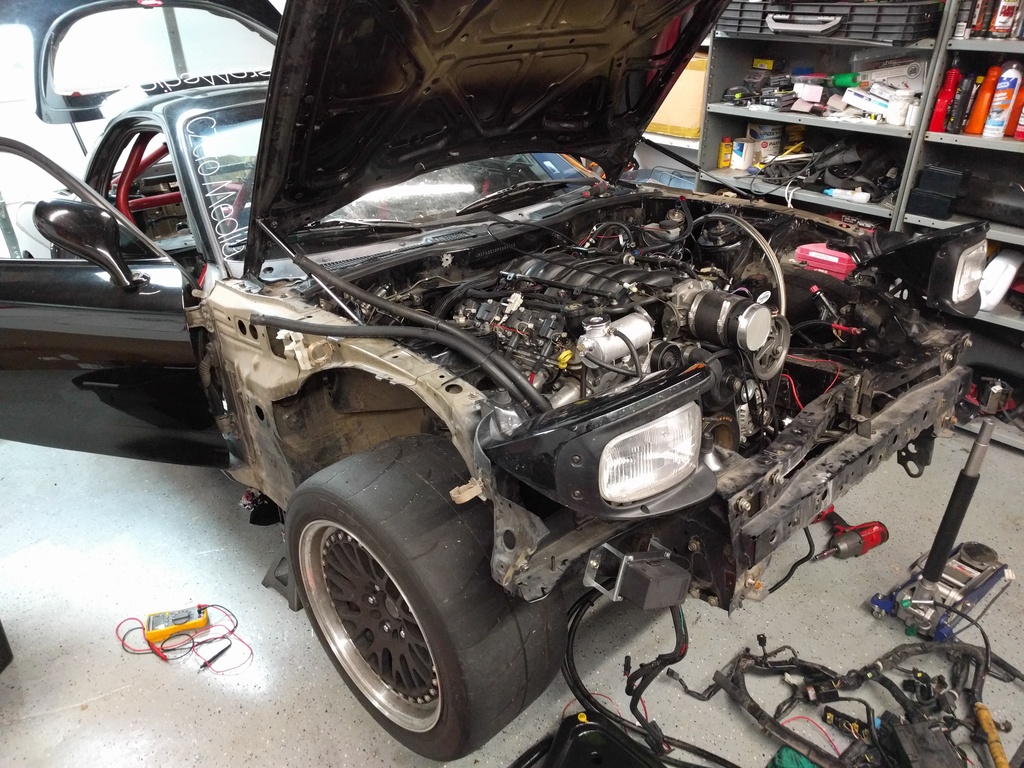

Harness removal continues!
Name:  IMG_20151206_212112_zpszx6bthzs.jpg
Views: 110053
Size:  335.2 KB
Name:  IMG_20151206_212056_zpsdz73n327.jpg
Views: 110145
Size:  348.0 KB
Name:  IMG_20151206_212027_zps0ucannny.jpg
Views: 110152
Size:  355.2 KB
BNR34RB26DETT is offline
Old 12-07-15, 07:43 AM
  #14
Original Gangster/Rotary!

iTrader: (206)

GoodfellaFD3S's Avatar

Join Date: Mar 2001
Location: FL-->NJ/NYC again!
Posts: 29,999
Received 138 Likes on 111 Posts
The interior will all go back together with no problems, right

Been there done that
GoodfellaFD3S is offline
Old 12-13-15, 10:37 AM
  #15
Built Not Bought
iTrader: (13)

TwinCharged RX7's Avatar

Join Date: May 2008
Location: Stamford, CT
Posts: 2,639
Likes: 0
Received 53 Likes on 43 Posts
Yeah haha. Comes apart so easy. Then 6 months pass and you forget everything.
TwinCharged RX7 is offline
Old 12-15-15, 10:49 PM
  #16
Full Member
Thread Starter
iTrader: (3)

Join Date: Aug 2013
Location: under the car
Posts: 51
Received 0 Likes on 0 Posts
Name:  IMG_20151215_230522_zpsuoiyb3y7.jpg
Views: 109860
Size:  318.1 KB
Name:  IMG_20151215_230503_zpskxn8nuc7.jpg
Views: 109799
Size:  321.5 KB

A little update. front harness and engine harness is out and now im going to tear into the setup.

If anybody has info on how to relocate the fuse/ relay boxes and how to wire up starter/alternator into the front harness in a clean way, lmk!

Last edited by BNR34RB26DETT; 12-15-15 at 10:58 PM.
BNR34RB26DETT is offline
Old 12-29-15, 02:20 PM
  #17
Full Member
iTrader: (1)

Murilli's Avatar

Join Date: Feb 2013
Location: Michigan
Posts: 230
Received 4 Likes on 3 Posts
Awesome build! I actually live down the street from you and noticed your car a few months ago, I always wondered if you were on here.

A lot of the guys I hang with have V8 swapped Rx7s, mainly LS swaps. Most of them aren't on the forums, some of them know LS engines and wiring pretty damn well. if you ever find some time hit up michiganrotaryclub.com. Would love to stop by and check it out sometime.

Can't wait to see more updates!
Murilli is offline
Old 12-29-15, 05:11 PM
  #18
Junior Member

Join Date: Jan 2012
Location: So Cal
Posts: 47
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by BNR34RB26DETT View Post



A little update. front harness and engine harness is out and now im going to tear into the setup.

If anybody has info on how to relocate the fuse/ relay boxes and how to wire up starter/alternator into the front harness in a clean way, lmk!
if you want it done right you have to do it yourself!!
haha man how i dont miss doing all that :P
FASTMETABOLISM is offline
Old 01-11-16, 08:47 PM
  #19
Full Member
Thread Starter
iTrader: (3)

Join Date: Aug 2013
Location: under the car
Posts: 51
Received 0 Likes on 0 Posts
well rear chassis wiring has come out and its looking cleaner.
ABS module, defog, wiper, antenna, and all associated wired have been removed. All the wiring going from front to rear of the car on the passenger side have been eliminated. (not sure about the single orange wire that was left over but we will see what happens)

Next step is some fun with dry ice to remove sound deadening

Oh, if you guys have and recommendation on spray options for coating up the interior, lmk



BNR34RB26DETT is offline
Old 03-23-16, 05:45 PM
  #20
Full Member
Thread Starter
iTrader: (3)

Join Date: Aug 2013
Location: under the car
Posts: 51
Received 0 Likes on 0 Posts
BNR34RB26DETT is offline
Old 03-23-16, 05:46 PM
  #21
Full Member
Thread Starter
iTrader: (3)

Join Date: Aug 2013
Location: under the car
Posts: 51
Received 0 Likes on 0 Posts
BNR34RB26DETT is offline
Old 03-23-16, 06:08 PM
  #22
Lives on the Forum

iTrader: (6)

7_rocket's Avatar

Join Date: Jul 2003
Location: Toronto
Posts: 7,119
Received 19 Likes on 17 Posts
Jesus man. When I see wires everywhere I want to shoot myself. Crazy build
7_rocket is offline
Old 03-25-16, 11:38 AM
  #23
Rotary Enthusiast
iTrader: (9)

04G35S's Avatar

Join Date: Jan 2013
Location: Madison, WI
Posts: 1,023
Received 3 Likes on 3 Posts
Lizard Skin is great for heat deflection and sound deadening.
04G35S is offline
Old 03-29-16, 03:30 PM
  #24
Full Member
Thread Starter
iTrader: (3)

Join Date: Aug 2013
Location: under the car
Posts: 51
Received 0 Likes on 0 Posts
Originally Posted by 04G35S View Post
Lizard Skin is great for heat deflection and sound deadening.
Thank you sir! it looks like im leaning towards lizard skin solution at the moment. i just need to figure out how many gallons i would need to do the interior of the car...
BNR34RB26DETT is offline
Old 04-12-16, 10:48 AM
  #25
Full Member
Thread Starter
iTrader: (3)

Join Date: Aug 2013
Location: under the car
Posts: 51
Received 0 Likes on 0 Posts
BNR34RB26DETT is offline
