Tps out of adjustment (vta2)

Hello,
I'm having this issue with my throttle position sensor and I can't get one of the adjustments in spec. When the petal is not being compressed, VTA2 is reading 4.85v. With the petal compressed it reads out 4.95v. It's almost like it's getting voltage constantly or is shorted out somewhere. Does anyone have the wiring diagram for the tps and where the wires lead? Has this happened to anyone and do you have any idea where I should be looking? I've replaced the sensor with a brand new one and as well as the connector. Thank you and have a nice day.


Reply
Old Sep 20, 2023 | 08:43 PM
  #2
FDAUTO's Avatar
よ*ろ*し*く*
Liked
Loved
Community Favorite
Top Answer: 1
iTrader: (8)

Joined: Sep 2022
Posts: 1,668
Likes: 692
From: Tampa
remove the tps from the throttle body, plug it in, post the values
Reply
Old Sep 20, 2023 | 09:05 PM
  #3
GoodfellaFD3S's Avatar
Original Gangster/Rotary!
Veteran: Army
Tenured Member: 25 Years
Liked
Loved
iTrader: (213)

Joined: Mar 2001
Posts: 30,804
Likes: 646
From: FL-->NJ/NYC again!
Sounds like the new sensor isn't indexed on the cam properly.
Reply
Old Sep 20, 2023 | 09:39 PM
  #4
FDAUTO's Avatar
よ*ろ*し*く*
Liked
Loved
Community Favorite
Top Answer: 1
iTrader: (8)

Joined: Sep 2022
Posts: 1,668
Likes: 692
From: Tampa
Yes... this is the implication but then it doesn't explain what was going on with the original tps. Likely the case though
Reply
Old Oct 9, 2023 | 08:26 PM
  #5
Dolf.dcg's Avatar
Thread Starter
Junior Member

Joined: Feb 2023
Posts: 18
Likes: 0
From: Arizona
Originally Posted by FDAUTO
remove the tps from the throttle body, plug it in, post the values
I unplugged the sensor and both readings are giving me 0 volts when the sensor is left alone and both read 4.99 volts when the sensor is fully opened up.

I tried to re clock it by facing the connector (orange side) to the hood and turning it towards the passenger side. I didn't hear a click when I turned the sensor like someone else said in another form. The sensor popped right into the hole and turned easliy to the passenger side until it reached the bolt hole and encountered resistance from the throttle spring.

after reclocking it, the new readings I'm getting is 0 volts all the time. Is there something I'm missing here?
Reply
Old Oct 10, 2023 | 11:41 AM
  #6
FDAUTO's Avatar
よ*ろ*し*く*
Liked
Loved
Community Favorite
Top Answer: 1
iTrader: (8)

Joined: Sep 2022
Posts: 1,668
Likes: 692
From: Tampa
I don't think a text explanation will get the point across. Post a video of what you're doing.

The suspicion is that you're not installing it correctly on the tabs inside the throttle body causing the issue that you have. Your description of events certainly points that way.
Reply
Old Oct 10, 2023 | 11:51 AM
  #7
Banzai-Racing's Avatar
Rotary Specialists
Tenured Member: 15 Years
Liked
Loved
Community Favorite
iTrader: (11)

Joined: Jan 2008
Posts: 4,868
Likes: 344
From: Indiana
Passenger's side? is this a RHD car?
Reply
Old Oct 10, 2023 | 02:41 PM
  #8
Dolf.dcg's Avatar
Thread Starter
Junior Member

Joined: Feb 2023
Posts: 18
Likes: 0
From: Arizona
Originally Posted by Banzai-Racing
Passenger's side? is this a RHD car?
It's a left hand drive, the post i read could've been for a right hand drive.
Reply
Old Oct 10, 2023 | 02:45 PM
  #9
Dolf.dcg's Avatar
Thread Starter
Junior Member

Joined: Feb 2023
Posts: 18
Likes: 0
From: Arizona
Originally Posted by FDAUTO
I don't think a text explanation will get the point across. Post a video of what you're doing.

The suspicion is that you're not installing it correctly on the tabs inside the throttle body causing the issue that you have. Your description of events certainly points that way.
I'll post a video soon. could you explain how the tabs are supposed to be put on to the throttle body tabs?
Reply
Old Oct 10, 2023 | 05:36 PM
  #10
Banzai-Racing's Avatar
Rotary Specialists
Tenured Member: 15 Years
Liked
Loved
Community Favorite
iTrader: (11)

Joined: Jan 2008
Posts: 4,868
Likes: 344
From: Indiana
TPS faces the left side of the car. Preload is set by installing the Sensor with the connector portion at around 10 o’clock and rotating counter clockwise.
Reply
Old Oct 10, 2023 | 06:38 PM
  #11
Dolf.dcg's Avatar
Thread Starter
Junior Member

Joined: Feb 2023
Posts: 18
Likes: 0
From: Arizona
Originally Posted by Banzai-Racing
TPS faces the left side of the car. Preload is set by installing the Sensor with the connector portion at around 10 o’clock and rotating counter clockwise.
I installed the sensor just how you described and now I'm back to my original issue, which is vta2 is getting 4 volts all the time. I'll look at a wiring diagram and track down where vta 2 is coming from and look for a short. I don't know what else to do at this point.
Reply
Old Oct 10, 2023 | 07:26 PM
  #12
FDAUTO's Avatar
よ*ろ*し*く*
Liked
Loved
Community Favorite
Top Answer: 1
iTrader: (8)

Joined: Sep 2022
Posts: 1,668
Likes: 692
From: Tampa
before chasing wires, lets confirm it is not user error. simply installing it in the correct orientation doesn't make for a proper install. post the video when you get a chance of what the vta voltages do when you actuate the tps by hand NOT installed on the throttle body. depending on the result, we can solidify if the issue is installation error or if you have an actual electrical problem.
Reply
Old Oct 11, 2023 | 09:12 AM
  #13
Banzai-Racing's Avatar
Rotary Specialists
Tenured Member: 15 Years
Liked
Loved
Community Favorite
iTrader: (11)

Joined: Jan 2008
Posts: 4,868
Likes: 344
From: Indiana
Check continuity from ECU pin 3F to the green/red wire on the TPS connector
Reply
Old Oct 11, 2023 | 08:31 PM
  #14
Dolf.dcg's Avatar
Thread Starter
Junior Member

Joined: Feb 2023
Posts: 18
Likes: 0
From: Arizona
Originally Posted by FDAUTO
before chasing wires, lets confirm it is not user error. simply installing it in the correct orientation doesn't make for a proper install. post the video when you get a chance of what the vta voltages do when you actuate the tps by hand NOT installed on the throttle body. depending on the result, we can solidify if the issue is installation error or if you have an actual electrical problem.
https://drive.google.com/drive/folde...f0qNYiGVlN1jPC
Reply
Old Oct 11, 2023 | 08:37 PM
  #15
Dolf.dcg's Avatar
Thread Starter
Junior Member

Joined: Feb 2023
Posts: 18
Likes: 0
From: Arizona
Originally Posted by Banzai-Racing
Check continuity from ECU pin 3F to the green/red wire on the TPS connector
I'll check tomorrow, thank you for the suggestion.
Reply
Old Oct 11, 2023 | 08:52 PM
  #16
FDAUTO's Avatar
よ*ろ*し*く*
Liked
Loved
Community Favorite
Top Answer: 1
iTrader: (8)

Joined: Sep 2022
Posts: 1,668
Likes: 692
From: Tampa
The voltage video, although fast, shows it goes through the range fully and cleanly. Do it slower next time to watch the voltage climb gradually and evenly.

The install video looks like it shows the problem. When installed correctly, the tps should naturally have a little spring to it to force it backwards or the opposite direction of how you're twisting it. It looks like you let it go and it just remained in its position.

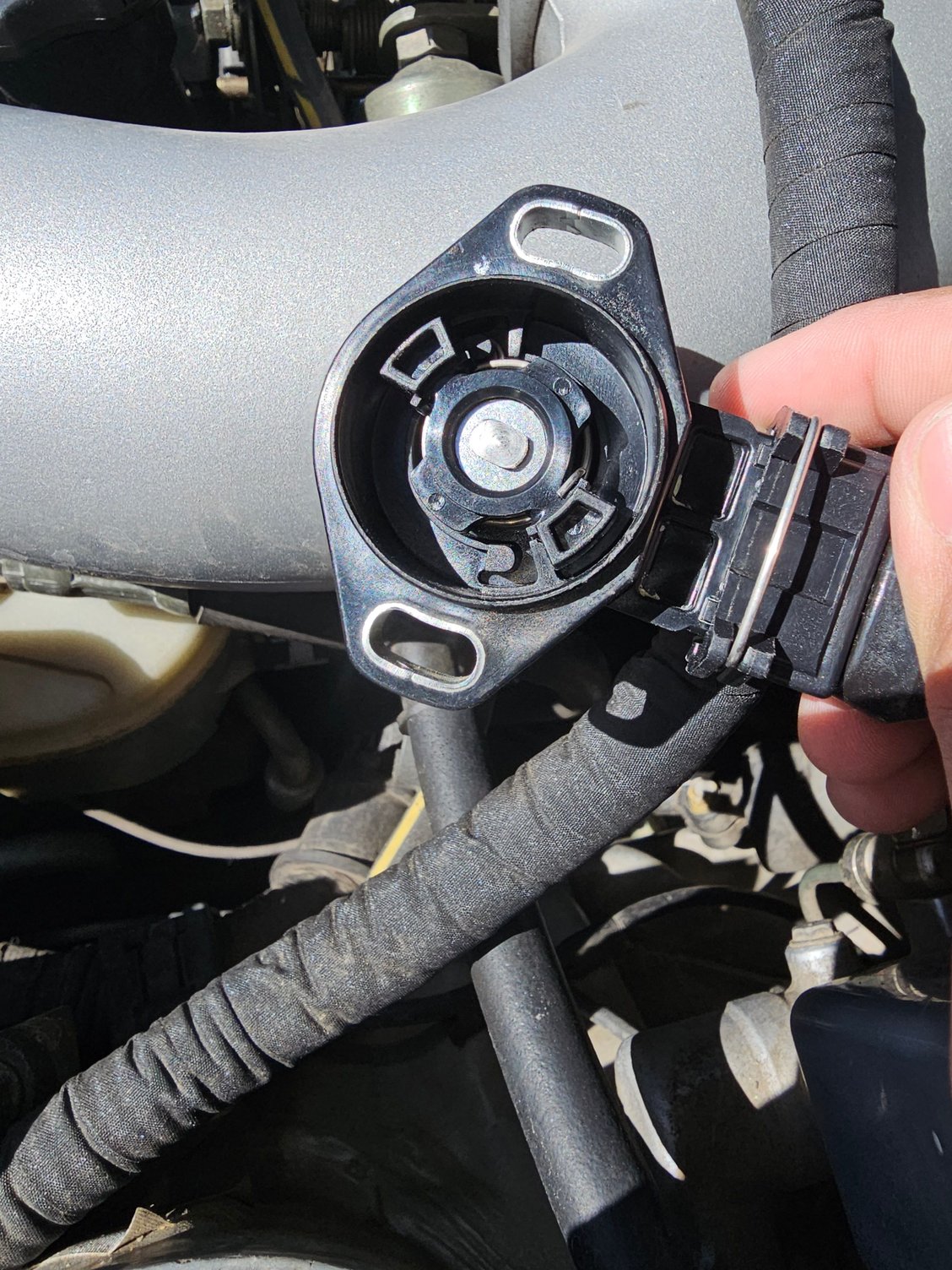

Those 2 gold tabs you see sticking out of the throttle body go on the 2 surfaces on the back of the tps. If you post a picture of the back of the tps i can circle it for you
Reply
Old Oct 12, 2023 | 04:46 AM
  #17
Banzai-Racing's Avatar
Rotary Specialists
Tenured Member: 15 Years
Liked
Loved
Community Favorite
iTrader: (11)

Joined: Jan 2008
Posts: 4,868
Likes: 344
From: Indiana
That is not an FD TPS. What are you trying to use?
Reply
Old Oct 12, 2023 | 09:41 AM
  #18
tomsn16's Avatar
Lives on the Forum
Tenured Member: 15 Years
Liked
Loved
iTrader: (297)

Joined: Mar 2009
Posts: 5,190
Likes: 638
From: Murfreesboro TN

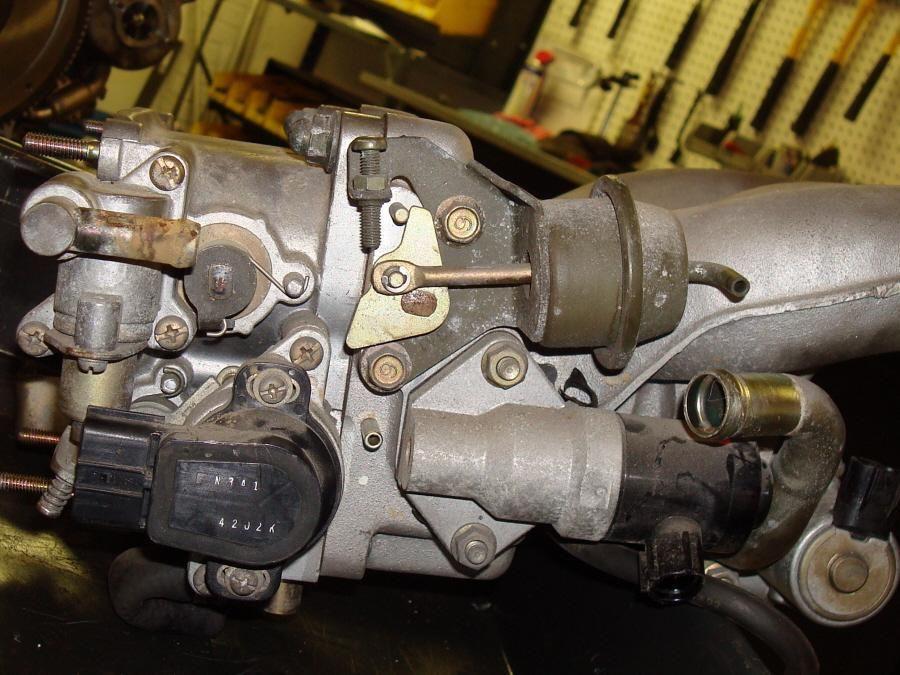

FD TPS
We have two if you need send pm for details

Reply
Old Oct 13, 2023 | 01:41 AM
  #19
Dolf.dcg's Avatar
Thread Starter
Junior Member

Joined: Feb 2023
Posts: 18
Likes: 0
From: Arizona
Originally Posted by Banzai-Racing
That is not an FD TPS. What are you trying to use?
it's from ksv looms, they had tps for fds on their website in August this year. I would guess it's compatible if it says it's for an fd.



Last edited by Dolf.dcg; Oct 13, 2023 at 01:49 AM.
Reply
Old Oct 13, 2023 | 04:49 AM
  #20
Banzai-Racing's Avatar
Rotary Specialists
Tenured Member: 15 Years
Liked
Loved
Community Favorite
iTrader: (11)

Joined: Jan 2008
Posts: 4,868
Likes: 344
From: Indiana
Looks like the tab orientation should work, but it might have a different pin out. I know it is not from an FD so no telling what the configuration is. When Mazda discontinued the FD TPS I researched a lot of sensors that would bolt on, none actually had full and narrow range resistance where the FD needs it. You need to contact the seller and get a pin out, I can’t find the product on the site.

Looks similar to the one from Raceonly that specifically states “TPS unit is compatible with all ECU’s except OEM and a PowerFC”

Last edited by Banzai-Racing; Oct 13, 2023 at 04:58 AM.
