Source For Turn-Signal Cancelling Cam
#1
Rotary Freak
Thread Starter
Source For Turn-Signal Cancelling Cam
I need to replace the little cam that cancels the turn signals (the brittle one that sits under the steering wheel and has two nubs). The part number is FB01-66-126. Atkins and Mazdatrix both list it as NLA.
Does anyone have a source for these? Otherwise my best option is to find a way to 3d print one, but I haven't a file to print nor a 3d printer so that would be a bit more involved.
Thanks, Chris.
Does anyone have a source for these? Otherwise my best option is to find a way to 3d print one, but I haven't a file to print nor a 3d printer so that would be a bit more involved.
Thanks, Chris.
#2
Rotary Freak
iTrader: (10)
I need to replace the little cam that cancels the turn signals (the brittle one that sits under the steering wheel and has two nubs). The part number is FB01-66-126. Atkins and Mazdatrix both list it as NLA.
Does anyone have a source for these? Otherwise my best option is to find a way to 3d print one, but I haven't a file to print nor a 3d printer so that would be a bit more involved.
Thanks, Chris.
Does anyone have a source for these? Otherwise my best option is to find a way to 3d print one, but I haven't a file to print nor a 3d printer so that would be a bit more involved.
Thanks, Chris.
I am a design engineer and actually had one of our MEs draft up something and 3D print it a few years ago. It’s been working perfectly. It was for use with an aftermarket hub so it needed to be shorter, not sure we have a file of the full height part. I can inquire when we return to work after the holiday.
The following users liked this post:
WondrousBread (01-01-21)
#3
Rotary Freak
Thread Starter
I am a design engineer and actually had one of our MEs draft up something and 3D print it a few years ago. It’s been working perfectly. It was for use with an aftermarket hub so it needed to be shorter, not sure we have a file of the full height part. I can inquire when we return to work after the holiday.
I'm using an NRG hub, so the shorter one is fine. That's probably part of why my original broke.
#4
Rabbit hole specialist
iTrader: (11)
The only way to get new is to buy the whole cancel switch. I did so recently, but because I had the horn contact pin break off and could not find a suitable solution that was as quiet as OEM. A 3D printed version is a great way to go if nothing else is wrong with the switch.
#5
Rotary Freak
iTrader: (10)
Chris sent me a PM, reminding me I never got back on here and made the file upload...as promised, see attached.
STL is to import into a 3D printer, STP is to import into CAD.
File is 50% original height.
The print is clearly not an "exact" replica of the original part down to every last detail...unnecessary. It is functionally equivalent though, besides the reduced height.

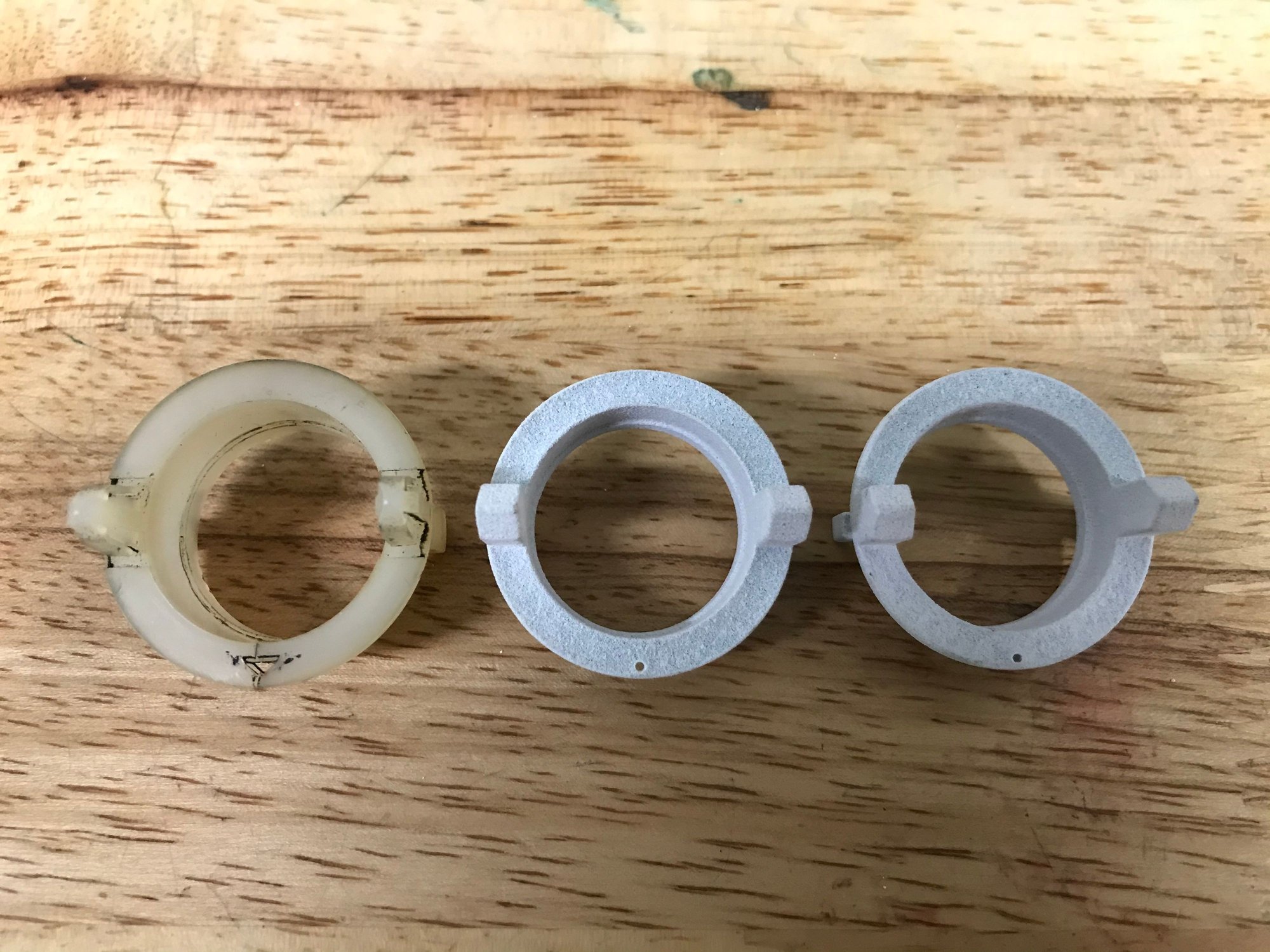

I probably have a damaged original vs. a 75% and 60% height part we also printed, I should find them and post up a picture.
I've been using it for about a year now and works great with my aftermarket hub! No more crushed cancel rings...
STL is to import into a 3D printer, STP is to import into CAD.
File is 50% original height.
The print is clearly not an "exact" replica of the original part down to every last detail...unnecessary. It is functionally equivalent though, besides the reduced height.
I probably have a damaged original vs. a 75% and 60% height part we also printed, I should find them and post up a picture.
I've been using it for about a year now and works great with my aftermarket hub! No more crushed cancel rings...
The following 2 users liked this post by DC5Daniel:
KNONFS (01-27-21),
WondrousBread (01-26-21)
#6
Rotary Freak
Thread Starter
Awesome, thank you so much! This is a life-saver. I get the impression we're going to be printing more and more parts in the future, unless Mazda radically expands that heritage parts program.
Thanks again
Thanks again
The following 2 users liked this post by DC5Daniel:
mr_vaughn (02-05-21),
Tyrannosaurus Wrex (02-01-21)
