s5 scattershield?
do the s5 turbo IIs have a scatter shield of some sort that sits between the block and tranny while they are bolted together?
kidS4 is offline
Reply Like
Old 10-13-13, 12:46 AM
  #2
Rotorhead


Evil Aviator's Avatar

Join Date: Feb 2001
Location: Charlottesville, Virginia, USA
Posts: 9,136
Likes: 0
Received 39 Likes on 33 Posts
Post a picture of the factory service manual page with the part in question highlighted.
Evil Aviator is offline
Reply Like
Old 10-13-13, 08:10 AM
  #3
Retired Moderator, RIP

iTrader: (142)

misterstyx69's Avatar

Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes on 114 Posts
I doubt a car that makes 215 hp in it's stock form would have any need for a scatter shield..so NO.
misterstyx69 is offline
Reply Like
Old 10-13-13, 08:17 AM
  #4
Full Member
Thread Starter

kidS4's Avatar

Join Date: May 2012
Location: douglasville ga
Posts: 153
Likes: 0
Received 0 Likes on 0 Posts
i called a scattershield cause thats what it lioks like, but what about a metal gasket?
kidS4 is offline
Reply Like
Old 10-13-13, 09:14 AM
  #5
Full Member
Thread Starter

kidS4's Avatar

Join Date: May 2012
Location: douglasville ga
Posts: 153
Likes: 0
Received 0 Likes on 0 Posts
after looking at the fsm it doesnt show a shield or any kind of bigger gasket that goes between the two, maybe its for a 12a, it was a spare part that came with my shell, not my motot
kidS4 is offline
Reply Like
Old 10-13-13, 10:31 AM
  #6
Rotorhead


Evil Aviator's Avatar

Join Date: Feb 2001
Location: Charlottesville, Virginia, USA
Posts: 9,136
Likes: 0
Received 39 Likes on 33 Posts
A scattershield goes around the bell housing, not between it.


Maybe it is an adapter for another type of transmission?
Evil Aviator is offline
Reply Like
Old 10-13-13, 10:35 AM
  #7
Full Member
Thread Starter

kidS4's Avatar

Join Date: May 2012
Location: douglasville ga
Posts: 153
Likes: 0
Received 0 Likes on 0 Posts

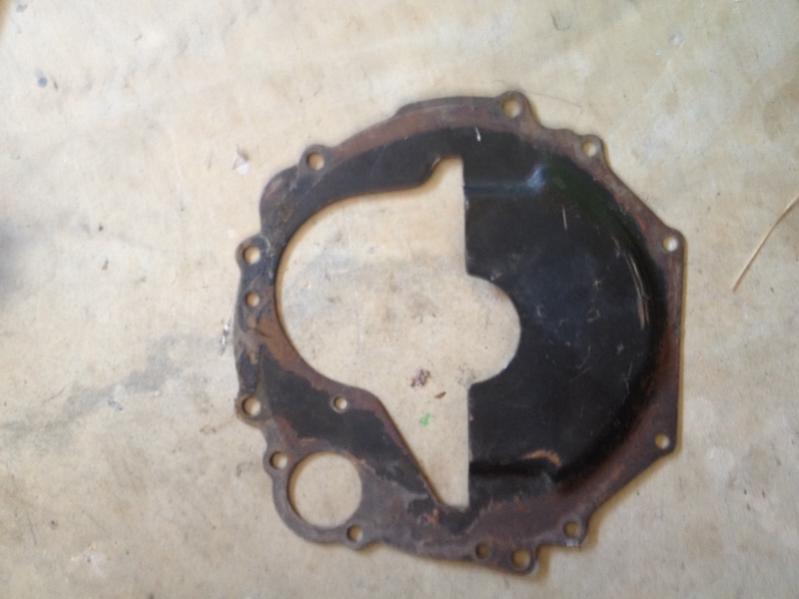

here it is
Attached Thumbnails s5 scattershield?-image-3065052025.jpg
kidS4 is offline
Reply Like

Trending Topics

Old 10-13-13, 12:18 PM
  #8
#turbodavebuilt

iTrader: (50)

turbo_dave's Avatar

Join Date: Nov 2006
Location: EL SERENO
Posts: 2,115
Received 7 Likes on 6 Posts
Like like the plates that go in between the auto trans and engine on v8's
turbo_dave is offline
Reply Like
Old 10-14-13, 12:15 PM
  #9
Sharp Claws

iTrader: (30)

RotaryEvolution's Avatar

Join Date: Oct 2003
Location: Central Florida
Posts: 5,107
Likes: 0
Received 41 Likes on 40 Posts
that aint off a rotary engine anyways, throw it away.
RotaryEvolution is offline
