Input on some of my first porting please
Ive been studying Judge ITO's porting threads and learning from some local roto heads that have been doing this for 30 years.

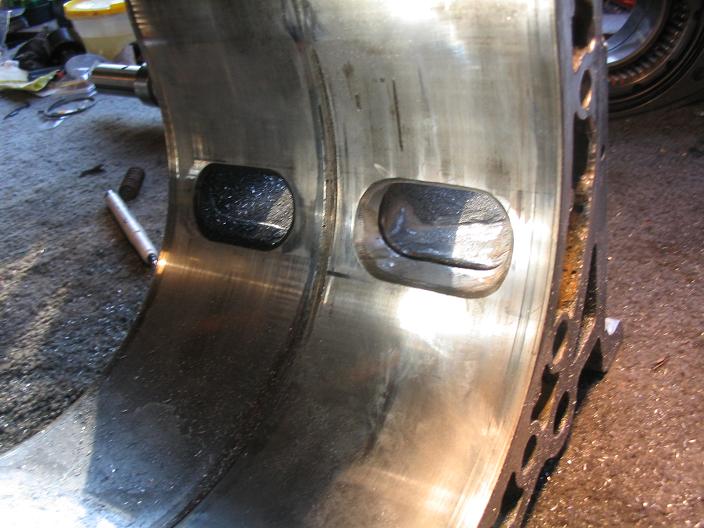

I started today with one of my bad housings- Praticing on the exhaust ports. All I did was remove the material to the stock outline, and then add back the 2mm bevil that surrounds the port. Remember first time here and im working with nothing but a dremal and some carbide bits.
I know its not perfect, I also know that I lopsided the port edges, ones not quite stock shape. But eh' for a first try, its not that bad IMO.

Attached Thumbnails Input on some of my first porting please-img_3750.jpg
Last edited by The Spyder; 02-07-05 at 06:41 PM.
The Spyder is offline
Reply Like
Old 02-07-05, 09:05 PM
  #2
Never give up!

Thread Starter
iTrader: (8)

The Spyder's Avatar

Join Date: Jan 2004
Location: Oregon
Posts: 3,726
Received 45 Likes on 34 Posts

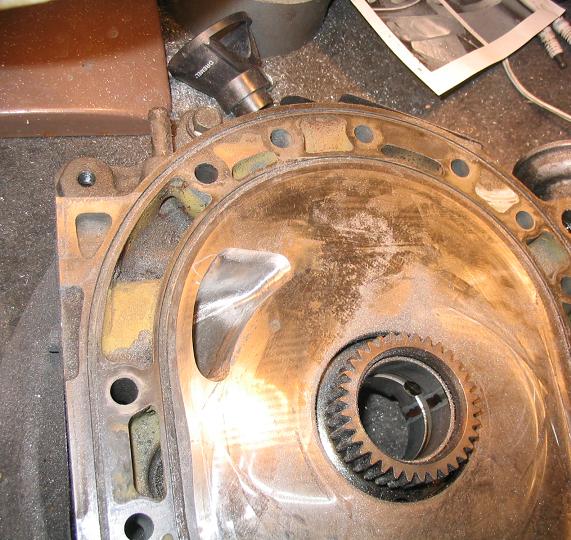

Little too big?
Attached Thumbnails Input on some of my first porting please-img_3753.jpg
The Spyder is offline
Reply Like
Old 02-07-05, 11:12 PM
  #3
Never give up!

Thread Starter
iTrader: (8)

The Spyder's Avatar

Join Date: Jan 2004
Location: Oregon
Posts: 3,726
Received 45 Likes on 34 Posts

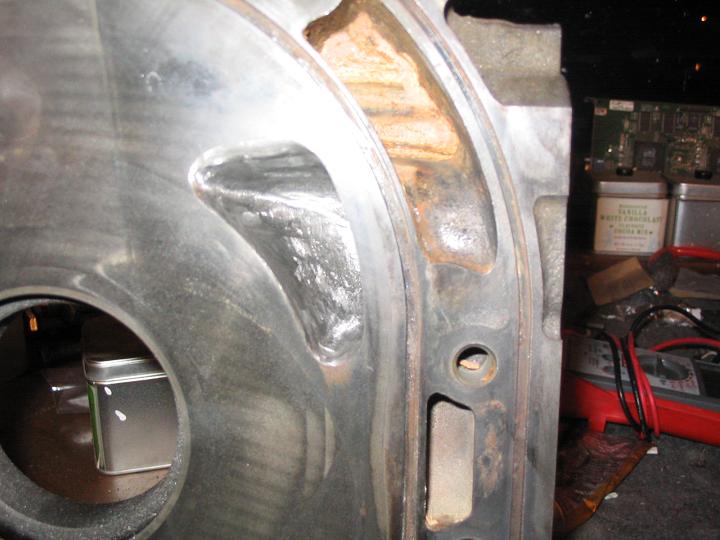

Front plate....

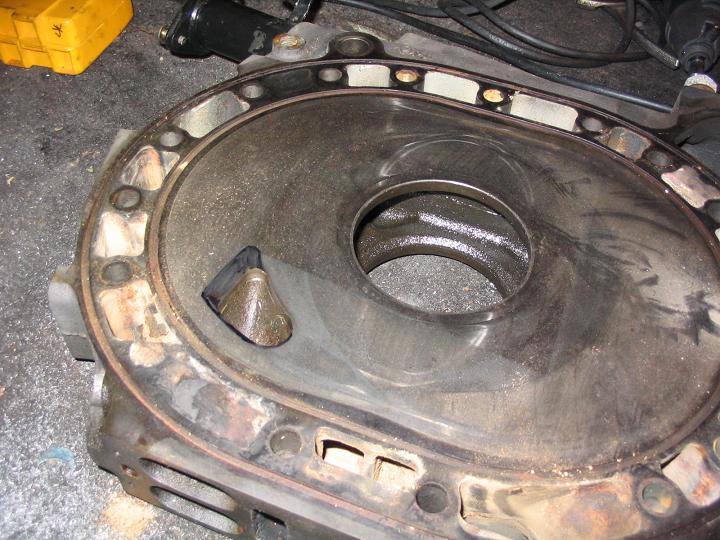

and what do you guys think about this for the intermediate ports?
Attached Thumbnails Input on some of my first porting please-img_3757.jpg   Input on some of my first porting please-img_3755.jpg
The Spyder is offline
Reply Like
Old 02-07-05, 11:48 PM
  #4
THE ONE. THE ONLY!

iTrader: (2)

kettlman's Avatar

Join Date: Jul 2003
Location: wa
Posts: 3,776
Likes: 0
Received 2 Likes on 2 Posts
looks pretty clean to me.
kettlman is offline
Reply Like
Old 02-08-05, 12:48 AM
  #5
controlled kaos

iTrader: (3)

astrochild7's Avatar

Join Date: Nov 2002
Location: eugene, or
Posts: 907
Received 1 Like on 1 Post
not bad... where in Oregon are you.... near eugene?
astrochild7 is offline
Reply Like
Old 02-08-05, 12:51 AM
  #6
Never give up!

Thread Starter
iTrader: (8)

The Spyder's Avatar

Join Date: Jan 2004
Location: Oregon
Posts: 3,726
Received 45 Likes on 34 Posts
Im 20 minutes south of portland .

But my gf's grandparents are down in eugene. I think I will be there next weekend infact....
The Spyder is offline
Reply Like
Old 02-08-05, 07:39 AM
  #7
Junior Member


TwoFun's Avatar

Join Date: Mar 2003
Location: Canada
Posts: 44
Likes: 0
Received 0 Likes on 0 Posts
did you check your ports with a plexi glass with rotor spinning on the plates? watch out your side seals and corner seals........
TwoFun is offline
Reply Like

Trending Topics

Old 02-08-05, 11:55 AM
  #8
controlled kaos

iTrader: (3)

astrochild7's Avatar

Join Date: Nov 2002
Location: eugene, or
Posts: 907
Received 1 Like on 1 Post
Damn, can't find anyone in eugene that is rx7 inclined. I down here all by myself. Noone to tune or build or mod with...
astrochild7 is offline
Reply Like
Old 02-09-05, 08:45 PM
  #9
Never give up!

Thread Starter
iTrader: (8)

The Spyder's Avatar

Join Date: Jan 2004
Location: Oregon
Posts: 3,726
Received 45 Likes on 34 Posts
Lmk if you want help, im always bored out out of my mind. lol
The Spyder is offline
Reply Like
Old 02-09-05, 08:48 PM
  #10
Never give up!

Thread Starter
iTrader: (8)

The Spyder's Avatar

Join Date: Jan 2004
Location: Oregon
Posts: 3,726
Received 45 Likes on 34 Posts

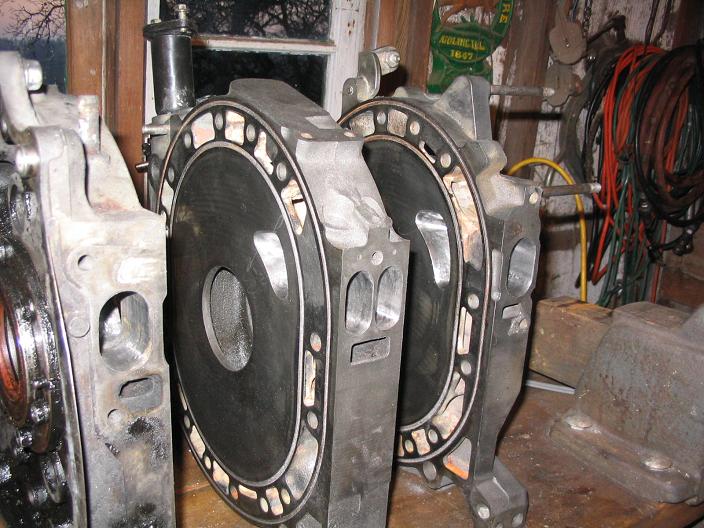

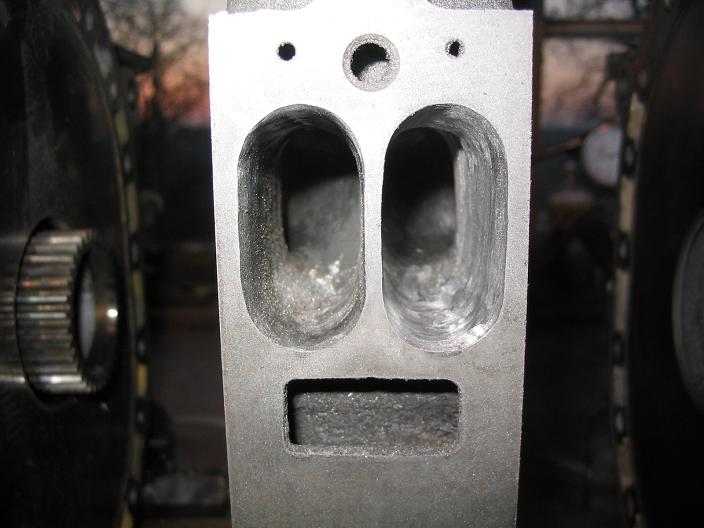

So heres today work. I cleaned up all the ports and praticed on my exhaust ports some more.
Let me know what you think.

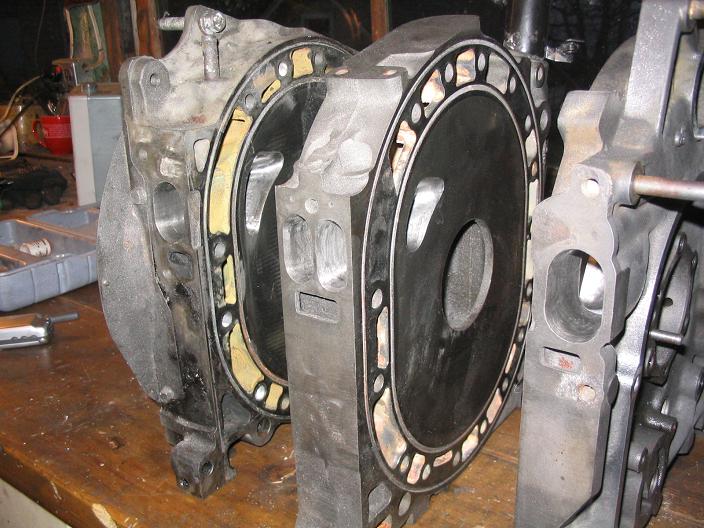

Attached Thumbnails Input on some of my first porting please-img_3762.jpg   Input on some of my first porting please-img_3763.jpg   Input on some of my first porting please-img_3764.jpg
The Spyder is offline
Reply Like
Old 02-09-05, 08:51 PM
  #11
Never give up!

Thread Starter
iTrader: (8)

The Spyder's Avatar

Join Date: Jan 2004
Location: Oregon
Posts: 3,726
Received 45 Likes on 34 Posts

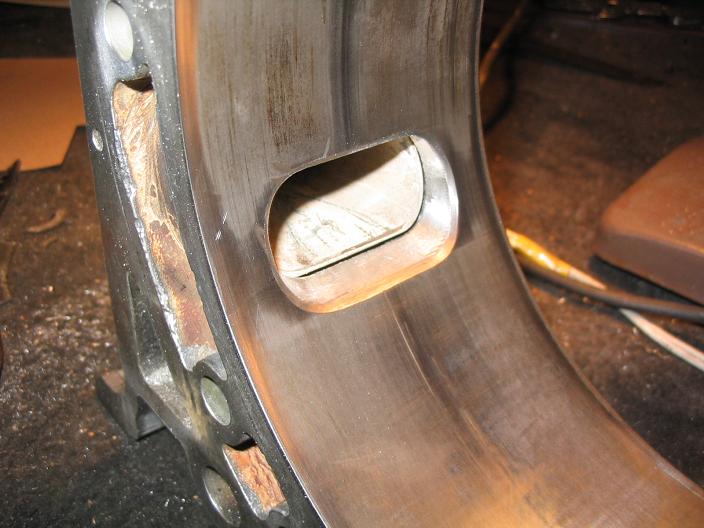

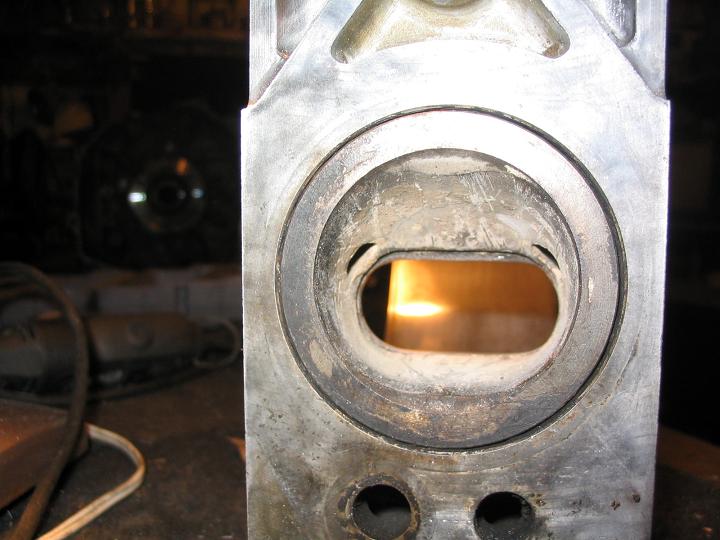

More... I think I like this method for my exhaust ports....

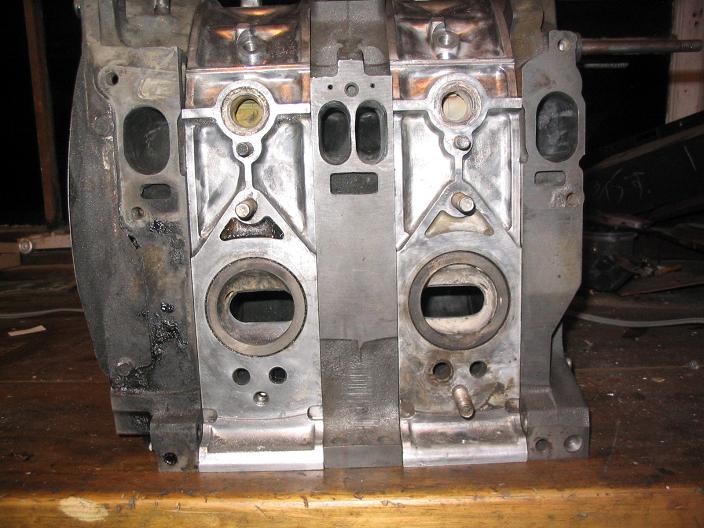

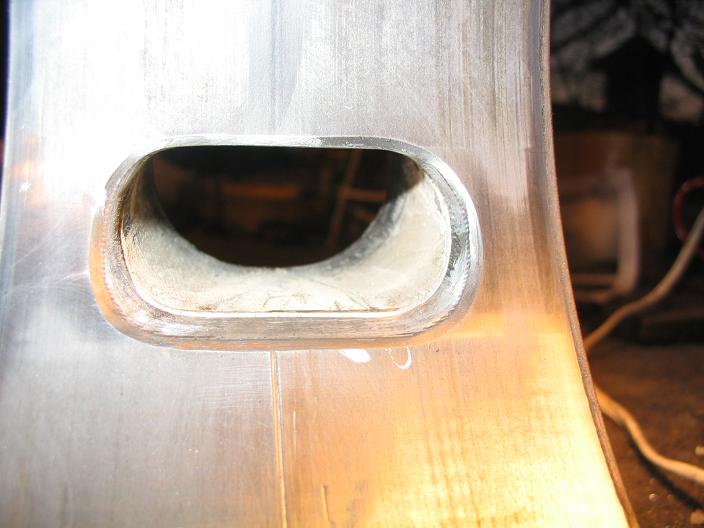

Attached Thumbnails Input on some of my first porting please-img_3765.jpg   Input on some of my first porting please-img_3767.jpg   Input on some of my first porting please-img_3768.jpg   Input on some of my first porting please-img_3769.jpg
The Spyder is offline
Reply Like
Old 02-09-05, 09:45 PM
  #12
controlled kaos

iTrader: (3)

astrochild7's Avatar

Join Date: Nov 2002
Location: eugene, or
Posts: 907
Received 1 Like on 1 Post
er that housing how bad is the mark/ gash in the center... looks nasty... on your primaries> I would slant the top more... more like 88integrals find some of his ports and you'll see....good for side seal. maybe aliitle on secondaries also... bevel/hand ssand the edges alot//some nice fine grit
astrochild7 is offline
Reply Like
Old 02-10-05, 12:20 AM
  #13
Never give up!

Thread Starter
iTrader: (8)

The Spyder's Avatar

Join Date: Jan 2004
Location: Oregon
Posts: 3,726
Received 45 Likes on 34 Posts
These are all spare housings I am praticing on .
Next ports will have a more agressive edge.
The Spyder is offline
Reply Like
Old 02-12-05, 01:28 AM
  #14
Never give up!

Thread Starter
iTrader: (8)

The Spyder's Avatar

Join Date: Jan 2004
Location: Oregon
Posts: 3,726
Received 45 Likes on 34 Posts
Bump for more input mabey?
The Spyder is offline
Reply Like
Old 02-12-05, 01:52 AM
  #15
Junior Member


TwoFun's Avatar

Join Date: Mar 2003
Location: Canada
Posts: 44
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by TwoFun
did you check your ports with a plexi glass with rotor spinning on the plates? watch out your side seals and corner seals........
make sure you do that!
TwoFun is offline
Reply Like
Old 02-12-05, 02:40 PM
  #16
BDC
BDC Motorsports


BDC's Avatar

Join Date: Jun 2002
Location: Grand Prairie, TX
Posts: 3,667
Likes: 0
Received 6 Likes on 6 Posts
Really good for first time. Not bad work at all. By the way... I am in Grants Pass Oregon until the 22nd !
BDC is offline
Reply Like
Old 02-13-05, 01:58 PM
  #17
controlled kaos

iTrader: (3)

astrochild7's Avatar

Join Date: Nov 2002
Location: eugene, or
Posts: 907
Received 1 Like on 1 Post
grants pass huh.. about 100 miles... erso from eugene... what ya doing overthere...
astrochild7 is offline
Reply Like
Old 02-13-05, 10:46 PM
  #18
Never give up!

Thread Starter
iTrader: (8)

The Spyder's Avatar

Join Date: Jan 2004
Location: Oregon
Posts: 3,726
Received 45 Likes on 34 Posts
Ah why are you in grants pass BDC?

And I will check the sides seals and stuff with a plexi rotor, thankfully I have about... 10ft of plexi laying around.

Cant wait to get this motor together.
The Spyder is offline
Reply Like
Old 02-13-05, 10:55 PM
  #19
controlled kaos

iTrader: (3)

astrochild7's Avatar

Join Date: Nov 2002
Location: eugene, or
Posts: 907
Received 1 Like on 1 Post
love to help ya slap it together but damn the drive...damn gas prices..... plexi rocks..... I've got 4 ports on one piece
astrochild7 is offline
Reply Like
Old 02-14-05, 04:30 AM
  #20
Adolf Hitler Verfechter


karism's Avatar

Join Date: Sep 2002
Location: Northern South Africa
Posts: 969
Likes: 0
Received 0 Likes on 0 Posts
Very nice for a first port job!

Makes sure that you shape the top of your intake ports a bit more,especially the secondary ones.

Well done!

Karis
