mowog

I am putting a NA 13B into a Bugeye Sprite. I have a challenge with the alternator clearing the hood, was hoping someone might know of a smaller diameter unit I could use.
Thanks,
Ed

heynoman

iTrader: (5)

Not sure what kind of clearance you have in the engine bay but maybe a side mount bracket can work .

mowog

I have modified the bracket already, I am about 1/2 inch off. Since the car has almost no electronics, I am thinking of trying a Suzuki swift alternator (about 50 amps, but pretty small diameter)
Not sure what a side bracket looks like, any pics?

heynoman

iTrader: (5)

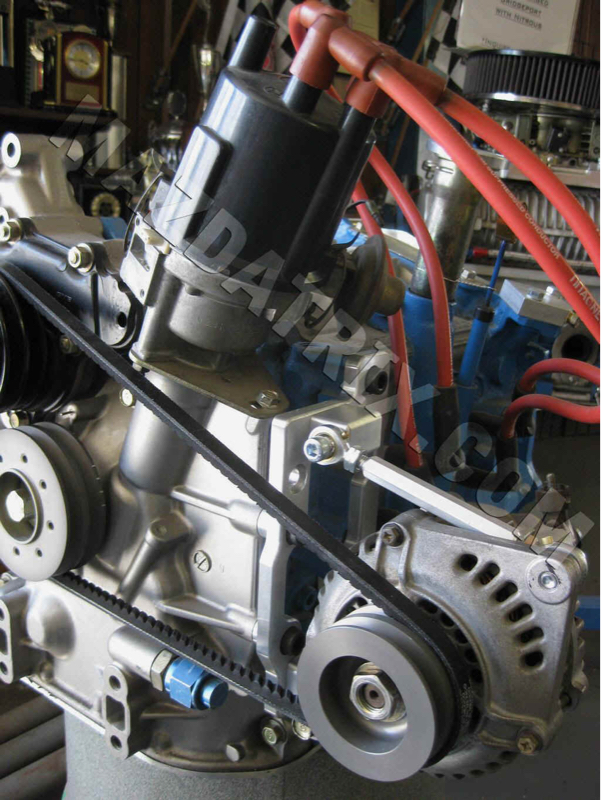

Here is a picture of the one mazdatrix sells . Their are other companies that sell similar versions as well .

mowog

That is a cool looking set up, unfortunately I have no room on the sides.

heynoman

iTrader: (5)

Performance distributors sells a mini alternator. I'm not sure about fitment.http://performancedistributors.com/p...s/alternators/

mowog

I will give them a shot

heynoman

iTrader: (5)

If you look up Chevy mini race alternator you can find no name ones for about $80 .

EDSRX3

Do you have room to mount it on the dif? Only charges when you are rolling, but with little electrical may work.
