94 touring front bumper fasteners

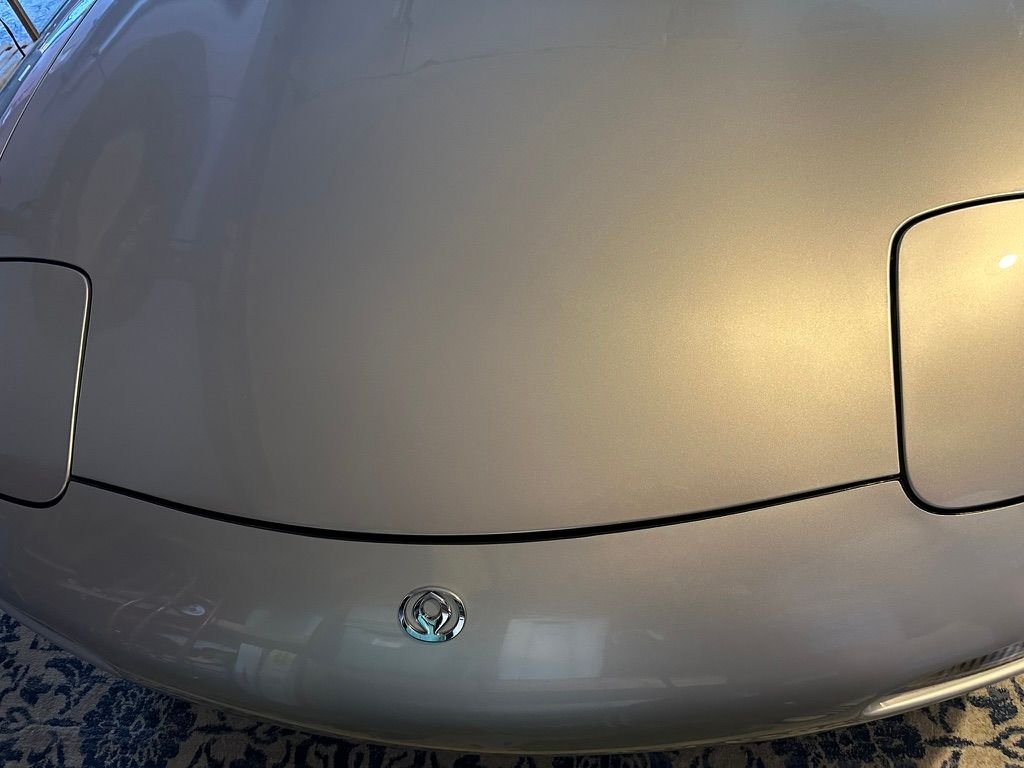

Hello. I have a 94 touring with fog lights. My front bumper is sagging a little in the middle which I guess is common. After further inspection around the inlet it looks like some of the fasteners are missing. I've been studying the diagrams online to figure out what parts I need but I cannot find a drawing that matches exactly what I have.

I'm missing two middle plastic screws and the rectangle pieces that mount upwards from the opening (last pic shows one of the existing I removed). There are four of these total.

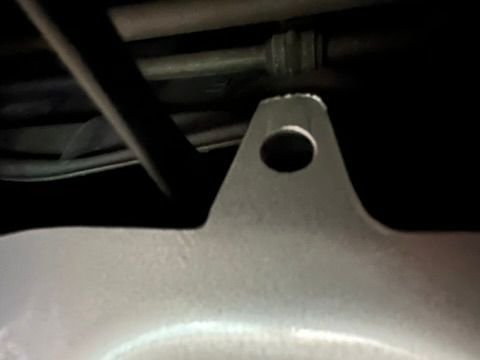

Plus two of the fasteners and triangular mounts that fasten downwards from the opening. Picture two and three. There are three of these total.

Hopefully the pictures can show what I'm explaining. Appreciate any help!




Attached Files
Reply
Old Jun 5, 2026 | 06:26 PM
  #2
Sigma's Avatar
Full Member
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (3)

Joined: Jan 2006
Posts: 242
Likes: 94
From: Fort Worth, TX
Is it these?

https://jp3motorsports.com/collectio...ining-brackets
Reply
Old Jun 5, 2026 | 06:42 PM
  #3
j9fd3s's Avatar
Moderator
Community Builder
Liked
Loved
Community Favorite
iTrader: (3)

Joined: Mar 2001
Posts: 31,851
Likes: 3,239
From: https://www2.mazda.com/en/100th/
the 3 lower ones are NA01-50-101A, they are like $1 each
the top ones are the BF82-50-233. this one is cheap from Mazda, but also findable aftermarket
