13B Series 5 Porsche 914

Old 11-16-15, 09:55 PM
  #1
Junior Member
Thread Starter

Join Date: Nov 2015
Location: Indiana
Posts: 15
Thanks: 0
Thanked 0 Times in 0 Posts
13B Series 5 Porsche 914

Hi guys,

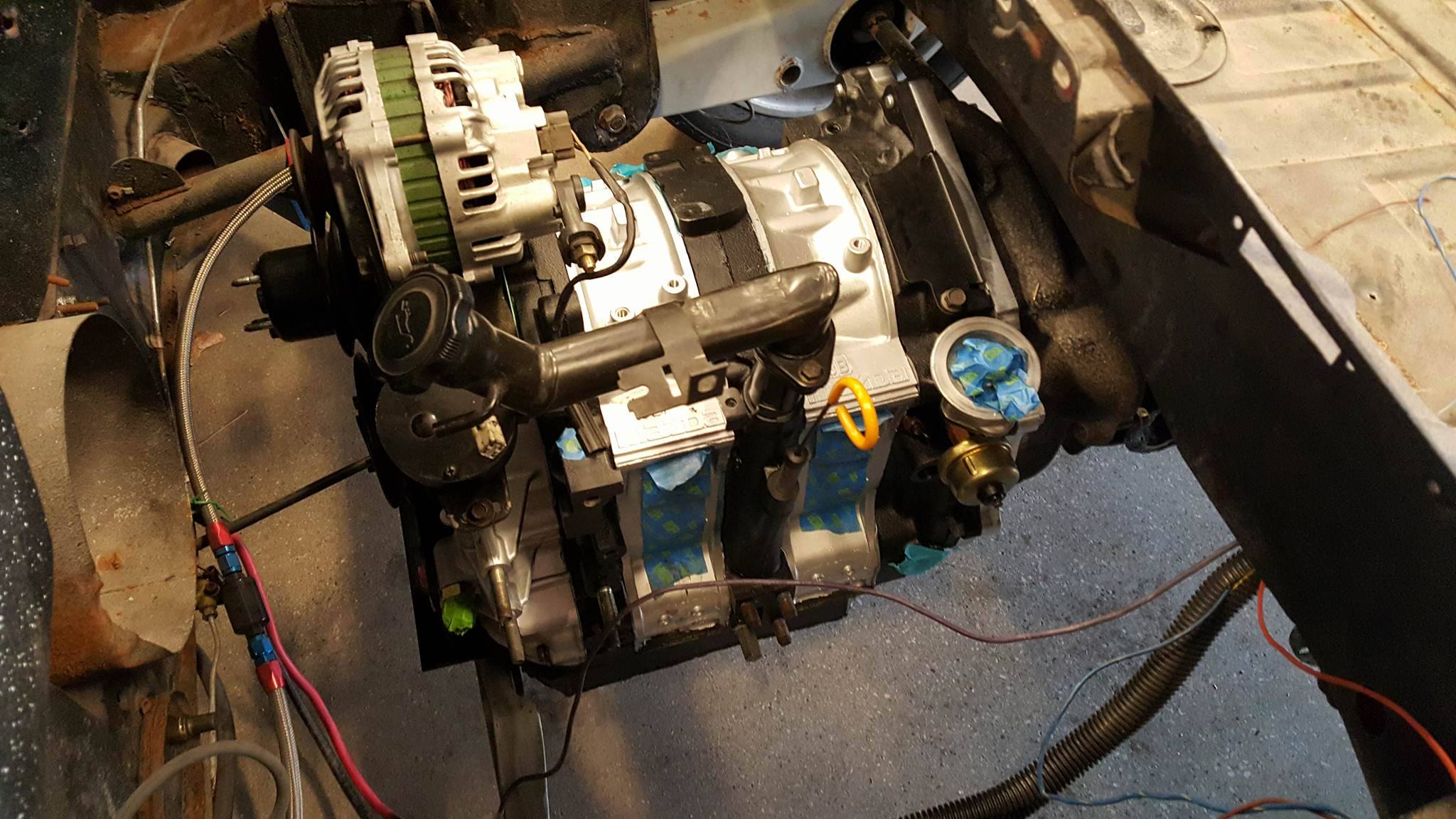

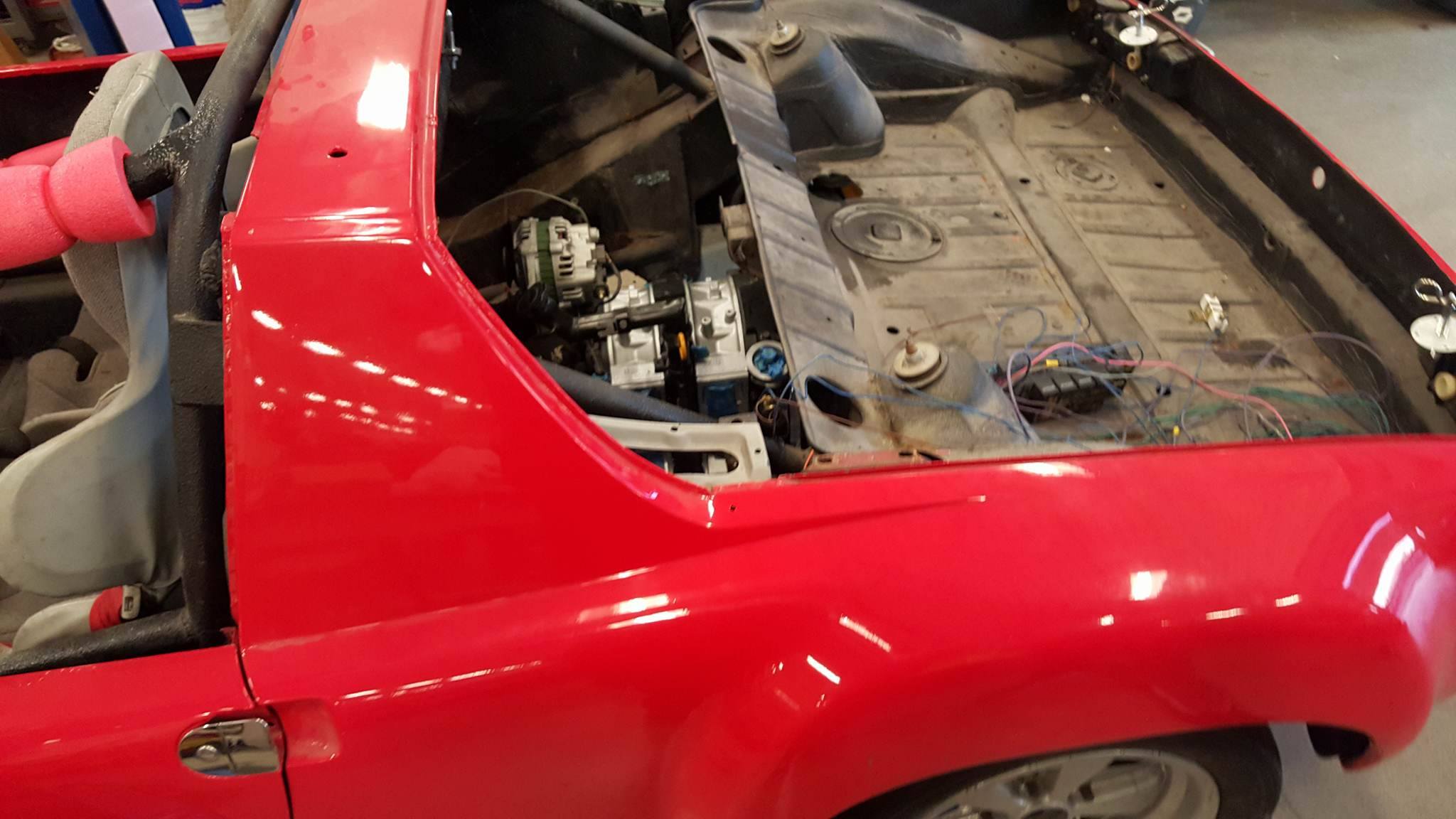

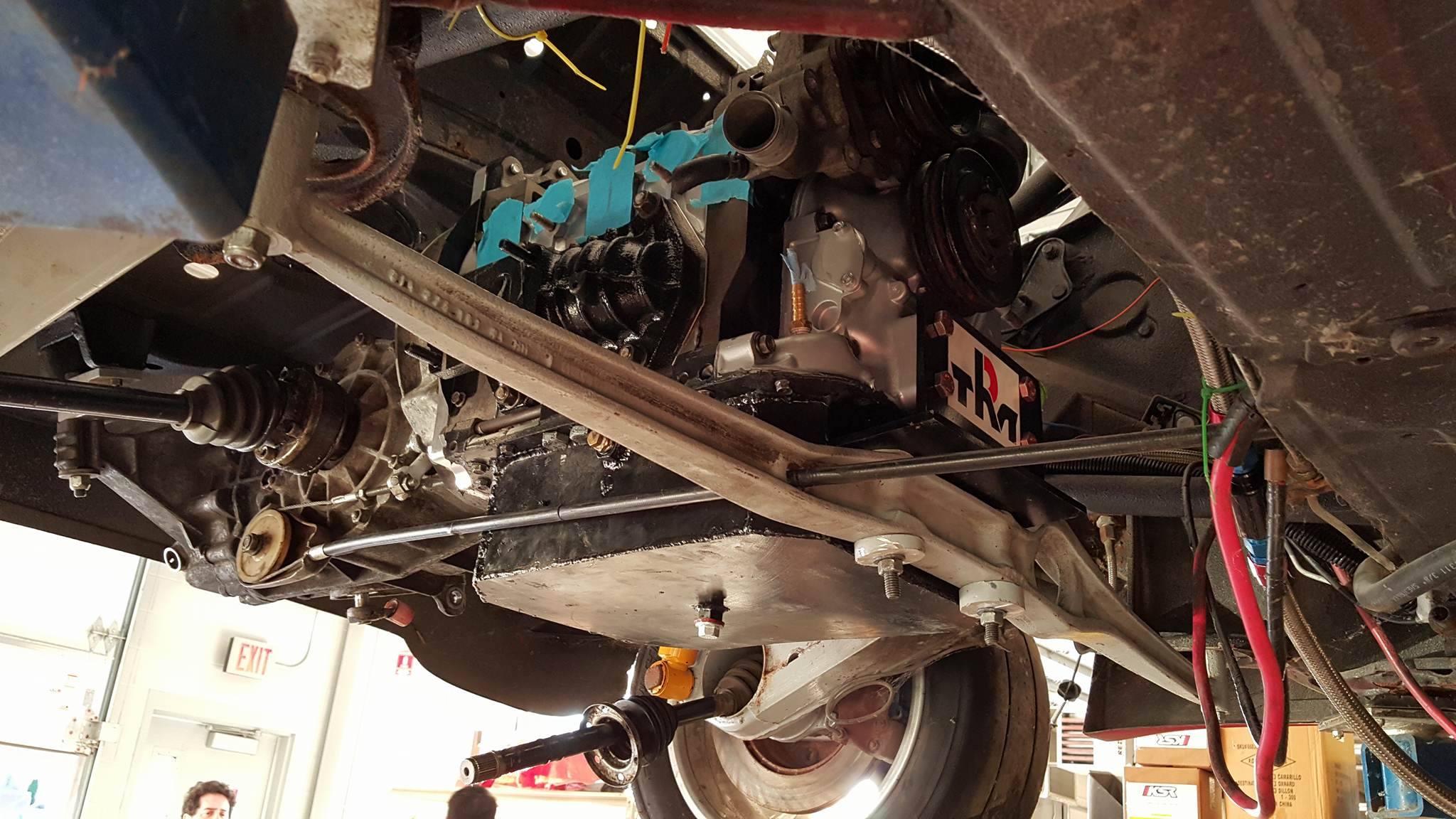

New member here! Im in the midst of doing a 13B swap in a Porsche 914 (see pics). Ive been poking around rx7 club for a few months now and figured I should start a thread.

Things done so far:
-engine rebuilt/ported (shoutout to Banzai Racing)
-Kennedy Engineered adapter plate/clutch/pressure plate
-BNR stage 3 turbo


At this point in time, I was hoping I could get advice on what size injectors I should run. Im aiming for around 300hp at the crank. IIRC I was told to get some ID1000cc injectors, opinions?

Thanks,

-Kyle
Attached Thumbnails 13B Series 5 Porsche 914-12218356_10206319802008223_1785912226_o.jpg   13B Series 5 Porsche 914-12227511_10206319281595213_691566317_o.jpg   13B Series 5 Porsche 914-unnamed.jpg
kylesburrell is offline
Old 11-16-15, 10:09 PM
  #2
ROTARY POWERED TOY
5 Year Member
iTrader: (1)

rotarynosinjected's Avatar

Join Date: Apr 2008
Location: chi-town
Posts: 56
Thanks: 0
Thanked 0 Times in 0 Posts
Bad a** project more pics
rotarynosinjected is offline
Old 11-16-15, 10:12 PM
  #3
Junior Member
Thread Starter

Join Date: Nov 2015
Location: Indiana
Posts: 15
Thanks: 0
Thanked 0 Times in 0 Posts
Thats all I got for now. I need to order parts soon so I can keep this project coming along
kylesburrell is offline
Old 11-16-15, 10:14 PM
  #4
Junior Member
Thread Starter

Join Date: Nov 2015
Location: Indiana
Posts: 15
Thanks: 0
Thanked 0 Times in 0 Posts

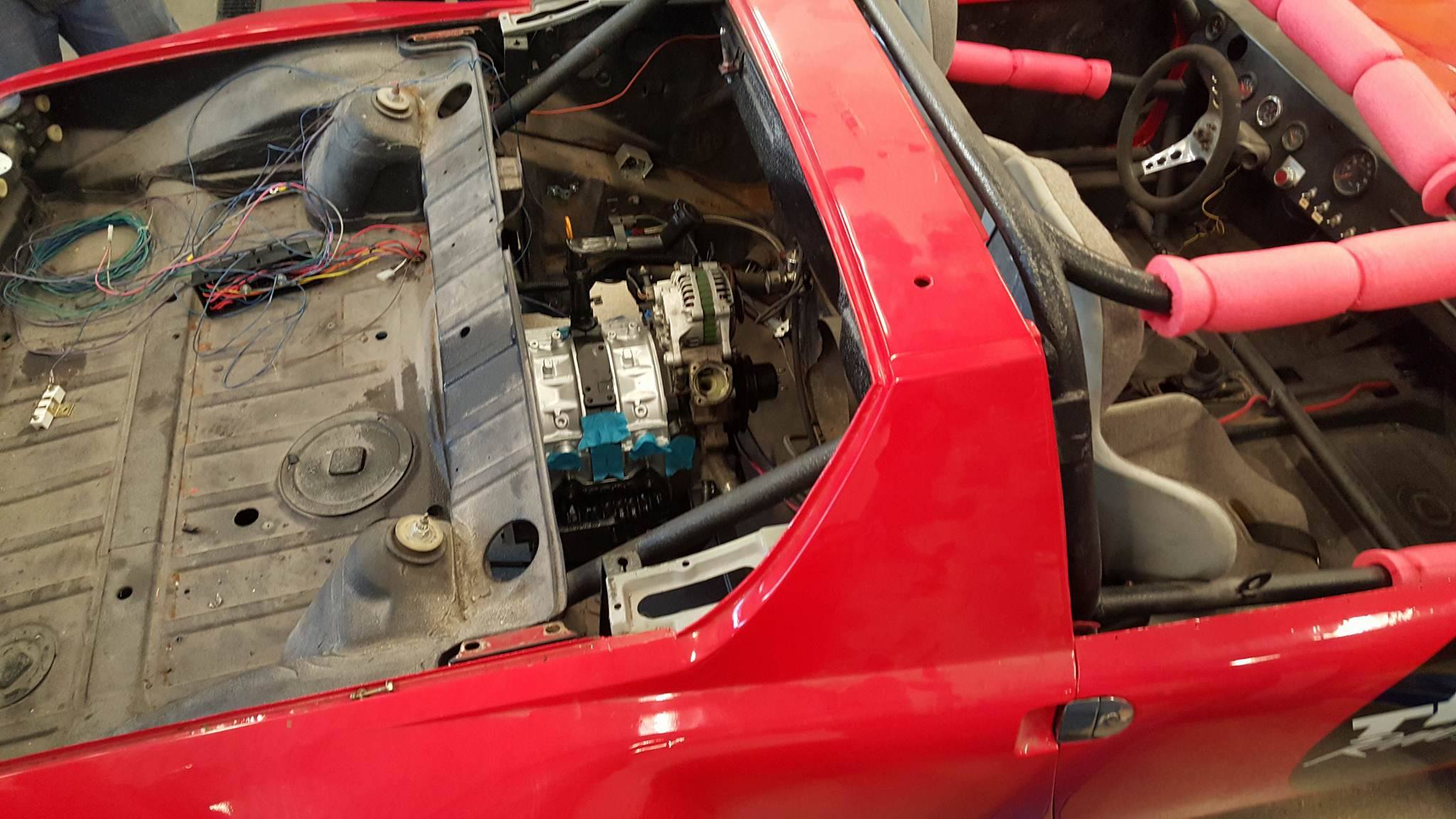

Pics attached this time

Originally Posted by kylesburrell View Post
Thats all I got for now. I need to order parts soon so I can keep this project coming along
Attached Thumbnails 13B Series 5 Porsche 914-11989317_10206319281995223_747698081_o.jpg   13B Series 5 Porsche 914-12242853_10206319801128201_1514212201_o.jpg   13B Series 5 Porsche 914-12218356_10206319802008223_1785912226_o.jpg
kylesburrell is offline
Old 11-18-15, 11:30 PM
  #5
Senior Member
iTrader: (7)

mattallac's Avatar

Join Date: Nov 2012
Location: crockett ca.
Posts: 273
Thanks: 0
Thanked 0 Times in 0 Posts
I second that , I love the 914 and with a rotary it will be that much better .
mattallac is offline
Old 11-22-15, 07:38 PM
  #6
Junior Member

Join Date: Apr 2002
Location: Phoenix
Posts: 51
Thanked 0 Times in 0 Posts
Very cool, I am just finishing up a rotary Bugeye Sprite and just purchased a WRX converted 914. 300 HP will make it a fun car. What are you doing for cooling?
mowog is offline
Old 11-22-15, 07:44 PM
  #7
Junior Member
Thread Starter

Join Date: Nov 2015
Location: Indiana
Posts: 15
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by mowog View Post
Very cool, I am just finishing up a rotary Bugeye Sprite and just purchased a WRX converted 914. 300 HP will make it a fun car. What are you doing for cooling?
I'm looking at a mishimoto radiator from an evo 10. That will be mounted in the trunk with dual electric fans. Ill run 2 oil coolers in front of the radiator too. I'm still undecided about where to put the intercooler.

-Kyle
kylesburrell is offline
Old 11-22-15, 09:23 PM
  #8
Junior Member

Join Date: Apr 2002
Location: Phoenix
Posts: 51
Thanked 0 Times in 0 Posts
Take a look at Renegade Hybrids conversion, seems to work the best from all of the info I have read. Members Only
mowog is offline
Old 11-22-15, 09:46 PM
  #9
Junior Member
Thread Starter

Join Date: Nov 2015
Location: Indiana
Posts: 15
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by mowog View Post
Take a look at Renegade Hybrids conversion, seems to work the best from all of the info I have read. Members Only
I appreciate the info, but I really want to keep the radiator hoses on the short side. So running the radiator at the front would require long water pipes.I plan on driving it without a trunk. So itll get plenty of flow. The car is only used for autox racing.
kylesburrell is offline
Old 11-24-15, 07:17 AM
  #10
Rotary Enthusiast

Join Date: Jan 2005
Location: hsv al
Posts: 828
Thanked 7 Times in 6 Posts
i noticed the cage and slicks and figured it was autox.

4x ID1000s should be plenty, but fwiw i have no direct experience with them.

that BNR Stage 3 may not be the best for autox, and maybe in a few seasons time you change it out for an internally gated EFR unit. the ID1000s should still be able to support that.
Gilgamesh is offline
Old 11-24-15, 12:15 PM
  #11
Junior Member
Thread Starter

Join Date: Nov 2015
Location: Indiana
Posts: 15
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Gilgamesh View Post
i noticed the cage and slicks and figured it was autox.

4x ID1000s should be plenty, but fwiw i have no direct experience with them.

that BNR Stage 3 may not be the best for autox, and maybe in a few seasons time you change it out for an internally gated EFR unit. the ID1000s should still be able to support that.
Wow, 4 of em? I can do that. ID1000s are kinda expensive. But ill have no shortage of fuel.

And I was told that I needed to worry about boost creep cuz our exhaust will be really short (rear mid engine car). And using the original turbo made oil/ water lines easy.
kylesburrell is offline
Old 11-24-15, 01:14 PM
  #12
Rotary Specialists
RX7Club Vendor
iTrader: (11)

Banzai-Racing's Avatar

Join Date: Jan 2008
Location: Indiana
Posts: 4,561
Thanked 67 Times in 54 Posts
The BNR should have a ported wastegate. You can install four 1000cc, or you could stay with 550cc primary and install 2000cc secondaries for the same price and have more area to expand and it would be easier to get the car idling correctly from a beginners standpoint.
Banzai-Racing is online now
Old 11-24-15, 01:20 PM
  #13
Junior Member
Thread Starter

Join Date: Nov 2015
Location: Indiana
Posts: 15
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Banzai-Racing View Post
The BNR should have a ported wastegate. You can install four 1000cc, or you could stay with 550cc primary and install 2000cc secondaries for the same price and have more area to expand and it would be easier to get the car idling correctly from a beginners standpoint.
Okay thank you so much!

-Kyle
kylesburrell is offline
Old 12-06-15, 08:51 PM
  #14
Junior Member
Thread Starter

Join Date: Nov 2015
Location: Indiana
Posts: 15
Thanks: 0
Thanked 0 Times in 0 Posts
Update

Hi all,
Just an update to the build.

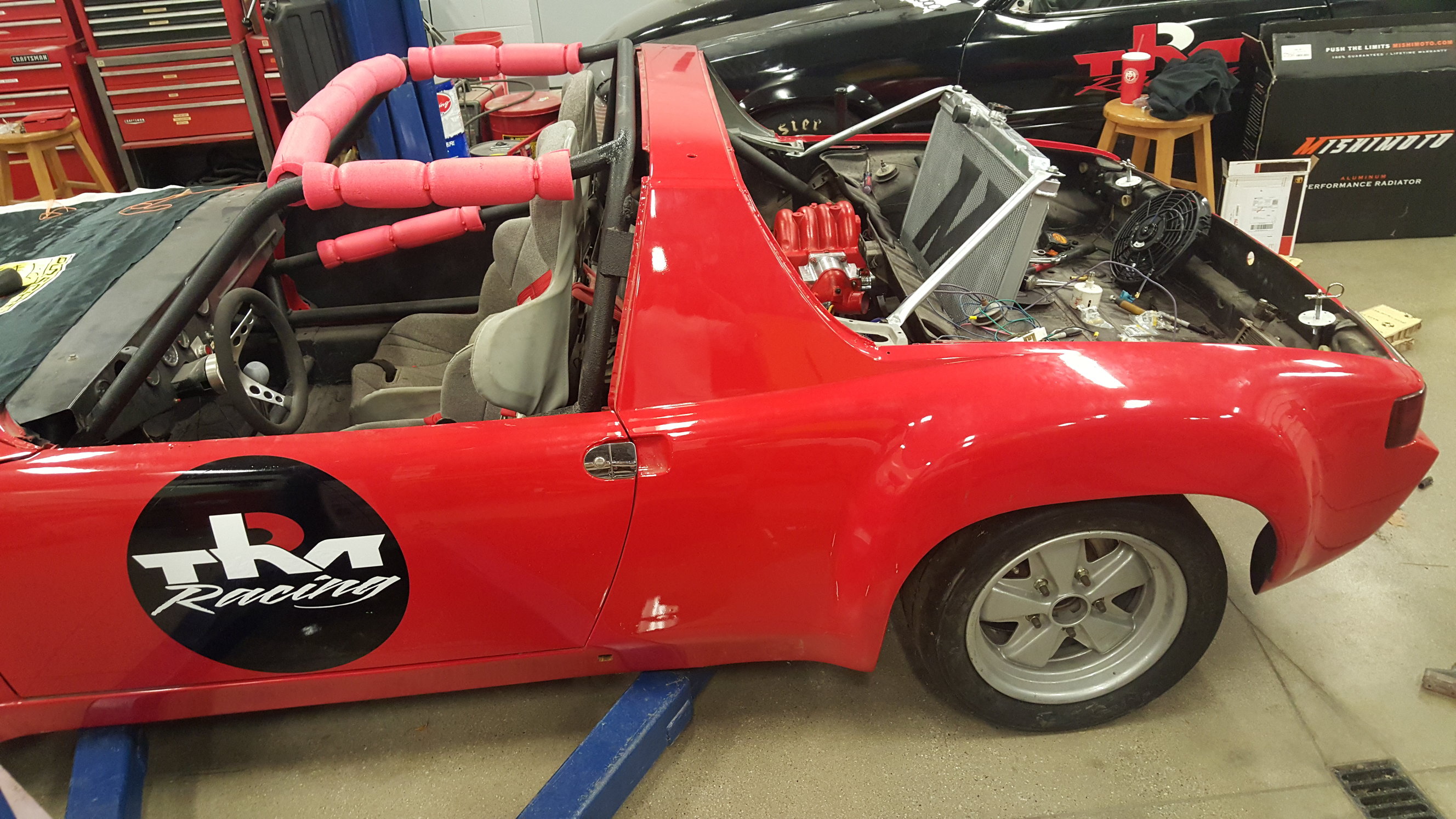

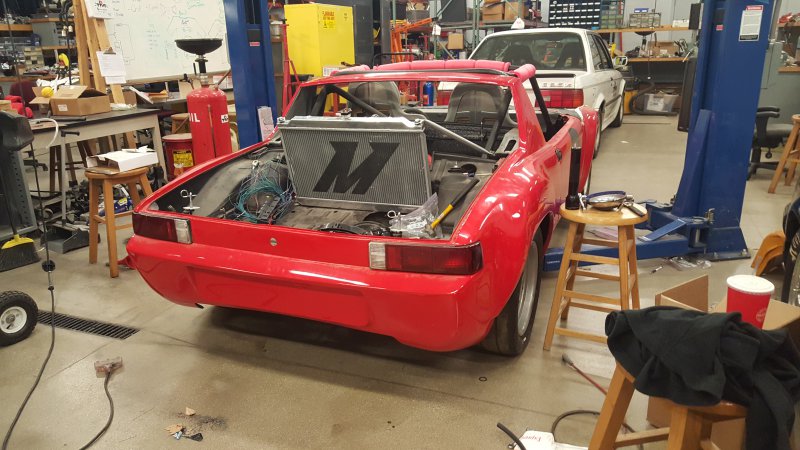

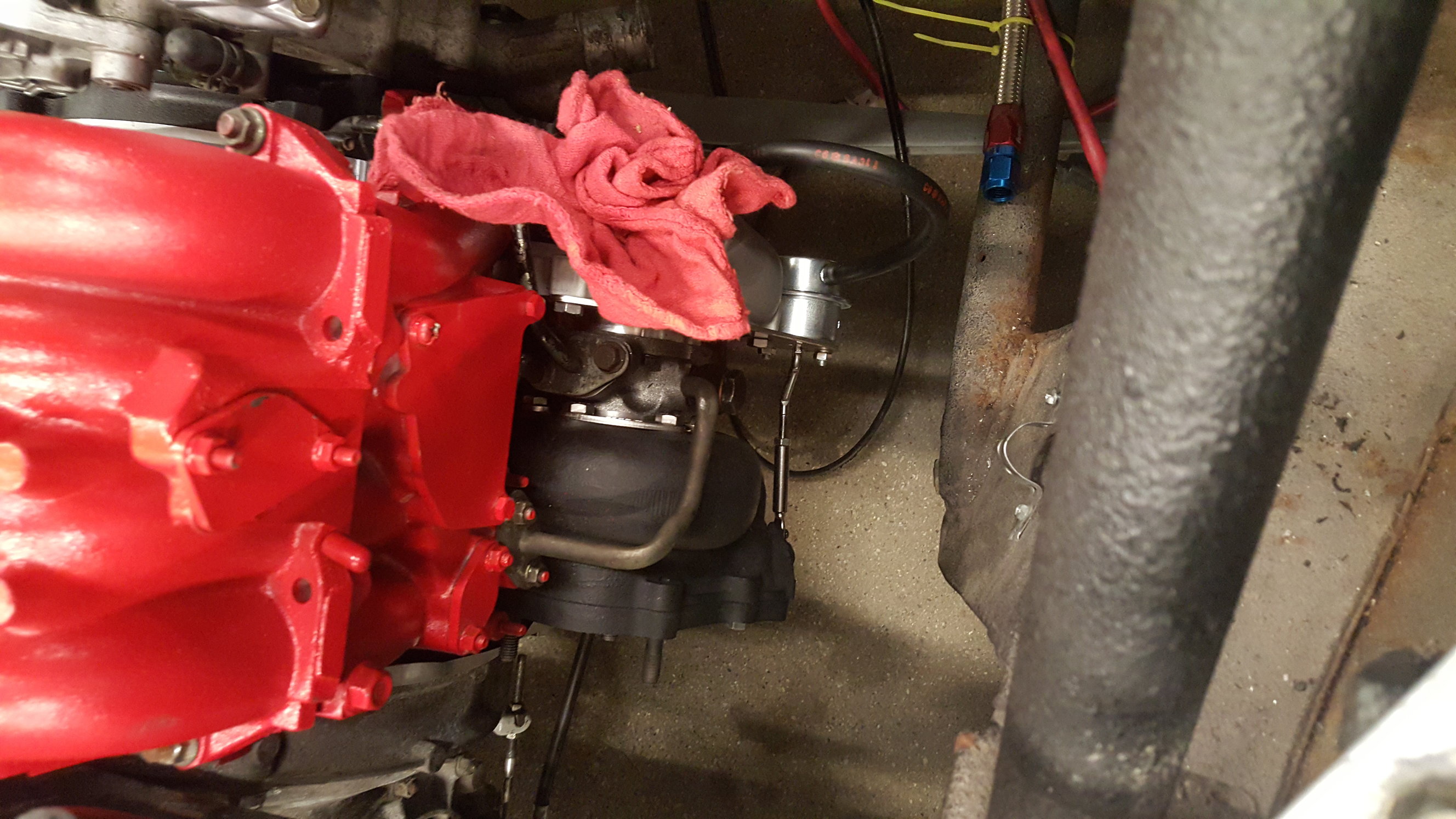

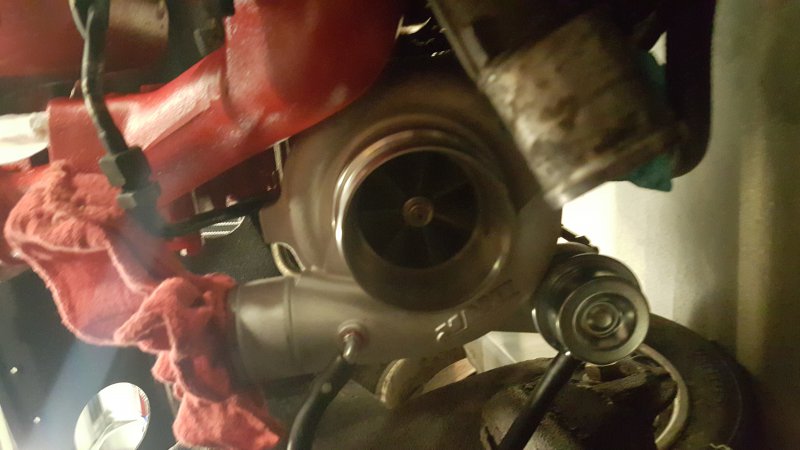

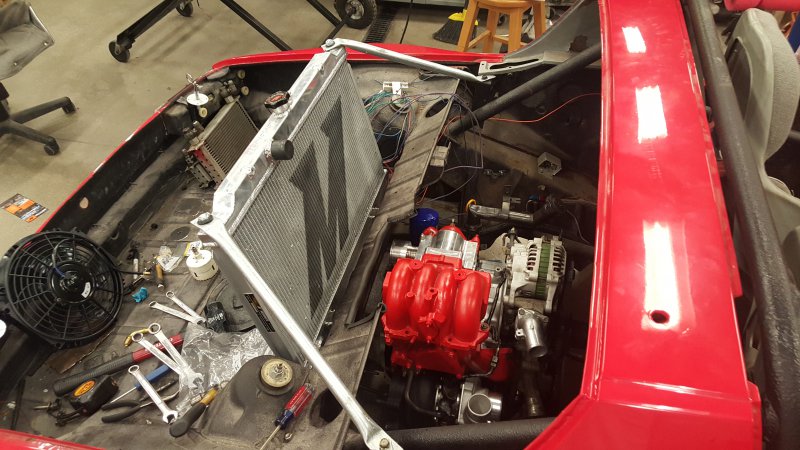

We got the turbo back this week So we mounted lower intake manifold, turbo, and our new radiator!

Side note: We 3D printed a new shift ****, cuz the old one didnt have the correct shift pattern :/

-Kyle
Attached Thumbnails 13B Series 5 Porsche 914-rsz_20151206_203330.jpg   13B Series 5 Porsche 914-rsz_20151206_203617.jpg   13B Series 5 Porsche 914-rsz_120151206_203341.jpg   13B Series 5 Porsche 914-20151206_203600__1449456370_80794.jpg   13B Series 5 Porsche 914-20151206_203358__1449456402_25870.jpg

13B Series 5 Porsche 914-20151206_203341__1449456432_22475.jpg
kylesburrell is offline
Old 12-06-15, 09:10 PM
  #15
Glease Manufacturing
iTrader: (5)

Join Date: Jan 2012
Location: Leamington, Ont
Posts: 356
Thanks: 0
Thanked 1 Time in 1 Post
Good gosh, so good.
Glease Man is offline
Old 12-13-15, 03:55 PM
  #16
Junior Member
Thread Starter

Join Date: Nov 2015
Location: Indiana
Posts: 15
Thanks: 0
Thanked 0 Times in 0 Posts
Update

Hi all,

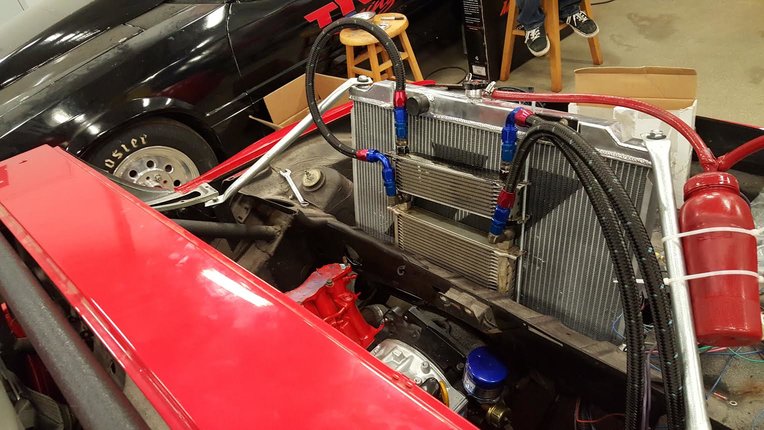

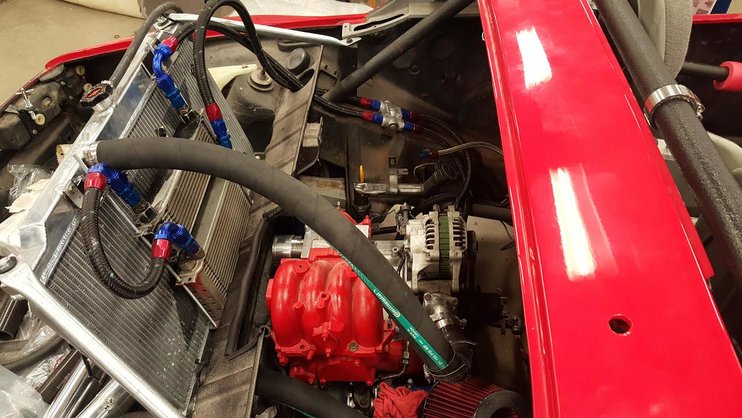

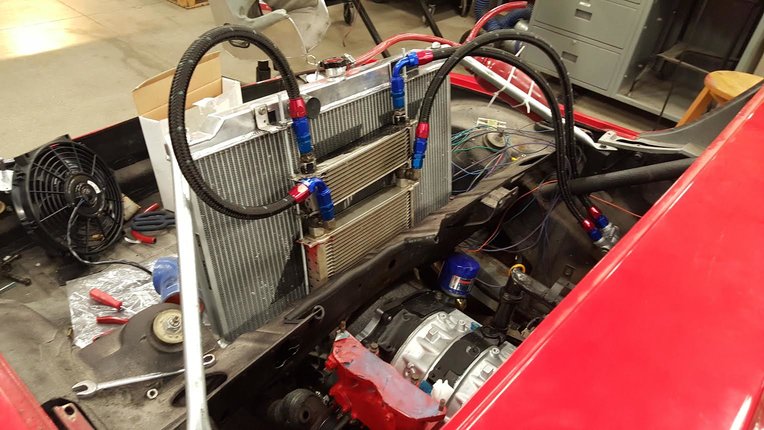

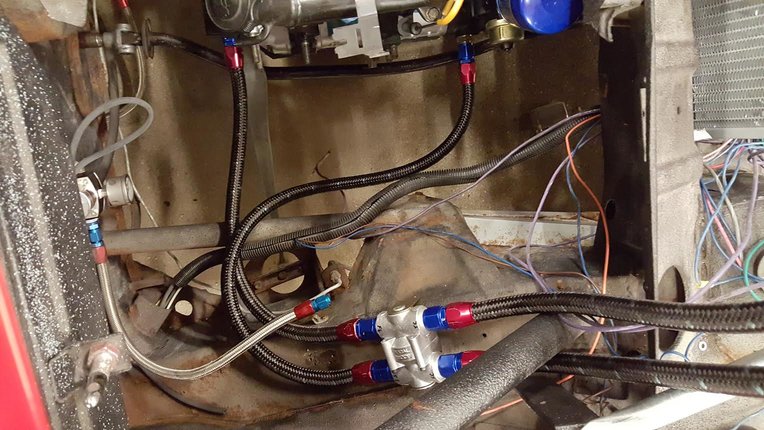

this past weekend we got the oil system "almost" finished up. Running 2 oil coolers in series.

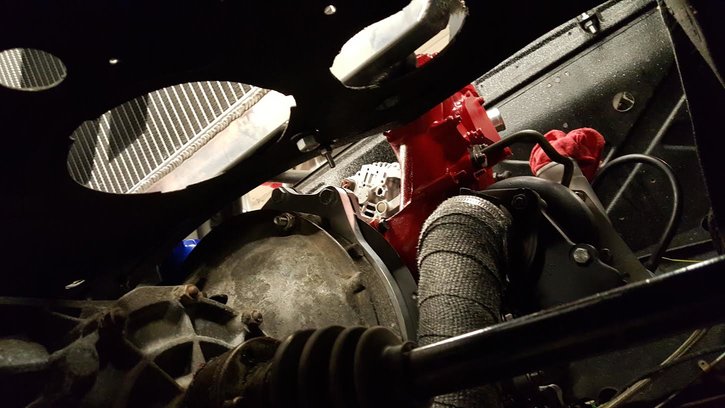

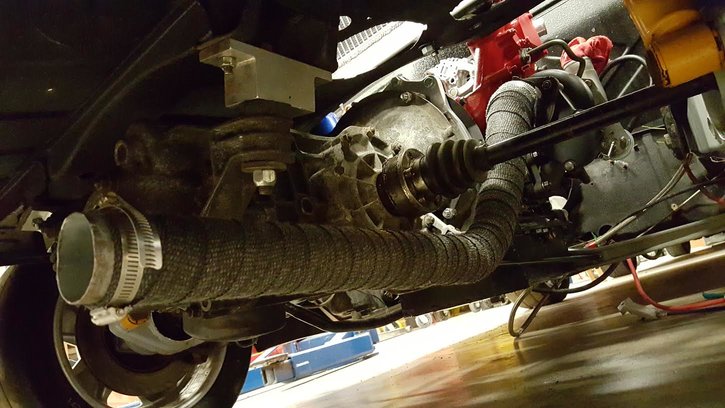

We made the exhaust "system" lol its about 3ft of pipe. Probably going to put a chrome tip on it to make it look nice.

Cheers,

-Kyle
Attached Thumbnails 13B Series 5 Porsche 914-rsz_9217e58e-cd5e-4e55-bd51-370045abb990.jpg   13B Series 5 Porsche 914-rsz_8629001d-c8d0-4dd8-a5c8-0f8f8f93d3b3.jpg   13B Series 5 Porsche 914-rsz_9baca0b3-2177-43e6-9731-edbfa390deb2.jpg   13B Series 5 Porsche 914-rsz_53a4dacc-420c-4234-ab4a-9ab8371d1734.jpg   13B Series 5 Porsche 914-rsz_feeb23ca-29f5-41d4-9a2e-8b444664d3e2.jpg

kylesburrell is offline
Old 02-07-16, 04:35 PM
  #17
Junior Member
Thread Starter

Join Date: Nov 2015
Location: Indiana
Posts: 15
Thanks: 0
Thanked 0 Times in 0 Posts
Update 2/7/16

Hi all,

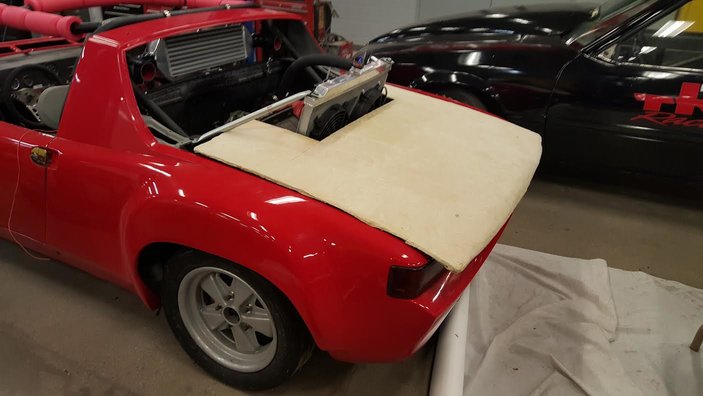

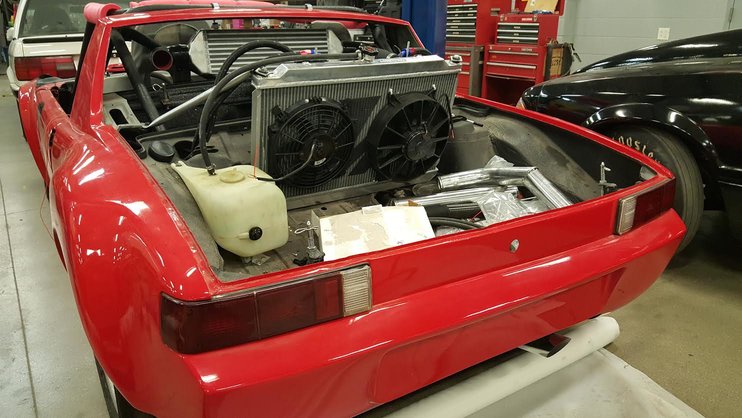

just another update to the build. So we've got the electric fans mounted and made a coolant overflow tank. The oil system is done. The upper radiator hose might get redone to make some room for intercooler piping (intercooler is mounted behind the seats). We made a fiberglass trunk lid..That's still getting a little body work but is already much lighter than the original steel one. Considering doing the hood as well to shed more weight.

-Kyle
Attached Thumbnails 13B Series 5 Porsche 914-rsz_7eafc0b1-5751-4476-ac23-f582323fff29.jpg   13B Series 5 Porsche 914-rsz_09ad4967-bd38-4a92-858d-c1abf7e83438.jpg   13B Series 5 Porsche 914-rsz_35dbd8ef-0456-4627-a512-9a0d791686f7.jpg   13B Series 5 Porsche 914-rsz_ace9071a-5acd-4039-b246-e2648a66aee2.jpg   13B Series 5 Porsche 914-rsz_0bfcb8e6-d348-437d-86de-cfaf4b575d2e.jpg

kylesburrell is offline
Old 05-17-16, 08:42 PM
  #18
Junior Member
Thread Starter

Join Date: Nov 2015
Location: Indiana
Posts: 15
Thanks: 0
Thanked 0 Times in 0 Posts
Update 5/17/16

Since last time,

We got the car running (about a month ago)!!! Got the LT9c wired up and the fuel system finalized. We had an issure where the CAS was wired incorrectly :/ We've been baby-ing the car to break in the engine and also just trying to get used to driving it.

-Kyle
kylesburrell is offline
Old 05-17-16, 08:45 PM
  #19
REPU Garage
iTrader: (17)

Join Date: Jun 2007
Location: Northern Colorado
Posts: 623
Thanks: 0
Thanked 0 Times in 0 Posts
Nice project!
Turbo8 is offline
Old 01-12-17, 12:51 PM
  #20
Junior Member

Join Date: Jan 2017
Location: Pasadena
Posts: 12
Thanks: 0
Thanked 0 Times in 0 Posts
nice project I am a big 914 guy if you need any parts hit me up? or go to 914world.com
Heeltoe914 is offline
Old 01-12-17, 03:01 PM
  #21
Junior Member
Thread Starter

Join Date: Nov 2015
Location: Indiana
Posts: 15
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Heeltoe914 View Post
nice project I am a big 914 guy if you need any parts hit me up? or go to 914world.com
I think we're good on parts. There's not much that is still original 914. Lately we've been having issues with the clutch cable and throttle cable. But got those figured out just fine
kylesburrell is offline
Old 01-12-17, 03:35 PM
  #22
Playing Well
iTrader: (19)

Natey's Avatar

Join Date: Aug 2004
Location: Santa Cruz
Posts: 3,883
Thanked 55 Times in 43 Posts
My 1st car was a 914. SO fun to drive. A 914/6 is still my dream car.

Here's Professor Wankel with his rotary powered 914


Last edited by Natey; 01-12-17 at 03:37 PM.
Natey is offline
Old 01-24-17, 10:09 AM
  #23
Slowly but surely
iTrader: (9)

craaaazzy's Avatar

Join Date: May 2011
Location: GA
Posts: 1,650
Thanked 7 Times in 7 Posts
are the pics showing up for everyone else? i'm accessing the site via the URL so though i would have no problems. love the 914 and great seeing a proper motor installed in the car. =)
craaaazzy is offline
Old 01-26-17, 01:32 AM
  #24
Junior Member
Thread Starter

Join Date: Nov 2015
Location: Indiana
Posts: 15
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by craaaazzy View Post
are the pics showing up for everyone else? i'm accessing the site via the URL so though i would have no problems. love the 914 and great seeing a proper motor installed in the car. =)
Huh, youre right! They dont show up for me either. Just blank black space. If anyone knows how to fix that, much appreciated.

-Kyle
kylesburrell is offline
Old 01-26-17, 05:58 AM
  #25
Eats, Sleeps, Dreams Rotary
iTrader: (1)

Turbonut's Avatar

Join Date: Feb 2002
Location: NJ
Posts: 3,698
Thanks: 0
Thanked 5 Times in 5 Posts
Right click-open in new tab
