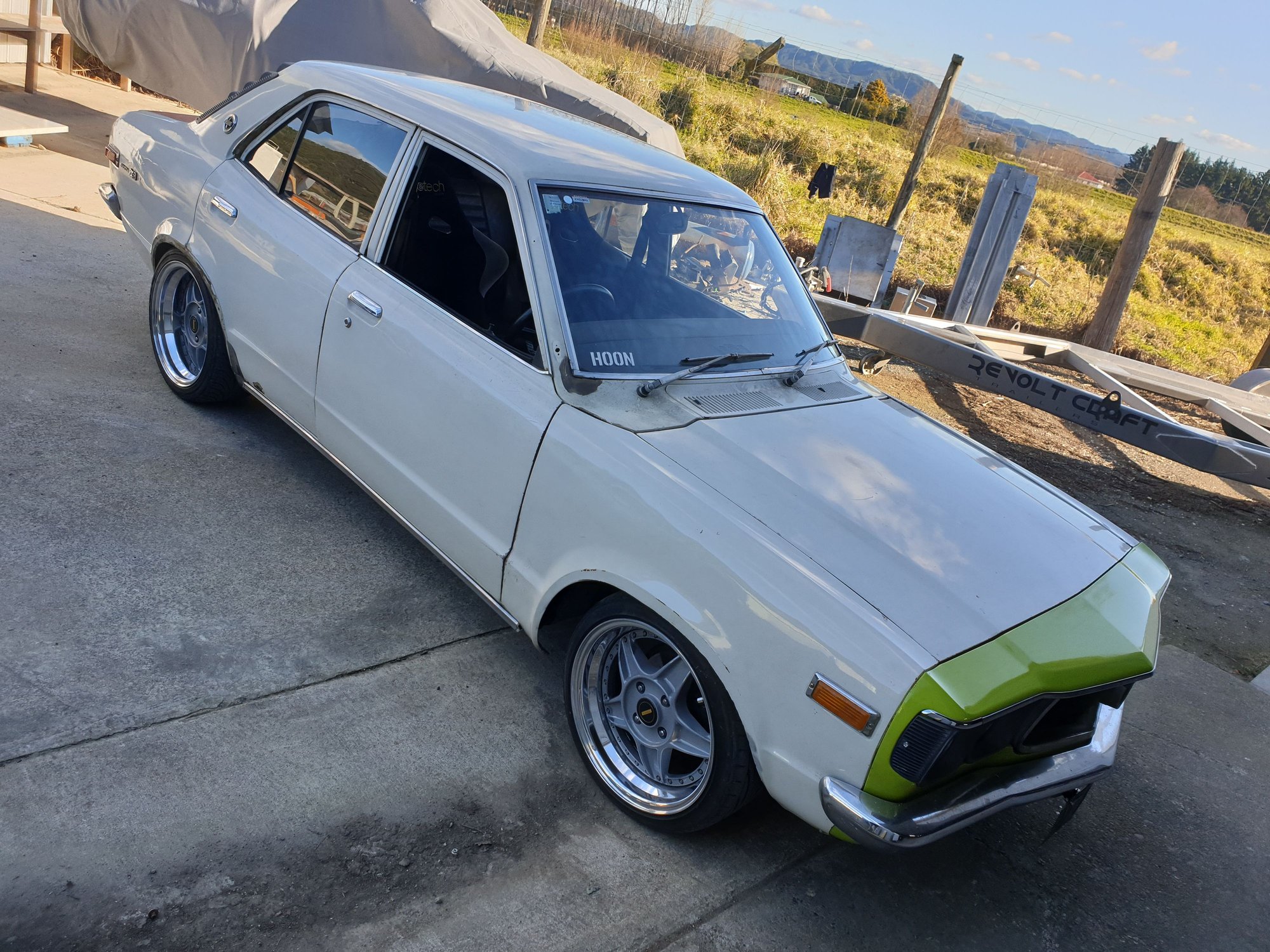

1977 mazda 808 sedan

Hey hows it going .
Since the repu is pretty much done i decided to start on my sedan making it how i want it .
Long story short i brought this 808 off a elderly lady in ohope (new zealand) only by chance as i left a note on her windsheild with my mums home address as i was still at school, anyways i had just started my apprenticeship and she called my mum and said she wants to sell me the sedan she had owned it since new .
I gave her $900 and it was mine .
It sat in the shed for 6months then i had the opportunity to buy my repu so i sold the 808 to pay for the shipping of the repu ( i regretted selling the 808)
Fast forward 9 years or so i was in the middle of the dessert of western Australia working on a remote construction site i was looking on Trademe (nzs version of ebay) and seen a sedan very similar to my old one but had been converted to rx3 and had a 13bt now and 17" wheels .
Turns out it still had the black plates IF1812 plates i had on it .
So i emailed the owner said hey i used to own the 808 and id like to buy it back turns out the guy i sold it to still owned it so a deal was made and i had a couple mates in nz go pick it up and pay for it , i wouldnt drive it for another 6months when i finished the job n fly back to nz .

So basically i changed everything that had been done trying to make a bullet proof driveline and have fun on 1/4 mile .

The stats are .
A fresh 13b street port all new seals ect based on s4 block.
14lb flywheel and exedy 5 puck clutch .
Brand new gen 4 toyota R154 supra box with billet selectors and green brothers racing adaptor plate to fc bell housing .
It will have a 3" drive shaft yet to make .

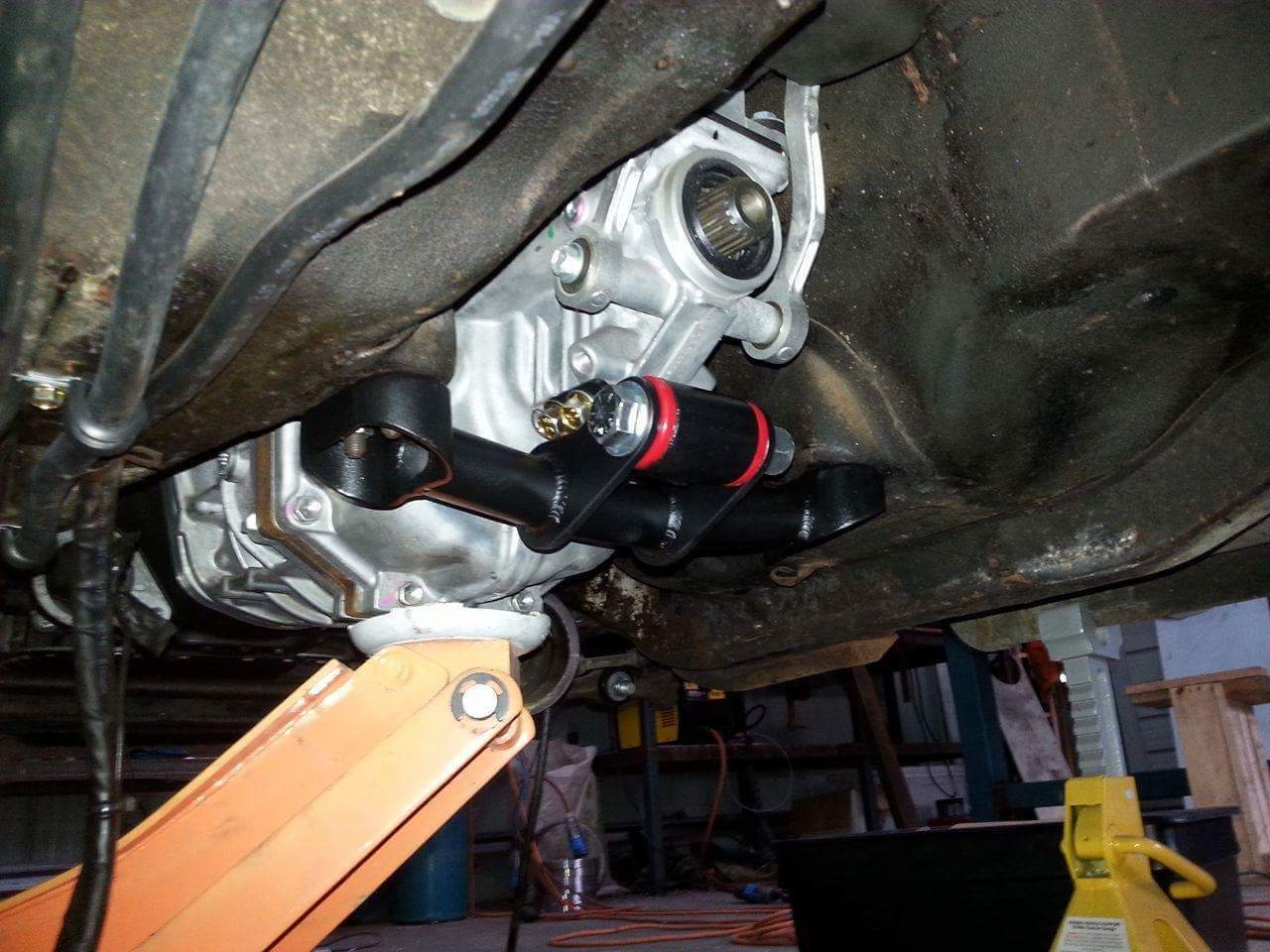

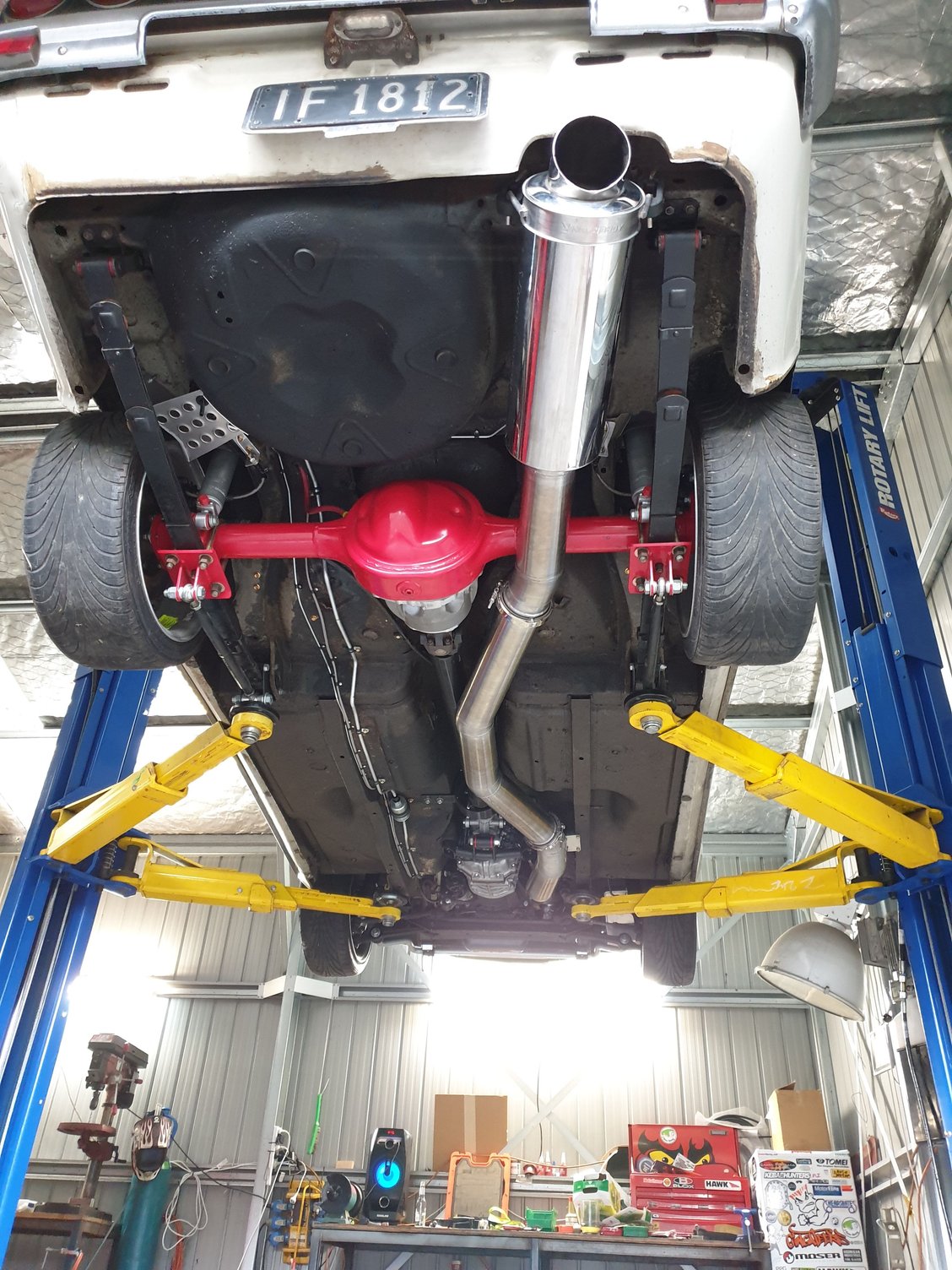

9" alloy yukon head with 4.6:1 full spool 31 spline moser axles s13 silvia rear discs n calipers b&m line locker. Hawk pads front n back
Caltrac bars

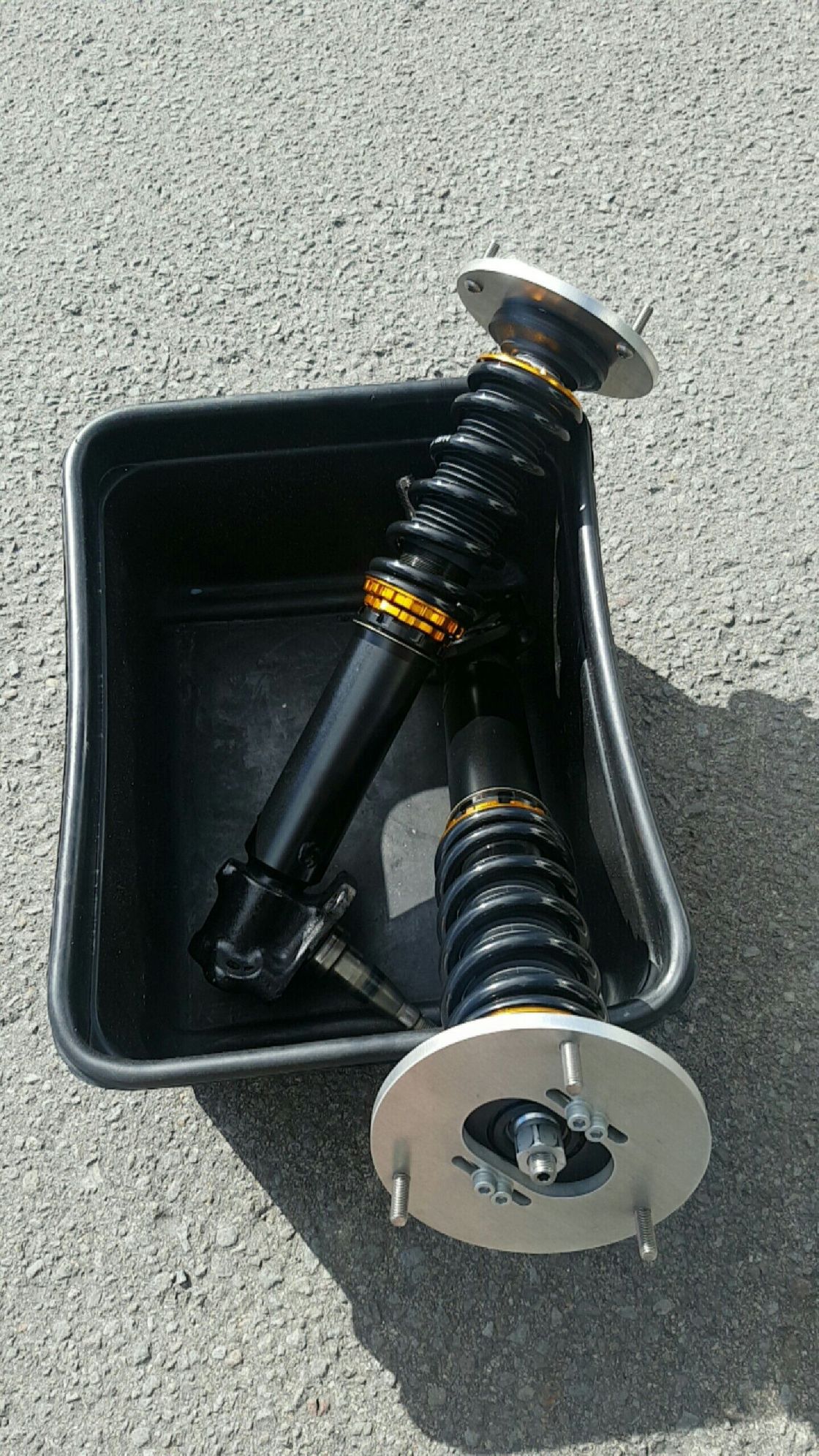

Front suspension is xyz is adjustable struts and camber plates on s1 rx7 struts n brakes 24mm rx2 swaybar alloy rca's .
Custom cooling system by green brothers new griffin rad, oil cooler and intercooler with a slim spal fan .
Had to use a billet promaz water pump due to no room .

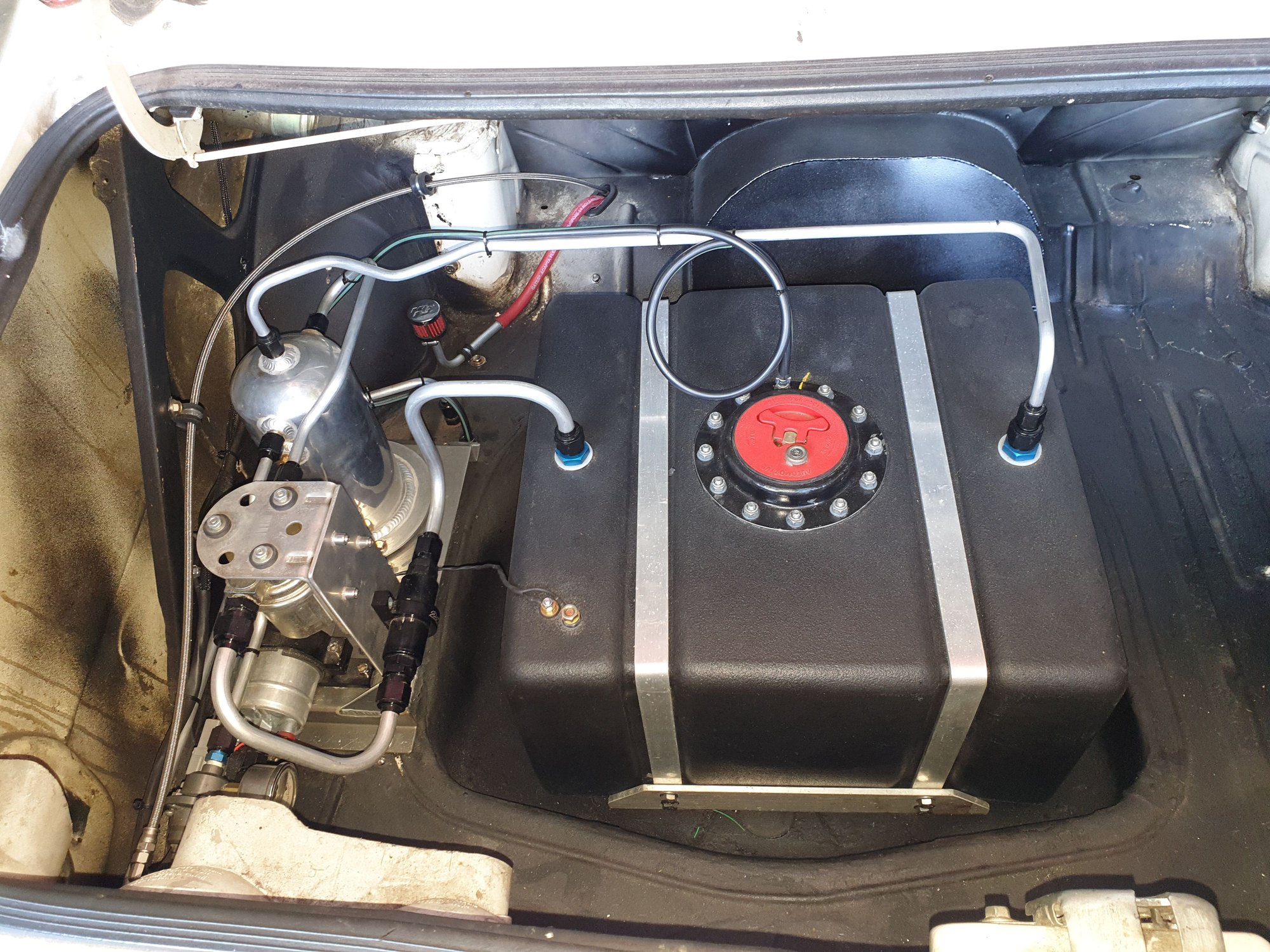

Fuel system got upgraded as well new fuel rails with 1680cc injectors as secondarys 900s as primarys tomi fpr dash 6 push lock fittings from fragola and Bosch 044 main pump with carter lift pump 3l surge tank custom 3mm alloy tank to be fabbed .

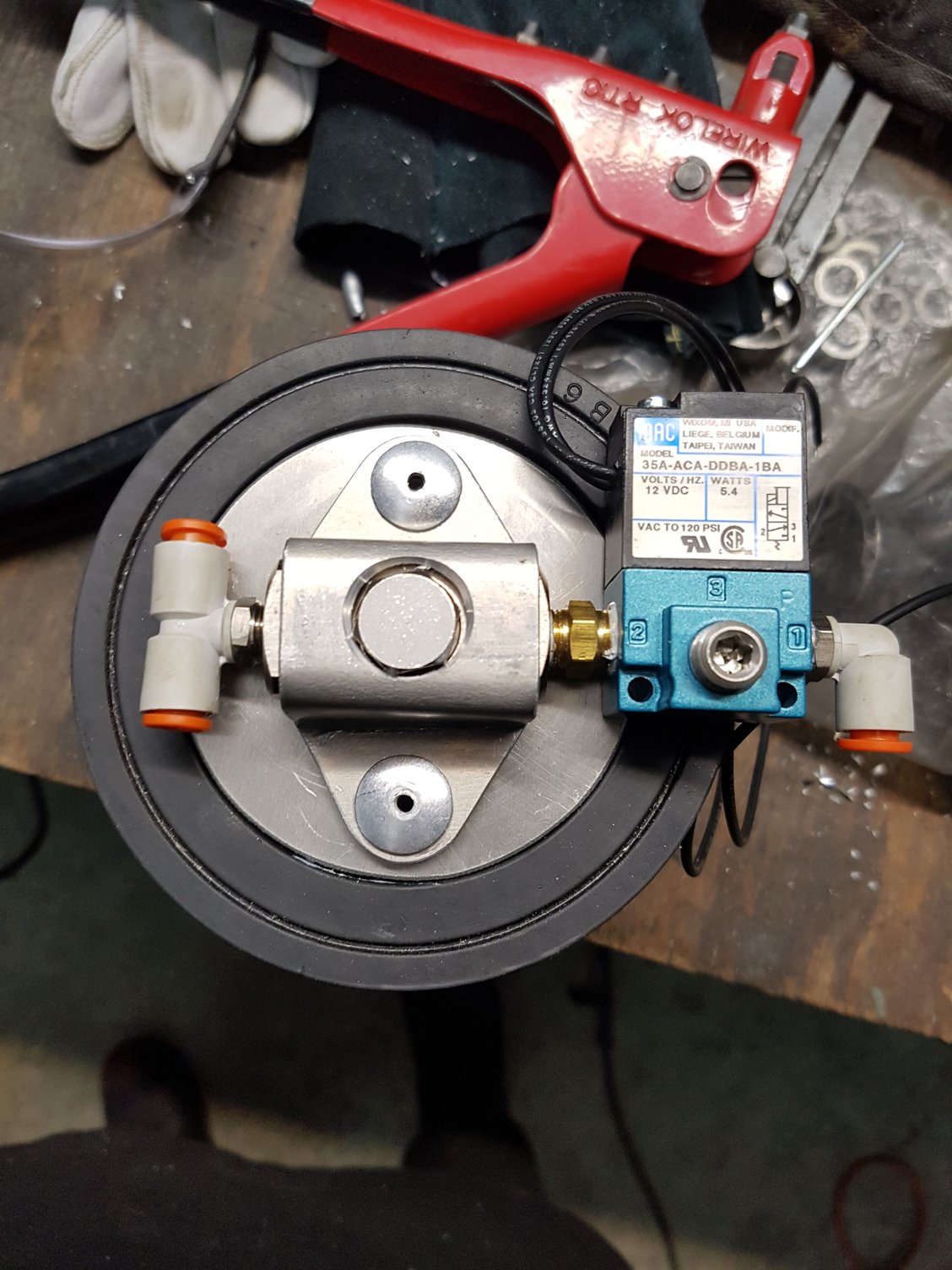

Also 3mm catch cans fabbed up and water methanol set up (future proofing)

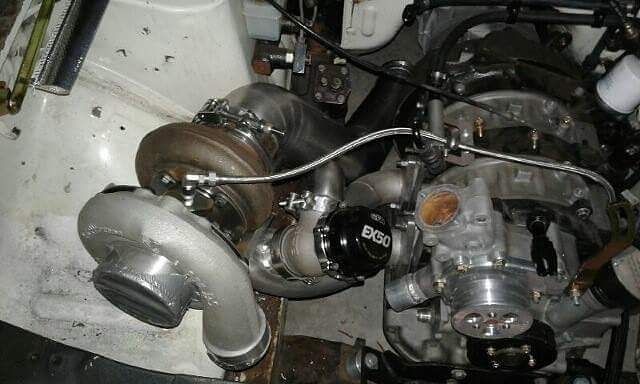

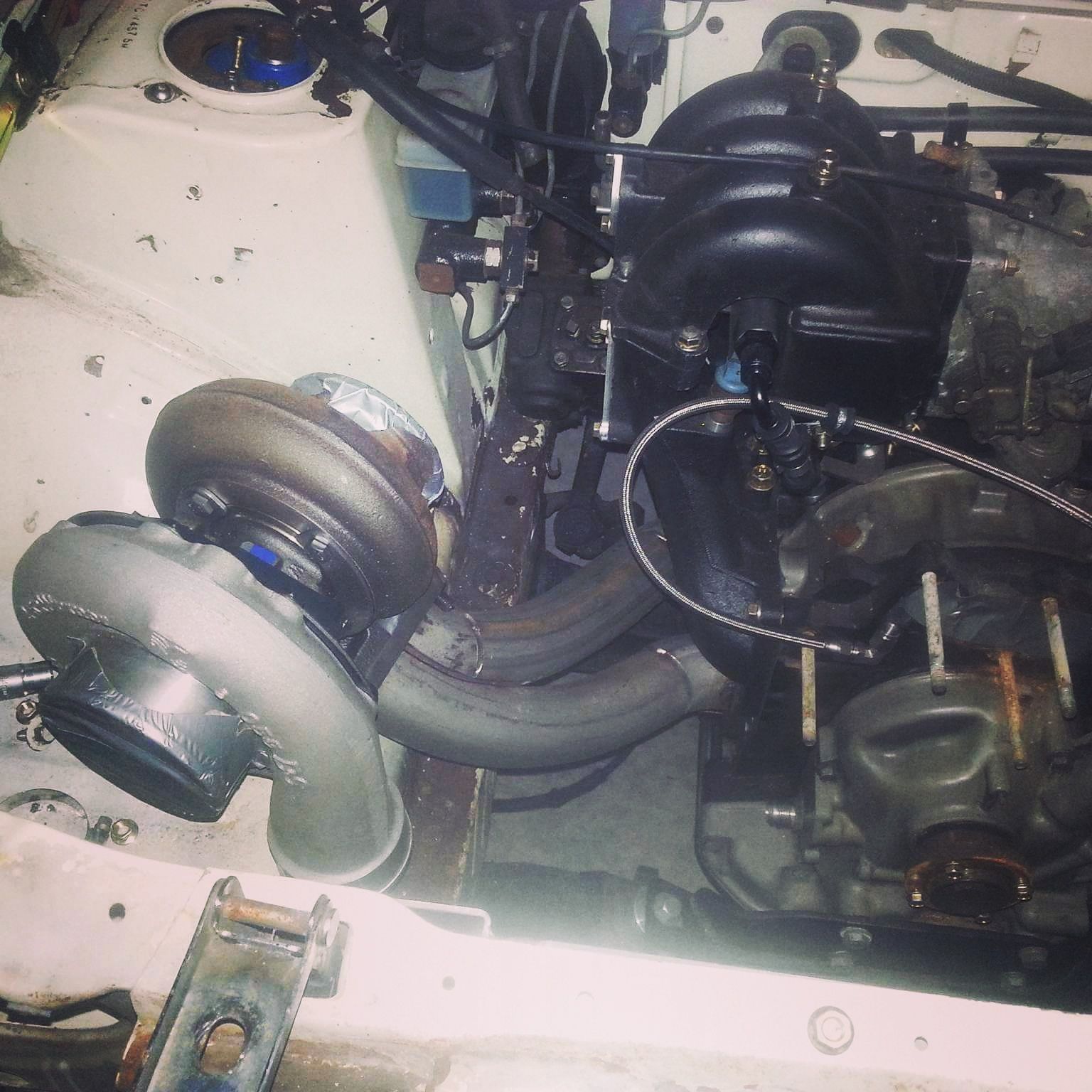

Borg warner 300sx 60mm turbo gfb 50mm wastegate 50mm tial bov 2.5" plumbing rotary works 80mm throttle body

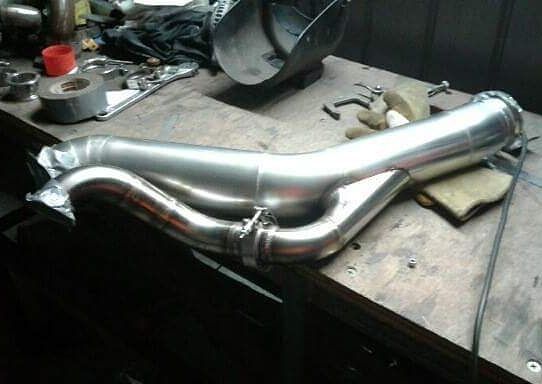

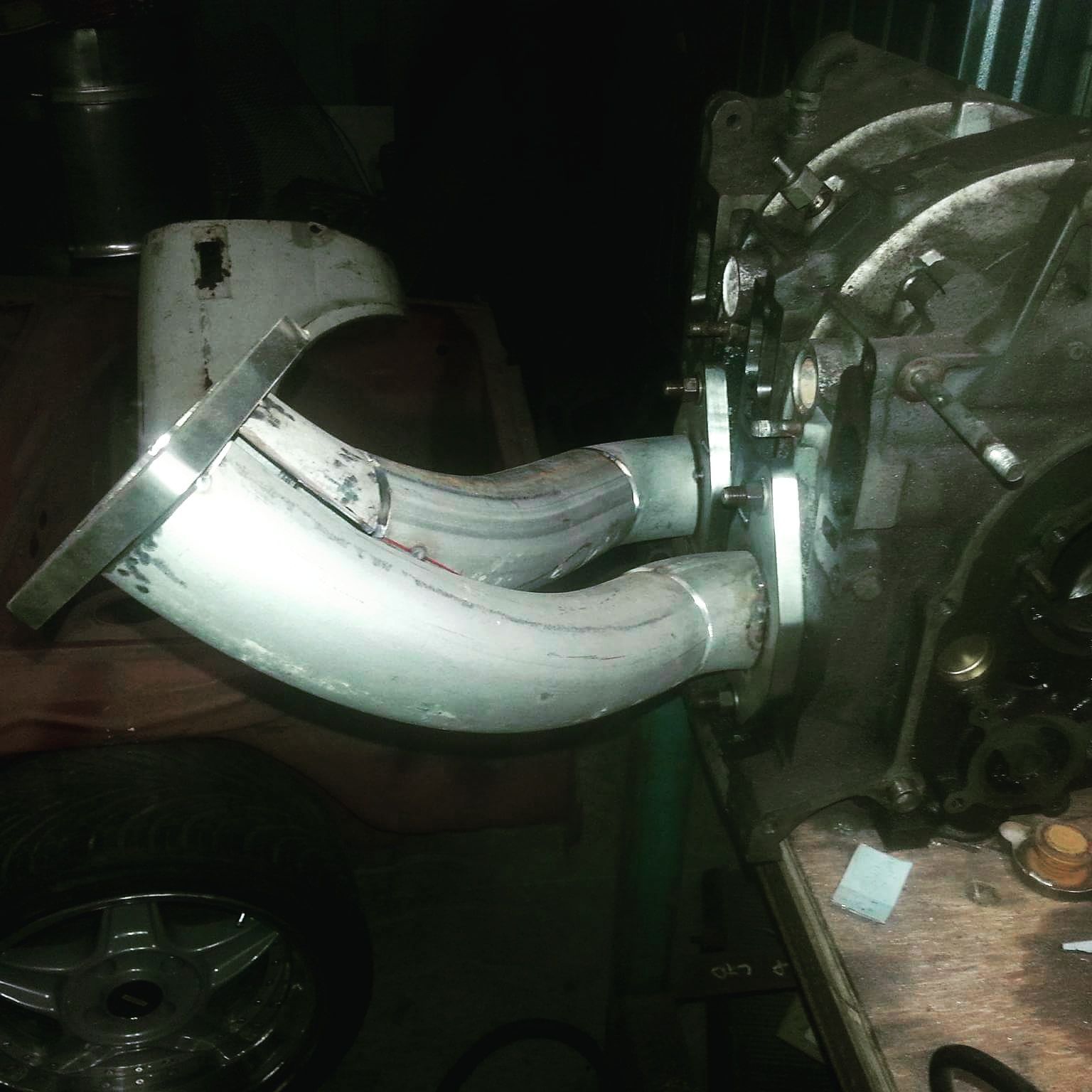

Custom made turbo manifold shedule 40 s/s .
Vband set up welded to exhaust housing got rid of the marmon set up .
4" s/s drag exhaust and a full s/s street system will be made have most parts .
Link g4rx will control it all and autometer guages to keep the vitals in check .

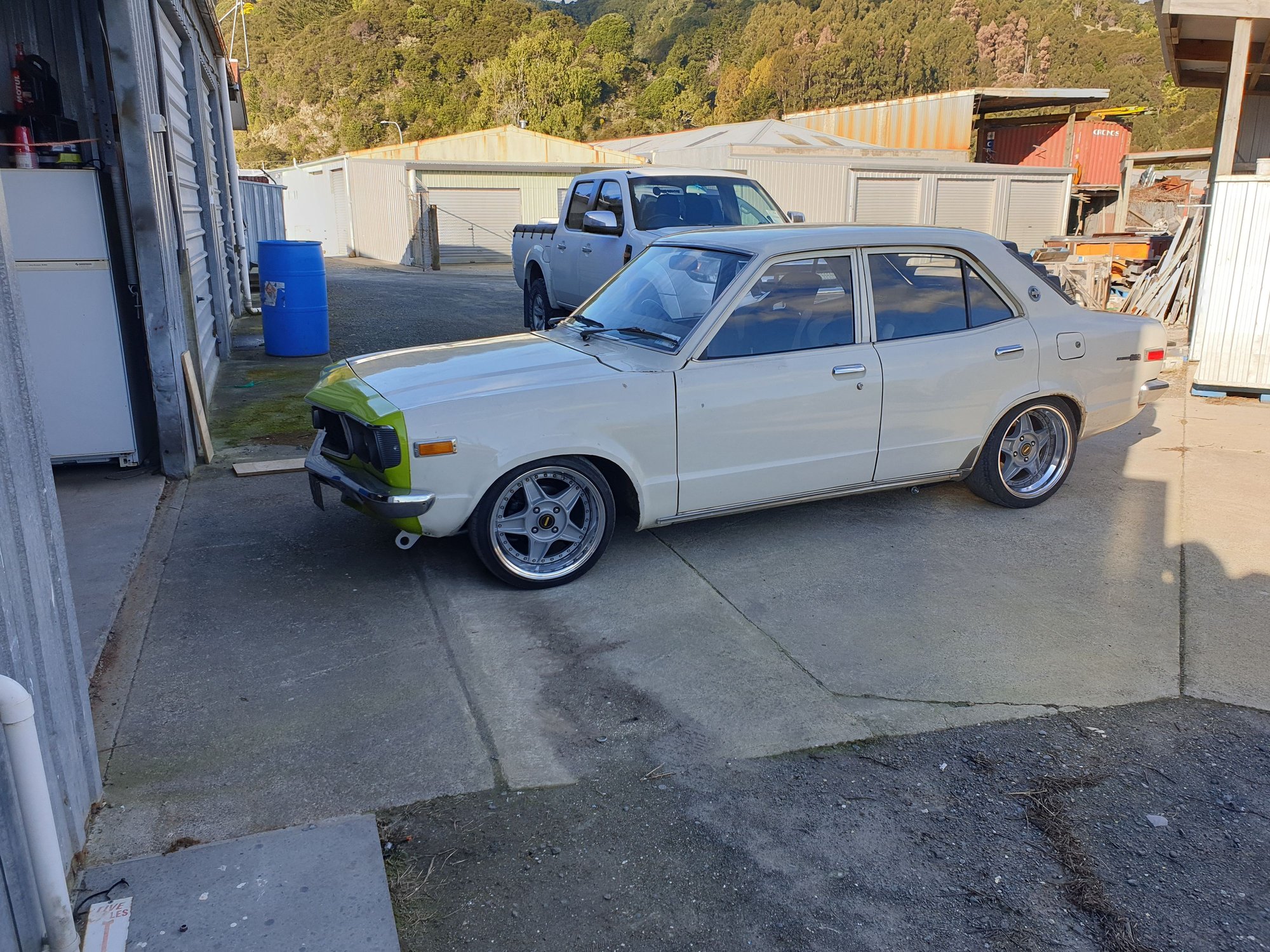

16" simmons b45s fit real well .
Heaps more stuff i cant think of right now but its been a long time off the road look forward to it running .










Last edited by EZDUZT; 09-04-17 at 05:23 AM.
EZDUZT is offline
Reply With Quote
Old 09-04-17, 04:58 AM
  #2
Full Member
Thread Starter

Join Date: Apr 2008
Location: New Zealand
Posts: 126
Thanks: 0
Thanked 0 Times in 0 Posts
Pics












EZDUZT is offline
Reply With Quote
Old 09-04-17, 05:08 AM
  #3
Full Member
Thread Starter

Join Date: Apr 2008
Location: New Zealand
Posts: 126
Thanks: 0
Thanked 0 Times in 0 Posts
More pics







EZDUZT is offline
Reply With Quote
Old 09-04-17, 09:33 AM
  #4
6speed in an rx3????
iTrader: (25)

73rx313b's Avatar

Join Date: Mar 2006
Location: High Point NC
Posts: 1,334
Thanked 0 Times in 0 Posts
NICE!!!!! this thing is gonna be as nice as your truck when your done!!
73rx313b is offline
Reply With Quote
Old 09-05-17, 06:56 PM
  #5
Senior Member
iTrader: (5)

ROTARY_ADDICT-1's Avatar

Join Date: Aug 2016
Location: claremont, CA
Posts: 359
Thanks: 0
Thanked 4 Times in 4 Posts
very nice!
ROTARY_ADDICT-1 is offline
Reply With Quote
Old 09-09-17, 01:59 PM
  #6
Full Member

xp882's Avatar

Join Date: Mar 2001
Location: chino,CA,USA
Posts: 240
Thanks: 0
Thanked 0 Times in 0 Posts
Nice 👍
xp882 is offline
Reply With Quote
Old 09-10-17, 10:23 PM
  #7
Full Member
Thread Starter

Join Date: Apr 2008
Location: New Zealand
Posts: 126
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by 73rx313b View Post
NICE!!!!! this thing is gonna be as nice as your truck when your done!!
dont think ill ever go to that extreme ever again haha just make this one tidy and have focused more on the drive line .
Cheers
EZDUZT is offline
Reply With Quote
Old 09-11-17, 02:59 PM
  #8
Rotary Enthusiast
iTrader: (9)

Join Date: Apr 2013
Posts: 807
Thanked 3 Times in 3 Posts
Very cool. That thing is going to be a rocket and sound awesome.

Wonder if you can use a similar setup for a REPU.

Speaking of REPU, you have any recent pics of it?
Johnny Kommavongsa is offline
Reply With Quote
Old 09-12-17, 02:36 AM
  #9
Full Member
Thread Starter

Join Date: Apr 2008
Location: New Zealand
Posts: 126
Thanks: 0
Thanked 0 Times in 0 Posts

Yeah i have throught about an FD single turbo set up would be cool but dont need two turbo cars keep repu old school with 13bpp and 48ida .
EZDUZT is offline
Reply With Quote
Old 09-12-17, 09:44 AM
  #10
Rotary Enthusiast
iTrader: (9)

Join Date: Apr 2013
Posts: 807
Thanked 3 Times in 3 Posts
Ah, i've seen that truck on the interwebs.

So it's P ported? How's the drive ability?
Johnny Kommavongsa is offline
Reply With Quote
Old 09-12-17, 09:09 PM
  #11
Full Member
Thread Starter

Join Date: Apr 2008
Location: New Zealand
Posts: 126
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Johnny Kommavongsa View Post
Ah, i've seen that truck on the interwebs.

So it's P ported? How's the drive ability?
its not too bad but im going to build a street port for it as id use it way more if it was quite and more economical on fuel plus need to build a LSD diff and change gearbox so it will probably happen after the sedan is done .
Ive done a few miles with the pp has never let me down .
EZDUZT is offline
Reply With Quote
Old 09-13-17, 10:51 AM
  #12
Full Member

xp882's Avatar

Join Date: Mar 2001
Location: chino,CA,USA
Posts: 240
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by EZDUZT View Post
its not too bad but im going to build a street port for it as id use it way more if it was quite and more economical on fuel plus need to build a LSD diff and change gearbox so it will probably happen after the sedan is done .
Ive done a few miles with the pp has never let me down .
I hear ya bro the older i get the more and more back to stock my repu becomes
xp882 is offline
Reply With Quote
Old 09-13-17, 11:15 AM
  #13
Rotary Enthusiast
iTrader: (9)

Join Date: Apr 2013
Posts: 807
Thanked 3 Times in 3 Posts
^ but pulling up to a meet or parking lot brapping away sounds so cool.
Johnny Kommavongsa is offline
Reply With Quote
Old 09-13-17, 07:35 PM
  #14
Full Member
Thread Starter

Join Date: Apr 2008
Location: New Zealand
Posts: 126
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Johnny Kommavongsa View Post
^ but pulling up to a meet or parking lot brapping away sounds so cool.
it does mate but i must be getting old lol ear plugs if i have to drive long distances .
EZDUZT is offline
Reply With Quote
Old 09-14-17, 02:25 PM
  #15
Full Member

xp882's Avatar

Join Date: Mar 2001
Location: chino,CA,USA
Posts: 240
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by EZDUZT View Post
it does mate but i must be getting old lol ear plugs if i have to drive long distances .
It sure does.. dont need all that noise i want to pull my p port out also and do a street port fd on a small turbo. More power and wayyy less racket. All that noise gets old
