Microtech 6 wire tps plug wiring question PICS.
6 wire tps plug wiring question PICS.

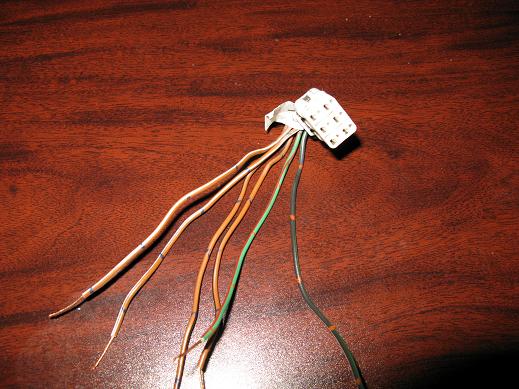

I`m wiring an Lt-10 to my Jspec s5 t2 motor. Here is the picture of the TPS plug.
I searched everywhere. The microtech harness has 3 wires, Signal, 5 V and Ground. Does anyone have a diagram?
The 6 wires are:
Brown/Black
Brown/Black
Brown/white
Brown/white
Black/Green
Green/Red
Thank you!!!!!!!!!!!!!
I searched everywhere. The microtech harness has 3 wires, Signal, 5 V and Ground. Does anyone have a diagram?
The 6 wires are:
Brown/Black
Brown/Black
Brown/white
Brown/white
Black/Green
Green/Red
Thank you!!!!!!!!!!!!!
Brown/black are both gnd wires.
Brown/white are 5vdc ref voltage.
Green/red is narrow band tps output
The other wire has to be the Full range TPS output.
I'm talking the wires on the plug that attaches TO the TPS connector. NOT the TPS connector itself.
IF this is for a LT, I'd go to the LT forum for suggestions.
Brown/white are 5vdc ref voltage.
Green/red is narrow band tps output
The other wire has to be the Full range TPS output.
I'm talking the wires on the plug that attaches TO the TPS connector. NOT the TPS connector itself.
IF this is for a LT, I'd go to the LT forum for suggestions.
All the stock wiring info you need is in the FSM wiring diagrams. You really need to be studying these to do an EMS install. If you don't have the FSM, click here and download it in PDF format for free.
so I take
Brown/Black
Brown/Black
and solder them together with the ground wire,
Brown/white
Brown/white solder together with 5vdc
and
Black/Green with the signal wire.
and the full-range is not in use.
Brown/Black
Brown/Black
and solder them together with the ground wire,
Brown/white
Brown/white solder together with 5vdc
and
Black/Green with the signal wire.
and the full-range is not in use.
