Testing my OEM fans per FSM... They do not turn on for low-speed
08-10-13, 09:59 PM
#1
Rotary Enthusiast
Thread Starter
iTrader: (25)
Join Date: Sep 2003
Location: Melbourne, FL
Posts: 1,440
Likes: 0
Received 0 Likes
on
0 Posts
Testing my OEM fans per FSM... They do not turn on for low-speed

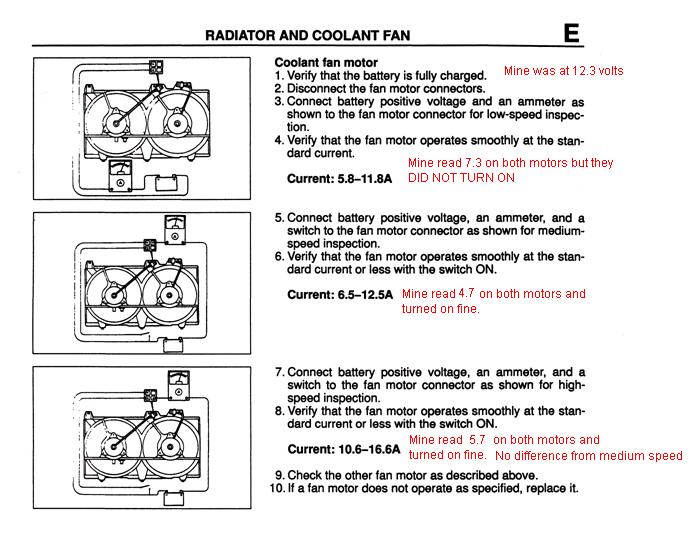

So... first of all my car has been running great with the power fc tuned for the fans to turn at 88 degrees. I have not had any problems with overheating or the like. I decided to do this testing since I noticed a lot of corrosion around the motors. I have attached a pic describing the problem. It seems like the fans run fine at medium and high speed (even though is very hard for me to tell the difference between both) i did not use a switch as per fsm i just spliced the cable. I used a 17lb braille battery that had been sitting for 3 weeks but had 12.3volts as tested.
Can anyone tell me how to test the low speed on the fans... when i did it as per FSM the right motor did a click click click but wouldnt turn then the left motor did nothing. I also would like to know why my current numbers are so low compared to the ranges specified. I used a multimeter from harbor freight and set it at 20m DCA with the red lead on the highest point = 10ADC = 10A max.
Alex
Thank YOu everyone
Can anyone tell me how to test the low speed on the fans... when i did it as per FSM the right motor did a click click click but wouldnt turn then the left motor did nothing. I also would like to know why my current numbers are so low compared to the ranges specified. I used a multimeter from harbor freight and set it at 20m DCA with the red lead on the highest point = 10ADC = 10A max.
Alex
Thank YOu everyone
08-10-13, 10:32 PM
#2
Rotary Enthusiast
Thread Starter
iTrader: (25)
Join Date: Sep 2003
Location: Melbourne, FL
Posts: 1,440
Likes: 0
Received 0 Likes
on
0 Posts
I cleaned the connectors and they seem like they want to turn but wont. one turned like 5 degrees and stopped with click click i thouhgt it was a bad connection but still nothing
08-12-13, 08:41 AM
#5
All out Track Freak!
iTrader: (263)
Join Date: Jul 2001
Location: Charlottesville VA 22901
Posts: 10,672
Received 412 Likes
on
250 Posts
Hi Alex,
I'm sure there are lots and lots of threads about the fan setup because folks like to add on switches etc.... and have been doing it for years.
If you turn the AC on the fans should immediately come on at low speed if they don't you likely need a new relay or have a wiring problem to that low speed relay.
If you need any relays etc... let me know
I'm sure there are lots and lots of threads about the fan setup because folks like to add on switches etc.... and have been doing it for years.
If you turn the AC on the fans should immediately come on at low speed if they don't you likely need a new relay or have a wiring problem to that low speed relay.
If you need any relays etc... let me know
08-12-13, 10:24 PM
#7
I had some fan issues myself not to long ago,this is what I did.remove the end of the connection with the relays on it where it connects to the harness in the engine bay... Remove any sleeved wires , I know you said you cleaned them but physically grab the base of the connection and move side to side, the wires should flex without any crunch sound or feel,or any discoloration.a burnt up wire will give if not a weak flow of power.might even have to replace the pins if they are damaged at the connection point...... As of now according to my pfc I have yet to see anything past 92 degrees . Even when the car is shut off and the temp still rises bit my fans kick on for just about ten min.just my 2 cents. If still a no go, inspect the fans ...clicking at the relay is one thing clicking at the fans, I'd replace them. Good luck
Trending Topics
08-12-13, 11:36 PM
#8
Rotary Enthusiast
Thread Starter
iTrader: (25)
Join Date: Sep 2003
Location: Melbourne, FL
Posts: 1,440
Likes: 0
Received 0 Likes
on
0 Posts
does anyone have a diagram of the wires i need to tap in to manually activate relay 2 and 4 and turn off relays 1 and 3. Can i just remove the relays from 1 and 3 so i knwo thwy are not getting power?
08-13-13, 07:25 AM
#9
Rotary Enthusiast
Thread Starter
iTrader: (25)
Join Date: Sep 2003
Location: Melbourne, FL
Posts: 1,440
Likes: 0
Received 0 Likes
on
0 Posts
so i disconnected relay 1 and 3 and grounded relays 2 and 4 with the ignition on and the fans ran at medium to high speed... how do i get them to run at low speed could my pfc be telling them not to run at low speed even though im grounding them?
