How Not To Build An RX-7

This car belongs to a customer of mine. The gentleman purchased it for a heafty chunk of change, something close to 18 or 19k without knowing much about the car. The car was sold to him as being in "perfect mechanical condition" He brought it to me to look over a couple issues and concerns, which turned out to be problem after problem from very sloppy work and installations by the previous owner and mechanics.
IRPerformance is offline
Old 10-28-06, 10:44 AM
  #2
Sponsor
Thread Starter
iTrader: (41)

IRPerformance's Avatar

Join Date: Apr 2003
Location: NJ
Posts: 11,347
Received 317 Likes on 190 Posts

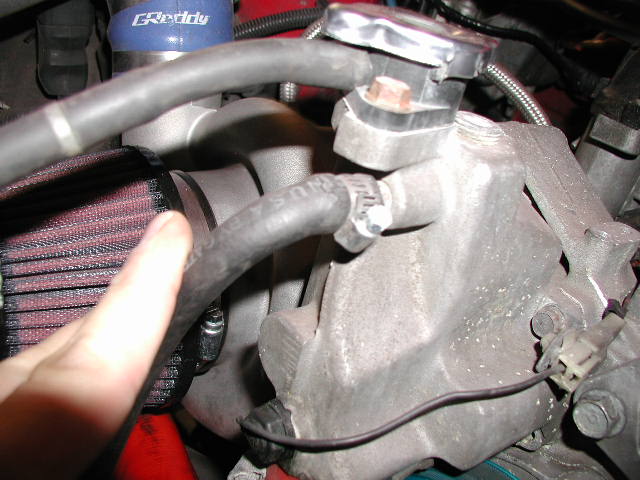

Low pressure fuel line used for a coolant hose. It is completely dry rotted from the heat and about the split.
Attached Thumbnails How Not To Build An RX-7-pa250029.jpg
IRPerformance is offline
Old 10-28-06, 10:46 AM
  #3
Sponsor
Thread Starter
iTrader: (41)

IRPerformance's Avatar

Join Date: Apr 2003
Location: NJ
Posts: 11,347
Received 317 Likes on 190 Posts

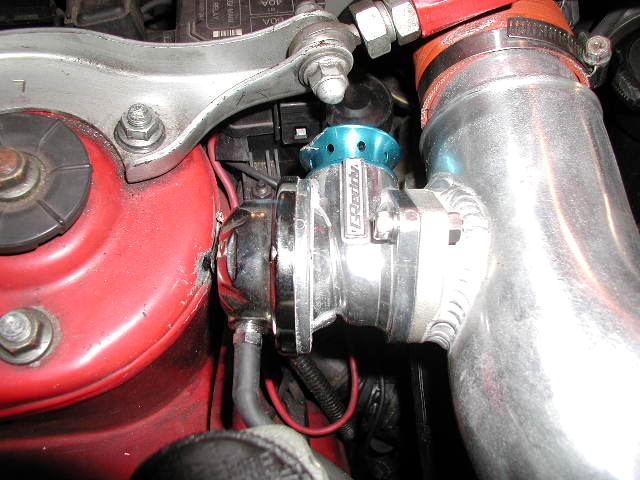

Blow off valve welded in the wrong spot and hitting the shock tower each time the motor torques. Someone actually tried to make more room by grinding down the adjustment bolt.
Attached Thumbnails How Not To Build An RX-7-pa250032.jpg
IRPerformance is offline
Old 10-28-06, 10:50 AM
  #4
Sponsor
Thread Starter
iTrader: (41)

IRPerformance's Avatar

Join Date: Apr 2003
Location: NJ
Posts: 11,347
Received 317 Likes on 190 Posts

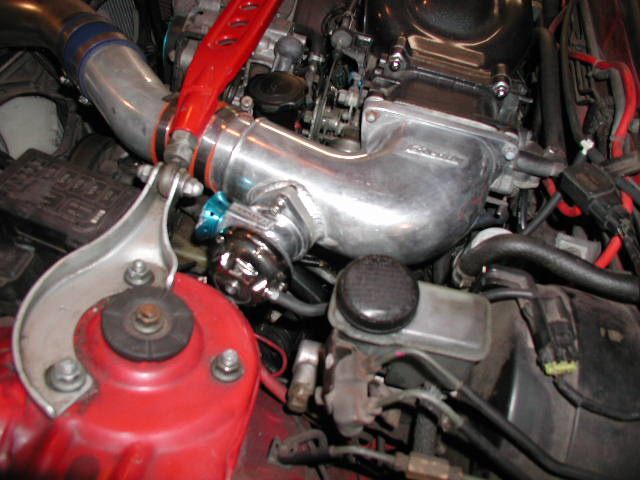

Intercoupler completely ripped through from overtightening and rubbing on the strut tower brace. The driver's side motor mount was completely broken further complicating the problem.
Attached Thumbnails How Not To Build An RX-7-pa250030.jpg
IRPerformance is offline
Old 10-28-06, 10:53 AM
  #5
Sponsor
Thread Starter
iTrader: (41)

IRPerformance's Avatar

Join Date: Apr 2003
Location: NJ
Posts: 11,347
Received 317 Likes on 190 Posts

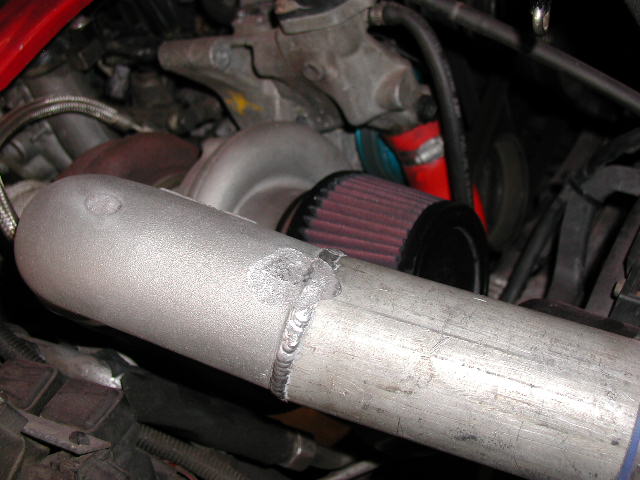

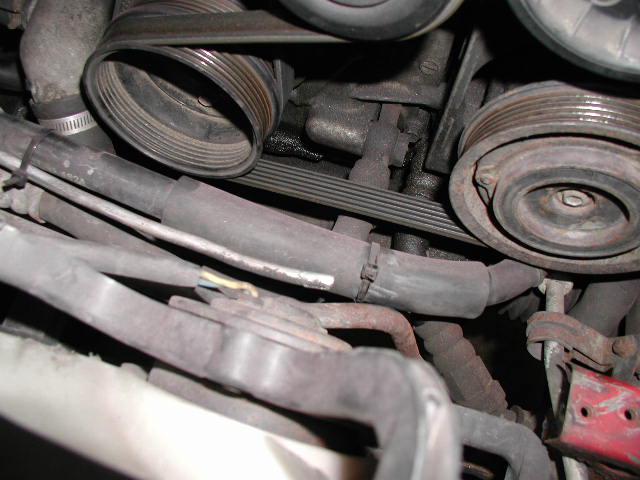

A/C line cut from a sloppy front mount intercooler installation. Piping off the turbo rubbing on the hood. If it didn't fit, it should have been cut down and a bead re-welded to keep the coupler on.
Attached Thumbnails How Not To Build An RX-7-pa250033.jpg   How Not To Build An RX-7-pa250035.jpg   How Not To Build An RX-7-pa250036.jpg
IRPerformance is offline
Old 10-28-06, 10:55 AM
  #6
Sponsor
Thread Starter
iTrader: (41)

IRPerformance's Avatar

Join Date: Apr 2003
Location: NJ
Posts: 11,347
Received 317 Likes on 190 Posts

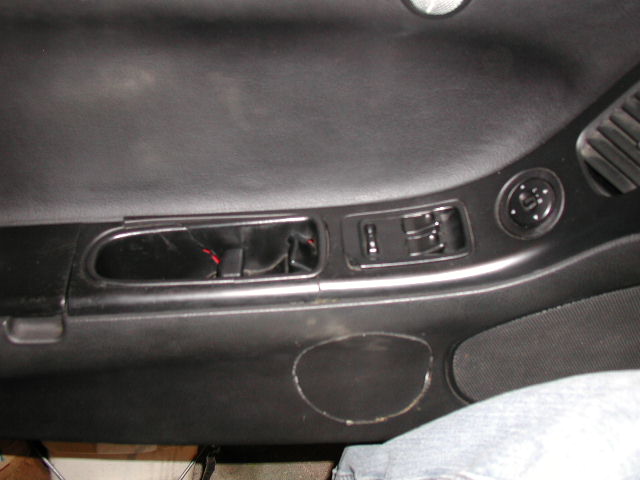

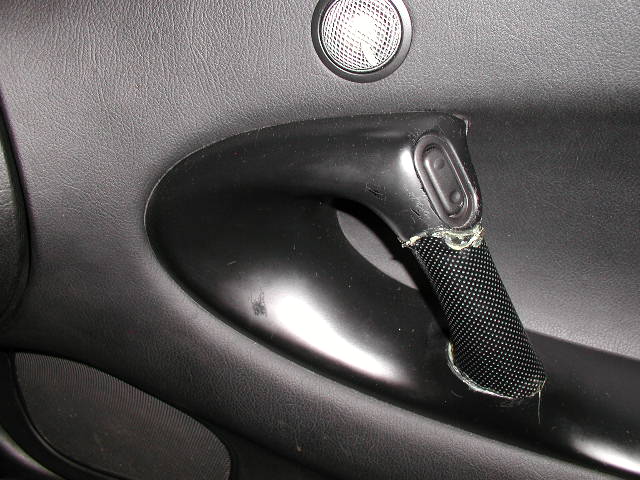

Interior door handles trashed. Sloppy attempt to fix the passenger side.
Attached Thumbnails How Not To Build An RX-7-pa250040.jpg   How Not To Build An RX-7-pa250041.jpg
IRPerformance is offline
Old 10-28-06, 10:58 AM
  #7
Sponsor
Thread Starter
iTrader: (41)

IRPerformance's Avatar

Join Date: Apr 2003
Location: NJ
Posts: 11,347
Received 317 Likes on 190 Posts

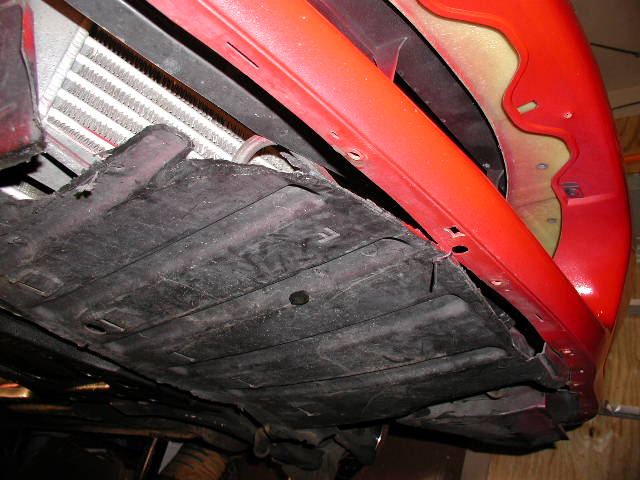

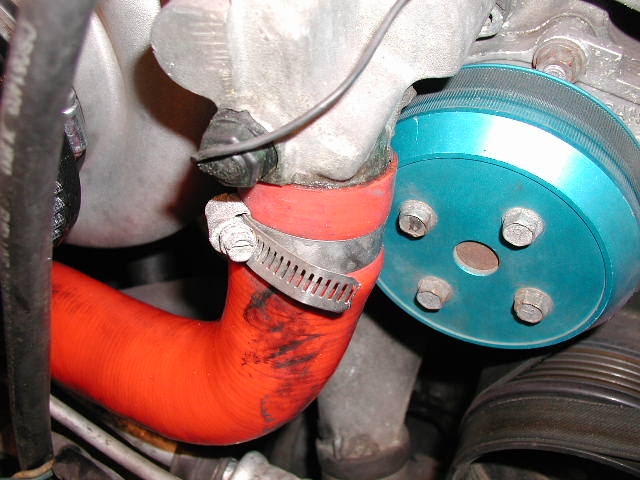

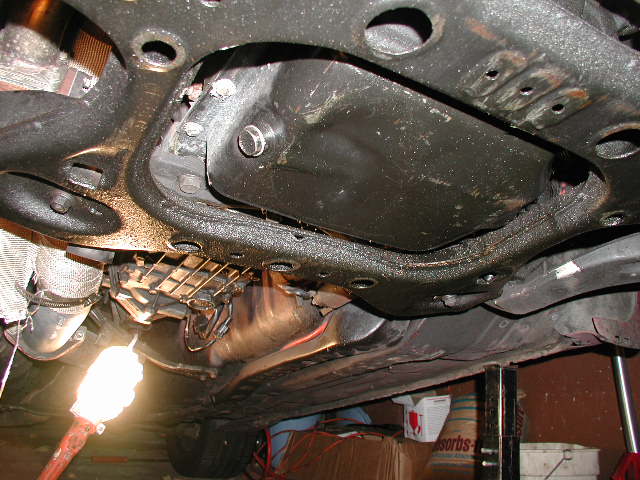

Another coolant leak. You call this an undertray? Oil pan leaking and underside of car soaked with oil.
Attached Thumbnails How Not To Build An RX-7-pa250042.jpg   How Not To Build An RX-7-pa250043.jpg   How Not To Build An RX-7-pa250045.jpg
IRPerformance is offline
Old 10-28-06, 11:00 AM
  #8
Sponsor
Thread Starter
iTrader: (41)

IRPerformance's Avatar

Join Date: Apr 2003
Location: NJ
Posts: 11,347
Received 317 Likes on 190 Posts

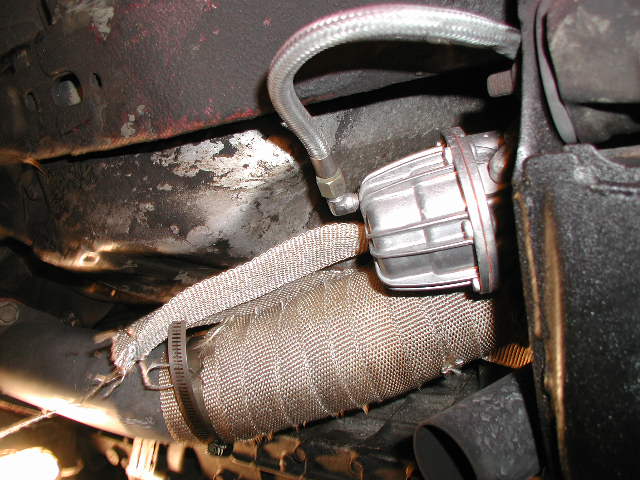

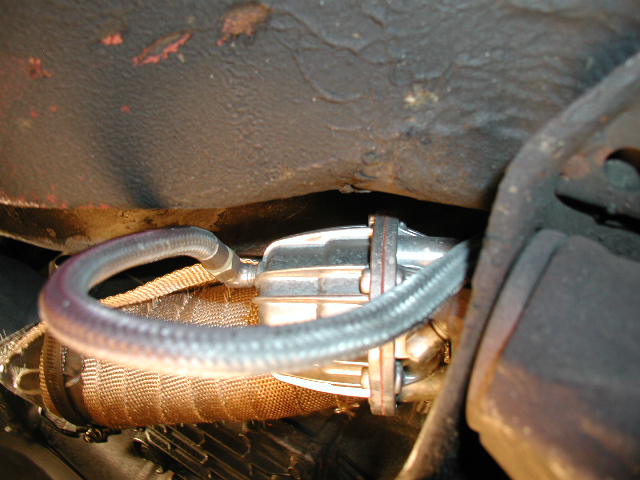

Downpipe wrap hanging. I actually cut about a foot off that was just dragging under the car. The line to the wastegate was rubbing on the subframe.
Attached Thumbnails How Not To Build An RX-7-pa250046.jpg   How Not To Build An RX-7-pa250048.jpg
IRPerformance is offline
Old 10-28-06, 11:03 AM
  #9
Sponsor
Thread Starter
iTrader: (41)

IRPerformance's Avatar

Join Date: Apr 2003
Location: NJ
Posts: 11,347
Received 317 Likes on 190 Posts

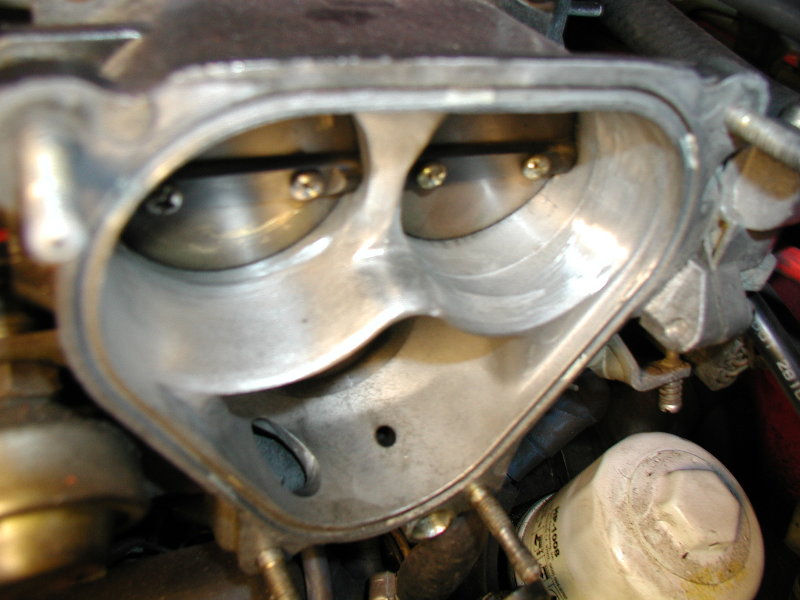

No o-ring sealing the elbow to the throttle body! Half finished port job.
Attached Thumbnails How Not To Build An RX-7-pa270050.jpg
IRPerformance is offline
Old 10-28-06, 11:05 AM
  #10
Banned. I got OWNED!!!

LUPE's Avatar

Join Date: Apr 2005
Location: Belleville, IL
Posts: 5,506
Likes: 0
Received 0 Likes on 0 Posts
Looks like the typical FD. I see nothing special.
LUPE is offline
Old 10-28-06, 11:06 AM
  #11
Sponsor
Thread Starter
iTrader: (41)

IRPerformance's Avatar

Join Date: Apr 2003
Location: NJ
Posts: 11,347
Received 317 Likes on 190 Posts

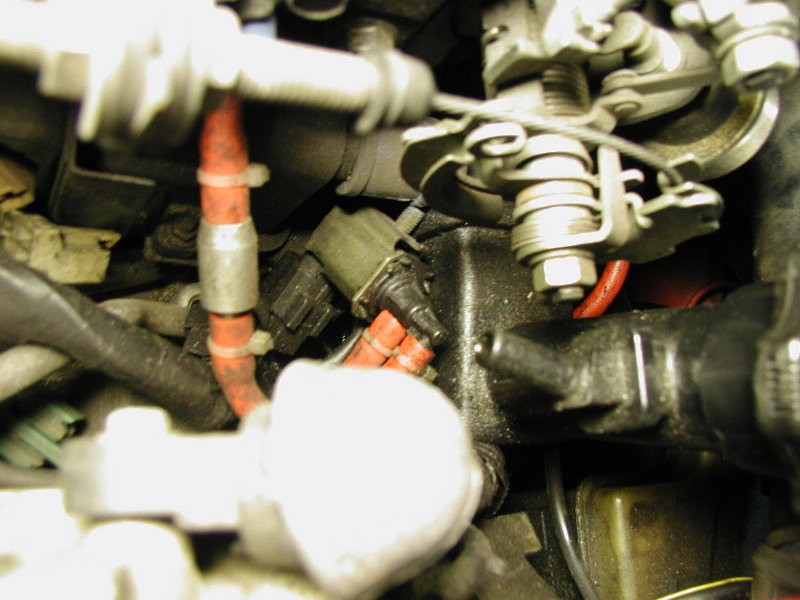

PCV valve removed and nipples just left uncapped. Every time oil would be added it would spill out all over the top of the motor. Oil would also be pushed out under boost.
Attached Thumbnails How Not To Build An RX-7-pa270049.jpg
IRPerformance is offline
Old 10-28-06, 11:08 AM
  #12
Nearing Completion...

iTrader: (473)

str8ryd's Avatar

Join Date: Aug 2006
Location: Chicago
Posts: 4,735
Likes: 0
Received 0 Likes on 0 Posts
Damn, that's a LOT of shitty work right there. Did your customer actually inspect the engine bay before the purchase? Looks like he got ripped off. Any particular reason why he payed so much for it? Low mileage, single-turbo, bodykit, etc.?
str8ryd is offline
Old 10-28-06, 11:08 AM
  #13
Sponsor
Thread Starter
iTrader: (41)

IRPerformance's Avatar

Join Date: Apr 2003
Location: NJ
Posts: 11,347
Received 317 Likes on 190 Posts
Originally Posted by LUPE
Looks like the typical FD. I see nothing special.
Eric I don't know who does your work, but I certainly would hope you or anyone else would not pay for this type of garbage. From what I've seen your car is pretty flawless.
IRPerformance is offline
Old 10-28-06, 11:09 AM
  #14
Sponsor
Thread Starter
iTrader: (41)

IRPerformance's Avatar

Join Date: Apr 2003
Location: NJ
Posts: 11,347
Received 317 Likes on 190 Posts
Originally Posted by str8ryd
Damn, that's a LOT of shitty work right there. Did your customer actually inspect the engine bay before the purchase? Looks like he got ripped off. Any particular reason why he payed so much for it? Low mileage, single-turbo, bodykit, etc.?
He is young and new to the rx-7 world. I guess he didn't know any better. He brought me the car with the intention to learn about it and set it straight.
IRPerformance is offline
Old 10-28-06, 11:15 AM
  #15
Senior Member

iTrader: (1)

preludesh2000's Avatar

Join Date: Feb 2004
Location: ohio
Posts: 688
Likes: 0
Received 0 Likes on 0 Posts
someone bought that piece of $#!t....
preludesh2000 is offline
Old 10-28-06, 11:16 AM
  #16
Mod Powers...gone!


DomFD3S's Avatar

Join Date: Apr 2001
Location: SoCal
Posts: 1,522
Likes: 0
Received 0 Likes on 0 Posts
That is pretty bad...and going to be an expensive learning experience.
DomFD3S is offline
Old 10-28-06, 11:17 AM
  #17
Sponsor
Thread Starter
iTrader: (41)

IRPerformance's Avatar

Join Date: Apr 2003
Location: NJ
Posts: 11,347
Received 317 Likes on 190 Posts

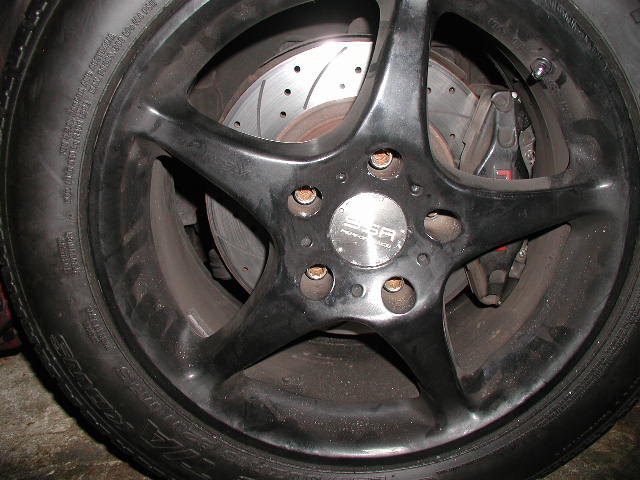

Only 4 lug nuts
Attached Thumbnails How Not To Build An RX-7-pa280056.jpg
IRPerformance is offline
Old 10-28-06, 11:18 AM
  #18
Junior Member


Rtry Luv's Avatar

Join Date: Sep 2006
Location: OHIO
Posts: 26
Likes: 0
Received 0 Likes on 0 Posts
**** makes me sick to the stomacheeee!!! WHY! first off on installing something, if you have to grind down anything, you know your in the wrong, half port job on the TB, un-real, and people get away with this ****!!!! that is sad that someone would sell that and list it in perfect flawless running condition, just wondering, did the kid get back to the guy who sold him this pile of junk after you pointed out all the hackjobs?!?! that is just silly!!

Sorry BOOOT the loss!!!

Rtry Luv is offline
Old 10-28-06, 11:18 AM
  #19
Banned. I got OWNED!!!

LUPE's Avatar

Join Date: Apr 2005
Location: Belleville, IL
Posts: 5,506
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Rotary Experiment Seven
Eric I don't know who does your work, but I certainly would hope you or anyone else would not pay for this type of garbage. From what I've seen your car is pretty flawless.

What I'm saying is, I've seen more ghetto FD's than FD's that have been well built.

So, seeing your pictures doesn't surprise me.
LUPE is offline
Old 10-28-06, 11:19 AM
  #20
Junior Member


Rtry Luv's Avatar

Join Date: Sep 2006
Location: OHIO
Posts: 26
Likes: 0
Received 0 Likes on 0 Posts
hey eric, did your car sell on ebay, just curious!
Rtry Luv is offline
Old 10-28-06, 11:20 AM
  #21
Sponsor
Thread Starter
iTrader: (41)

IRPerformance's Avatar

Join Date: Apr 2003
Location: NJ
Posts: 11,347
Received 317 Likes on 190 Posts

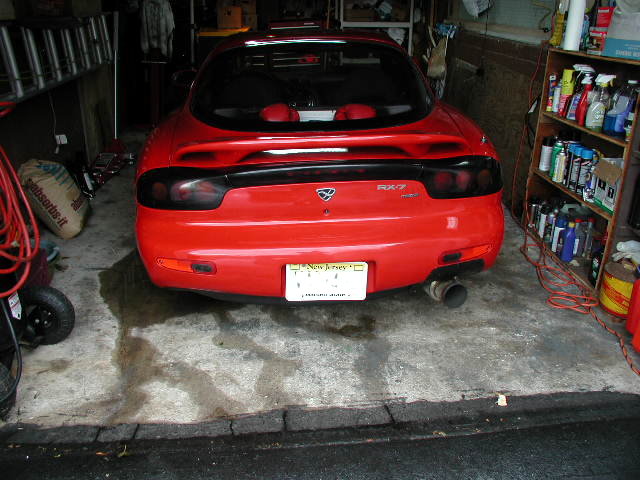

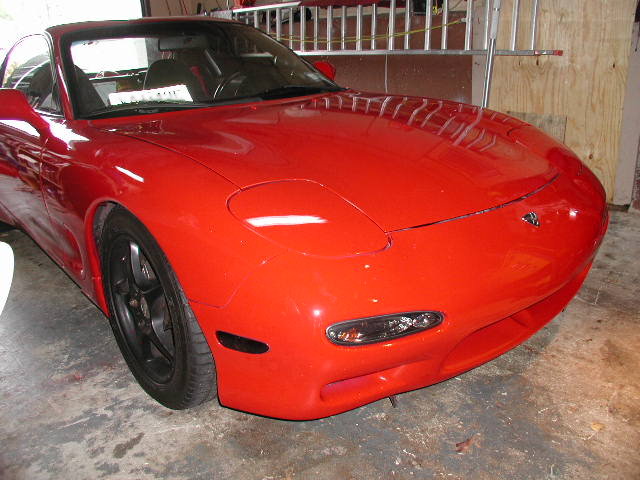

Some pics of the car. Paint looks ok from a distance but has a ton of trash it it.
Attached Thumbnails How Not To Build An RX-7-pa280057.jpg   How Not To Build An RX-7-pa280058.jpg

Last edited by IRPerformance; 10-28-06 at 11:26 AM.
IRPerformance is offline
Old 10-28-06, 11:20 AM
  #22
Home-brew Rotary


NoviceRotaryTech.'s Avatar

Join Date: Nov 2004
Location: GooseCreek SC
Posts: 902
Likes: 0
Received 0 Likes on 0 Posts
Thats disgusting.
NoviceRotaryTech. is offline
Old 10-28-06, 11:23 AM
  #23
Sponsor
Thread Starter
iTrader: (41)

IRPerformance's Avatar

Join Date: Apr 2003
Location: NJ
Posts: 11,347
Received 317 Likes on 190 Posts
I was told previous owner of the car is on this forum. The car also smokes pretty bad at idle. I suspect it was either ported too aggresively into the oil control ring track or the oil control rings themselves are worn. There is no oil in the intake tract so the turbo appears fine.
IRPerformance is offline
Old 10-28-06, 11:29 AM
  #24
Rotary addict since 86

iTrader: (7)

WanKeL FD RX-7's Avatar

Join Date: Mar 2002
Location: Montreal, QC, Canada
Posts: 2,519
Likes: 0
Received 2 Likes on 2 Posts
thats just a big piece of **** ... crappy job done too... 18K for this wow .. i wouldnt even pay 12K for this..

Max
WanKeL FD RX-7 is offline
Old 10-28-06, 11:34 AM
  #25
Junior Member


Rtry Luv's Avatar

Join Date: Sep 2006
Location: OHIO
Posts: 26
Likes: 0
Received 0 Likes on 0 Posts
12k would be to much!
Rtry Luv is offline
