Greddy Vmount Installation/Questions/Pictures thread
#126
RX-7 Bad Ass
iTrader: (55)
Nice! Any pics of the condenser and dryer?
I'll be doing some custom stuff for the HKS V-mount I'm installing on a friends car so any AC help is appreciated .
Also, thanks for the translated manual!
Dale
I'll be doing some custom stuff for the HKS V-mount I'm installing on a friends car so any AC help is appreciated .
Also, thanks for the translated manual!
Dale
#128
Junior Member
iTrader: (2)
https://photos.app.goo.gl/sIISBWworpBBafs53
https://photos.app.goo.gl/iRhGAbuMWUZYJl933
https://photos.app.goo.gl/hPaAH68gwebohK8F3
https://photos.app.goo.gl/nN3hgbhXLs3SQC5c2
https://photos.app.goo.gl/5kEC9tG0pooRXAKl2
https://photos.app.goo.gl/nYGlr2mNpKRncAip2
I made mine way too long :-)
The following users liked this post:
zweetz32 (07-14-21)
#129
Thanks, Sonny. That's probably what I'll do.

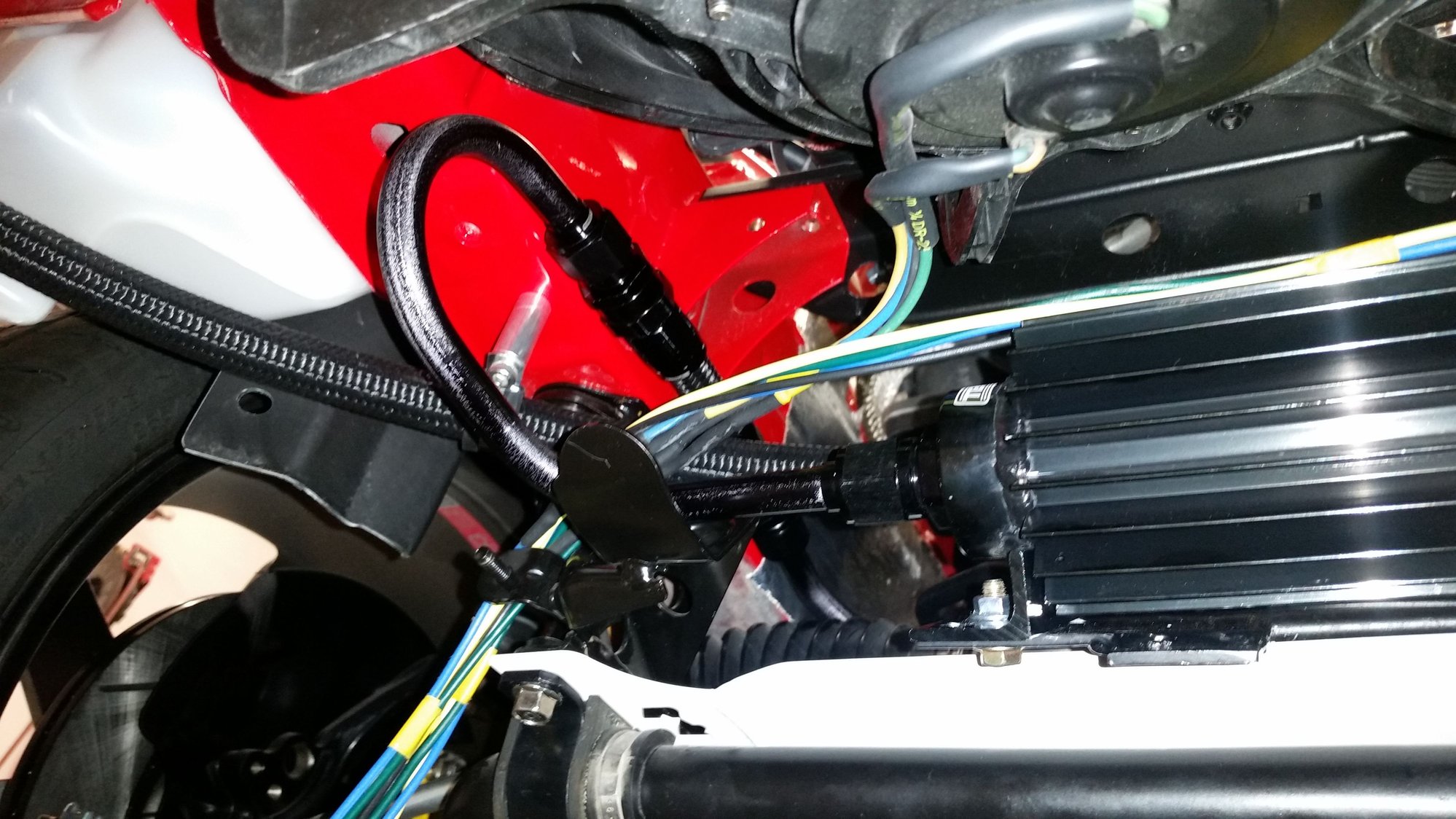

Anyone have a pic of their power steering lines? Mine are really close to the swaybar and I'm wondering if I have it oriented correctly.
Anyone have a pic of their power steering lines? Mine are really close to the swaybar and I'm wondering if I have it oriented correctly.
#130
Junior Member
iTrader: (2)
https://photos.app.goo.gl/0hONeJjb2BIrG7kj2
#133
Thanks again, Sonny. I just about copied your process exactly. For anyone doing this in the future, I made my extensions about 38" long, and that was a pretty good length. I probably had a bit too much slack on the closer fan and a bit too little on the far one. Maybe 36 and 40" extensions would have been better.
#134
Did anyone else have issues with the hood rubbing on the intercooler piping? My stock hood had some slight rub. My RE Amemiya AD9 hood hits in the same location as well. Still looking, but believe I have clearance everywhere else.
Any thoughts or help would be appreciated. I really don't want to cut on the hood vent... but it is seeming like my only option.
Any thoughts or help would be appreciated. I really don't want to cut on the hood vent... but it is seeming like my only option.
#137
I relocated mine in the bin behind the drivers seat and added a kill switch. I was dreading the trunk, cause I think it looks like ***. I'm happy how that turned out.
#139
Possibly. You may install the Greddy and then see your options and do some measuring. Maybe could make room.
Possibly on the air intake/filter side if you modified those.
The following users liked this post:
Sprayed (06-08-19)
#140
RX-7 Bad Ass
iTrader: (55)
I think there's room on the driver's frame rail but it's tight.
My Apexi front mount uses a Miata battery on a cut up stock battery tray. I do prefer having the battery under the hood, battery relocation is a hassle and more often than not is a huge pain in the ***.
The Miata batteries (like 90's Miata) are cheap and easy to get at most parts stores.
My buddy has an HKS V-mount and it uses a Honda Insight 12v battery which is also on the small side.
Sakebomb also has a new super tiny super light lithium battery kit. It's pricey but it's way nice and the battery is like 5 pounds or something.
Dale
My Apexi front mount uses a Miata battery on a cut up stock battery tray. I do prefer having the battery under the hood, battery relocation is a hassle and more often than not is a huge pain in the ***.
The Miata batteries (like 90's Miata) are cheap and easy to get at most parts stores.
My buddy has an HKS V-mount and it uses a Honda Insight 12v battery which is also on the small side.
Sakebomb also has a new super tiny super light lithium battery kit. It's pricey but it's way nice and the battery is like 5 pounds or something.
Dale
The following users liked this post:
Sprayed (06-08-19)
#141
Junior Member
I really want this Greddy Vmount Kit but "bending" the AC lines and battery relocation is holding me back. Here is another FD owner who was able to get his Greddy kit on without relocating his battery.
From the looks of it he changed his intake piping. I can't figure out what he exactly did to the intercooler pipings though besides mounting the intercooler closer to the middle versus what it was before which was a little more to the drivers side.
And here is how it is supposed to be routed originally.
From the looks of it he changed his intake piping. I can't figure out what he exactly did to the intercooler pipings though besides mounting the intercooler closer to the middle versus what it was before which was a little more to the drivers side.
And here is how it is supposed to be routed originally.
Last edited by dark_takumi; 06-14-19 at 07:47 AM. Reason: add more pictures
#142
Senior Member
iTrader: (4)
Anyone have photos of air intakes on their single turbo? It doesn't seem like their is enough room to snake in an 'S' intake pipe. I know one of the Final Form guys has a 'S', but I think its because the thermostat housing he uses helps move the coolant line forward. Currently running a Spectre filter, but that's smashed in between the turbo and coolant line. Just wanted something their for any kind of debris.
#143
Full Member
I have the Greddy kit with a BW 8374 and useing a K&N RG-1001RD universal filter.
- Turbo inlet is 4" and i have a 45° silicon coupler going to a 4" long piece of straight aluminium pipe then a 90° coupler to a 2" piece of pipe with the filter on the other end (all held together with T-clamps originally until i lost a couple of them one of the times i was working in there)
- Turbo outlet is 2" i think and i have a 2" to 2.5" 90° coupler attached to a 15° (might be 30°) piece of aluminium pipe.
- filter baffle is .032 aluminium, to get the shape i just installed the filter with all the couplers how i wanted it then used cardboard and tape to fill the gaps i wanted to until it was somewhat the correct shape, cut it out with a couple little extra tabs/flanges, put a couple anchor nuts at the split so it could be opened without pulling the whole thing off and then put some foam door seal around the edges to prevent chaffing.
- i put the AST there as opposed to where the kit wants it for heat purposes and the shitty silicone water line failed on me after about a year so i replaced it with some heavier duty stuff and seems to be holding up nicely.
- Turbo inlet is 4" and i have a 45° silicon coupler going to a 4" long piece of straight aluminium pipe then a 90° coupler to a 2" piece of pipe with the filter on the other end (all held together with T-clamps originally until i lost a couple of them one of the times i was working in there)
- Turbo outlet is 2" i think and i have a 2" to 2.5" 90° coupler attached to a 15° (might be 30°) piece of aluminium pipe.
- filter baffle is .032 aluminium, to get the shape i just installed the filter with all the couplers how i wanted it then used cardboard and tape to fill the gaps i wanted to until it was somewhat the correct shape, cut it out with a couple little extra tabs/flanges, put a couple anchor nuts at the split so it could be opened without pulling the whole thing off and then put some foam door seal around the edges to prevent chaffing.
- i put the AST there as opposed to where the kit wants it for heat purposes and the shitty silicone water line failed on me after about a year so i replaced it with some heavier duty stuff and seems to be holding up nicely.
