FL dreaded smoke

my engine feels like it running really strong but on start up it smokes i know that normal. once i go under boost it seems to clear it out and it doesnt smoke at all while i drive then when i stop at a light for a few minutes it starts smoking again but sometimes it doesnt. do u think the apex seals are going its a fairly new engine and it runs rich as hell.and it doesnt seem to burn too much oil. i also recently tried turnning it from synthetic to convential and then through stupidity mixed the different weights thats when this problem seemed to happen. im back on synthetic but its still doing it maybe not as bad but still i cant afford a rebuild. any thought?
Old 08-12-10, 02:18 PM
  #2
Banned. I got OWNED!!!

no_more_rice's Avatar

Join Date: Mar 2009
Location: NC
Posts: 1,045
Likes: 0
Received 0 Likes on 0 Posts
https://www.rx7club.com/3rd-generation-specific-1993-2002-16/smoke-hard-acceleration-917251/

Might be oil control rings at start-up. Are you pre-mixing?
Old 08-12-10, 02:25 PM
  #3
Full Member

Thread Starter

lassen118's Avatar

Join Date: Jan 2006
Location: Florida
Posts: 166
Likes: 0
Received 0 Likes on 0 Posts
nah this only happens at idle its never smokes while driving but it has been breaking up on top end i think its because i havent changed my plugs in a while. this might explain the hick ups and extreme unburnt fuel but still the smoke at idle is what scares me.
Old 08-12-10, 11:01 PM
  #4
Full Member


RotaryRX-007's Avatar

Join Date: Apr 2008
Location: Melbourne Beach, FL
Posts: 169
Likes: 0
Received 1 Like on 1 Post
Could be turbos too. Don't think that switching from Syn to Dino oils would make a difference on oil control seals (both turbo and engine) but it might have. Our cars are getting old and temperamental. Could just be the fact that the turbos are old.

If the smoke is intermittent, let it ride. If it gets worse, figure it out from there. Regardless of whether it's turbos or engine, it can't be easily fixed so you might as well just stretch it as long as you can.
Old 08-13-10, 07:43 AM
  #5
"Elusive, not deceptive!”


Barry Bordes's Avatar

Join Date: May 2007
Location: Slidell, LA
Posts: 930
Received 13 Likes on 12 Posts
Where are your vents on the oil injectors connected? They should be vented to the atmosphere.

Barry
Old 08-13-10, 08:10 AM
  #6
Eh

iTrader: (56)

djseven's Avatar

Join Date: Aug 2002
Location: Nashville, TN
Posts: 6,544
Received 333 Likes on 189 Posts
Sounds like a rich condition or typical turbo smoke
Old 08-13-10, 06:07 PM
  #7
In the Garage

iTrader: (2)

oo7arkman's Avatar

Join Date: Mar 2006
Location: Central FL
Posts: 1,406
Likes: 0
Received 0 Likes on 0 Posts
^^My thoughts too. How rich is it running? What color is the smoke? Smell?
Old 08-14-10, 12:36 AM
  #8
32psi+

iTrader: (42)

Copeland's Avatar

Join Date: Sep 2006
Location: Raleigh, NC
Posts: 1,323
Received 40 Likes on 32 Posts
I had this problem for awhile and it was my idle tune. Played with it for awhile and fixed it (Power FC). I thought it was the turbos going out but was very relieved to be wrong.

It smelt and looked like oil smoke but I fixed it with a little fuel tweaking so I guess it's just the OMP injects a set amount of oil and depending on your idle tune it can lead to oil smoke @ idle ONLY. Just my theory because when I richened up the mixture (~0.5 AFR) it cleared the smoke away immediately.

The huge smoke clouds that I would produce at stop lights was rather amusing at first. People would yell that my car was on fire or look around frantically thinking their car was on fire. I had some mechanics tell me my piston rings were FRIED! I told em I just had the heads done and was PISSED my rings were gone already! I played with em for awhile about the cam profile and how the heads flowed great after being machined but eventually told em it's just the oil injectors. They looked so confused lol... After awhile it was just more of a nuisance than anything...

It's getting late so this might be a bit confusing. Off to bed...
Old 08-14-10, 10:54 AM
  #9
"Elusive, not deceptive!”


Barry Bordes's Avatar

Join Date: May 2007
Location: Slidell, LA
Posts: 930
Received 13 Likes on 12 Posts
Originally Posted by Barry Bordes
Where are your vents on the oil injectors connected? They should be vented to the atmosphere. It will smoke at idle if it is connected to a vacuum source.

Barry
2nd try.

Barry
Old 08-15-10, 12:04 PM
  #10
Searching for 10th's

iTrader: (11)

jkstill's Avatar

Join Date: May 2002
Location: Portland OR
Posts: 2,247
Received 29 Likes on 18 Posts
Mine was smoking (blue) more than I liked - afgmoto1978 cleaned up some injector spikes under vacuum, greatly reducing the smoke.
Old 08-15-10, 01:02 PM
  #11
Full Member

Thread Starter

lassen118's Avatar

Join Date: Jan 2006
Location: Florida
Posts: 166
Likes: 0
Received 0 Likes on 0 Posts
I checked the turbo it is a t78 about a year old I bought it brand new and it seems fine looks clean inside. It's running so rich it burns peoples eyes when the drive behind me. Where is that injector vent? I have an after market fuel system it's not stock.
Old 08-15-10, 05:57 PM
  #12
"Elusive, not deceptive!”


Barry Bordes's Avatar

Join Date: May 2007
Location: Slidell, LA
Posts: 930
Received 13 Likes on 12 Posts
Originally Posted by lassen118
I checked the turbo it is a t78 about a year old I bought it brand new and it seems fine looks clean inside. It's running so rich it burns peoples eyes when the drive behind me. Where is that injector vent? I have an after market fuel system it's not stock.

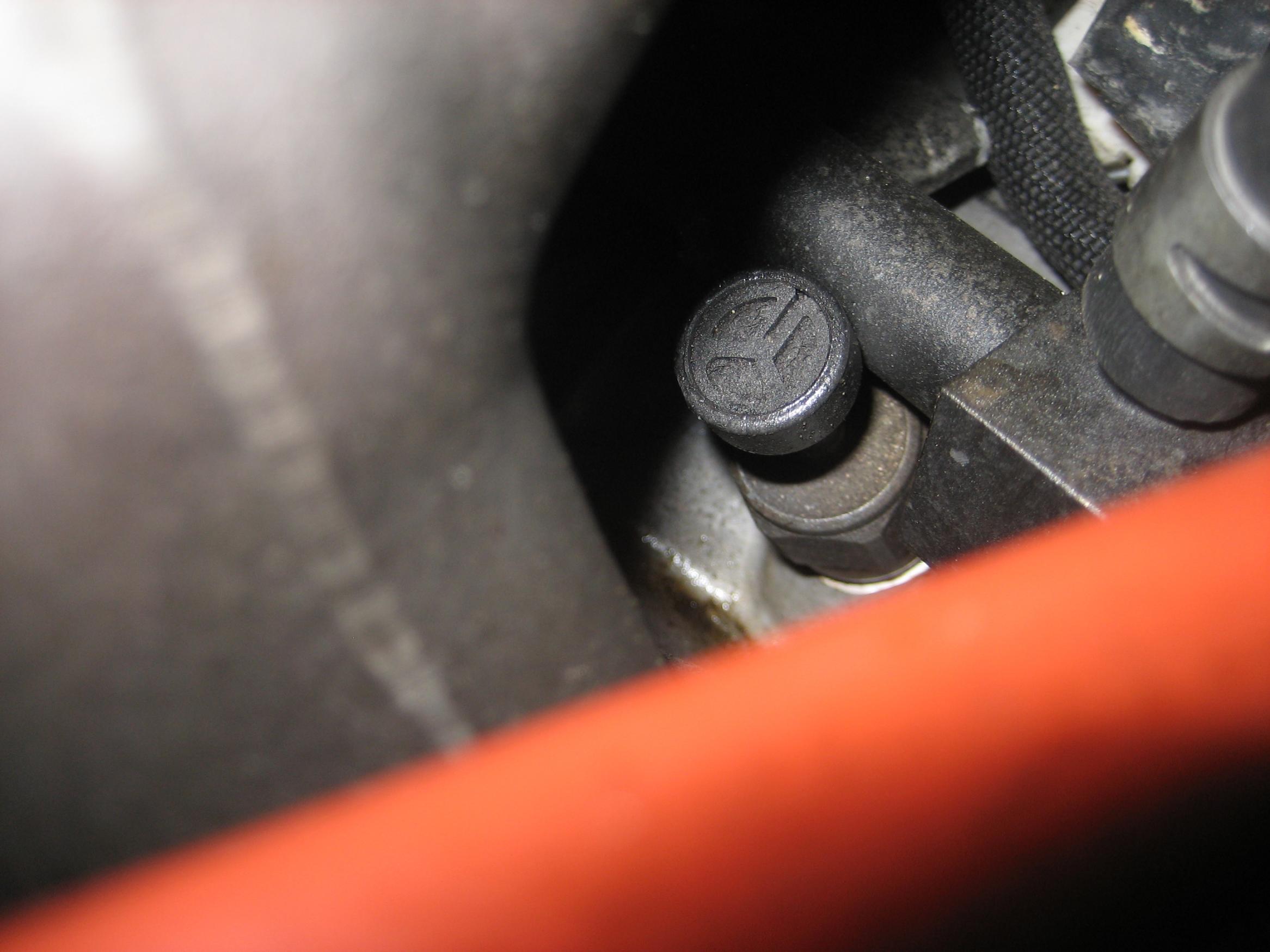

The oil injectors on the housings have a vent on the top of each one. Many people mistakenly attach them to the manifold which creates a vacuum at idle and the resulting smoking.
You can use two of the small filters used on the solenoids instead of the usual hoses to the intake filter area.
Barry
Attached Thumbnails dreaded smoke-img_9132.jpg
Old 11-15-10, 07:26 AM
  #13
Full Member

Thread Starter

lassen118's Avatar

Join Date: Jan 2006
Location: Florida
Posts: 166
Likes: 0
Received 0 Likes on 0 Posts
cool ill try that out i wasnt sure where they were located
Old 11-15-10, 07:32 AM
  #14
Full Member

Thread Starter

lassen118's Avatar

Join Date: Jan 2006
Location: Florida
Posts: 166
Likes: 0
Received 0 Likes on 0 Posts
i dont know where there located? i tried looking is it something i can see without taking apart my intake manifold?
Old 11-15-10, 07:35 AM
  #15
Full Member

Thread Starter

lassen118's Avatar

Join Date: Jan 2006
Location: Florida
Posts: 166
Likes: 0
Received 0 Likes on 0 Posts
oh and i can feel a significant loss in power on top end almost like it just falls on its face like it wants to go but it cant other than that and he smoke it feels very strong.
Old 11-15-10, 11:51 PM
  #16
Just Boosting

iTrader: (8)

existanzrx7's Avatar

Join Date: Mar 2004
Location: Chy-Town
Posts: 1,124
Received 7 Likes on 5 Posts
Originally Posted by Barry Bordes
The oil injectors on the housings have a vent on the top of each one. Many people mistakenly attach them to the manifold which creates a vacuum at idle and the resulting smoking.
You can use two of the small filters used on the solenoids instead of the usual hoses to the intake filter area.
Barry
I have a question why do you only use two of the solenoids small filters if there are 4 oil injectors total?

Originally Posted by lassen118
i dont know where there located? i tried looking is it something i can see without taking apart my intake manifold?

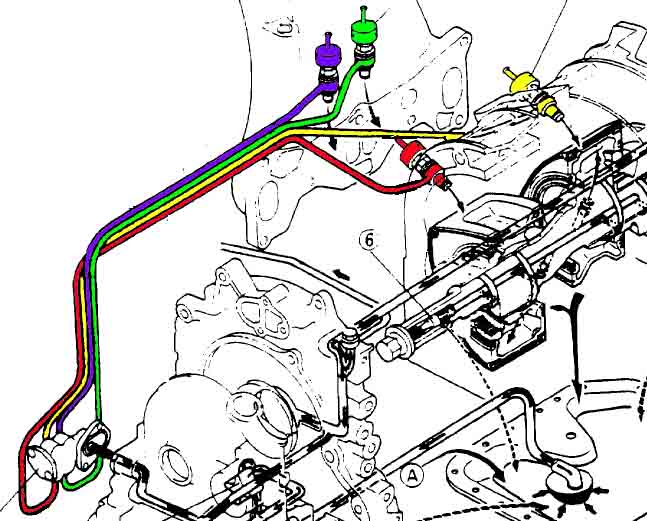

Here is a pic and yes you do have to remove the UIM to get to them.
Attached Thumbnails dreaded smoke-28.jpg
Old 11-16-10, 12:12 AM
  #17
Rotary Enthusiast
iTrader: (34)

twinsinside's Avatar

Join Date: Apr 2009
Location: japan
Posts: 771
Likes: 0
Received 0 Likes on 0 Posts
That's because there are only 2 omp injectors on an FD
Old 11-16-10, 11:14 PM
  #18
Just Boosting

iTrader: (8)

existanzrx7's Avatar

Join Date: Mar 2004
Location: Chy-Town
Posts: 1,124
Received 7 Likes on 5 Posts
Originally Posted by twinsinside
That's because there are only 2 omp injectors on an FD
Where are they located then? Whats the pic above from? I was thinking it was an fd pick.
Old 11-17-10, 12:13 AM
  #19
rotorhead

iTrader: (3)

arghx's Avatar

Join Date: Aug 2004
Location: cold
Posts: 16,182
Received 429 Likes on 263 Posts
the pic above looks like it is from a series 4 FC. The FD does not have the LIM injectors, just the rotor housing injectors.
Old 11-17-10, 12:43 AM
  #20
Senior Member
iTrader: (3)

OriginalFake2's Avatar

Join Date: Aug 2010
Location: Sacile, Italy
Posts: 366
Likes: 0
Received 0 Likes on 0 Posts
when my car is cold during startup, i have so much more smoke coming out the back then any other car.
