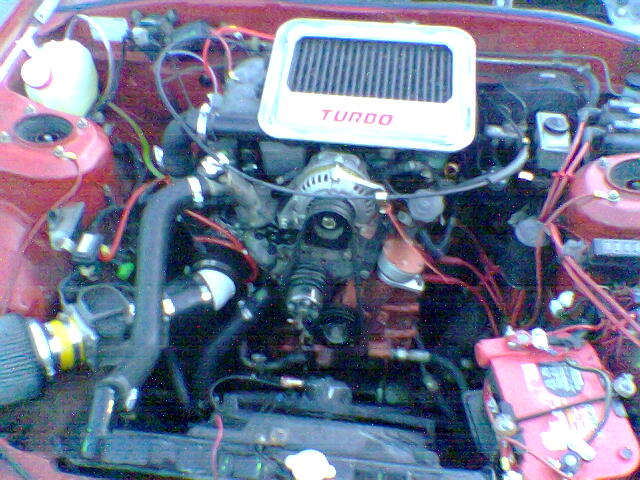

Some pics of my NA Turbo setup
03-12-05, 01:24 AM
#78
Damnit, steel doors hurt!
Thread Starter
Join Date: Apr 2003
Location: Charlotte, NC
Posts: 788
Likes: 0
Received 0 Likes
on
0 Posts
ugh fuel issues, got a leak, think i might hit the bed and finish up in the morning. Once I solve the leak its just UIM and vacuum lines and it will run, hopefully.
03-12-05, 01:37 AM
#79
Junior Member
Join Date: Mar 2004
Location: New Mexico
Posts: 13
Likes: 0
Received 0 Likes
on
0 Posts
Hey i dont mean to hijack but I'm working on the same conversion and was wondering if the TII LIM will fit the N/A UIM....I want to use the N/a manifold because I am going front mount on the intercooler and plus I know where everything goes on it.
03-12-05, 04:01 AM
#80
Originally Posted by RayOvac
Hey i dont mean to hijack but I'm working on the same conversion and was wondering if the TII LIM will fit the N/A UIM....I want to use the N/a manifold because I am going front mount on the intercooler and plus I know where everything goes on it.
03-12-05, 05:22 AM
#81
Junior Member
Join Date: Mar 2004
Location: New Mexico
Posts: 13
Likes: 0
Received 0 Likes
on
0 Posts
does it just not fit together or what? The pattern on the TII LIM looks exactly the same as the NA UIM...it looks like they would mate right together.
EDIT: nevermind...got to looking at some intake gaskets and there is quite a bit of difference...guess I'm gonna have to find a full manifold.
EDIT: nevermind...got to looking at some intake gaskets and there is quite a bit of difference...guess I'm gonna have to find a full manifold.
Last edited by RayOvac; 03-12-05 at 05:33 AM.
03-13-05, 12:52 AM
#83
Banned. I got OWNED!!!
Join Date: Dec 2002
Location: wishing i was back in FL
Posts: 4,192
Likes: 0
Received 0 Likes
on
0 Posts
well, he hasn't posted but i will.... he had it out today and it was pretty impressive! hahaha, we had a nice decent sized rx7 meet and he was out boosting pretty hard. towards the end of the night his car was idleing wierd.......
i hope its ok!!!! AHHHH!!! call me jason!
i hope its ok!!!! AHHHH!!! call me jason!
03-13-05, 01:56 AM
#87
Damnit, steel doors hurt!
Thread Starter
Join Date: Apr 2003
Location: Charlotte, NC
Posts: 788
Likes: 0
Received 0 Likes
on
0 Posts
i'm hitting roughly 10 psi at 6 grand i don't want to go above 6 gs without tuning, also i belive that i will have to upgrade the 550cc sec injectors, i beleive i am already maxing them out
03-13-05, 02:16 AM
#88
Super Raterhater
iTrader: (6)
Join Date: Dec 2001
Location: NY, MA, MI, OR, TX, and now LA or AZ!
Posts: 10,624
Likes: 0
Received 2 Likes
on
2 Posts
You're pretty brave to run 550's all around. Though you should be ok around 10psi, and maybe a hair higher. Aaron ran that setup for a while, I used 720's for that setup.
03-13-05, 06:35 PM
#91
Damnit, steel doors hurt!
Thread Starter
Join Date: Apr 2003
Location: Charlotte, NC
Posts: 788
Likes: 0
Received 0 Likes
on
0 Posts
ok i installed my exhaust silencer tip and it dropped my boost down to 5 psi. I think that i was actually spiking at 10 psi or something. ahh.
03-14-05, 10:25 AM
#92
very sleepy!!
Join Date: Jan 2005
Location: Tampa, FL
Posts: 1,052
Likes: 0
Received 0 Likes
on
0 Posts
good job imprezed. i knew it would work. so everything in the n/a can match up with the tII manifolds (lines, coolant etc.)? what did you have to fab up to make it compatible? anything else that us potential turbo-n/a guys need to know about before doing it?
03-14-05, 03:04 PM
#93
Damnit, steel doors hurt!
Thread Starter
Join Date: Apr 2003
Location: Charlotte, NC
Posts: 788
Likes: 0
Received 0 Likes
on
0 Posts
you got to grind the hell out of the LIM to get it to match up thats really the only hard part that doesn't match.
I will try to make a write up on the whole install when i get a chance.
I'm taking the car off the road to remove the 550 cc injectors to replace with some greddy 720ccs
I will try to make a write up on the whole install when i get a chance.
I'm taking the car off the road to remove the 550 cc injectors to replace with some greddy 720ccs
03-14-05, 03:21 PM
#95
Damnit, steel doors hurt!
Thread Starter
Join Date: Apr 2003
Location: Charlotte, NC
Posts: 788
Likes: 0
Received 0 Likes
on
0 Posts
no i'm going to skip the dyno tune and go ahead and replace the injectors, plus i got a few other little things i want to redo or replace. Plus i want to up the boost to 10 psi.
03-15-05, 06:15 AM
#97
very sleepy!!
Join Date: Jan 2005
Location: Tampa, FL
Posts: 1,052
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by SonicRaT
I don't know what it is, but us 6port turbo guys have a phobia of the dyno, we always put it off.
I would call it waiting for the right time instead of putting it off.
can't wait for your write-up imprezed.
03-15-05, 11:51 AM
#99
Super Raterhater
iTrader: (6)
Join Date: Dec 2001
Location: NY, MA, MI, OR, TX, and now LA or AZ!
Posts: 10,624
Likes: 0
Received 2 Likes
on
2 Posts
I dunno Tito, a lot of us have had cars that were reliable enough to get a dyno run in, but we always seem to either tinker with it more, upgrade it more, or just vanish off the face of the earth.
