Ignition Timing and CAS
#1
Ignition Timing and CAS
I'm in my garage trying to prepare to time my car and I can't find out how to take out the CAS. I have pages of the fsm with me for timing and also my Haynes manual. All I see is to simply remove the locknut and pull it straight out. I tried finding a locknut but the directions are not specific at all. I took off the CAS cover while reading something in another thread but I put it back on for now. Right now I just have the leading mark on the pulley matched up with the little metal pin.
#3

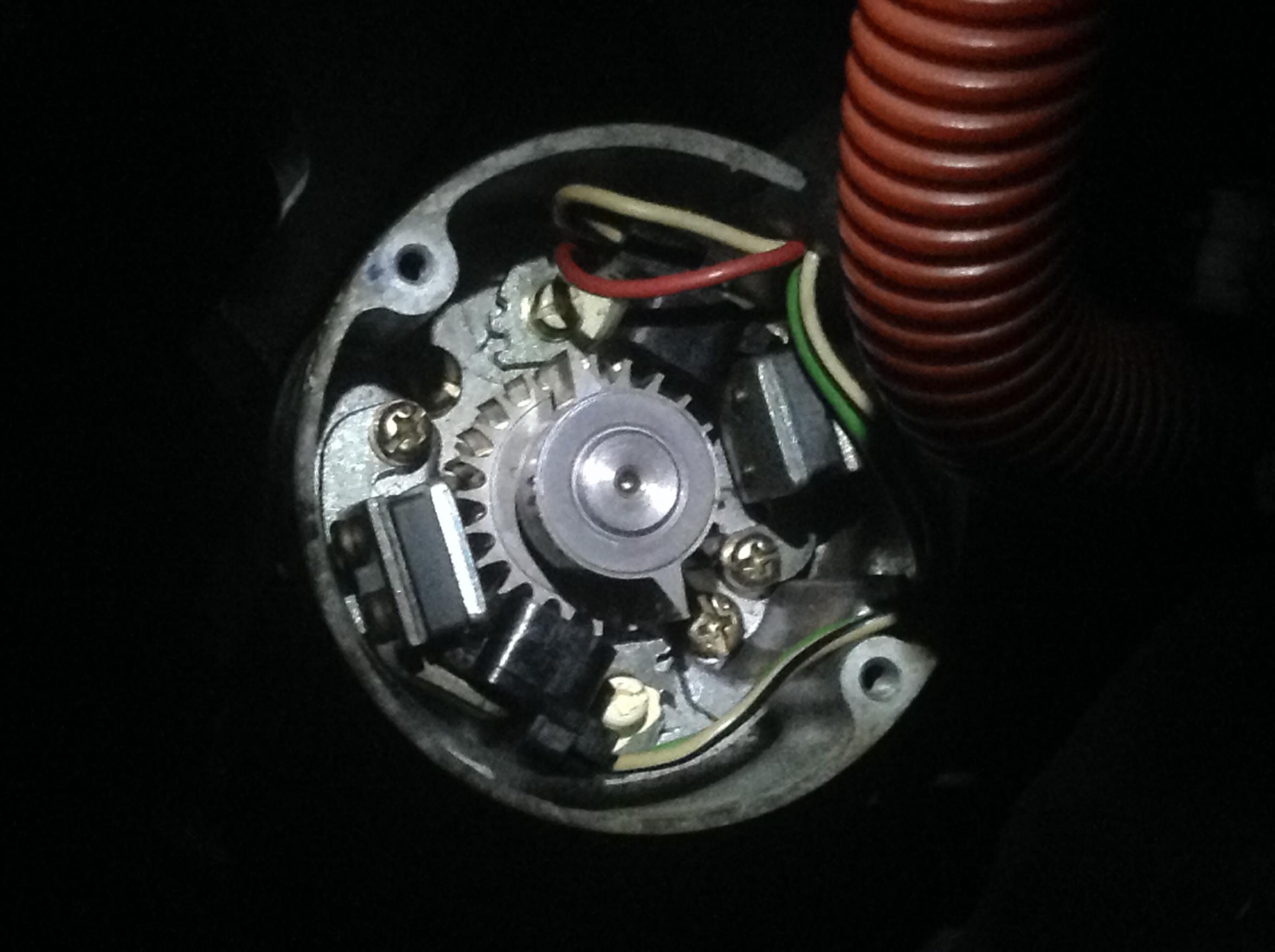

Oh ok I was getting confused seeing here and there removing and matching something with an arrow. Where is the locknut though? I see a bolt to the bottom left of the cas and a plastic piece over a metal stud on the right of the sensor, then inside the black cover is a plastic gear thing with two pointed ends.
#4
Moderator
iTrader: (1)
Time to be unconfused. Post #4, pic #4. You see how loosening the lock nut (it's on the outside of the CAS) allows you to rotate the CAS?
https://www.rx7club.com/2nd-generati...timing-985497/
https://www.rx7club.com/2nd-generati...timing-985497/
#7
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
If the casing is not moving it is stuck,due to corrosion.
If you want to remove it and lube the casing so that you can adjust it,then you must tap the casing with "something" to get it out of the front cover.You will however have to restab the CAS when you do this.
I've had success with putting a large screwdriver on it while under the car.,or swing a hammer at it with an upward motion on the casing to make it go upwards out of the front cover hole.It's a little bit of a pain in the *** but it works.You could also try to tap the "tong"(the one that the stud with the 10mm bolt goes through) on the cas to get it to move,back and forth.Careful you don't smash at it though.
Once out just clean up the spot around the O ring and use a dab of axle grease or anti-sieze to make sure it stays "lubed.
YOu can then get it out again or adjust it if you have to.
If you want to remove it and lube the casing so that you can adjust it,then you must tap the casing with "something" to get it out of the front cover.You will however have to restab the CAS when you do this.
I've had success with putting a large screwdriver on it while under the car.,or swing a hammer at it with an upward motion on the casing to make it go upwards out of the front cover hole.It's a little bit of a pain in the *** but it works.You could also try to tap the "tong"(the one that the stud with the 10mm bolt goes through) on the cas to get it to move,back and forth.Careful you don't smash at it though.
Once out just clean up the spot around the O ring and use a dab of axle grease or anti-sieze to make sure it stays "lubed.
YOu can then get it out again or adjust it if you have to.
Trending Topics
#8
If the casing is not moving it is stuck,due to corrosion.
If you want to remove it and lube the casing so that you can adjust it,then you must tap the casing with "something" to get it out of the front cover.You will however have to restab the CAS when you do this.
I've had success with putting a large screwdriver on it while under the car.,or swing a hammer at it with an upward motion on the casing to make it go upwards out of the front cover hole.It's a little bit of a pain in the *** but it works.You could also try to tap the "tong"(the one that the stud with the 10mm bolt goes through) on the cas to get it to move,back and forth.Careful you don't smash at it though.
Once out just clean up the spot around the O ring and use a dab of axle grease or anti-sieze to make sure it stays "lubed.
YOu can then get it out again or adjust it if you have to.
If you want to remove it and lube the casing so that you can adjust it,then you must tap the casing with "something" to get it out of the front cover.You will however have to restab the CAS when you do this.
I've had success with putting a large screwdriver on it while under the car.,or swing a hammer at it with an upward motion on the casing to make it go upwards out of the front cover hole.It's a little bit of a pain in the *** but it works.You could also try to tap the "tong"(the one that the stud with the 10mm bolt goes through) on the cas to get it to move,back and forth.Careful you don't smash at it though.
Once out just clean up the spot around the O ring and use a dab of axle grease or anti-sieze to make sure it stays "lubed.
YOu can then get it out again or adjust it if you have to.
#10
I'm just saying if I run into the possibility of it being stuck when I do loosen it. I'm not saying it is stuck. I was talking about that notch on top inside the cas under the top cover that I didn't know how to get it loose. That's what I was referring to being stuck
#11
Ok nevermind what I said before. I thought everyone was referring to whats under the cover of the cas to be the locknut. Im in my garage and found the locknut under this little black plastic cap that I took off with a flathead screwdiver. Im good from here. Thanks for all the other information.
