Trans to engine bolt.
It is not the short bolt to attach the starter to the transmission!
This is where it goes.
#54
Full Member
Thread Starter

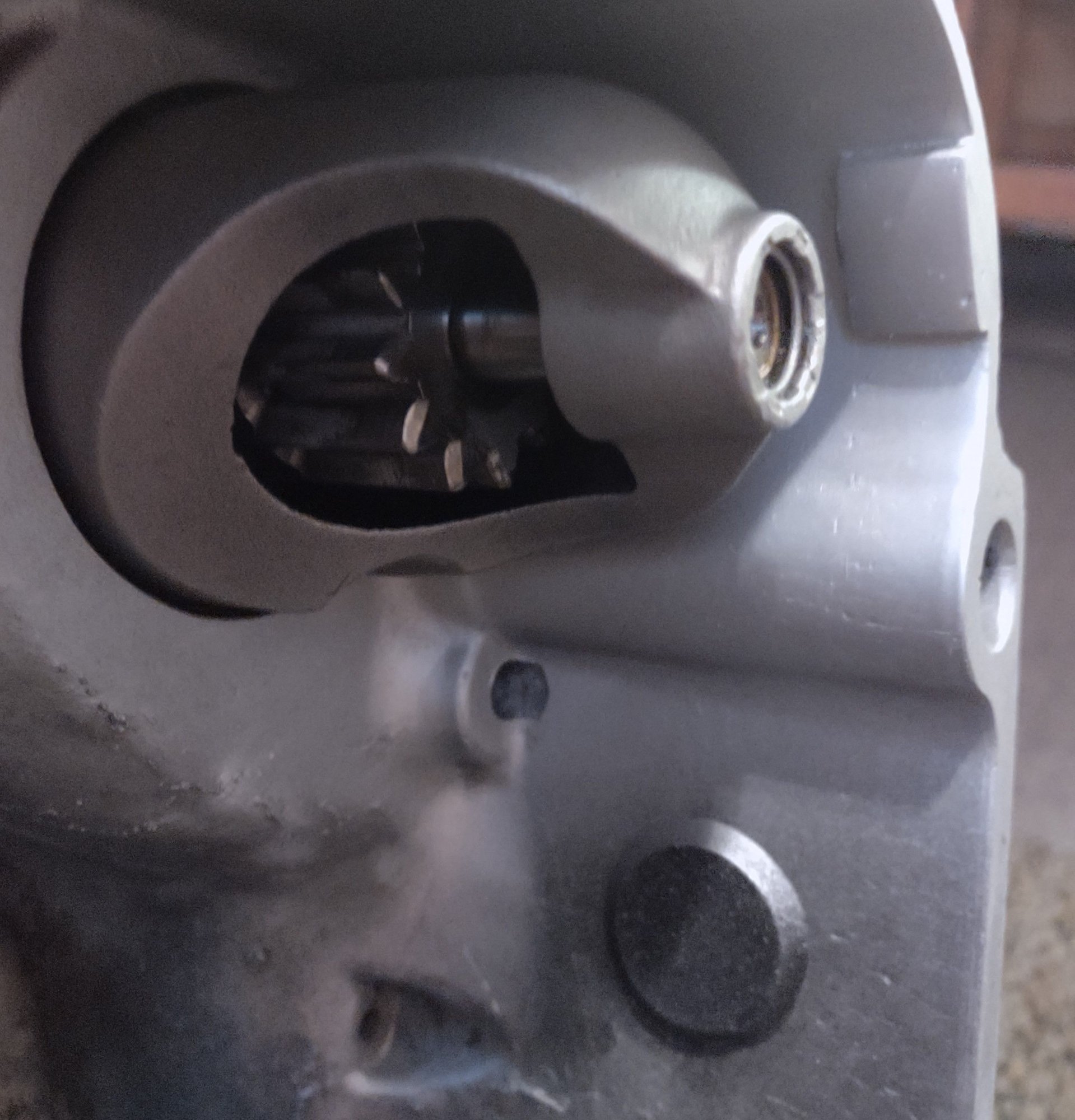

Sealing the slot
I have the slot on my transmission, the shape of the plug looks to me to be some kind of shield for this area. It is not made to be removed with the transmission attached to the engine so that rules out an inspection port.
I wonder what it is shielding?
I will fabricate a plug for the hole, really don't need a piece of debris getting into the housing!
Thanks!
This should do the trick!
The original plastic part seems to be a shield or diverter of the air stream of the clutch spinning around!
Anyone have an idea what the purpose of it is?
#55
Full Member
Thread Starter
Transmission mounts for an automatic transmission
I found plenty more listings for these but no mention that they are only for an auto trans!
#56
Automotive peanut gallery
They do not fit a series 5 automatic transmission car at all. I don’t know about the series 4 but for the s5 the manual and automatic mounts are the same.
The following users liked this post:
j9fd3s (03-17-24)
#57
Full Member
Thread Starter
finished the transmission
Hi everyone,
I finally have the rebuilt transmission for my 1988 GXL ready to install now!
These are the new parts I added to the transmission:
Clutch and release bearing. While it was apart I found one at a good price.
Driveshaft with rebuildable u-joints. The original driveshaft front u-joint was binding. 150k miles
Master and slave hydraulic clutch cylinders with SS braided line. Lost all fluid twice, never found why.
Mounts and crossmember. Destroyed the center mount on the crossmember while taking it apart. The original mounts were still good but hard as a rock.
5th/ reverse switch with nylon wire cover. The wires were all broken and spliced after two clutch replacements by the dealer. Lucky to find it new.
Short throw shifter. Always had trouble shifting into third at 7000 rpms.
Stud for the lower starter hole, has two different thread pitches, the unique coarse thread that was the original bolt had, and a thread that matches the rest of the mounting bolts!
Condenser that goes under one of the slave cylinder mounting bolts. Wire broke off from the original one.
Once installed, I plan to fill it with conventional gear oil, then after 600 miles to break it in, replace the oil with a synthetic gear oil.
I read that it will shift smoother with the synthetic oil!
If you switch after years of using a conventional oil, the old seals will react badly. But since my seals are new I should not have any problems.
One last problem area, the hole in the control rod end is much larger than normal, it almost reaches the sides of it! The smaller ball end on the new shifter has too much play. I need to find one of those nylon spacers!
I finally have the rebuilt transmission for my 1988 GXL ready to install now!
These are the new parts I added to the transmission:
Clutch and release bearing. While it was apart I found one at a good price.
Driveshaft with rebuildable u-joints. The original driveshaft front u-joint was binding. 150k miles
Master and slave hydraulic clutch cylinders with SS braided line. Lost all fluid twice, never found why.
Mounts and crossmember. Destroyed the center mount on the crossmember while taking it apart. The original mounts were still good but hard as a rock.
5th/ reverse switch with nylon wire cover. The wires were all broken and spliced after two clutch replacements by the dealer. Lucky to find it new.
Short throw shifter. Always had trouble shifting into third at 7000 rpms.
Stud for the lower starter hole, has two different thread pitches, the unique coarse thread that was the original bolt had, and a thread that matches the rest of the mounting bolts!
Condenser that goes under one of the slave cylinder mounting bolts. Wire broke off from the original one.
Once installed, I plan to fill it with conventional gear oil, then after 600 miles to break it in, replace the oil with a synthetic gear oil.
I read that it will shift smoother with the synthetic oil!
If you switch after years of using a conventional oil, the old seals will react badly. But since my seals are new I should not have any problems.
One last problem area, the hole in the control rod end is much larger than normal, it almost reaches the sides of it! The smaller ball end on the new shifter has too much play. I need to find one of those nylon spacers!
#59
Full Member
Thread Starter
#61
Full Member
Thread Starter
replacing u-joints
My Haynes repair manual covers from 1986 thru 1991. There is no mention of replacing the u-joints on the driveshaft! Only how to R&R the entire driveshaft assembly.
My 1988 workshop manual states that if something is wrong with anything to do with the driveshaft assemble, replace the entire driveshaft. The u-joints are NOT replaceable!
My original driveshaft had binding on the front u-joint, so I purchased a replacement shaft from Mazdatrix. The replacement has the u-joints installed already, Just bolt it in.
The Mazdatrix driveshaft uses u-joints that can be replaced! I included a spare joint that will fit the new shaft.
Go onto their website and check it out.
#62
Automotive peanut gallery
Yeah I guess that’s what I’ll have to do. The u joints are certainly replaceable, I actually pressed mine out and changed the flange for my manual swap. There’s even a few threads on here about doing it but the part numbers they list bring up some u joints that are a little too small.
#63
Full Member
Thread Starter
I have the slot on my transmission, the shape of the plug looks to me to be some kind of shield for this area. It is not made to be removed with the transmission attached to the engine so that rules out an inspection port.
I wonder what it is shielding?
I will fabricate a plug for the hole, really don't need a piece of debris getting into the housing!
Thanks!
There is a corresponding bulge in the rear iron as well.
The plug sits against part of the bulge in the iron, dividing it apart!
The only thing I can think of for this divider piece is to break up some of the turbulence in this area.
I wonder how fast the air is moving at 7000 rpm, and what benefit there would be to smoothing out the airflow in this area?
Perhaps to keep any debris away from the starter?
Any other ideas?
#64
Full Member
Thread Starter
It appears that my cover takes size M10x1.0
So, after chasing these studs forever, I just purchased a cheap $30 front cover to get the correct studs I need!
I found the studs from a company in Japan but after putting in my order they sent me a email saying the stud are NLA, and returned my payment.
#65
Full Member
Thread Starter
Self tapping bolts?
Hi everyone, I came across these unique bolts that have a spiral pattern on the threads.
The first ones I noticed were the radiator to frame mounting bolts, the second ones are grade 8 bolts that are pictured.
Are these bolts some form of self-tapping ones? They go into welded nuts on the frame, why are they different than regular bolts?
Are they meant to hold better? Any ideas? I'm just trying to learn about these things.
The first ones I noticed were the radiator to frame mounting bolts, the second ones are grade 8 bolts that are pictured.
Are these bolts some form of self-tapping ones? They go into welded nuts on the frame, why are they different than regular bolts?
Are they meant to hold better? Any ideas? I'm just trying to learn about these things.
#67
Full Member
Thread Starter
Front cover stud size
I just received two studs from Atkins and they do not fit my cover, the new studs are M10x1.25 50mm.
It appears that my cover takes size M10x1.0
So, after chasing these studs forever, I just purchased a cheap $30 front cover to get the correct studs I need!
I found the studs from a company in Japan but after putting in my order they sent me a email saying the stud are NLA, and returned my payment.
It appears that my cover takes size M10x1.0
So, after chasing these studs forever, I just purchased a cheap $30 front cover to get the correct studs I need!
I found the studs from a company in Japan but after putting in my order they sent me a email saying the stud are NLA, and returned my payment.
Had to buy a front cover for $30 that still had them in it.
These are my measurements:
Overall length - 50mm
Metric size - M10
Thread pitch - 1.25mm
Untreaded length - 15mm
Short threaded length - 10mm
Long threaded length - 25mm
The part from Atkins will fit after all, the threaded holes in my front cover have paint in them! Need to chase the threads to remove it.
I was concerned that if I forced the studs in I would damage the threaded holes and have to re-tap them. Been there, done that.
So, this concludes my search for these studs. Ta-Da!
#68
Full Member
Thread Starter
Sprial treaded bolt useage
Hi everyone, I came across these unique bolts that have a spiral pattern on the threads.
The first ones I noticed were the radiator to frame mounting bolts, the second ones are grade 8 bolts that are pictured.
Are these bolts some form of self-tapping ones? They go into welded nuts on the frame, why are they different than regular bolts?
Are they meant to hold better? Any ideas? I'm just trying to learn about these things.
The first ones I noticed were the radiator to frame mounting bolts, the second ones are grade 8 bolts that are pictured.
Are these bolts some form of self-tapping ones? They go into welded nuts on the frame, why are they different than regular bolts?
Are they meant to hold better? Any ideas? I'm just trying to learn about these things.
When nuts are welded into position on parts it has to be bare metal for the welds to hold. Then the parts are painted, the threads on the attached nuts get painted in the process.
These special threaded bolts are then necessary to cut through the paint and push it out the back of the nut without the bolt binding in the hole as it is being tightened!
I just had this binding issue on my front cover studs, I thought I was using the wrong thread pitch, but it was the paint that got into the hole.
I had to work the studs in and out repeatedly to remove most of the paint before they finally went in.
On the assembly line there would not be the time for this, hence the self cleaning threads.
What do you think?
#69
Full Member
Thread Starter
Hood attachment bolts
Hi again,
I lost one of my hood bolts and have been trying to find a replacment!
I have not been able to find one, can anyone help me?
These are M6x1.0 15.5-16mm thread length.
The hard thing to find is the wide flange. And the grade 8 type.
Any help will be appreciated, thanks!
I lost one of my hood bolts and have been trying to find a replacment!
I have not been able to find one, can anyone help me?
These are M6x1.0 15.5-16mm thread length.
The hard thing to find is the wide flange. And the grade 8 type.
Any help will be appreciated, thanks!
#70
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,826
Received 2,594 Likes
on
1,842 Posts
9079-60-616 is the Mazda part number, they have tons
#71
Full Member
Thread Starter
Inner fender plastic covers.
Hi everyone, what is the purpose of these plastic covers in the front wheel wells.
Too lazy to take one off!
I am off now to clean the dirt off my engine bay, Lestoil in a garden sprayer!
Too lazy to take one off!
I am off now to clean the dirt off my engine bay, Lestoil in a garden sprayer!
The following users liked this post:
j9fd3s (04-19-24)
