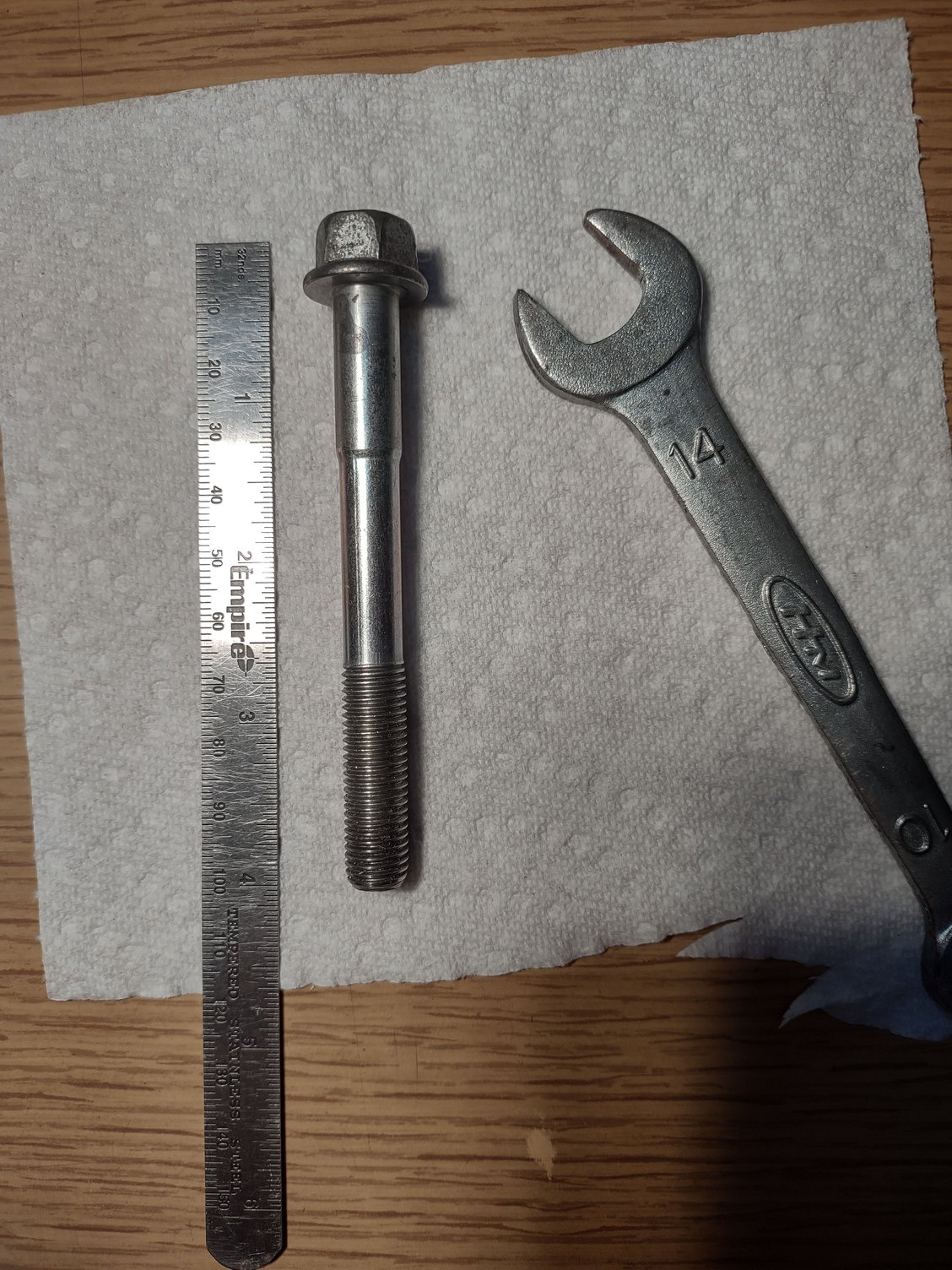

Identify these unique bolts function!
#26
Full Member
Thread Starter
#27
Full Member
Thread Starter
What did I purchase?
When I decided to replace all the original motor and transmission mounts I when online and bought these 2 mounts.
I don't remember these mounts when I removed the transmission, anybody know where they go?
I don't remember these mounts when I removed the transmission, anybody know where they go?
#29
I believe it is the EGR valve that gets actuated in 5th gear over a certain RPM.. . . Which is why most people just blank it off when it goes bad because it is NLA.
The following users liked this post:
j9fd3s (11-17-23)
#31
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,826
Received 2,594 Likes
on
1,842 Posts
#33
Full Member
Thread Starter
differential mount enquiry
Hi again, I have come across pictures of the mount online, what is the purpose of the block of metal hanging off the mount? is it for vibration, or perhaps sacrificial metal to keep the corrosion down?
Your replies are always appreciated!
Your replies are always appreciated!
#34
Rotary Freak
My Celica has something similar on the rearmost engine mount. It's removable with a 10mm bolt, and I can definitely feel an increase in vibrations without it.
The following users liked this post:
j9fd3s (01-10-24)
#35
Automotive peanut gallery
I ordered them off of rock auto and didn't look real close at the picture because it was on my phone and small. They are not only the wrong shape, they are really big, like engine mount size.
#36
Full Member
Thread Starter
This is an educated guess, but I think it's just a damper for vibrations. My car (1986) didn't have that extra piece originally, and I've seen some old diagrams that don't show it. I purchased a brand new mount a few years ago and it includes the metal extension and rubber damper piece as photographed.
My Celica has something similar on the rearmost engine mount. It's removable with a 10mm bolt, and I can definitely feel an increase in vibrations without it.
My Celica has something similar on the rearmost engine mount. It's removable with a 10mm bolt, and I can definitely feel an increase in vibrations without it.
Thanks!
#37
Full Member
Thread Starter
Where do they go now......you know the song!
#38
Full Member
Thread Starter
What do these ducts do?
I noticed that there is a major difference between a FB and FC transmission bellhousing.
The bellhousing on a FB transmission does not have any openings on it other than for the starter and release fork.
A FC bellhousing has two openings, a long narrow opening at the back right, and a round opening at the front left.
The round opening has a duct bolted to it pointing to the rear, what purpose does this duct have.
I'm assuming that they provide cool air into the housing, the rear one as an inlet and the front one as an outlet for the hot air.
Is the heat buildup in a closed bellhousing an issue with the clutch? How hot does it get when enclosed?
I also assume that the rear facing duct is to prevent any debris getting into the housing and messing up the clutch and flywheel.
Is this a performance modification for the RX-7?
I have to look at a Turbo transmission and see if it was done to these.
What do you think?
The bellhousing on a FB transmission does not have any openings on it other than for the starter and release fork.
A FC bellhousing has two openings, a long narrow opening at the back right, and a round opening at the front left.
The round opening has a duct bolted to it pointing to the rear, what purpose does this duct have.
I'm assuming that they provide cool air into the housing, the rear one as an inlet and the front one as an outlet for the hot air.
Is the heat buildup in a closed bellhousing an issue with the clutch? How hot does it get when enclosed?
I also assume that the rear facing duct is to prevent any debris getting into the housing and messing up the clutch and flywheel.
Is this a performance modification for the RX-7?
I have to look at a Turbo transmission and see if it was done to these.
What do you think?
#39
Rotary Enthusiast
The round hole at the bottom is an inspection port. It should be sealed with a rubber plug. The rubber plug p/n N204-16-145 is NLA from Mazda. However, you can buy 3D printed aftermarket plugs on Ebay. Refer to this link: https://www.ebay.com/itm/22566309521...evt=1&mkcid=28
#40
Full Member
Thread Starter
The round hole at the bottom is an inspection port. It should be sealed with a rubber plug. The rubber plug p/n N204-16-145 is NLA from Mazda. However, you can buy 3D printed aftermarket plugs on Ebay. Refer to this link: https://www.ebay.com/itm/22566309521...evt=1&mkcid=28
What does the inspection hole view?
Thanks
#41
Rotary Enthusiast
The inspection hole at bottom of transmission lets you view a limited portion of the flywheel/clutch disc/pressure plate assembly to inspect the clutch disc.

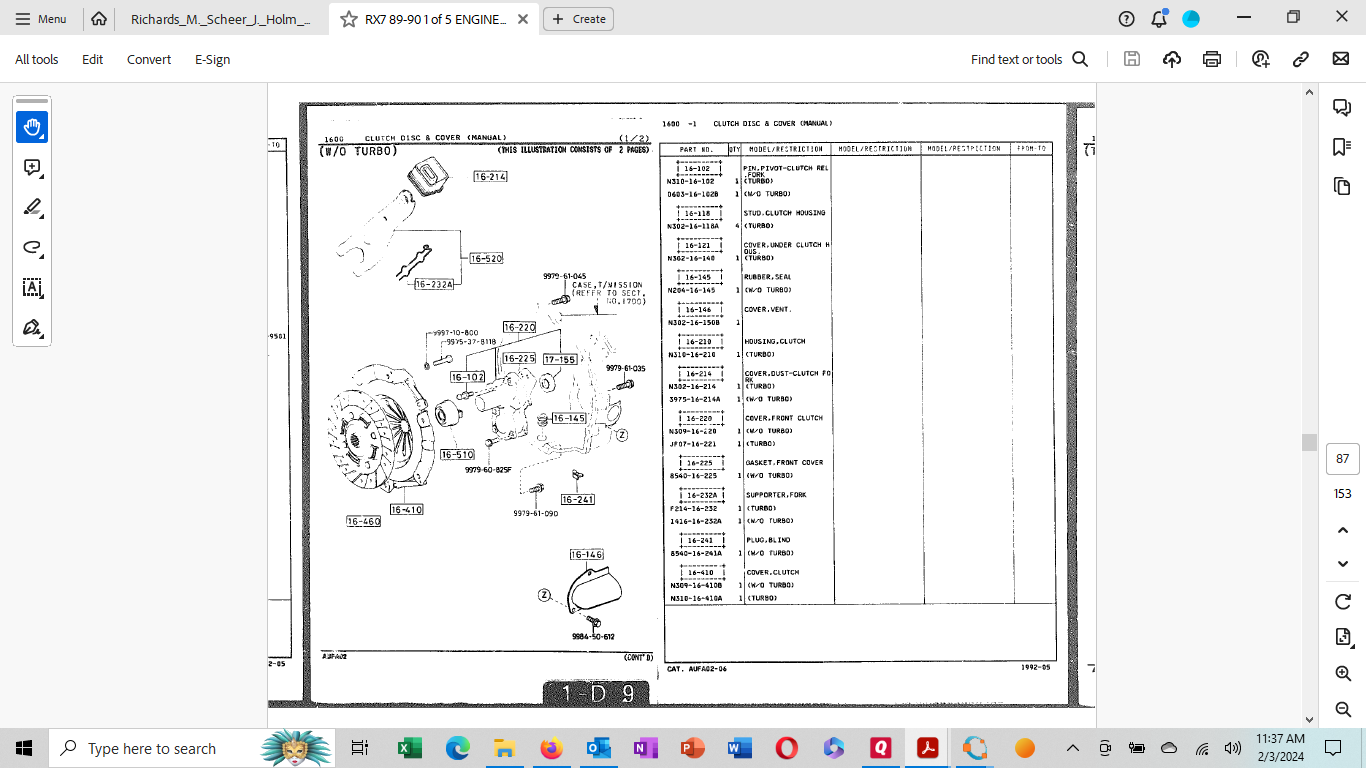

You're looking for this item: 16-146 cover, vent (https://www.atkinsrotary.com/Transmi...n-Vent-Covers/)
You're looking for this item: 16-146 cover, vent (https://www.atkinsrotary.com/Transmi...n-Vent-Covers/)
#42
Full Member
Thread Starter
Blind plug
The inspection hole at bottom of transmission lets you view a limited portion of the flywheel/clutch disc/pressure plate assembly to inspect the clutch disc.
You're looking for this item: 16-146 cover, vent (https://www.atkinsrotary.com/Transmi...n-Vent-Covers/)
You're looking for this item: 16-146 cover, vent (https://www.atkinsrotary.com/Transmi...n-Vent-Covers/)
#43
Rotary Enthusiast
There's a small slot near bottom of the bellhousing. The blind plug closes off that hole. What's its purpose? I don't know. Maybe an inspection port?
Here's a link with some photos: https://www.rx7club.com/2nd-generati...g-what-833167/
Here's a link with some photos: https://www.rx7club.com/2nd-generati...g-what-833167/
Last edited by Hot_Dog; 02-06-24 at 10:17 AM.
#44
Full Member
Thread Starter
There's a small slot near bottom of the bellhousing. The blind plug closes off that hole. What's its purpose? I don't know. Maybe an inspection port?
Here's a link with some photos: https://www.rx7club.com/2nd-generati...g-what-833167/
Here's a link with some photos: https://www.rx7club.com/2nd-generati...g-what-833167/
I have the slot on my transmission, the shape of the plug looks to me to be some kind of shield for this area. It is not made to be removed with the transmission attached to the engine so that rules out an inspection port.
I wonder what it is shielding?
I will fabricate a plug for the hole, really don't need a piece of debris getting into the housing!
Thanks!
#45
Full Member
Thread Starter
What stud is this?
I'm missing the studs on the left side of the front cover.
The studs are for attaching the P/S-A/C bracket to the engine.
Does anyone have a part number, or know the size?
The studs are for attaching the P/S-A/C bracket to the engine.
Does anyone have a part number, or know the size?
#46
Rotary Enthusiast
Here's the p/n N249-10-614. Looks like it's NLA from Mazda. I think those are fine thread M10 studs. Your best bet is to verify thread size/pitch/length and order some studs from either Belmetric or McMaster-Carr. Belmetric may even have a store just north of Boston.
