is it for looks ...or is it better than the fc



If you search, there are people with before and after dyno sheets. You gain more torque on the upper end.
Thanks Robert



Back to back dyno runs have shown up to 20ft/lbs torque and horsepower with just changing to the FD UIM.

Check this thread for yourself

https://www.rx7club.com/2nd-generation-specific-1986-1992-17/conclusive-b2b-dyno-tests-fd-uim-fc-uim-655708/



I may be "halluncinating"here.
I just put the spacer on a S4 manifold.Port matched the Fd upper,bolted it down.
The only problem I can see is that I need a hard line for the Brakes.(Vacuum will come off the big nipple on the FD manifold)...anyways it is running.just needs tweakin.
it always helps if you Mark wiring..(I accidentally had my injector wires Swapped..crap!).



Anyone has theirs installed with power steering? I want to see what you guys used for the throttle body. The stock FD and Greddy ones are too angled.
I could cut the stock one at the flange but it's plastic. Cutting the Greddy will be a waste.



https://www.rx7club.com/showpost.php...&postcount=223

he fit the greddy elbow with power steering fine



Ahhh.... I see.
Thanks



This is the FD UIM that i am prepping to go onto my car. It started as a JDM fd uim - unpolished. I went with the jdm one b.c it does not have that extra crap on the bottom....not sure what that was for anyway. Outside has been polished. Its not super shiny in the pictures b.c of all the dust. Note to self: port the inside first THEN polish the outside. Keeps you from having to polish the outside twice. Double throttle holes have been welded. I welded up/chopped off some other crap on the mani that i was not using. All of the vacuum holes have been welded shut except for the 3 on the turbo side of the engine. I wanted to be able to see the nice shiny aluminum plugs that i am putting in there. I will be running tapping the UIM with a 3/8 NPT tap and running a -10 line to a vacuum manifold. The port job consisted of matching the throttle body/uim gasket. The only reason i can see that mazda put that center support between the secondary plates was to mount the dual throttle. Since i dont have that anymore, i chopped it out. I will be knife edging the rear of the throttle body.





What it used to look like courtesy of the the thread by mono4lamar:




To the people with JDM uims: did you notice a big glob of metal on the primary runner on the rear of the engine? It was right where the runner opened up in the the plenum from which the 2 primary runners split off. Seemed a wierd place for a blob of metal, it looked like it was cast in there. I just ground it off. One other thing, did anyone grind off the little nub of metal under where the stud for the idle air control is? I didn't know how much material was there so i just smoothed it out. I didn't want to have to plug another hole.

Any ideas on the best way of smoothing out where i got a bit over zealous with the sand paper roll on the gasket mating surface? I only F'd up once but it did put a few scratches on the mating face. Should i even bother smoothing it out? Will the gasket just squish into the little scratches and seal correctly anyway? Would a piece of 320 grit sandpaper on a piece of glass be a good starting point for smoothing it out? Should i try some sort of lapping compound?

All the porting was done with a file, sandpaper rolls and a 3" disc sander. If i were to do this again i would get some rotary files b.c the sand paper rolls are painfully slow for somethings.

Polishing was done with a file for the big bumps, 3" disc sander for angle grinder, sand paper rolls, 220 and 320 greaseless compounds on spiral sewn buffing wheels, tripoli compound on a spiral sewn wheel and white rouge on a loose wheel.

I got most of my supplies from Eastwood.com. Total cost was about $110 for all the buffing and sanding stuff. I bought the angle grinder and 3" sander attachment at harbor freight.

The manifold will be adapted by a spacer that i am having CNC'd. I did make a few extras....check the group buy interest thread, if i have enough interest ill make the s4 one as well. The spacer is meant to line up with the 2 gaskets. Here is the ProE rendering of it:



I have not gotten around to porting the tb yet. But here are a few before pics:

I am going to gasket/port match here




One quick question, how the hell do you get those god d@mn screws out of the tb. Mine are pretty stuck and all i am doing is F ing up the head of the screw. I just want to be able to strip off some of the crap that i dont need and mount my haltech TPS.

BTW, cost so far:
$55 JDM throttle body with out tps from Japan2LA
$75 JDM UIM from forum member
$11.29 FD UIM/LIM gasket from Mazdatrix
$3.87 S5 FC UIM/LIM gasket from Mazdatrix
-------------------
$145.16 (not including shipping from mazdatrix)
All that is left is to get the adapter plate, fabricate/buy an elbow and redo my cold side IC pipe.

The approximate cost of this swap (if you dont want the polished uim and you have your own tps) is $350 assuming you spend $5 on dremel bits for some port matching. If you need the FD tps it seems to cost about $20 more. Polished FD UIMs run around ~$200.

I got a bit long winded but i figured id show off what i have done and how i had done it. Also, yes i know the pictures look like they were taken in the 80s. Digital cameras dont like being left out when you are caught out in a storm when you are flats fishing.

Lee



wackaloo13 if you strip the screws, use some little vise grips to grab the head. replace with new ones



Could you send me that file? Please!



Cool, thnaks for the pics. You forgot to mention the price of the adapter kit and the s5 t2 lim. I'm just bitter because I tried selling my setup and people were lowballing me.



Sorry...Not giving that file out. I wasted way to much time getting things right (and i already know on thing that is wrong with it...doh... i forgot the relief for the bolts for the primary rail)

Price will be ~100. If the current design works, making one for a s4 or one that requires no port matching is trivial and i will do so if there is enough demand.



G/l with that. You will find out that is cost more than what you are asking. I have been making theses for years. The price of aluminum , hardware, and CNC time cost more than you are asking.
Thanks Robert



I guess my cnc guy is cheap . It appears the hardware will make things about $15 more. I guess price will be around $115.



If you are making it just out of a flat stock of a aluminum with no design than yes it is cheap. But I perfer to do it with taste and design.
Thanks Robert



Yours looks awesome! When I do the FD UIM mod, I'll pay the extra cash to buy yours because of the way it's designed.



This is what I mean. Im just trying to help you design and understand what it takes to make a proper adaptor.
Thanks Robert



Thanks!!! Let me know when you are ready.
Thanks Robert



the top of the adapter plate will line up with the FD uim gasket. It then tapers and the bores shift to align with the FC uim gasket. This not just a 2D part. I did elect to not contour it against the FD uim as you did because it makes it more expensive.

Again, i made this to fit my car and i had a few extra made b.c i though people might want them, if you dont like it there are options for you to use. FC3S91's adapter plate looks quite well thought out. I would have bought his if i did not get satisfaction from designing and fabricating stuff for my own car.



I hear that. Thats why most of the parts on my car are custom made.
Thanks Robert

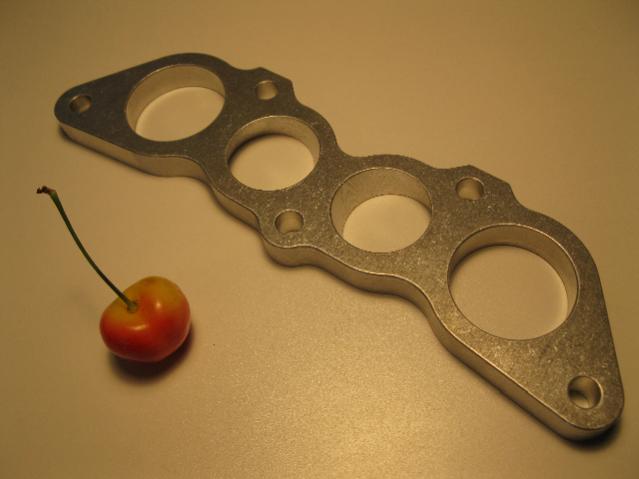

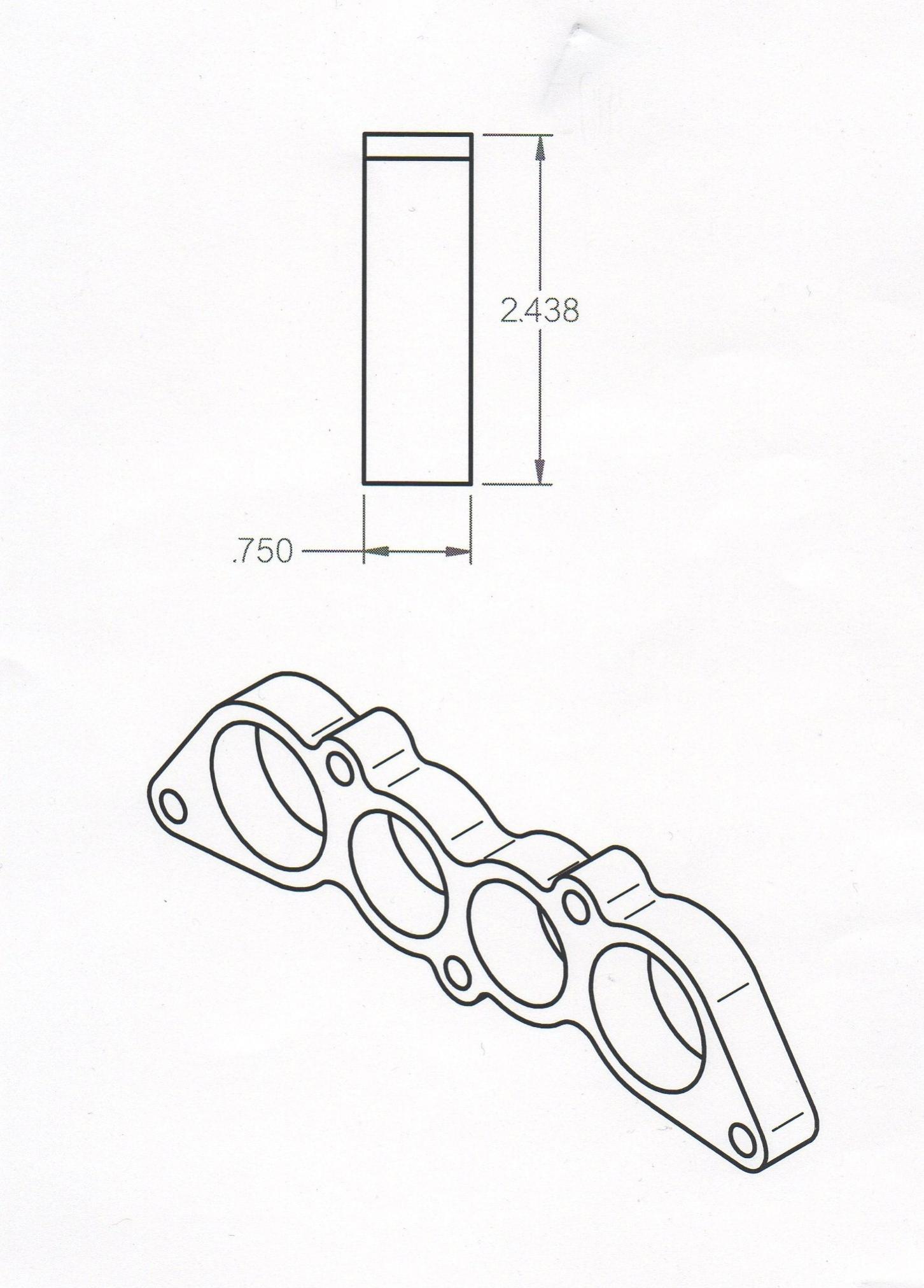

i drew and made my own at work, its actually going in the mill tomorrow. best part about it is im making it for FREE.....i love being able to use the cnc as i please. it has the shape of the lim and the holes are gasket matched and taperd. like you guys said there is so much more satifaction for making your own than buying. next on my list is hub centric wheel spacers



Looks good!!! Make sure you have enough material so the gasket sits on the whole adaptor.
Thanks Robert



thanks man, there should be plenty



looks good mate, but since you can, put some groove's round each runner so you can use O-ring's instead of 2 gaskets. Just a easier design for future use



didnt get to finish the first post, my roommate wanted to use my comp. this one is more of my prototype, right now its machined down to square dimensions with the 5 mounting holes. the shape and ports will be done tomorrow hopefully. i totaly get the o-ring idea, woulda been nice to incorporate that into the first try. ill have to go hunt down the right sized o-rings and draw them up on the CAD file. thanks for the input
