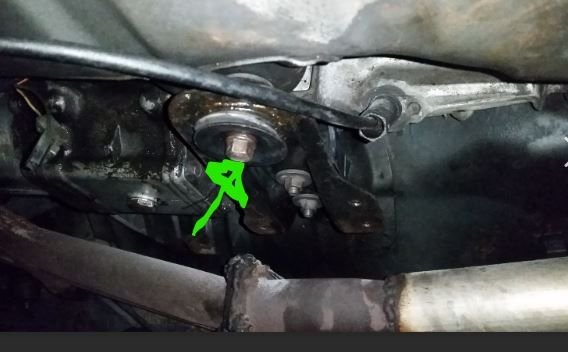

Drive shaft hits the e-brake thing in the tunnel. So it the trans mount needs to be lowered. I tried washers, but it still hits. Next I'm trying replacing the weird cylinder with two studs on each side with a longer bolt, washers, and nuts.

What is the thread size?

thread size? d-shaft hits e-brake guide in tunnel, so need to lower the trans mount bracket.

Does the replacement bolt have to be a super strong alloy that can be found at h-depot or lowes ?



Can you post a pic of the e-brake hitting?



drive shaft hits the bracket that the e-brake cable is guided through. there are wear marks on the drive shaft, and the e brake guide is shiny from wear

the car had a bad wreck and was rebuilt way before I bought it.



threads= m10 1.25 Home depot, lowes, autozone, and o'reily's don't have them in stock.



I have been trying to find new ones as well, either SS or Grade 8, but no one sells fine thread metric! Sucks!



I searched everywhere for the m10 1.25 nuts and resorted to Amazon.



I use McMaster-Carr or Belmetric when I need specific hardware.



tractor supply company has some m10 1.25, but not long enough.



McMaster has it ! thanks ! !



d-shaft hits e-brake cable bracket in tunnel



is putting spacers in the rear coils a good idea?
