Strut removal tool? or tech?
#1
Strut removal tool? or tech?
Gents:
80 SA with OE Front strut insert I want to remove.
Contemplated a neanderthal hammer-and-drver to try to knock out, but seems counter productive
Top threaded "plate" that holds assy in place has 2 notches for a mystery-tool that presume slides over shock and engages the notches, then rotate off.
Does anyone happen to know of the specific tool and a supplier? Or a non-destructive technique to remove?
Thanks!
Stu A
80GS
AZ
80 SA with OE Front strut insert I want to remove.
Contemplated a neanderthal hammer-and-drver to try to knock out, but seems counter productive
Top threaded "plate" that holds assy in place has 2 notches for a mystery-tool that presume slides over shock and engages the notches, then rotate off.
Does anyone happen to know of the specific tool and a supplier? Or a non-destructive technique to remove?
Thanks!
Stu A
80GS
AZ
#2
3D Printed
So, I just used a pipe wrench....
Probably not the answer you wanted to hear, but it works. Only leaves a few teeth marks on the "nut" and otherwise is pretty slick. I'm sure there's a special tool for it that matches the notches, but it's probably an arm and a leg from some far off land. Might be available through Mazda if you had the part number, although unfortunately I do not that have either. j9 might though; guess we'll find out.
Oh, ok well I just realized that while I did this work for my SA, the parts I was working with were actually S2/3 parts. Might not have the same system in that case, so maybe all of this is of little use at all! Sorry for the misinformation if that's the case - hopefully it's not... Do the SA insert "caps/nuts" extend beyond the tube at all (speaking in regards to the diameter)? Because if so a pipe wrench should work fine, although if not then, well, sounds like it may be neanderthal time.
Probably not the answer you wanted to hear, but it works. Only leaves a few teeth marks on the "nut" and otherwise is pretty slick. I'm sure there's a special tool for it that matches the notches, but it's probably an arm and a leg from some far off land. Might be available through Mazda if you had the part number, although unfortunately I do not that have either. j9 might though; guess we'll find out.
Oh, ok well I just realized that while I did this work for my SA, the parts I was working with were actually S2/3 parts. Might not have the same system in that case, so maybe all of this is of little use at all! Sorry for the misinformation if that's the case - hopefully it's not... Do the SA insert "caps/nuts" extend beyond the tube at all (speaking in regards to the diameter)? Because if so a pipe wrench should work fine, although if not then, well, sounds like it may be neanderthal time.
The following users liked this post:
JOE68 (11-14-20)
#3
Out In the Barn
iTrader: (9)
http://www.foxed.ca/rx7manual/manual...cial_Tools.pdf
Page S:5 shows a remover, damp hook nut. Basically a ring with nubs and a couple of handles.
https://www.rx7club.com/1st-generati...serts-1146137/
Page S:5 shows a remover, damp hook nut. Basically a ring with nubs and a couple of handles.
https://www.rx7club.com/1st-generati...serts-1146137/
#4
Rotary Fan
#5
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,855
Received 2,617 Likes
on
1,854 Posts
go to the hardware store and buy the comically large crescent wrench, that works very nicely.
#7
Out In the Barn
iTrader: (9)
Something like this. Would need to get the size and spread of the nubs. This is just example. Do a search for Spanner Socket
https://www.homedepot.com/p/Sunex-2-...0206/301439326
https://www.homedepot.com/p/Sunex-2-...0206/301439326
Trending Topics
#8
Hey, that is not bad! Looks like it would slip over the center shock-rod, to engage in the notches (if width-appropriate to engage them?). Then the Q is, how to use the tool? ie what to grip it with to rotate it and the nut? This looks like a socket-wrench tool, and the shock-rod would not permit using a socket wrench...?
Stu A
80GS
AZ
Stu A
80GS
AZ
#9
Out In the Barn
iTrader: (9)
Another option.
https://www.mcmaster.com/gland-nut-w...on-the-face-9/
https://www.mcmaster.com/gland-nut-w...on-the-face-9/
https://www.amazon.com/OTC-7463-Small-Universal-Wrench/dp/B000I1MC7A/ref=pd_lpo_263_t_0/130-6332112-3323462?_encoding=UTF8&pd_rd_i=B000I1MC7A&pd_rd_r=9826207c-9791-41d1-a9dd-b19039ca3084&pd_rd_w=1BcGE&pd_rd_wg=sxlhD&pf_rd_p=7b36d496-f366-4631-94d3-61b87b52511b&pf_rd_r=27E2AZG20YR61HXDZNBG&psc=1&refRID=27E2AZG20YR61HXDZNBG
#10
Nice, REPU! esp with option to use better-leverage bar. I ordered (b4 seeing this ;P )
the 'normal' handled-version. $10. dammit. This is better.
Also ordered THIS
...to try as well. Notch spacing looks to match, will just grind off extra pair.
Fingers crossed!
Stu A
80GS
AZ
the 'normal' handled-version. $10. dammit. This is better.
Also ordered THIS
...to try as well. Notch spacing looks to match, will just grind off extra pair.
Fingers crossed!
Stu A
80GS
AZ
#11
Gents-
follow up here -
SUCCESS in removing Gland Nut (thanks KansasCityREPU! your McMaster tool - above - was the ticket!)
So. The Nut is out, but the SHAFT remains:

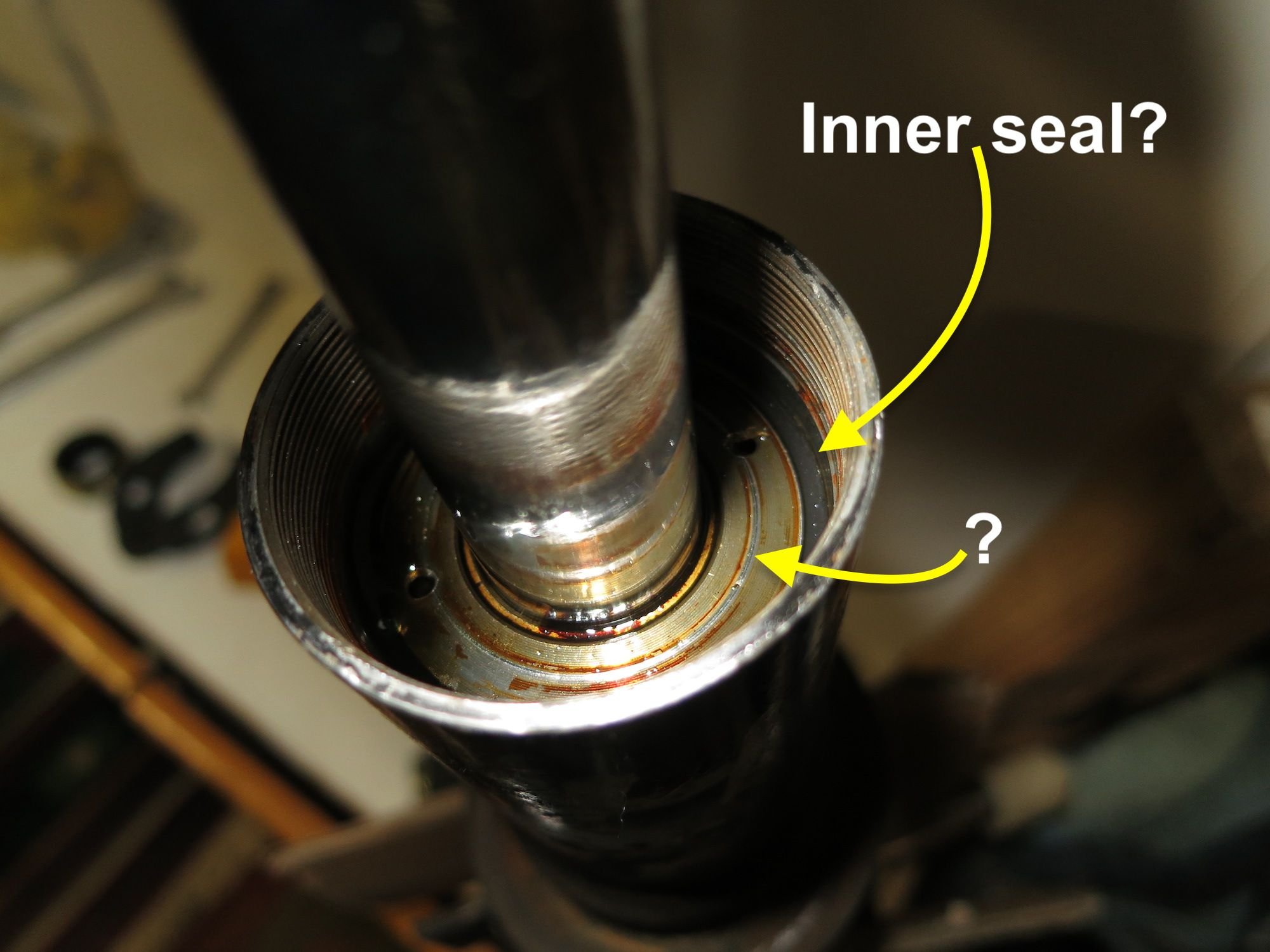

Here is the insert/assy still in the strut. Do not know if this is OE assy (which I recall is numerous separate pieces) or a complete-unit insert. "Looks" OE to me.
So. How do I remove THIS? Just keep yanking? I see a rubber seal...
and the surrounding "ring" ("?") with 2 holes for...fluid to move? or is this something I can poke a tool into to help remove?
??
Stu A
80GS
AZ
follow up here -
SUCCESS in removing Gland Nut (thanks KansasCityREPU! your McMaster tool - above - was the ticket!)
So. The Nut is out, but the SHAFT remains:
Here is the insert/assy still in the strut. Do not know if this is OE assy (which I recall is numerous separate pieces) or a complete-unit insert. "Looks" OE to me.
So. How do I remove THIS? Just keep yanking? I see a rubber seal...
and the surrounding "ring" ("?") with 2 holes for...fluid to move? or is this something I can poke a tool into to help remove?
??
Stu A
80GS
AZ
#12
My wife bought me 2 RX-7s
Join Date: Aug 2001
Location: Saskatoon, Saskatchewan, Canada
Posts: 2,328
Likes: 0
Received 2 Likes
on
2 Posts
Gents-
follow up here -
SUCCESS in removing Gland Nut (thanks KansasCityREPU! your McMaster tool - above - was the ticket!)
So. The Nut is out, but the SHAFT remains:
Here is the insert/assy still in the strut. Do not know if this is OE assy (which I recall is numerous separate pieces) or a complete-unit insert. "Looks" OE to me.
So. How do I remove THIS? Just keep yanking? I see a rubber seal...
and the surrounding "ring" ("?") with 2 holes for...fluid to move? or is this something I can poke a tool into to help remove?
??
Stu A
80GS
AZ
follow up here -
SUCCESS in removing Gland Nut (thanks KansasCityREPU! your McMaster tool - above - was the ticket!)
So. The Nut is out, but the SHAFT remains:
Here is the insert/assy still in the strut. Do not know if this is OE assy (which I recall is numerous separate pieces) or a complete-unit insert. "Looks" OE to me.
So. How do I remove THIS? Just keep yanking? I see a rubber seal...
and the surrounding "ring" ("?") with 2 holes for...fluid to move? or is this something I can poke a tool into to help remove?
??
Stu A
80GS
AZ
I _might_ have some pictures from back then on a hard drive somewhere, if I find anything that looks useful, I'll post 'em.
So far as removing the insert goes, I assume you're replacing them with KYBs or similar, right? If so, I assume that a big vice grip on the strut rod at an angle, with the strut body (or appropriate wood block) used as a fulcrum would pop that sucker out of there pretty darn quick.
