Header ID

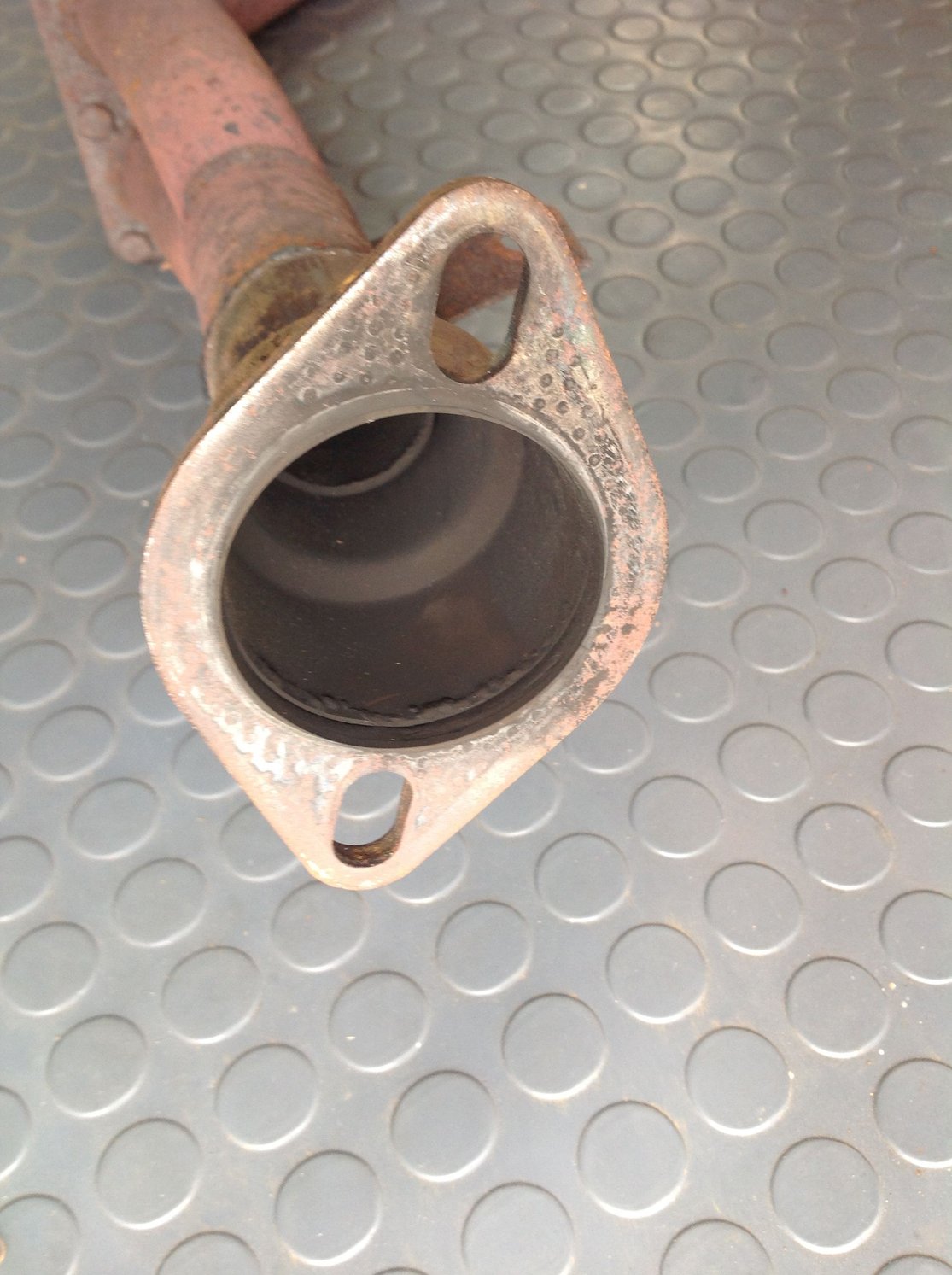

Anybody recognize what brand of header this is? Came with some other SA parts. Thanks in advance.








Banzai is offline
Reply Like
Old 06-16-21, 11:39 PM
  #2
Moderator

iTrader: (2)

rxtasy3's Avatar

Join Date: Jun 2002
Location: Spartanburg, SC
Posts: 9,320
Likes: 0
Received 258 Likes on 239 Posts
looks like a RB 12a header made to work on a 13b.
rxtasy3 is offline
Reply Like
Old 06-17-21, 05:47 AM
  #3
Have RX-7, will restore


iTrader: (91)

mazdaverx713b's Avatar

Join Date: Oct 2003
Location: Ohio
Posts: 21,714
Received 1,053 Likes on 892 Posts

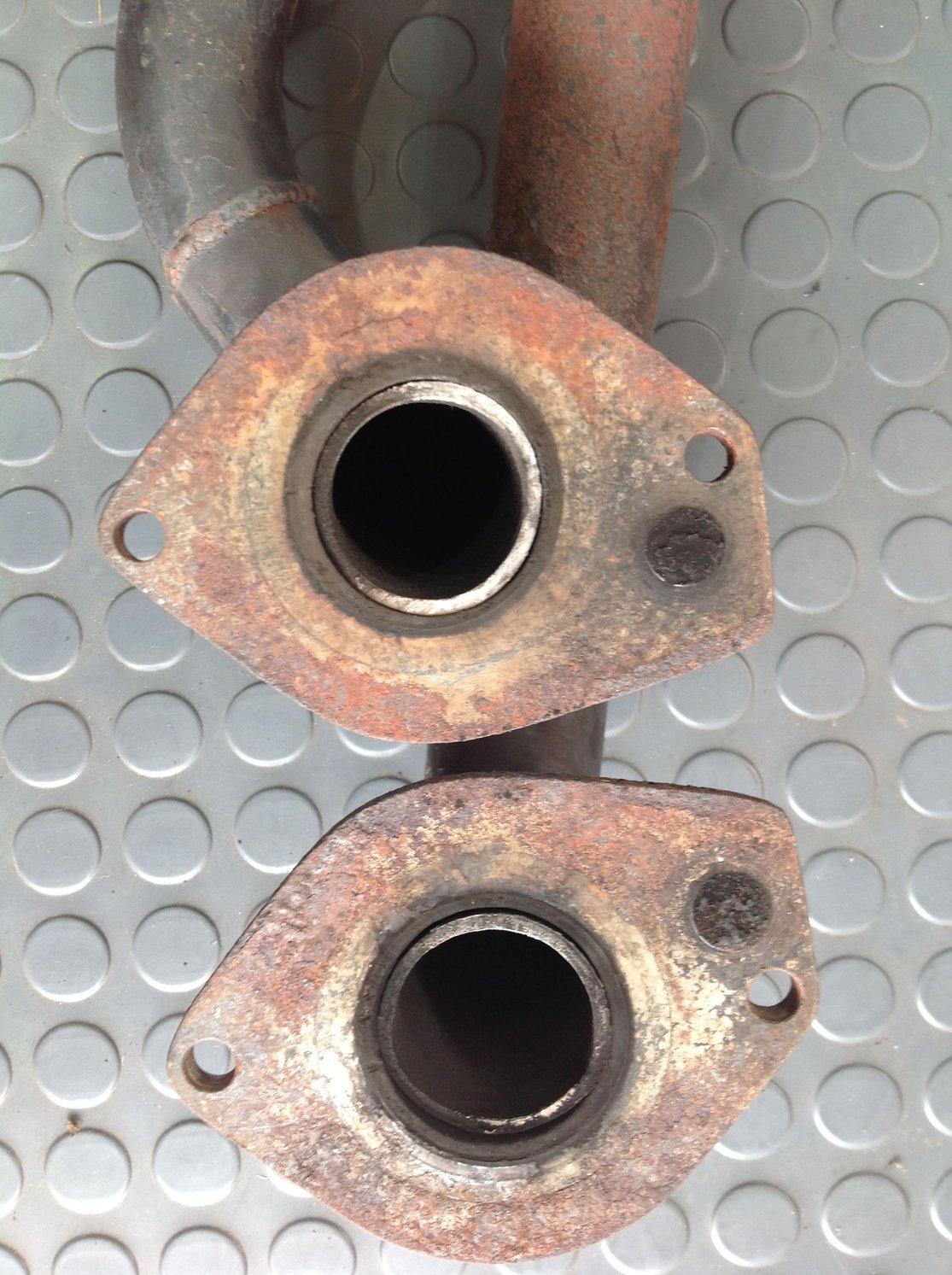

It was used on an early car for sure. Note the two round carbon spots on the flange. So we know it likely fits an early 12A. As far as a brand, I'm not sure. Rotary Engineering made some early stuff but I'm not certain this is their work.
mazdaverx713b is offline
Reply Like
Old 06-17-21, 08:19 AM
  #4
Moderator

iTrader: (3)

j9fd3s's Avatar

Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,849
Received 2,612 Likes on 1,852 Posts
Originally Posted by mazdaverx713b
It was used on an early car for sure. Note the two round carbon spots on the flange. So we know it likely fits an early 12A. As far as a brand, I'm not sure. Rotary Engineering made some early stuff but I'm not certain this is their work.
i would have said Rotary Engineering too, they used that goofy 6 bolt flange too.
j9fd3s is offline
Reply Like
The following users liked this post:
mazdaverx713b (06-18-21)
Old 06-17-21, 09:59 AM
  #5
Happy Rotoring!

Thread Starter
iTrader: (13)

Banzai's Avatar

Join Date: Dec 2007
Location: Iowa
Posts: 2,307
Received 378 Likes on 247 Posts
As far as I know, Racing Beat has always cut their initials into the mounting flange. Was hoping that someone might have the same piece who can verify the manufacturer. Could be a R/E part, I'll try doing a little digging in that direction to see what I can find. Thanks.
Banzai is offline
Reply Like
Old 06-17-21, 10:18 AM
  #6
Full Member

Steve Adleman's Avatar

Join Date: Oct 2020
Location: western Illinois
Posts: 190
Received 16 Likes on 14 Posts
considering selling it?
Steve Adleman is offline
Reply Like
Old 06-17-21, 12:41 PM
  #7
Slowly getting there...
iTrader: (1)

Maxwedge's Avatar

Join Date: Jun 2018
Location: SE PA
Posts: 1,638
Received 352 Likes on 259 Posts
There is a RE 12a header on epay right now. It has very similar flanges as yours (both ends) but not the 2-into-1 collector piece.




Last edited by Maxwedge; 06-17-21 at 01:46 PM.
Maxwedge is offline
Reply Like
The following users liked this post:
mazdaverx713b (06-18-21)

Trending Topics

Old 06-17-21, 01:00 PM
  #8
Senior Member

iTrader: (6)

jdmminot's Avatar

Join Date: Jul 2010
Location: Minot, ND
Posts: 278
Received 3 Likes on 2 Posts
I third the Rotary Engineering- looks identical to mine. The heavy-wall steel should clean up nicely.

https://www.rx7club.com/1st-generati...stion-1091214/
jdmminot is offline
Reply Like
Old 06-17-21, 01:14 PM
  #9
Waffles - hmmm good

iTrader: (1)

t_g_farrell's Avatar

Join Date: Jul 2004
Location: Lake Wylie, N.C.
Posts: 8,783
Received 282 Likes on 232 Posts
I used to have a RE header, looked a like this on. The 2 to one after the 6 bolt dual flange is fabricated by someone else.
t_g_farrell is offline
Reply Like
Old 06-18-21, 05:49 AM
  #10
Have RX-7, will restore


iTrader: (91)

mazdaverx713b's Avatar

Join Date: Oct 2003
Location: Ohio
Posts: 21,714
Received 1,053 Likes on 892 Posts
Its definitely old and appears to be well made. I agree that the collector is home made.
mazdaverx713b is offline
Reply Like
Old 07-10-21, 05:34 PM
  #11
Old [Sch|F]ool


peejay's Avatar

Join Date: May 2001
Location: Cleveland, Ohio, USA
Posts: 12,507
Received 416 Likes on 296 Posts
A side note, a Rotary Engineering header will NOT bolt up to a Racing Beat long primary midpipe without a lot of work.
Thickwall tube is very hard to bend!
peejay is offline
Reply Like
Old 07-11-21, 10:54 AM
  #12
Senior Member

raven12aFB's Avatar

Join Date: Jan 2018
Location: Allen, Texas
Posts: 601
Received 115 Likes on 100 Posts
I think that is an old RB Road Race header...
raven12aFB is offline
Reply Like
Old 07-12-21, 12:25 AM
  #13
Rotary Enthusiast

iTrader: (17)

Stevan's Avatar

Join Date: Sep 2003
Location: Jax, FL.
Posts: 1,041
Likes: 0
Received 1 Like on 1 Post
IIRC, the 2 middle bolt holes on the outlet flange are offset opposite on RB vs RE, another reason it won't bolt to a RB mid section.
The RE tubes don't turn as sharply as the RB at the inlet.
Here's an NOS RE I sold years ago.



Stevan is offline
Reply Like
Old 07-12-21, 11:45 AM
  #14
Old [Sch|F]ool


peejay's Avatar

Join Date: May 2001
Location: Cleveland, Ohio, USA
Posts: 12,507
Received 416 Likes on 296 Posts
Originally Posted by Stevan
IIRC, the 2 middle bolt holes on the outlet flange are offset opposite on RB vs RE, another reason it won't bolt to a RB mid section.
The RE tubes don't turn as sharply as the RB at the inlet.
Here's the thread where I made it fit.

https://www.rx7club.com/build-thread...system-990786/
