Road Race Header Flange Question

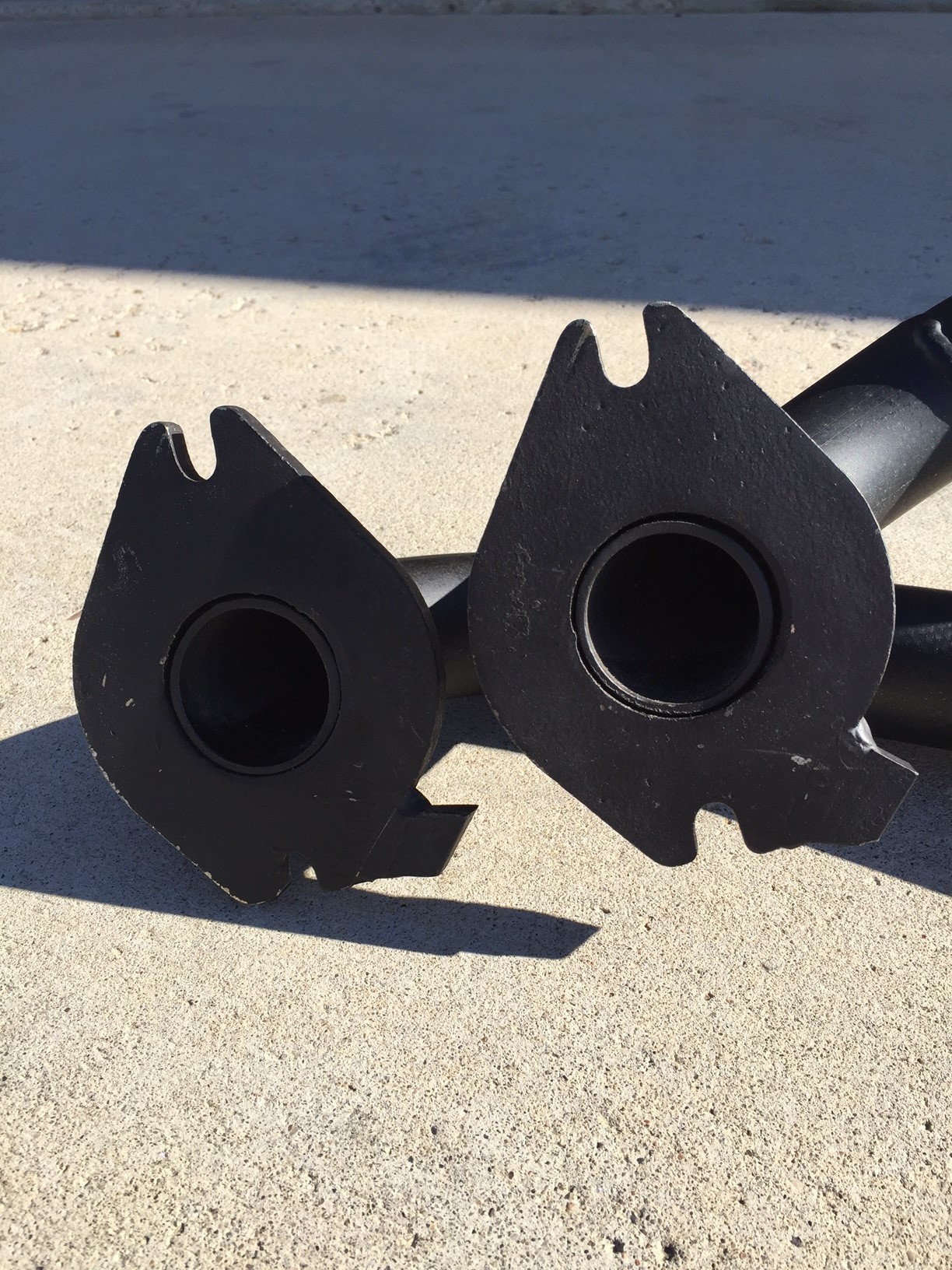

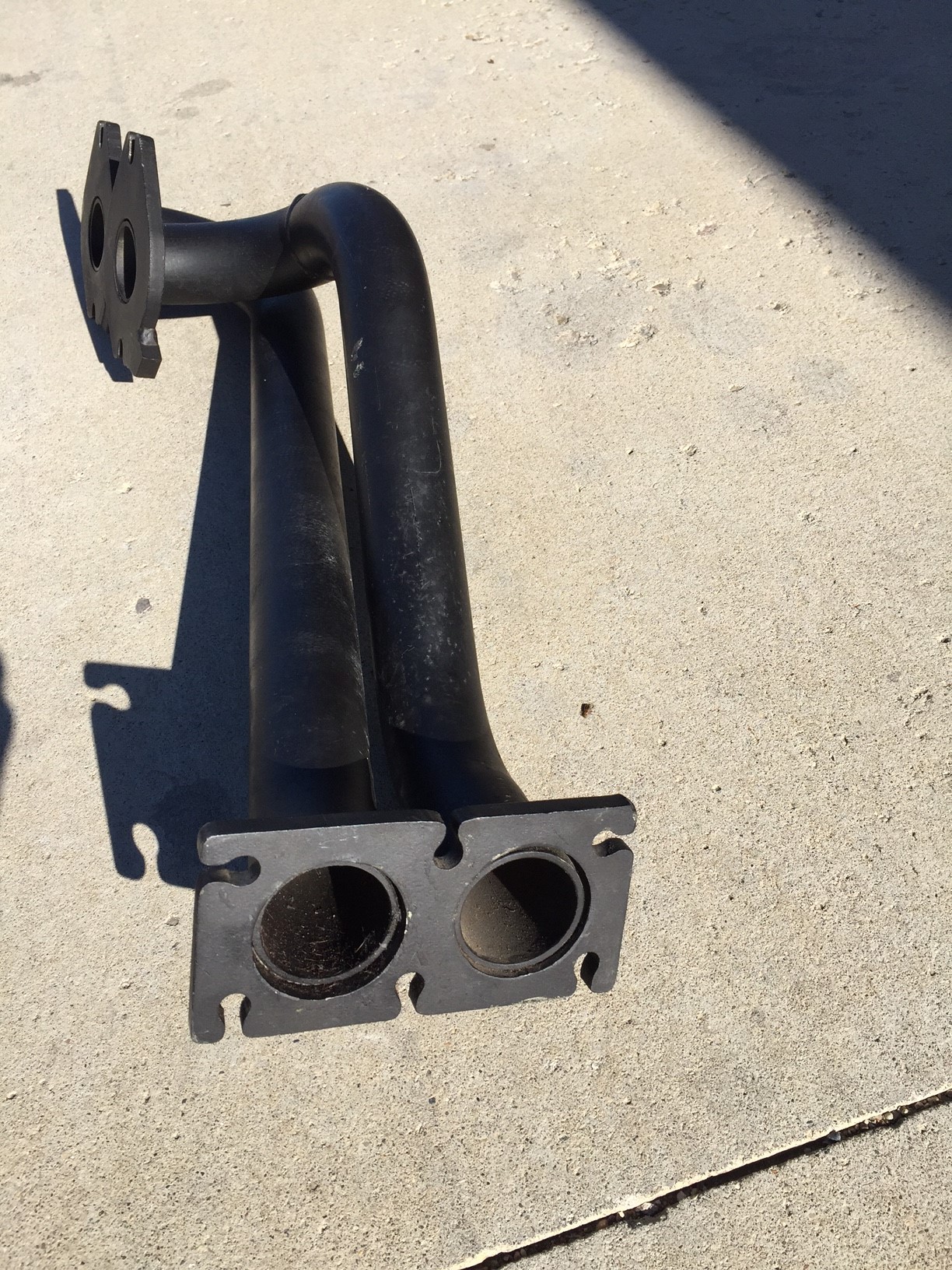

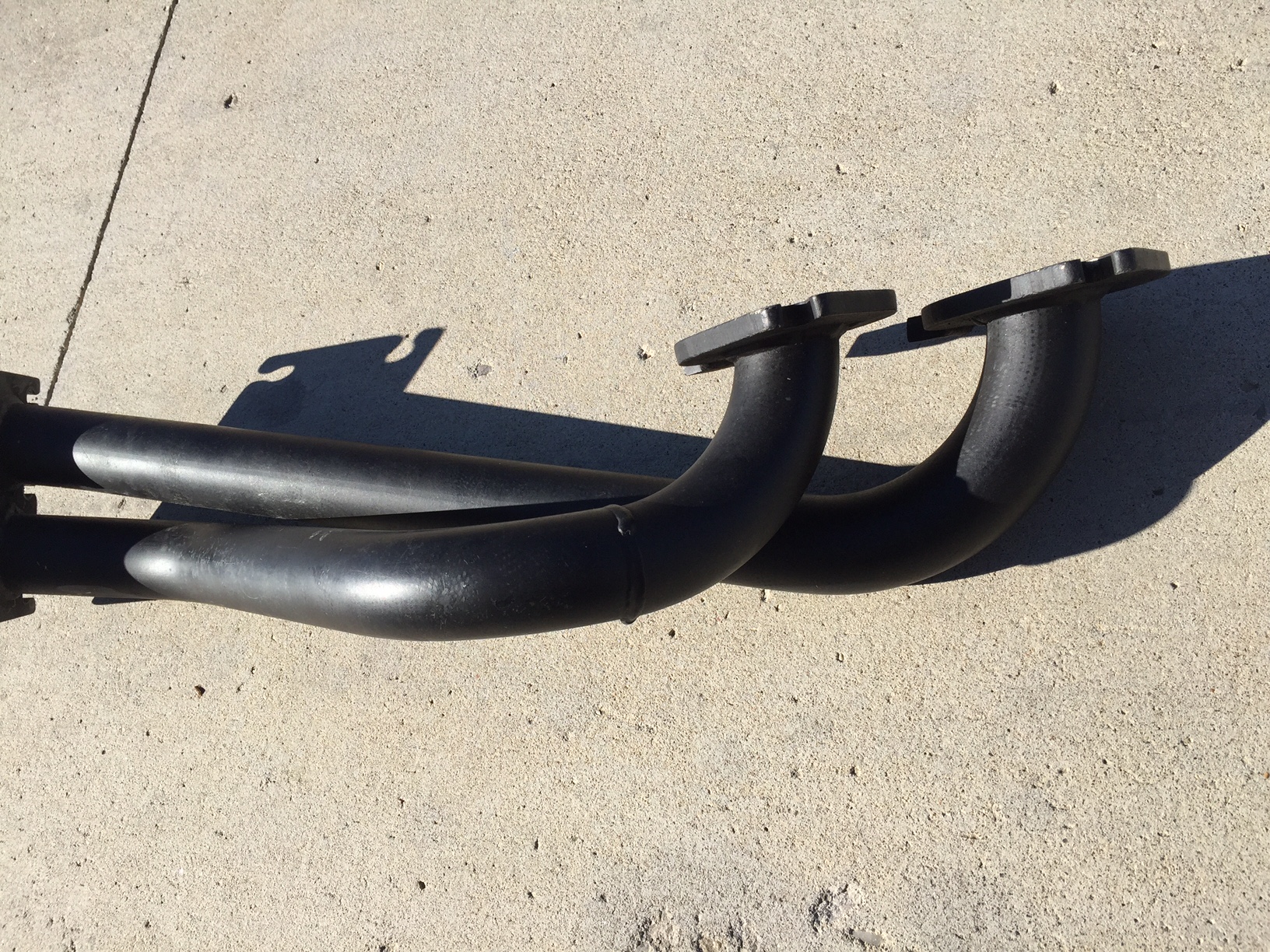

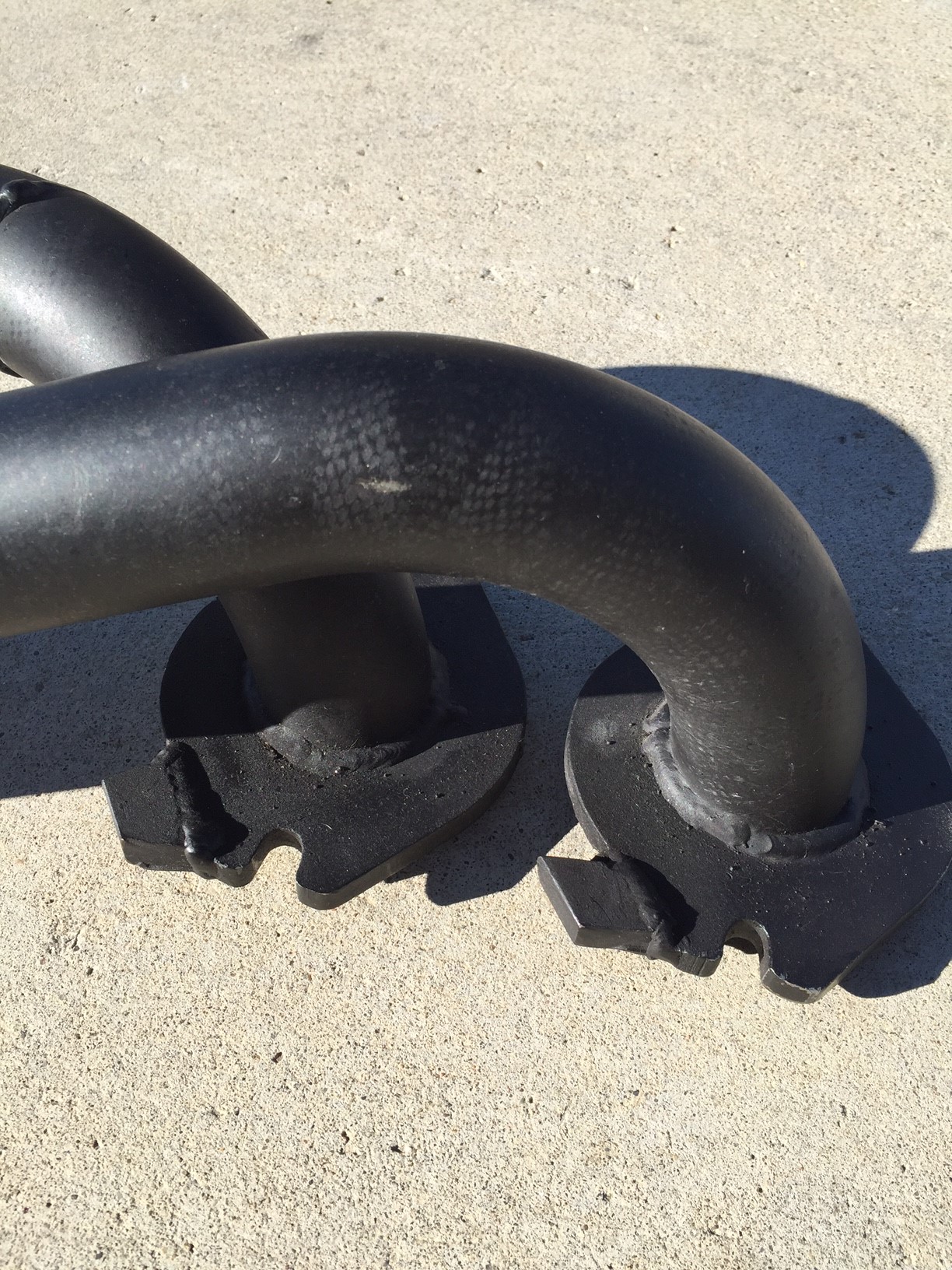

Recently I purchased this Rotary Engineering header for my 85 gsl. In the past someone has welded extra tabs onto the flanges. I would like to cut them off if they are not essential. Are these necessary for use on my 12a? Pictures are attached below. Thanks, Justin.
Attached Thumbnails Road Race Header Flange Question-img_0421.jpg   Road Race Header Flange Question-img_0422.jpg   Road Race Header Flange Question-img_0423.jpg   Road Race Header Flange Question-img_0424.jpg
Reply
Old Oct 22, 2015 | 02:12 PM
  #2
TheRX7Project's Avatar
Daily Beaten
Tenured Member 10 Years
iTrader: (3)

Joined: May 2008
Posts: 592
Likes: 3
From: Milwaukee
I've never seen that before, I don't know why they would be essential.
Reply
Old Oct 22, 2015 | 04:50 PM
  #3
Rx Seven's Avatar
Can You Wankel?
Tenured Member 15 Years
iTrader: (12)

Joined: Sep 2005
Posts: 1,040
Likes: 1
From: Bay Area

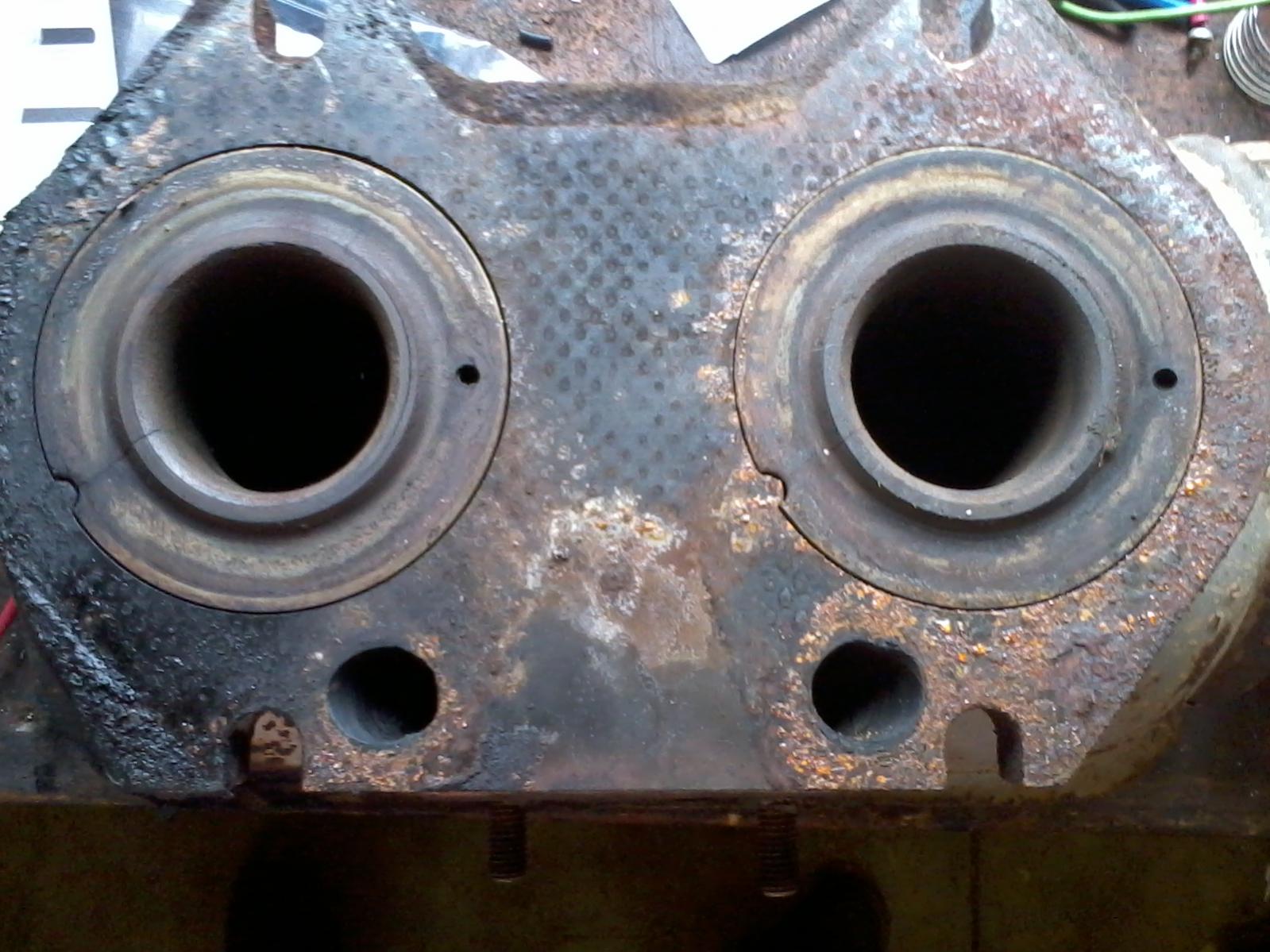

I first thought that hose tabs where most likely welded on for a person who was using these headers on an early 12a that originally had a thermal reactor (SA's 79-80 rx7's). But both of the tabs would need to be in the middle so that is not the reason for these tabs. The picture below shows the wholes that I'm referring to.

Maybe the previous owner was getting an exhaust leak toward that side because of the design of the header flange and thought this would help solve the problem. So they might be unnecessary for you but if you left them on I don't think it would hurt anything. Its up to you.
Attached Thumbnails Road Race Header Flange Question-photo127.jpg

Last edited by Rx Seven; Oct 22, 2015 at 04:52 PM.
Reply
Old Oct 22, 2015 | 05:08 PM
  #4
Jeff20B's Avatar
Lapping = Fapping
Tenured Member 15 Years
iTrader: (13)

Joined: Aug 2001
Posts: 15,725
Likes: 91
From: Near Seattle
Two front thermal reactor rotor housings were probably in the previous engine, so he had to weld the tabs on. That makes sense to me.
Reply
Old Oct 24, 2015 | 01:21 PM
  #5
jdmminot's Avatar
Thread Starter
Senior Member
Tenured Member: 10 Years
Liked
Loved
iTrader: (6)

Joined: Jul 2010
Posts: 289
Likes: 6
From: Minot, ND
Thanks all for the responses. As always, a plethora of information! I have never researched much about thermal reactors, but will get there some day if/when I get a SA. Pretty cool that these tabs can tell so much about the previous engine it was on. I am going to cut them off carefully to regain the symmetry of the flanges, rotary exhaust feng shui!
