alignment...half serious...
#1
2stroke1971 (Neil)
Thread Starter
Join Date: Oct 2012
Location: east coast
Posts: 121
Likes: 0
Received 0 Likes
on
0 Posts
alignment...half serious...
As i have been replacing the steering components and adjusting the steering box...my fb is alot less sloppy...but it needs an alignment. that's the only thing i don't do myself..
I can see the conversation now with the counter person at pep boys.
"If you take too long to get to it, you will have to pump the pedal a few times, push it to the floor, pull the choke out, crank it, ignore the giant puff of smoke, immediately trim the choke back to a non damage inducing rate, give it a moment,and then pull it into the bay."
Jeez.
I can see the conversation now with the counter person at pep boys.
"If you take too long to get to it, you will have to pump the pedal a few times, push it to the floor, pull the choke out, crank it, ignore the giant puff of smoke, immediately trim the choke back to a non damage inducing rate, give it a moment,and then pull it into the bay."
Jeez.
#3
Waffles - hmmm good
iTrader: (1)
Or go to a real tire place that has folks that know how to do an alignment. A good alignment is
worth money. If they let you sit in the car when they do it thats ideal but some places won't due
to liability reasons.
worth money. If they let you sit in the car when they do it thats ideal but some places won't due
to liability reasons.
#4
Censored
iTrader: (14)
A good alignment may be worth the money, but I've had too many bad one's with my RX-7's, it's as if they need to screw it up because it's a rotary.
I use the string method, it's free, easy and with a little fussing you can get it just right, better than anything I could ever get at a tire shop.
To wrap your string, tie it to the right front tow hook, wrap it axle height back across the passenger's side wheels, around the back and then forward on the driver's side wheels, then tie it off on the driver's side tow hook, nice and tight.
The string should just touch the front wheels on both the front and back edges when you have it pointed straight ahead. Then I give it just a bit of tow in, about 1/8".
The tricky part is getting your steering wheel perfectly centered, this can take a bit of back and forth adjusting if it's really out of whack.
I use the string method, it's free, easy and with a little fussing you can get it just right, better than anything I could ever get at a tire shop.
To wrap your string, tie it to the right front tow hook, wrap it axle height back across the passenger's side wheels, around the back and then forward on the driver's side wheels, then tie it off on the driver's side tow hook, nice and tight.
The string should just touch the front wheels on both the front and back edges when you have it pointed straight ahead. Then I give it just a bit of tow in, about 1/8".
The tricky part is getting your steering wheel perfectly centered, this can take a bit of back and forth adjusting if it's really out of whack.
#5
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,780
Received 2,565 Likes
on
1,824 Posts
the string method, or toes plates are great. top tip, the toe plate can just be any old flat thing, with a small cut in it for the tape measure.
for the MGB, which is more approximate, i just eyeballed it. my brothers VW which is a giant turd, and is missing an adjuster, i just lined one side up with a really long cardboard box, and took pics and sent them to my friend until he said it looked right.
for the MGB, which is more approximate, i just eyeballed it. my brothers VW which is a giant turd, and is missing an adjuster, i just lined one side up with a really long cardboard box, and took pics and sent them to my friend until he said it looked right.
#7
2stroke1971 (Neil)
Thread Starter
Join Date: Oct 2012
Location: east coast
Posts: 121
Likes: 0
Received 0 Likes
on
0 Posts
Thanks guys!
I may give it a go myself. I could always do laps around the parking lot.
When I had the slopped out idler arm, bad tie rod and loose steering box, the wheels where dynamically auto aligned...they had enough play to go where they wanted to, and so the sheer force of motion made them more or less line up. Thats sort of like when my old Geo never needed an oil change--it was continuously refreshed as it leaked out and was topped up.
I may give it a go myself. I could always do laps around the parking lot.
When I had the slopped out idler arm, bad tie rod and loose steering box, the wheels where dynamically auto aligned...they had enough play to go where they wanted to, and so the sheer force of motion made them more or less line up. Thats sort of like when my old Geo never needed an oil change--it was continuously refreshed as it leaked out and was topped up.
Trending Topics
#9
Senior Member
iTrader: (1)
Join Date: Oct 2012
Location: Ontario
Posts: 386
Likes: 0
Received 0 Likes
on
0 Posts
Unfortunately you have to lower the car on a set of slip plates every time you make an adjustment to check how it sits with the suspension at resting height. Its kinda a pain in the *** but the last people i trusted my car with to do an alignment managed to make a great mess out of it all...
#10
Censored
iTrader: (14)
"What do you do, dig a hole to work in or something? "
You just go under there and loosin the nuts on the tie rod ends DD, no big deal.
You don't even need to jack the sucker up if you weigh less than 175 lbs, jst reach under there and get it.
If you are fatter than that, you might need some help with the jack, but even a fat guy can go in there and do the minor adjustment with the car on the ground.
If you have a flat pavement to work on, that's cool. But it's not really a problem in a gravel driveway if you pick a level spot.
You just go under there and loosin the nuts on the tie rod ends DD, no big deal.
You don't even need to jack the sucker up if you weigh less than 175 lbs, jst reach under there and get it.
If you are fatter than that, you might need some help with the jack, but even a fat guy can go in there and do the minor adjustment with the car on the ground.
If you have a flat pavement to work on, that's cool. But it's not really a problem in a gravel driveway if you pick a level spot.
Last edited by ray green; 04-30-15 at 07:02 PM.
#11
HeyHeyHey..Its the Goose
iTrader: (3)
You could drive up on some ramps. That would hold the suspension accurate. But I still say just take it to a shop. Then get the read outs so you know if you should mess with the strut mount plates or not. Because there is NO way a regular mechanic is gonna mess with them.
#12
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,780
Received 2,565 Likes
on
1,824 Posts
You could drive up on some ramps. That would hold the suspension accurate. But I still say just take it to a shop. Then get the read outs so you know if you should mess with the strut mount plates or not. Because there is NO way a regular mechanic is gonna mess with them.
#13
Always Wanting to Learn
iTrader: (49)
I worked in a shop for a few months so I thought I'd be bringing my FB in for an alignment once it's finished.
Then I remembered that I'm going to have an SE rear end with an FC front subframe - imagine me trying to tell the shop, "Well it's an 84 chassis, with an 88 front subframe, with an SE rear end - so I don't know what you should put it in the computer as..."
Then I remembered that I'm going to have an SE rear end with an FC front subframe - imagine me trying to tell the shop, "Well it's an 84 chassis, with an 88 front subframe, with an SE rear end - so I don't know what you should put it in the computer as..."
#14
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,780
Received 2,565 Likes
on
1,824 Posts
I worked in a shop for a few months so I thought I'd be bringing my FB in for an alignment once it's finished.
Then I remembered that I'm going to have an SE rear end with an FC front subframe - imagine me trying to tell the shop, "Well it's an 84 chassis, with an 88 front subframe, with an SE rear end - so I don't know what you should put it in the computer as..."
Then I remembered that I'm going to have an SE rear end with an FC front subframe - imagine me trying to tell the shop, "Well it's an 84 chassis, with an 88 front subframe, with an SE rear end - so I don't know what you should put it in the computer as..."
#15
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,780
Received 2,565 Likes
on
1,824 Posts
we are running the sideshow to the IMSA race at laguna this weekend, the Mazda race of NASA champions. we had some time to walk around the pits yesterday, and i was a little surprised that every single team used string to align their cars. i guess i though someone would use toe plates or something.

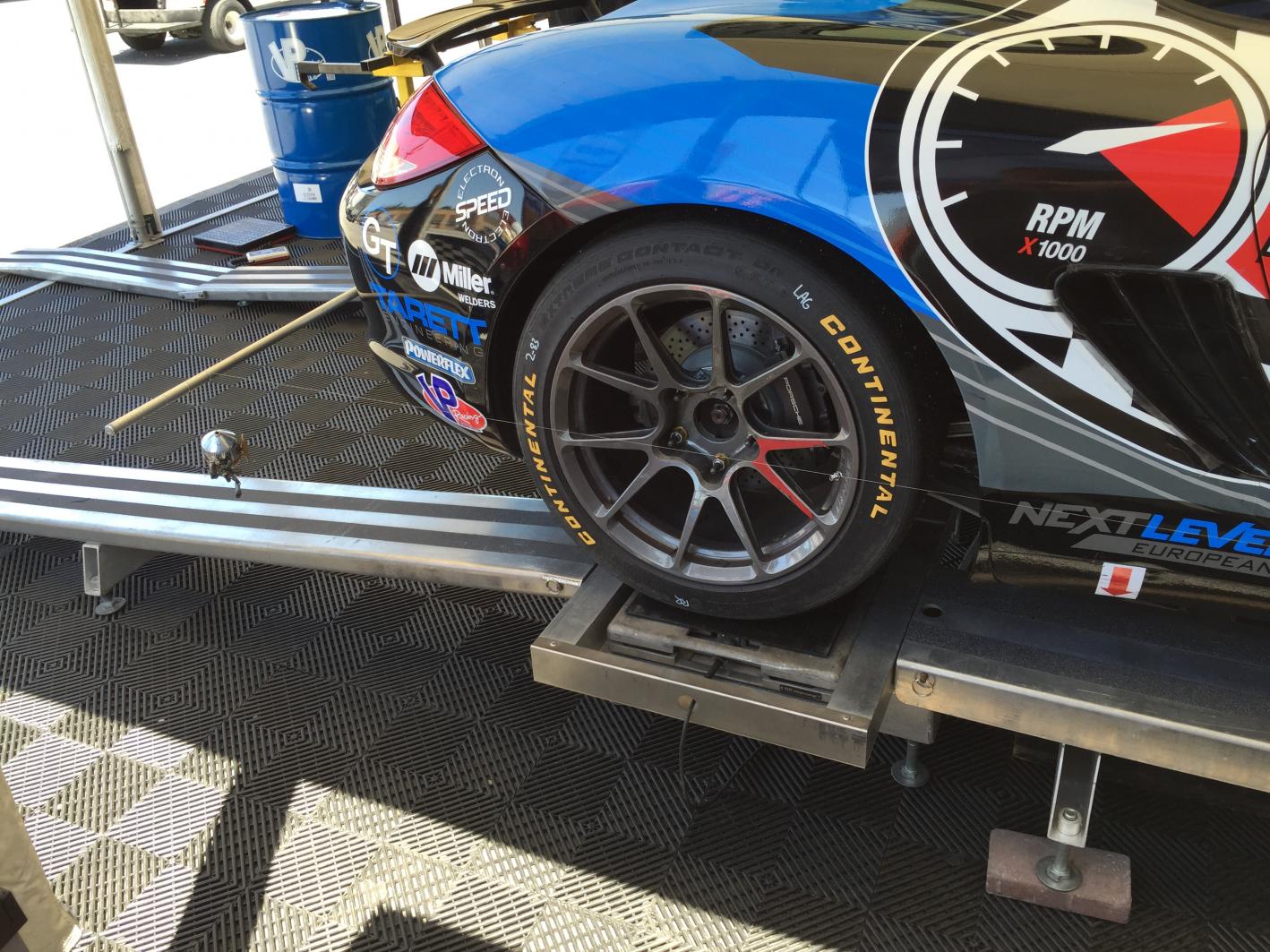

they all have a pair of bars that go on the car, rather like a bike rack, and these hold the string, and in the picture you can see that the string is literally a fishing reel. there must be some setup to get the string square, but after that they just measure to the wheel rim with a ruler.

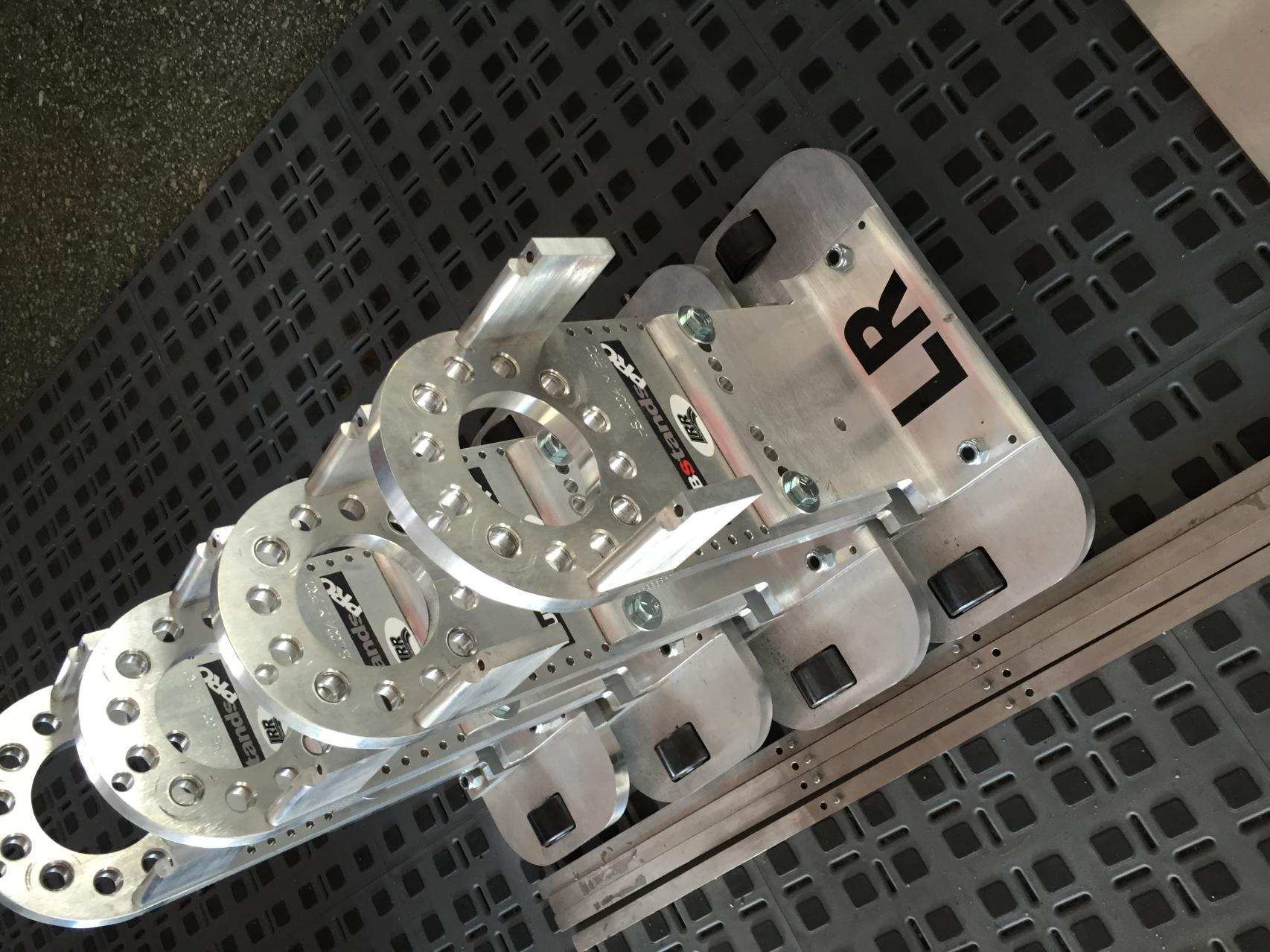

most teams added the thing in pic 2, it bolts in place of the wheel, and lets you take the measurements, and since its not a wheel, you can make adjustments without pulling anything else off. probably not visible, but there are wheels on the bottom, so it can roll, although we saw other things like air bearings.
so have no hesitation using the string method, its what the pro's use
they all have a pair of bars that go on the car, rather like a bike rack, and these hold the string, and in the picture you can see that the string is literally a fishing reel. there must be some setup to get the string square, but after that they just measure to the wheel rim with a ruler.
most teams added the thing in pic 2, it bolts in place of the wheel, and lets you take the measurements, and since its not a wheel, you can make adjustments without pulling anything else off. probably not visible, but there are wheels on the bottom, so it can roll, although we saw other things like air bearings.
so have no hesitation using the string method, its what the pro's use
#16
HeyHeyHey..Its the Goose
iTrader: (3)
we are running the sideshow to the IMSA race at laguna this weekend, the Mazda race of NASA champions. we had some time to walk around the pits yesterday, and i was a little surprised that every single team used string to align their cars. i guess i though someone would use toe plates or something.
they all have a pair of bars that go on the car, rather like a bike rack, and these hold the string, and in the picture you can see that the string is literally a fishing reel. there must be some setup to get the string square, but after that they just measure to the wheel rim with a ruler.
most teams added the thing in pic 2, it bolts in place of the wheel, and lets you take the measurements, and since its not a wheel, you can make adjustments without pulling anything else off. probably not visible, but there are wheels on the bottom, so it can roll, although we saw other things like air bearings.
so have no hesitation using the string method, its what the pro's use
they all have a pair of bars that go on the car, rather like a bike rack, and these hold the string, and in the picture you can see that the string is literally a fishing reel. there must be some setup to get the string square, but after that they just measure to the wheel rim with a ruler.
most teams added the thing in pic 2, it bolts in place of the wheel, and lets you take the measurements, and since its not a wheel, you can make adjustments without pulling anything else off. probably not visible, but there are wheels on the bottom, so it can roll, although we saw other things like air bearings.
so have no hesitation using the string method, its what the pro's use
Yeah, but they buy a set of tires after every other race.
