Rear brake piston not compressing
Hello forum,
I have an 83 FB where I had the rear axle swapped out to get 4 wheel disc brakes. I am trying to replace the brake pads myself after doing a brake fluid flush. The rear drivers side piston will not compress even with a tool. I did see the piston extend out while I was doing the flush, so I do not think it is seized. (I had the rx at a track and worked the brakes really hard, hence the flush/ pads). The back right piston is more compressed but does not seem to go flush like the front pistons did with the compression tool. Front pistons compressed flush easy-peasy. I tried opening the bleed valve with the the tool providing pressure and still no movement. I have put as much force on it as the tool can handle. Any ideas or suggestions?
Much appreciated!
Chris
I have an 83 FB where I had the rear axle swapped out to get 4 wheel disc brakes. I am trying to replace the brake pads myself after doing a brake fluid flush. The rear drivers side piston will not compress even with a tool. I did see the piston extend out while I was doing the flush, so I do not think it is seized. (I had the rx at a track and worked the brakes really hard, hence the flush/ pads). The back right piston is more compressed but does not seem to go flush like the front pistons did with the compression tool. Front pistons compressed flush easy-peasy. I tried opening the bleed valve with the the tool providing pressure and still no movement. I have put as much force on it as the tool can handle. Any ideas or suggestions?
Much appreciated!
Chris
#3
Junior Member
Thread Starter
iTrader: (1)
Join Date: Aug 2009
Location: Chicago
Posts: 46
Likes: 0
Received 0 Likes
on
0 Posts

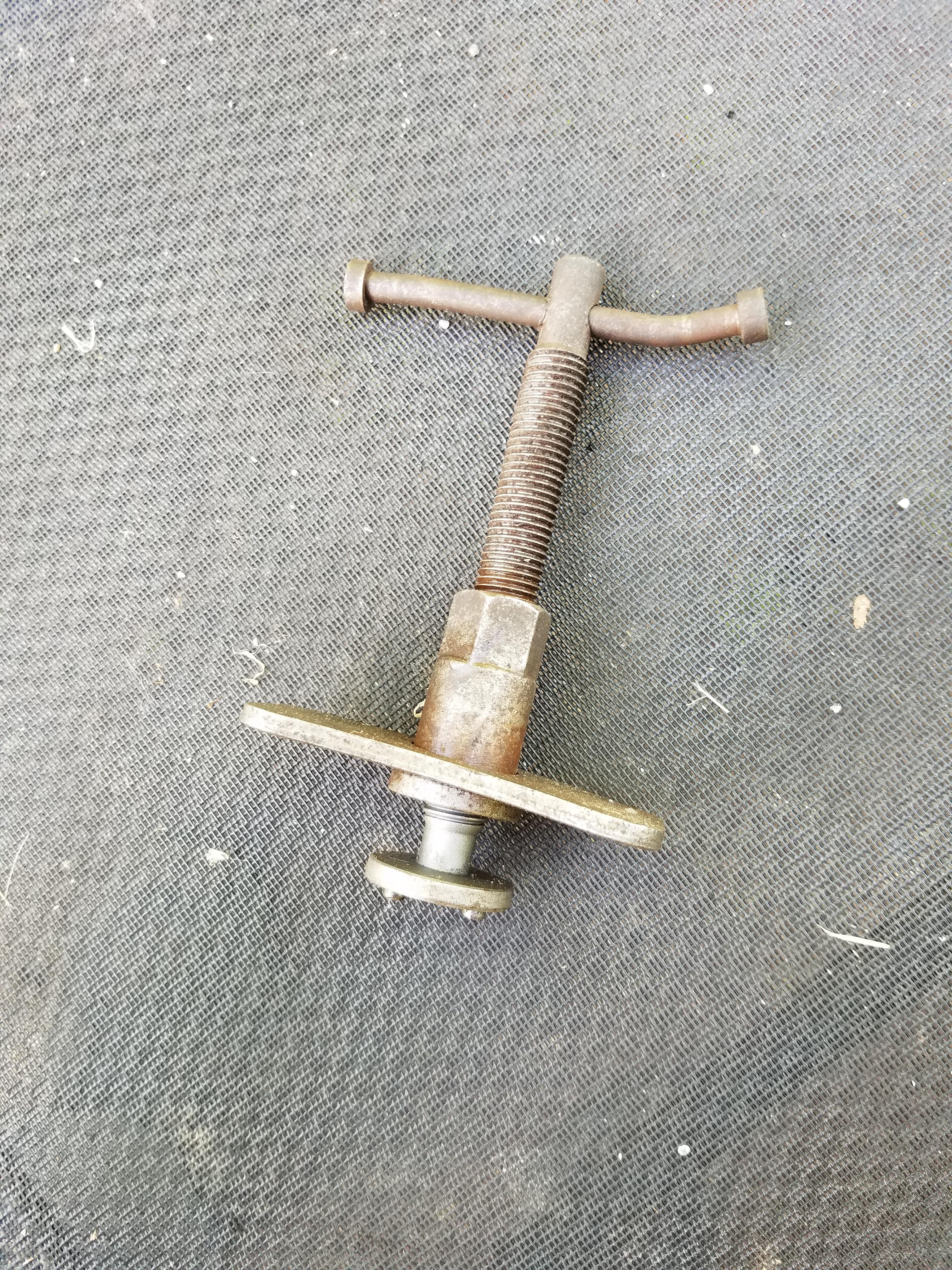

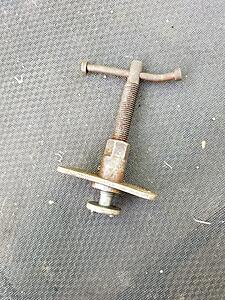

I have tried a couple of tools. the first was an amazon favorite that had two plates and a ratchet handle that spread them. This worked well for the front pistons but did not go narrow enough to fit in the back calipers. So now I am using a single plate screw. Note that I took off the **** and and using a ratchet on the underlying bolt head to get more leverage. Looks like a crappy version of what you used. Do I need to worry about using too much force? I have been careful to keep pressure aligned with the piston orientation.
#4
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,829
Received 2,597 Likes
on
1,845 Posts
the rear pistons thread in, so you need to turn them.
#7
Rotary Enthusiast
Trending Topics
#9
Rotary Enthusiast
I googled and found the rotation is required because we have the ebrake mechanism integrated into our rear calipers. Here's an FD rear caliper exploded view for rebuilding, cribbed from
https://www.rx7club.com/3rd-generati...aliper-758710/
So you have to rotate the piston back in due to the threaded ebrake adjustment part #11, and that assembly auto adjusts for the ebrake.
https://www.rx7club.com/3rd-generati...aliper-758710/
So you have to rotate the piston back in due to the threaded ebrake adjustment part #11, and that assembly auto adjusts for the ebrake.
#11
84SE-EGI helpy-helperton
The emergency brake mechanism is actually a cammig lever that pushes against a stack of bent washers that form a heavy spring action inside the center of the piston bore. Each time the parking brake is pulled, it cams this stack of washers against the piston which applies hydraulic pressure to the pads, holding the car in place.
Many mechanics pull the big rubber dust boot off, glance at the mechanism, and give up on that portion of the rebuild, because it takes a vice and some ingenuity to compress the stack and pull out the actuator rod. Problem is, that actuator rod has its own Viton o-ring to seal it under tremendous hydraulic pressure, and when it fails, the boot fills with brake fluid and leaks.
Rotation of the piston during compression acts against that cam lever and the washer stack, otherwise you wouldn't be able to compress it all by hand. The front piston are easy by comparison. You didn't damage it by NOT rotation it, but you also didn't get it to compress, either.
Many mechanics pull the big rubber dust boot off, glance at the mechanism, and give up on that portion of the rebuild, because it takes a vice and some ingenuity to compress the stack and pull out the actuator rod. Problem is, that actuator rod has its own Viton o-ring to seal it under tremendous hydraulic pressure, and when it fails, the boot fills with brake fluid and leaks.
Rotation of the piston during compression acts against that cam lever and the washer stack, otherwise you wouldn't be able to compress it all by hand. The front piston are easy by comparison. You didn't damage it by NOT rotation it, but you also didn't get it to compress, either.
The following 2 users liked this post by LongDuck:
Maxwedge (08-17-21),
mazdaverx713b (08-18-21)
#12
Senior Member
iTrader: (4)
Another thing about the rear brake pads, the piston side will have two small notches that go into the corresponding area in the piston. i think this stop the piston from rotating as the pads wear, allowing the adjustment mechanism to work properly.
And yes, rebuilding the rear calipers is a bit of a pain. Take some tricks to get it all back together.
Maybe the pain to rebuild calipers are also why you can't find them anymore!
And yes, rebuilding the rear calipers is a bit of a pain. Take some tricks to get it all back together.
Maybe the pain to rebuild calipers are also why you can't find them anymore!
The following users liked this post:
aeenox (08-24-21)
#13
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,829
Received 2,597 Likes
on
1,845 Posts
#15
Censored
iTrader: (14)
Also, I've noticed a few ebay posts for rebuilt FB rear calipers lately, don't know about quality though and they seem to have the left driver's side only:
https://www.ebay.com/itm/38417993746...wAAOSw6qpeqIhg
https://www.ebay.com/itm/28408853262...8AAOSwWSZfuB5U
https://www.ebay.com/itm/38417993746...wAAOSw6qpeqIhg
https://www.ebay.com/itm/28408853262...8AAOSwWSZfuB5U
