1dyoung

i

1dyoung

want

1dyoung

an update!

GoRacer

iTrader: (2)

Very nice looking car, but why didn't you go with the Supercharged 6L instead of the bigger 7L? How are you going to shoehorn that thing in there?

Black Magic

iTrader: (2)

Soon! I might have a startup video within two weeks.

The steering isnt an issue, too many people whine about nothing and blow it out of proportion.

the money it costs for a SC 6L Vs me building what i am doesnt justify the power goals for the money. Plus i dont like blowers, plus a turbo setup is always more efficient. With a built 408ci i can push 1000whp fairly easily. For now on the stock block, im going to limit it to 600-650whp.

Black Magic

iTrader: (2)

Yeah jimblab has a very speshull place in my heart. Im sure 99% of the board will agree. Either way, im finally making more progress on the car!

RTRx7

iTrader: (2)

Sweet build.

I have a few questions.

Is that an ls1? If so, why call it 6 ltr?

Why go F/I and limit your power?

Just wondering how you're thinking.

Also, efficiency depends on the entire turbo/s.c. setup so you really can't make an umbrella statement about either one.

Black Magic

iTrader: (2)

thanks, i will eventually use a 6L iron block with a 4" crank in order to extract the full potential of my turbo, currently yes, it is a 5.7L ls1. Sorry if it was confusing somewhere along the lines.

I dont know how F/I limits my power other than by the stock block. IN which safe HP levels will need to remain around 600whp. With the 408 engine i plan to build, i can push over 1000whp, which is my main goal over time, AND my turbo supports 1250hp, soo im not sure what you mean by limiting my power with F/I, LOL.

Yes i can make these statements and stand behind them 100%, this isnt my first rodeo.

RTRx7

iTrader: (2)

I wasn't saying that the turbo would limit your power. It sounded like you were saying you only wanted 600hp.

I still believe that there are situations where a s/c is more suited and would be more efficient but a turbo is definitely the way to go for most average joes.

Black Magic

iTrader: (2)

600hp as stated above is the reliable HP range for the stock internals short block. Honestly, my car on 450rwhp NA was damn rediculous, i want to break 200mph legitamately at the texas mile. So im doing this turbo build.

S/C is not more efficient in ANY instance over a turbo, bottom line, im not sure where you're getting your "info" from.

RTRx7

iTrader: (2)

To each his own.

I am trying to see the point in going turbo when you could reach very close to your goal of 600hp N/A. Forced induction is cool but I don't see the point when you're only wanting 600 hp.

Black Magic

iTrader: (2)

hehe, one could say,,, i love jet noise

plus 600whp N/A isnt easy or cheap.

Black Magic

iTrader: (2)

fabbed the crossovers, waiting on my tial 60mm WG to come in.

I moved the radiator over all the way soo i can duct cool air through a hole in the front bumper straight into the turbo.

turbotalon1g

Badass, you sir have a crazy collection of vehicles.
Any links to the ranger?

Black Magic

iTrader: (2)

soon, heres a teaser...

Toyotarx7

iTrader: (13)

what flares are these? and where can i get them?

David Hayes

iTrader: (6)

^Pettit flares from www.pettitracing.com

Black Magic

iTrader: (2)

Im about to fire her up tomorrow for the first time in almost 2 years!!!!

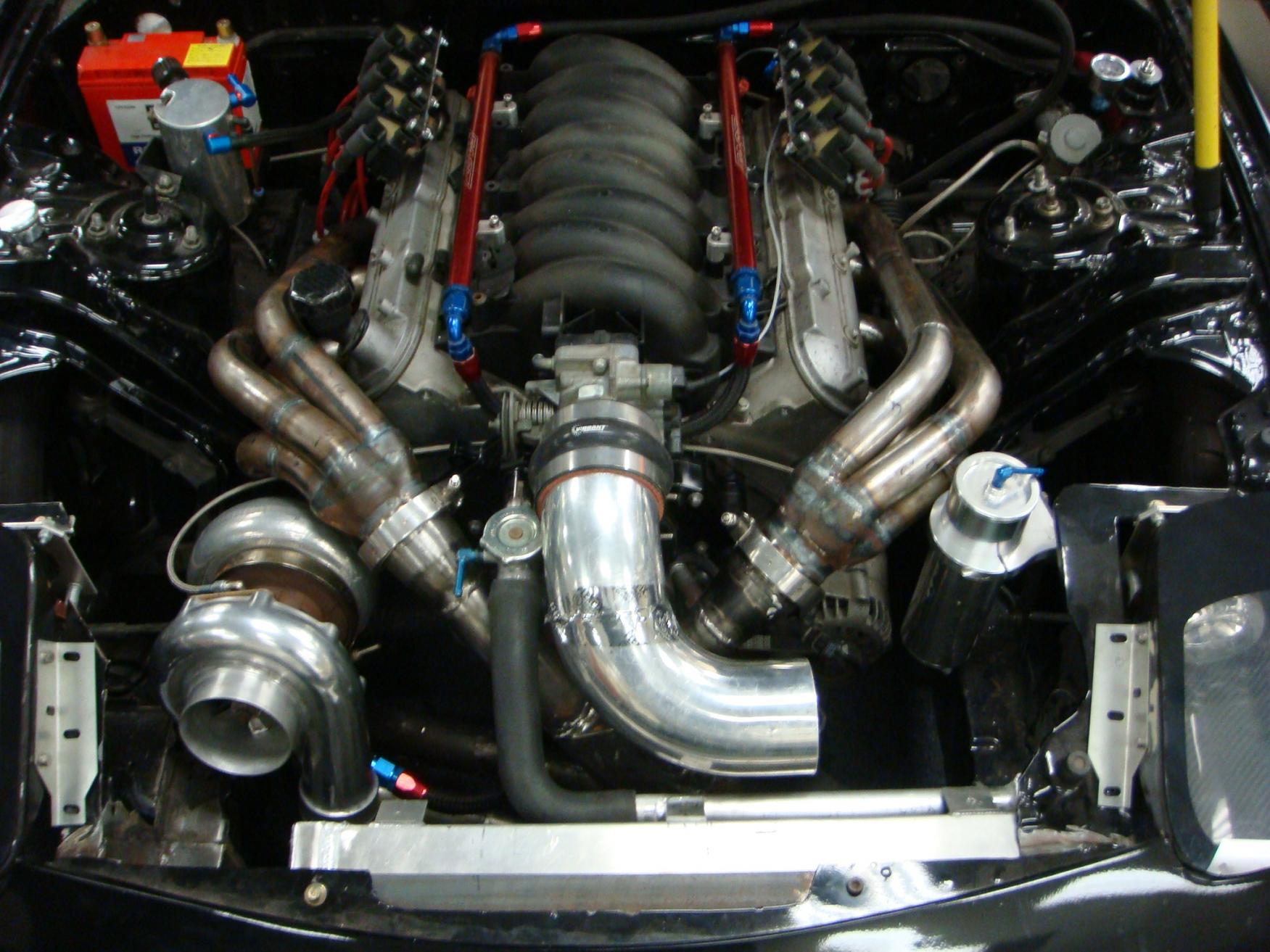

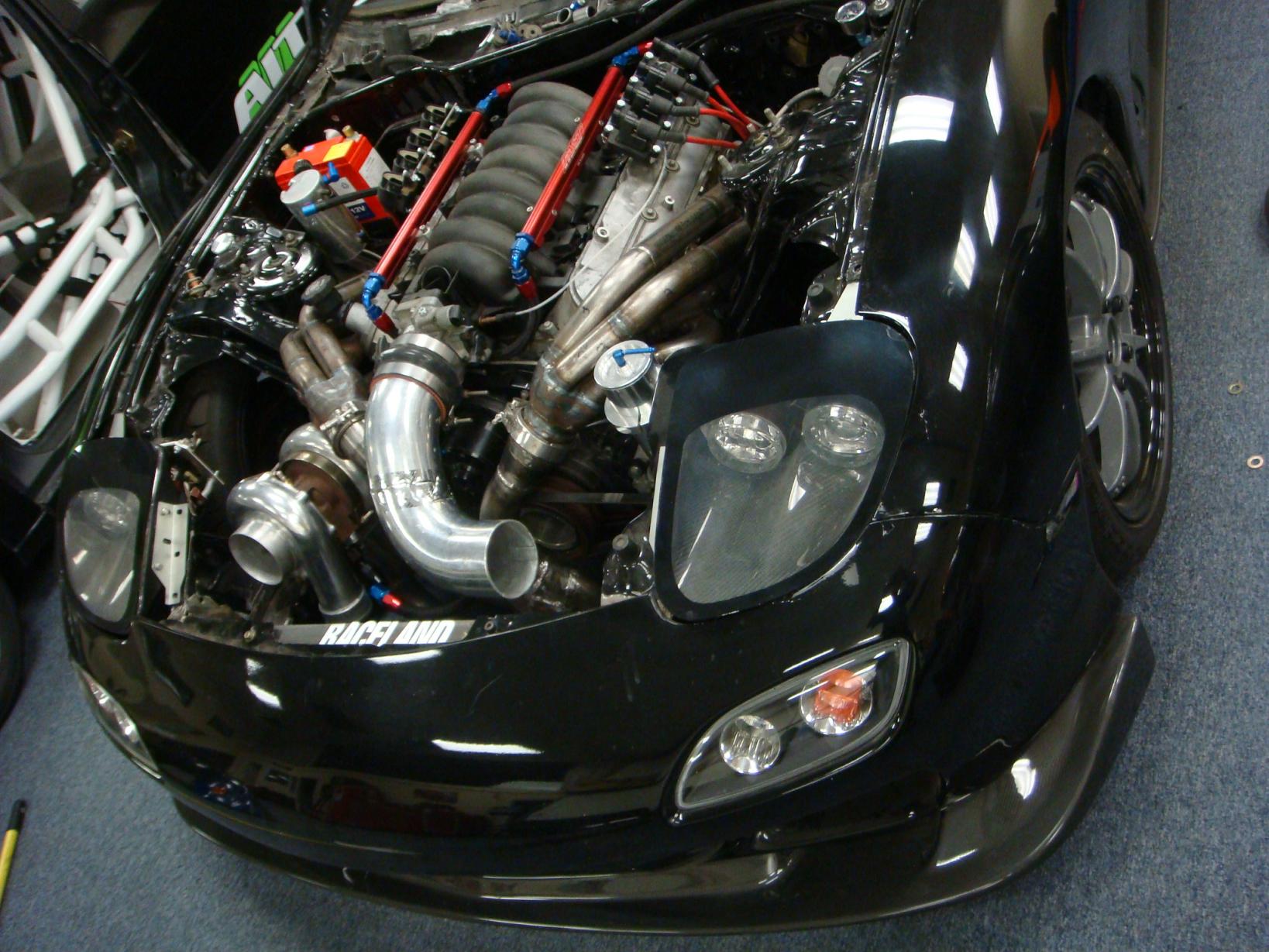

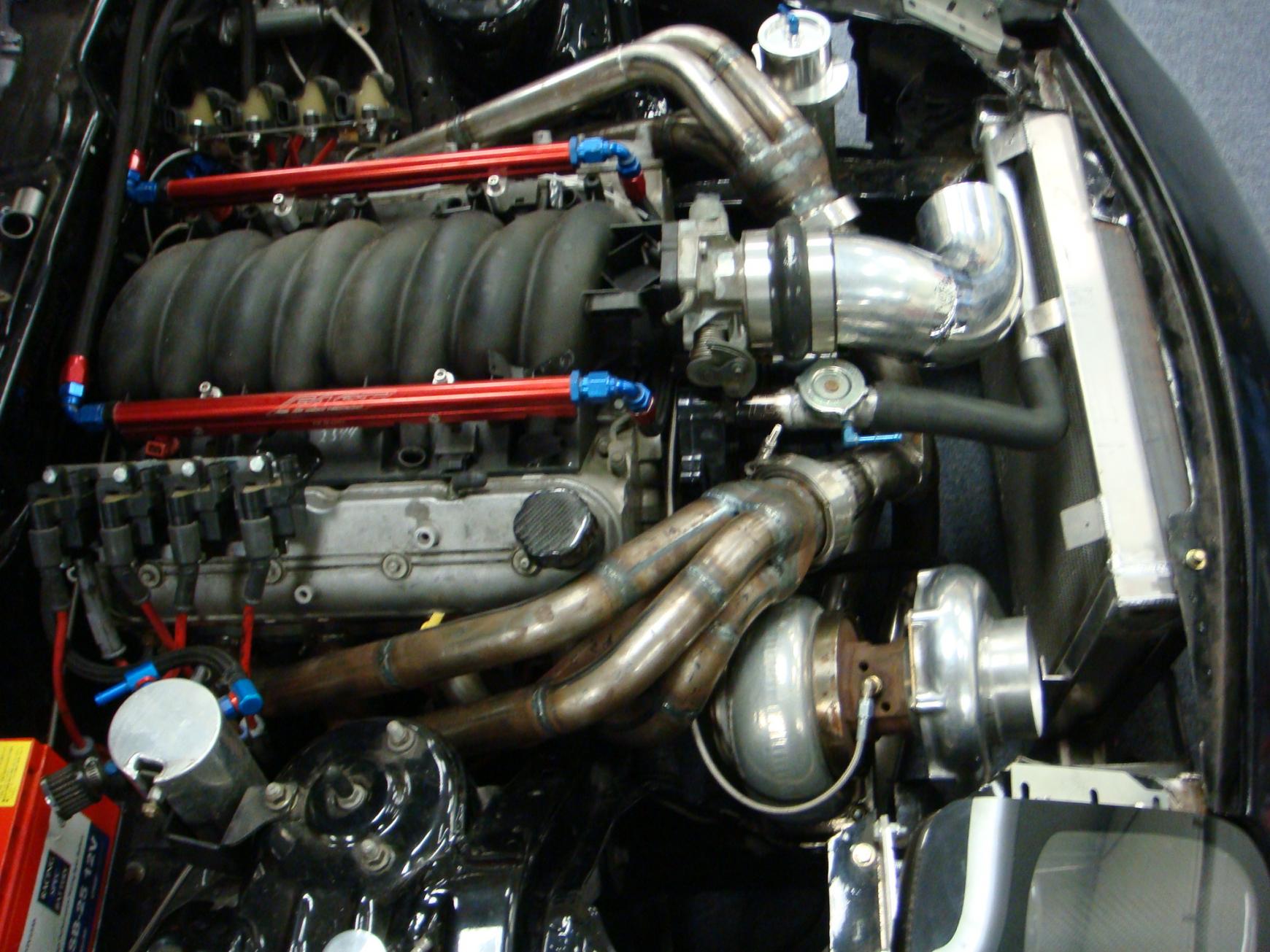

Heres some updated pics. The revised cooling system is completed, the coils have been relocated and as i type this i am building the 4" downpipe!!

br4nd0n

iTrader: (5)

Moar pics nao

David Hayes

iTrader: (6)

Nice. Good luck on the startup!

Jimmy2222

iTrader: (3)

Are you guys dense? The reason he's going turbo is because he wants to do 200+ MPH. that I don't think you can do with 600HP H/A and ANYTHING N/A will make more power with FI.

Any idea how much boost you plan to run to achieve 1250 rwhp? What turbo, ecu and coils are you using?

gnx7

iTrader: (10)

Can't wait to hear it run.

Look into a vacuum pump. I think you are going to need it.

This should be one bad *** little machine when you get it dialed in.

In San Jose they sell e85. I hope your motor is setup for it because 91 octane makes any turbo setup weak sauce.

Black Magic

iTrader: (2)

thanks! she fired up on the first try!!! I got all emotional and teary eyed... :p haha

per stock internals im looking to hit 650ish. The efficiency of the setup determines how much boost. 650whp could be 10psi or 16psi. I have a 98 PCM so im limited to 14.7psi on a 2 bar map sensor. which is fine, given i cant push higher numbers due to the stock internals. When the time comes, i will repin in a 99 PCM, 3 bar MAP, 6.0 forged iron block, send the PT88 to get upgraded to a 91.5mm/t4 and push for the 1000whp mark. Im using coils from my 02 5.3 vortec swap thats going into my ranger. the square truck coils yield the highest voltage, even over MSD's.

hey mark, im going to be running tilton floor mounting pedals, soo a vac pump is outa the question. I thought about going E85, but im just gonna buy a 55 gal drum of 116 and call it a day. The car will have a meth kit, soo that will make up for the additional cooling properties the E85 provides.

I will put the car on the corner scales shortly and see what shes weighing in at. It will be under 2400lbs no quesrtions asked. Considering last i scaled, it was 2270 missing a few odds n ends on heavy *** 3 piece wheels and a full exhuast!

Black Magic

iTrader: (2)

shes alive!!



Next up is the cold side, precision 825hp FMIC, tial 50mm Q-BOV, 3" pre FMIC piping, 4" post FMIC piping all wrapped in heat protective wrap.

Black Magic

iTrader: (2)

4" downpipe with no worries!
