201 rwhp 6 port secondary bridgeport
07-25-12, 10:43 AM
#1
aerosev
Thread Starter
Join Date: Jun 2005
Location: New Zealand
Posts: 152
Likes: 0
Received 0 Likes
on
0 Posts
201 rwhp 6 port secondary bridgeport
I know alot of people don't like the idea of bridgeporting six port engines but I actually think this engine has worked out all right, Its a 6 port 13b with the secondarys bridged and the primarys extended, it uses the factory intake manifold(modified a little) and is using a megasquirt ecu,

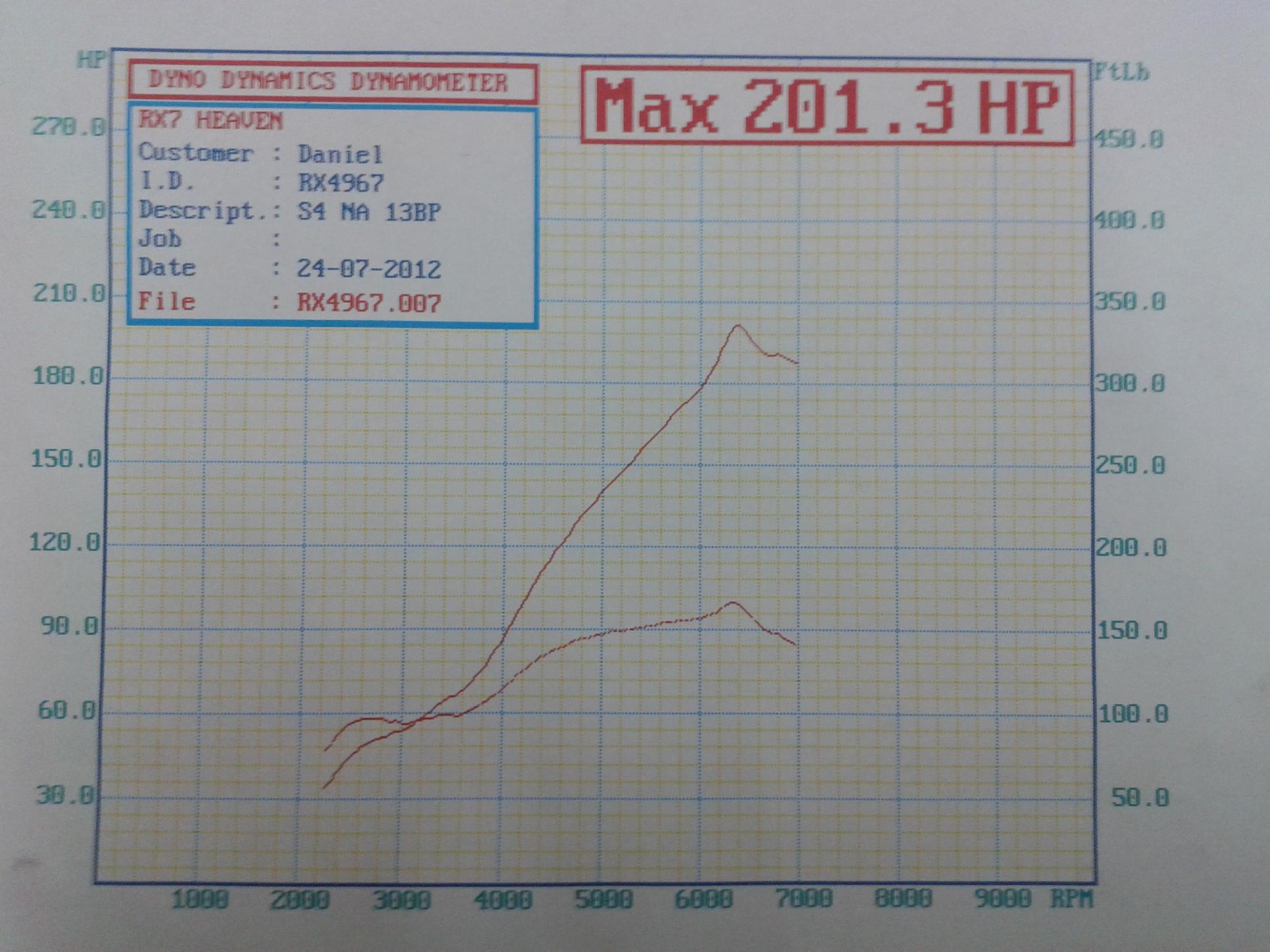

Im not sure why the dyno chart backs off at 6500rpm, the owner seemed to think that the tuner didn't want to push it as its a newly rebuilt engine, Ill try and find out, there might be a bit left in it yet!
Im not sure why the dyno chart backs off at 6500rpm, the owner seemed to think that the tuner didn't want to push it as its a newly rebuilt engine, Ill try and find out, there might be a bit left in it yet!
07-25-12, 08:01 PM
#3
aerosev
Thread Starter
Join Date: Jun 2005
Location: New Zealand
Posts: 152
Likes: 0
Received 0 Likes
on
0 Posts
I talked to the engine tuner he seems to think it would make a bit more with a different intake, he also said the car didn't have enough gas in the tank to continue so they left the tuning at that, he said there was a bit more to come out of it in its current format.
The owner is keen on getting a retune when he has a few miles on it so Ill post up the results of the retune.
The owner is keen on getting a retune when he has a few miles on it so Ill post up the results of the retune.
07-26-12, 11:00 PM
#4
Originally Posted by aerosev
I talked to the engine tuner he seems to think it would make a bit more with a different intake, he also said the car didn't have enough gas in the tank to continue so they left the tuning at that, he said there was a bit more to come out of it in its current format.
The owner is keen on getting a retune when he has a few miles on it so Ill post up the results of the retune.
The owner is keen on getting a retune when he has a few miles on it so Ill post up the results of the retune.
I remember reading the s4 na intake runs out of breath at 6500 rpm, swapping to the itbs or s5 intake would probably be the best option, or custom manifold.
07-26-12, 11:07 PM
#5
i'm calling shenanigans.
the engine should breathe to 8500 or more with decent intake and exhaust flow and with your dyno chart even if it tapers off it would be in the 240+whp range.
dyno is fubar or someone is blowing smoke.
ps: is that a shot of NOS from 6k-6400? could be a S5 with dynamic chamber opening up but still, if so then the intake is still going to push into the 8400 RPM range before falling flat.
sorry for the sarcasm but i smell bullshit. i run n/a's up to 9k when tuning and i don't even flinch. if he's worried about blowing an n/a then he shouldn't be tuning. i mapped a PFC to cell 20P 20N @ 22psi, now that is a little scary.
the engine should breathe to 8500 or more with decent intake and exhaust flow and with your dyno chart even if it tapers off it would be in the 240+whp range.
dyno is fubar or someone is blowing smoke.
ps: is that a shot of NOS from 6k-6400? could be a S5 with dynamic chamber opening up but still, if so then the intake is still going to push into the 8400 RPM range before falling flat.
sorry for the sarcasm but i smell bullshit. i run n/a's up to 9k when tuning and i don't even flinch. if he's worried about blowing an n/a then he shouldn't be tuning. i mapped a PFC to cell 20P 20N @ 22psi, now that is a little scary.
Last edited by RotaryEvolution; 07-26-12 at 11:18 PM.
07-27-12, 02:39 AM
#6
aerosev
Thread Starter
Join Date: Jun 2005
Location: New Zealand
Posts: 152
Likes: 0
Received 0 Likes
on
0 Posts
i'm calling shenanigans.
the engine should breathe to 8500 or more with decent intake and exhaust flow and with your dyno chart even if it tapers off it would be in the 240+whp range.
dyno is fubar or someone is blowing smoke.
ps: is that a shot of NOS from 6k-6400? could be a S5 with dynamic chamber opening up but still, if so then the intake is still going to push into the 8400 RPM range before falling flat.
sorry for the sarcasm but i smell bullshit. i run n/a's up to 9k when tuning and i don't even flinch. if he's worried about blowing an n/a then he shouldn't be tuning. i mapped a PFC to cell 20P 20N @ 22psi, now that is a little scary.
the engine should breathe to 8500 or more with decent intake and exhaust flow and with your dyno chart even if it tapers off it would be in the 240+whp range.
dyno is fubar or someone is blowing smoke.
ps: is that a shot of NOS from 6k-6400? could be a S5 with dynamic chamber opening up but still, if so then the intake is still going to push into the 8400 RPM range before falling flat.
sorry for the sarcasm but i smell bullshit. i run n/a's up to 9k when tuning and i don't even flinch. if he's worried about blowing an n/a then he shouldn't be tuning. i mapped a PFC to cell 20P 20N @ 22psi, now that is a little scary.
And as mentioned in my second post above the tuner stopped because the car was running out of gas and he had no time to fill it up not because he didn't want to lean on it,
07-27-12, 02:46 AM
#7
aerosev
Thread Starter
Join Date: Jun 2005
Location: New Zealand
Posts: 152
Likes: 0
Received 0 Likes
on
0 Posts
The engine tuner said that swapping the itbs would yeild a bit more power, but there is still a little bit left in it even in its current state.
Trending Topics
08-09-12, 02:51 AM
#11
aerosev
Thread Starter
Join Date: Jun 2005
Location: New Zealand
Posts: 152
Likes: 0
Received 0 Likes
on
0 Posts
08-09-12, 10:03 PM
#13
Junior Member
Join Date: Feb 2008
Location: Kernersville, NC
Posts: 13
Likes: 0
Received 0 Likes
on
0 Posts
Heres a pic of the bridge ports, the centre plate was extend ported (or street ported for those in the USA) There was no port template they were just measured out. I think the secret is not to go overboard on port size. The exhaust ports were opened up a little bit and inserts swapped for turbo inserts.
I'm thinking about getting a Pineapple Racing "Street port Large" plate and going from there.
Can't wait for further tuning results!
11-13-13, 05:39 PM
#15
ever get any times or speed numbers?
that graph still looks all sort of wrong to me, i've never seen a rotary pickup so much power in the high revs without an extremely modified intake system. that peak simply looks like breakup on the dyno right where the intake should be clamping down on the flow and i would call it an unreliable reading. if you plot the graph linearly it is probably more in the 185ish range which is a more reasonable expectation.
the above number is still nothing to be ashamed of either, the power curve is smooth and broad.
i would simply never show a graph like that to a customer and say it made that number because it's clearly not accurate and just a hiccup on the rollers. on one car i managed to make 1500whp! of course that graph went straight into the can. look at the graph and average it out in your head and i'm sure you will see where i am coming from. the intake has no port that gives a major power boost in such a small range, climbing radically where it should begin levelling off, the stock intake almost always peaks at 7000-7300 RPMs with the ideal setup.
that graph still looks all sort of wrong to me, i've never seen a rotary pickup so much power in the high revs without an extremely modified intake system. that peak simply looks like breakup on the dyno right where the intake should be clamping down on the flow and i would call it an unreliable reading. if you plot the graph linearly it is probably more in the 185ish range which is a more reasonable expectation.
the above number is still nothing to be ashamed of either, the power curve is smooth and broad.
i would simply never show a graph like that to a customer and say it made that number because it's clearly not accurate and just a hiccup on the rollers. on one car i managed to make 1500whp! of course that graph went straight into the can. look at the graph and average it out in your head and i'm sure you will see where i am coming from. the intake has no port that gives a major power boost in such a small range, climbing radically where it should begin levelling off, the stock intake almost always peaks at 7000-7300 RPMs with the ideal setup.
Last edited by RotaryEvolution; 11-13-13 at 05:51 PM.
12-27-13, 01:51 PM
#16
aerosev
Thread Starter
Join Date: Jun 2005
Location: New Zealand
Posts: 152
Likes: 0
Received 0 Likes
on
0 Posts
ever get any times or speed numbers?
that graph still looks all sort of wrong to me, i've never seen a rotary pickup so much power in the high revs without an extremely modified intake system. that peak simply looks like breakup on the dyno right where the intake should be clamping down on the flow and i would call it an unreliable reading. if you plot the graph linearly it is probably more in the 185ish range which is a more reasonable expectation.
the above number is still nothing to be ashamed of either, the power curve is smooth and broad.
i would simply never show a graph like that to a customer and say it made that number because it's clearly not accurate and just a hiccup on the rollers. on one car i managed to make 1500whp! of course that graph went straight into the can. look at the graph and average it out in your head and i'm sure you will see where i am coming from. the intake has no port that gives a major power boost in such a small range, climbing radically where it should begin levelling off, the stock intake almost always peaks at 7000-7300 RPMs with the ideal setup.
that graph still looks all sort of wrong to me, i've never seen a rotary pickup so much power in the high revs without an extremely modified intake system. that peak simply looks like breakup on the dyno right where the intake should be clamping down on the flow and i would call it an unreliable reading. if you plot the graph linearly it is probably more in the 185ish range which is a more reasonable expectation.
the above number is still nothing to be ashamed of either, the power curve is smooth and broad.
i would simply never show a graph like that to a customer and say it made that number because it's clearly not accurate and just a hiccup on the rollers. on one car i managed to make 1500whp! of course that graph went straight into the can. look at the graph and average it out in your head and i'm sure you will see where i am coming from. the intake has no port that gives a major power boost in such a small range, climbing radically where it should begin levelling off, the stock intake almost always peaks at 7000-7300 RPMs with the ideal setup.
