Check out my Dyno - Think there is a problem?

I do. Several of them to be exact. First the secondary turbo appears to be coming on way too late. Then the Air:Fuel ratio's look brutal. On the upper end they are so rich that the dyno couldn't read them correctly. I just bought the car but the mods it has (that I know of) are as follows:

Stock Twins in sequential mode
Stock Intercooler
Greddy or HKS downpipe.
Apexi N1 exhaust
Apexi dual intake
Aluminum AST.

I don't know what else has been done. I come the FC world so I don't know what the usual upgrade path is for an FD. I have a Power FC and a Greddy 3 row intercooler to install but thought I would wait until I figured out what I've got going on now before installing them. Any ideas?
soloracer951 is offline
Old 09-24-05, 11:13 PM
  #2
Rotary Enthusiast
10 Year Member

Join Date: Apr 2002
Location: union, nj
Posts: 1,327
Likes: 0
Received 0 Likes on 0 Posts
i had a similar problem with my car... when was the last time you changed the plugs and wires?
cmartinp28 is offline
Old 09-25-05, 08:17 PM
  #3
..
10 Year Member

Join Date: Mar 2001
Location: ..
Posts: 326
Likes: 0
Received 0 Likes on 0 Posts
Another dyno I have seen also has the transition occuring at around 5,000 RPM.

https://www.rx7club.com/attachment.p...hmentid=130746

Known issue I guess? Wierd that the power drops off after 6,000RPM.
Roshambo is offline
Old 09-29-05, 11:17 PM
  #4
Original Gangster/Rotary!

iTrader: (206)

GoodfellaFD3S's Avatar

Join Date: Mar 2001
Location: FL-->NJ/NYC again!
Posts: 29,999
Received 138 Likes on 111 Posts
how much boost? Also, how many miles on the car? perhaps your main cat is partially clogged.
GoodfellaFD3S is offline
Old 10-10-05, 10:17 AM
  #5
Eats, Sleeps, Dreams Rotary

Join Date: Mar 2001
Location: CT
Posts: 4,886
Likes: 0
Received 7 Likes on 7 Posts
Originally Posted by GoodfellaFD3S
how much boost? Also, how many miles on the car? perhaps your main cat is partially clogged.
come on man...u have to go before winter comes....i want to see what those bnrs can trap.
dont u live close to track?
matty is offline
Old 10-10-05, 01:53 PM
  #6
Rotor Head Extreme
iTrader: (8)

t-von's Avatar

Join Date: Apr 2002
Location: Midland Texas
Posts: 6,707
Likes: 0
Received 10 Likes on 8 Posts
Originally Posted by Roshambo
Another dyno I have seen also has the transition occuring at around 5,000 RPM.

https://www.rx7club.com/attachment.p...hmentid=130746

Known issue I guess? Wierd that the power drops off after 6,000RPM.

Your transition is a little late. Also the power really isn't dropping of at 6k. Due to your mods, you are seeing a boost spike at transition. I have the same mods as you do minus the cat-back. Depending on the weather, I will get a boost spike to 12psi at transition then things level out to stock levels. Get a boost gauge to not the boost levels and get a boost controller. You need to bring things back to stock levels to be safe.
t-von is offline
Old 10-13-05, 09:17 AM
  #7
Lives on the Forum
15 Year Member

DamonB's Avatar

Join Date: Feb 2001
Location: Dallas
Posts: 9,617
Likes: 0
Received 0 Likes on 0 Posts
Max power looks low to me and power before transition looks terrible. I don't study dyno graphs of other motors everyday but there are certainly problems. I had the main cat clog once and the primary still felt fine, it was the secondary that was poor. That makes sense because there isn't as much exhaust gas volume at lower RPM.

My engine is completely stock other than downpipe and catback and it's much stronger than that.

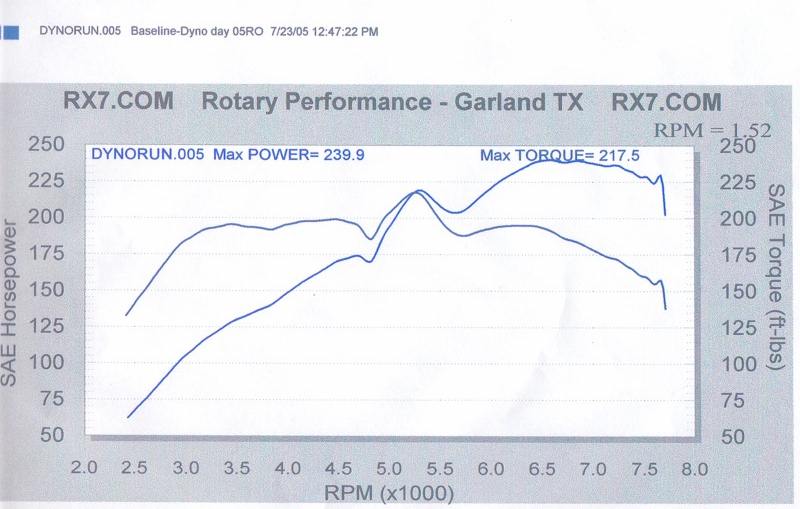

Attached Thumbnails Check out my Dyno - Think there is a problem?-dynograp.jpg
DamonB is offline
Old 10-13-05, 06:43 PM
  #8
Senior Member
Thread Starter

Join Date: Jul 2004
Location: Calgary, AB Canada
Posts: 480
Likes: 0
Received 0 Likes on 0 Posts
I don't know how much boost there is no boost gauge in the car. I just bought a DEFI gauge and hopefully can answer that question soon.

How can you tell if your cat is plugged?
soloracer951 is offline
