Single Turbo RX-7's Questions about all aspects of single turbo setups.

700whp+ 13brew gtx4202r

Old 08-13-15, 05:21 AM
  #1
Garage Life
Thread Starter
iTrader: (8)

dkwasherexd's Avatar

Join Date: Jun 2006
Location: CA
Posts: 2,616
Likes: 0
Received 0 Likes on 0 Posts
700whp+ 13brew gtx4202r

Wanted to share a recent dyno tune. We were able to make some hp.
weather air temp was about 98F hot, the fuel temp defintely hot as well. E70 70% ehanol, and 91 mix.
Relatively same overall setup as my fc drift car except the motor is oversized studded,balanced, side cut by my friend Vince Brock Vbrotorsport.
Same small half bridge, close to the same turbo size i run(gt45) but gt42 is slightly smaller, same fd rotors. Adaptronic ecu with 3 stage fuel injection 6 injectors.
50-60+ pulls , about 4 pulls consecutively, then cool down, make adjustments , check logs, pull again, then refill.

Was tuning 550whp at 13-15psi, 600whp on low boost 20psi, consistent 640-650whp at 25psi, 700+at 27-29psi, 34-35psi unkown hp, vacuum lines and caps kept popping off after 30psi every pull even zipties clamping the silicone hoses, estimating about 750-800whp at redline if 35psi.
Going to weld the vacuum nipples next time.
Name:  10866276_10206868084995632_3565265485465051596_o_zpson9nl8sy.jpg
Views: 21286
Size:  242.6 KB

Name:  11728693_906040142809504_824960585125115619_o_zpsi41veab9.jpg
Views: 21081
Size:  125.5 KB

Name:  11828665_10207007108871142_6416416975043908757_n_zpssnqogxvz.jpg
Views: 21047
Size:  149.1 KB

Name:  11053082_10207032406063556_4101484504665584594_n_zpsvpaks9uf.jpg
Views: 21011
Size:  111.0 KB


Next up in line for the dyno is a full bridge semi pp t6 gt45 with 40-50psi+ boost shooting for 1000.. lets see what happens

Last edited by dkwasherexd; 08-13-15 at 08:00 AM.
dkwasherexd is offline
Old 08-13-15, 06:13 AM
  #2
Full Member

Join Date: May 2015
Location: Nashville
Posts: 147
Received 1 Like on 1 Post
Good numbers! Could you show hp vs. tq and boost vs. rpm graph
almoststockrepu is offline
Old 08-13-15, 07:45 AM
  #3
Garage Life
Thread Starter
iTrader: (8)

dkwasherexd's Avatar

Join Date: Jun 2006
Location: CA
Posts: 2,616
Likes: 0
Received 0 Likes on 0 Posts
Name:  image_zpsgha1xyq8.jpg
Views: 21000
Size:  135.1 KB

Only sheet I can find on my phone, this was a baseline pull I did earlier in the day. Look to the left side of the screen and you can see how many pulls I did lol
Evevntually I was making 700+whp at the same boost! Torque moves hp, Im always constantly tuning more torque curve, and peak hp to be at revlimit. In this case 8200 rpm is the revlimiter. Next time I want to try 9000, more boost, and weld the damn vacuum nipples shut. Those things will pop off no matter what at 30+psi otherwise I would have a much higher hp

Name:  11866489_969854799740431_4811666357905625042_n_zpsp58gftxx.jpg
Views: 20869
Size:  70.0 KB
vacuum cap shot off again on this one.

Last edited by dkwasherexd; 08-13-15 at 07:56 AM. Reason: er hp
dkwasherexd is offline
Old 08-14-15, 11:01 PM
  #4
Learns the hard way.....
iTrader: (2)

13brenova's Avatar

Join Date: Jan 2008
Location: Ft Worth, Tx
Posts: 437
Likes: 0
Received 0 Likes on 0 Posts
That LIM is cat's ***! Need more info and pics of that bad-boy! Looks like it is for a semi-pp, but your thread stated small half-bridge?
13brenova is offline
Old 08-14-15, 11:47 PM
  #5
Senior Member
iTrader: (7)

bufferovrflo's Avatar

Join Date: Dec 2010
Location: Las Vegas
Posts: 385
Likes: 0
Received 1 Like on 1 Post
bufferovrflo is offline
Old 08-17-15, 06:03 AM
  #6
Garage Life
Thread Starter
iTrader: (8)

dkwasherexd's Avatar

Join Date: Jun 2006
Location: CA
Posts: 2,616
Likes: 0
Received 0 Likes on 0 Posts

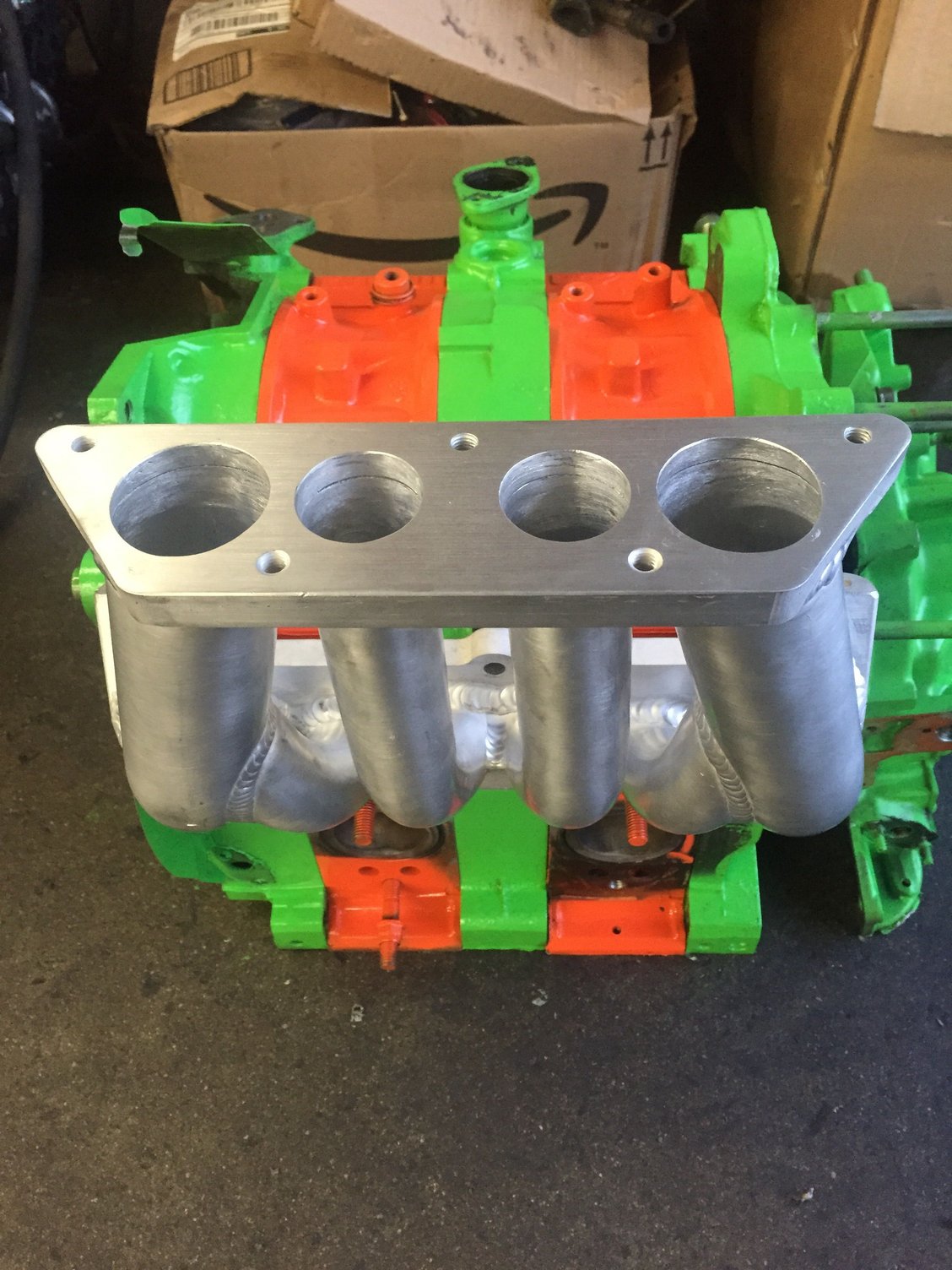

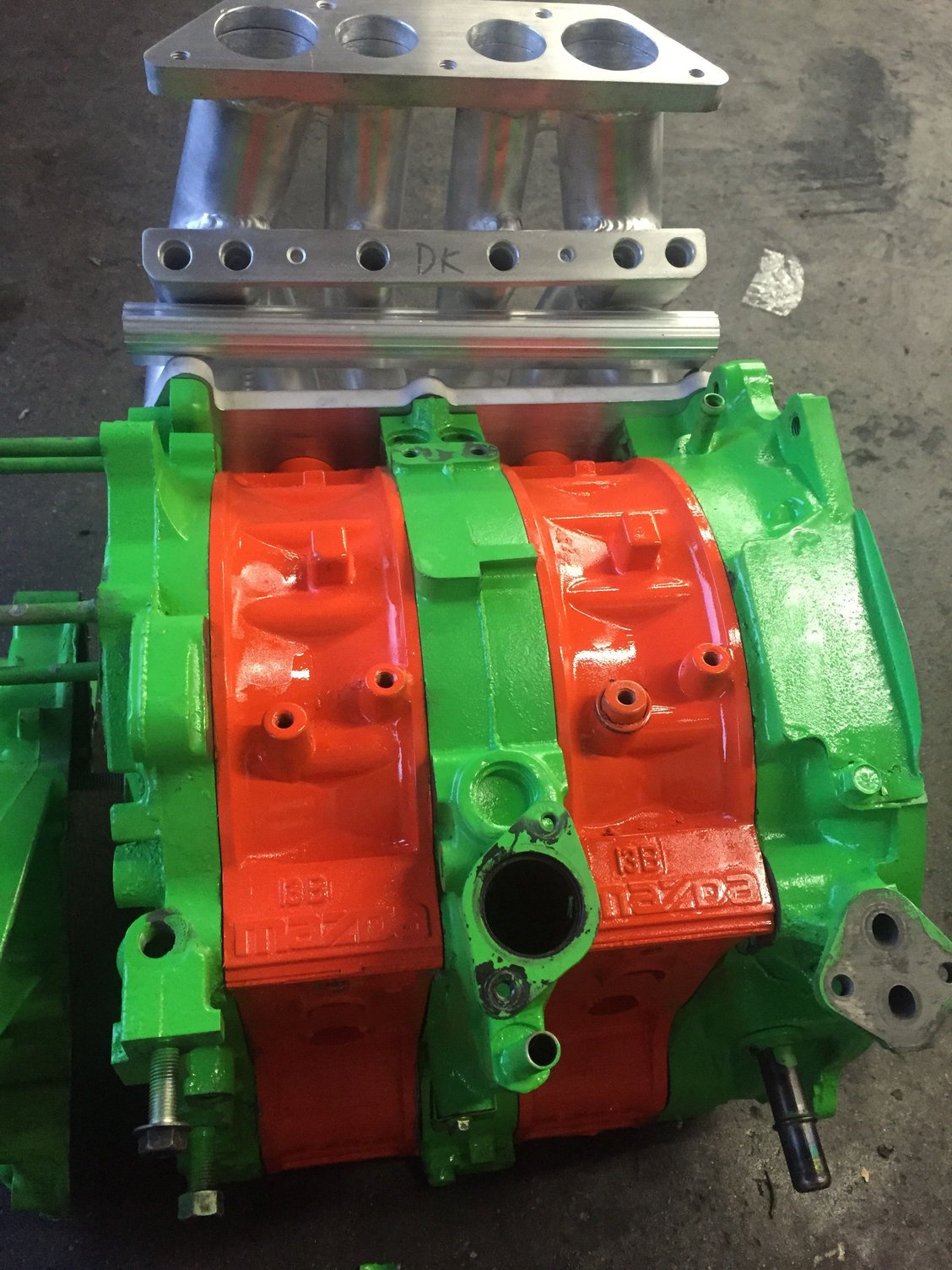

Yes the lim is for semip and non semi p. The semi one here is for my other engine semi p bridge gt45 t6 I'm putting together that I will be shooting for high hp. I sell the lower intake manifolds at my shop, they also include the fuel rail which holds up to 6 injectors and add two on the center iron you can hold up to 8.
dkwasherexd is offline
Old 08-17-15, 06:08 AM
  #7
Garage Life
Thread Starter
iTrader: (8)

dkwasherexd's Avatar

Join Date: Jun 2006
Location: CA
Posts: 2,616
Likes: 0
Received 0 Likes on 0 Posts








dkwasherexd is offline
Old 08-17-15, 12:30 PM
  #8
Lapping = Fapping
iTrader: (12)

Jeff20B's Avatar

Join Date: Aug 2001
Location: Near Seattle
Posts: 15,615
Received 36 Likes on 34 Posts
I like your pumpkin patch color scheme!
Jeff20B is offline
Old 08-17-15, 01:56 PM
  #9
Hi

rotaryfreak3's Avatar

Join Date: Aug 2004
Location: Rochester, MN
Posts: 106
Likes: 0
Received 0 Likes on 0 Posts
I'm guessing he is going after the 787b livery with those colors.
rotaryfreak3 is offline
Old 08-18-15, 01:08 AM
  #10
Senior Member
iTrader: (8)

Join Date: Jul 2011
Location: AZ
Posts: 482
Received 5 Likes on 4 Posts
AZ

Originally Posted by rotaryfreak3 View Post
I'm guessing he is going after the 787b livery with those colors.
LOL, pretty obvious. No one would ever randomly choose that color scheme. Any rotary fan knows those are the most legendary colors to ever grace a rotary race car.

Neutron is offline
Old 08-18-15, 01:21 AM
  #11
Hi

rotaryfreak3's Avatar

Join Date: Aug 2004
Location: Rochester, MN
Posts: 106
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Neutron View Post
LOL, pretty obvious. No one would ever randomly choose that color scheme. Any rotary fan knows those are the most legendary colors to ever grace a rotary race car.
By day I am a mild mannered regular guy, but by night I am Captain Obvious. Watch for me in the next Avengers movie
rotaryfreak3 is offline
Old 08-18-15, 01:41 AM
  #12
Senior Member
iTrader: (8)

Join Date: Jul 2011
Location: AZ
Posts: 482
Received 5 Likes on 4 Posts
AZ

Originally Posted by rotaryfreak3 View Post
By day I am a mild mannered regular guy, but by night I am Captain Obvious. Watch for me in the next Avengers movie
I did not mean for my post to be condescending but now that I read it, it does come off that way
Neutron is offline
Old 08-18-15, 11:41 AM
  #13
Hi

rotaryfreak3's Avatar

Join Date: Aug 2004
Location: Rochester, MN
Posts: 106
Likes: 0
Received 0 Likes on 0 Posts
I'm just kidding around, no worries
rotaryfreak3 is offline
Old 08-18-15, 03:04 PM
  #14
malignant narcissist
iTrader: (2)

diabolical1's Avatar

Join Date: Feb 2002
Location: FL
Posts: 9,525
Received 60 Likes on 56 Posts
pretty bad-*** setup. any video to follow?
diabolical1 is offline
Old 08-19-15, 01:01 AM
  #15
Garage Life
Thread Starter
iTrader: (8)

dkwasherexd's Avatar

Join Date: Jun 2006
Location: CA
Posts: 2,616
Likes: 0
Received 0 Likes on 0 Posts
il post up videos when i get back from taiwan
dkwasherexd is offline
Old 08-29-15, 08:35 PM
  #16
Garage Life
Thread Starter
iTrader: (8)

dkwasherexd's Avatar

Join Date: Jun 2006
Location: CA
Posts: 2,616
Likes: 0
Received 0 Likes on 0 Posts
Video http://youtu.be/_ays9Ynueyg
dkwasherexd is offline
Old 05-12-17, 12:01 AM
  #17
Lives on the Forum
iTrader: (8)

thewird's Avatar

Join Date: Oct 2006
Location: Toronto, Canada
Posts: 6,586
Likes: 0
Received 1 Like on 1 Post
What manifold runner size and turbine housing do you have? Building a similiarish car and not sure what housing to use.

thewird
thewird is offline
Old 05-13-17, 12:58 PM
  #18
mp5
Senior Member
iTrader: (2)

mp5's Avatar

Join Date: Jun 2002
Location: OH.
Posts: 611
Received 4 Likes on 4 Posts
Very Nice....I can't get the link to video.

Loving the lim

Last edited by mp5; 05-13-17 at 01:01 PM.
mp5 is offline
Old 05-14-17, 11:31 AM
  #19
Rotary Enthusiast
iTrader: (1)

Join Date: Dec 2006
Location: east
Posts: 927
Received 5 Likes on 4 Posts
some fantastic numbers! FD trans and rear?

just JB weld or silicone the vacuum nipples on. Too close to flange to weld with aluminum and may leak if you want to weld the steel since it's pressed on.
stickmantijuana is offline
Old 05-14-17, 01:26 PM
  #20
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,093
Received 148 Likes on 131 Posts
I think Swagelok makes little mini metric swage on SS fittings in their high Torr ultra Torr series for high vacuum industrial fittings if you want to get really fancy with the vacuum lines.

I cleaned the nipples with alcohol and put Gask-a-cinch on the nipples and let it dry before I put the hoses on and then zip tied them. I was only running 26psi though.
BLUE TII is offline
Old 05-14-17, 02:08 PM
  #21
Rotary Enthusiast
iTrader: (1)

Join Date: Dec 2006
Location: east
Posts: 927
Received 5 Likes on 4 Posts
just noticed that the original post was almost 2 years ago lol

he hasn't been active much. hopefully it didn't blow up. anyone have the details of this setup?
stickmantijuana is offline
Old 05-27-17, 04:51 AM
  #22
Garage Life
Thread Starter
iTrader: (8)

dkwasherexd's Avatar

Join Date: Jun 2006
Location: CA
Posts: 2,616
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by stickmantijuana View Post
just noticed that the original post was almost 2 years ago lol

he hasn't been active much. hopefully it didn't blow up. anyone have the details of this setup?
I haven't been on the forums lately.

yes the car still runs ! I was just at the customers house installing new suspension arms. The car Made it into a super street magazine spread too 👌👌

studded/balance/side cut is the way to go !
dkwasherexd is offline
