will this suspension make my tires rub??

ok so i am looking at some tyko blues, which would be a two inch drop. with that drop will my tires rub heres what i am currently running on the stock suspension with no trouble, 225/40/18. someone help me pretty please...
Old 01-29-09, 12:01 AM
  #2
Endure Persevere Succeed

iTrader: (30)

Jaiyurai's Avatar

Join Date: Apr 2005
Location: Berkeley, CA
Posts: 1,693
Received 37 Likes on 30 Posts
ride height is more dependent on your choice of springs rather than shocks. What springs will you be using?
Old 01-29-09, 07:45 PM
  #3
Full Member
Thread Starter

tank060206's Avatar

Join Date: Apr 2008
Location: san diego, mission valley
Posts: 162
Likes: 0
Received 0 Likes on 0 Posts

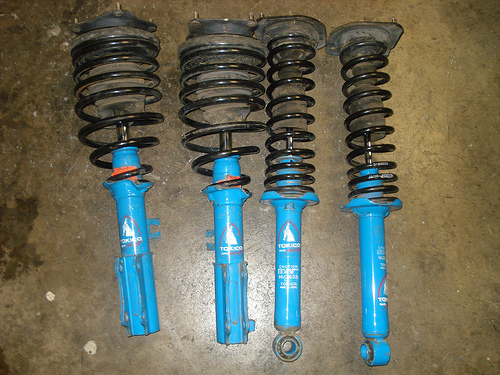

they have Eibach Springs heres a pic
Attached Thumbnails will this suspension make my tires rub??-suspension.jpg
Old 01-31-09, 08:15 PM
  #4
Full Member
Thread Starter

tank060206's Avatar

Join Date: Apr 2008
Location: san diego, mission valley
Posts: 162
Likes: 0
Received 0 Likes on 0 Posts
hello???
Old 01-31-09, 08:51 PM
  #5
Dark Side


90FC's Avatar

Join Date: Sep 2005
Location: Indiana
Posts: 443
Received 11 Likes on 8 Posts
Eibach springs only give you a 1" drop. Whats the offset on the wheels? If the offset is right, you shouldn't have any problems with rubbing.
Old 02-02-09, 10:02 PM
  #6
Full Member
Thread Starter

tank060206's Avatar

Join Date: Apr 2008
Location: san diego, mission valley
Posts: 162
Likes: 0
Received 0 Likes on 0 Posts
not sure what my offset is......... i will have to get back to ya on that one and if you say its only going to drop an inch then i souldnt have anything to worry about anyways. ill let you know what it is.

ok my offset is 42mm....so any problems in my future?
Old 02-02-09, 10:53 PM
  #7
Lives on the Forum


Black91n/a's Avatar

Join Date: Sep 2003
Location: BC, Canada
Posts: 5,707
Likes: 0
Received 4 Likes on 4 Posts
You're almost certainly going to need spacers. What's the width of those wheels?

Hint: the more information you give in the beginning, the faster you'll get a response and the more people are likely to take the time to respond, since you took the time to ask properly.
Old 02-03-09, 12:59 AM
  #8
Full Member
Thread Starter

tank060206's Avatar

Join Date: Apr 2008
Location: san diego, mission valley
Posts: 162
Likes: 0
Received 0 Likes on 0 Posts
isnt the width of my wheels 225 like i said up top??? what size you thinkin for a spacer??
Old 02-03-09, 01:25 AM
  #9
Endure Persevere Succeed

iTrader: (30)

Jaiyurai's Avatar

Join Date: Apr 2005
Location: Berkeley, CA
Posts: 1,693
Received 37 Likes on 30 Posts
225 is the width of your tire.

what is the width of your wheels. all that information should be located on a sticker on your wheel or imprinted inside the wheel.
Old 02-03-09, 03:16 AM
  #10
Dark Side


90FC's Avatar

Join Date: Sep 2005
Location: Indiana
Posts: 443
Received 11 Likes on 8 Posts
Originally Posted by tank060206
what size you thinkin for a spacer??
A 10mm or thicker spacer would be the your safest bet. You may be able to go smaller, but then you risk rubbing on the spring.
Old 02-06-09, 11:51 PM
  #11
Full Member
Thread Starter

tank060206's Avatar

Join Date: Apr 2008
Location: san diego, mission valley
Posts: 162
Likes: 0
Received 0 Likes on 0 Posts
ok so what size would i need to run 245's cuz thats what i wanna shoot for however i dont want the wheels all ***** nilly out the sides cuz im not a fan of widebody kits nor can i afford one i just want wider tires that will not rub the lowered suspension?? and anyone got these said spacers that they might not want????
Old 02-07-09, 12:13 AM
  #12
Full Member
Thread Starter

tank060206's Avatar

Join Date: Apr 2008
Location: san diego, mission valley
Posts: 162
Likes: 0
Received 0 Likes on 0 Posts
the size is 18x7.5 this is what the specs say exatly 18 x 7.5 (+42mm) 4 x 100 / 4.50
heres the link to the page even http://store.phantasmusa.com/sm96187082.html
Old 02-07-09, 12:54 AM
  #13
Lives on the Forum


Black91n/a's Avatar

Join Date: Sep 2003
Location: BC, Canada
Posts: 5,707
Likes: 0
Received 4 Likes on 4 Posts
That seems like a lot to pay for cheap generic rip off wheels that aren't especially wide and have a bad offset (by that I mean they won't fit, it'll hit the suspension).

If you want to run 245's up front, you'll need at most about a 30mm offset, and 245's are getting to be about the absolute limit and you'll almost certainly need to roll fenders. 245's are also getting to be pretty damn wide for a 7.5" wide wheel, you'd be better off with at least an 8" wide, preferably 8.5" or 9" wide.

My advice is to buy quality wheels. I've been screwed by cheap wheels failing after not much use. My Rota track wheels developed a crack around the lug hole due to a bad design, so they're junk now, money wasted.

Enkei RPF1's are about the best deal out there for wheels, quite reasonably priced, very strong and very light (under $1k and about 15.5lbs for the 17x8.5 30mm offset). That combined with some 235/40/17's is my reccomendation. Should fit fine up front, but might need a bit of a fender roll.
Old 02-07-09, 11:27 AM
  #14
Full Member
Thread Starter

tank060206's Avatar

Join Date: Apr 2008
Location: san diego, mission valley
Posts: 162
Likes: 0
Received 0 Likes on 0 Posts
yea new wheels would be great and fine however i dont have the money for new wheels unless soeone wanted to do a one for one trade im still out of luck. what about a spacer that can make up the diff??
Old 02-08-09, 12:46 AM
  #15
Full Member
Thread Starter

tank060206's Avatar

Join Date: Apr 2008
Location: san diego, mission valley
Posts: 162
Likes: 0
Received 0 Likes on 0 Posts
hello????!!!!
Old 02-08-09, 12:38 PM
  #16
Rotary Freak

iTrader: (3)

Josh18_2k's Avatar

Join Date: Jan 2003
Location: Gresham, OR
Posts: 2,024
Likes: 0
Received 1 Like on 1 Post
how bout you just get the wheels and suspension and put them on your car. if you need a spacer, get a spacer.
Old 02-08-09, 12:49 PM
  #17
Full Member
Thread Starter

tank060206's Avatar

Join Date: Apr 2008
Location: san diego, mission valley
Posts: 162
Likes: 0
Received 0 Likes on 0 Posts
i am just trying to do as much reasearch aboutthe matter before i do so to keep from having any problems in the future. why not come prepared????
Old 02-08-09, 03:00 PM
  #18
Mac Attack

iTrader: (5)

MaczPayne's Avatar

Join Date: Dec 2005
Location: California
Posts: 5,668
Received 20 Likes on 10 Posts
Sounds like you don't have the wheels yet. My advice: Save up.
Old 02-09-09, 01:05 AM
  #19
Full Member
Thread Starter

tank060206's Avatar

Join Date: Apr 2008
Location: san diego, mission valley
Posts: 162
Likes: 0
Received 0 Likes on 0 Posts
acually yea i do have the wheels i am just doing the research on the tires cuz i want wider tires to go along with the suspension i am about to buy. check out my pics that car is mine.
Old 02-09-09, 01:53 AM
  #20
Mac Attack

iTrader: (5)

MaczPayne's Avatar

Join Date: Dec 2005
Location: California
Posts: 5,668
Received 20 Likes on 10 Posts
You'd have to run coilovers if you want to fit anything wider than a 235 up front with no fender mods. The smaller diameter coil spring will allow more clearance.
Old 02-09-09, 05:18 AM
  #21
Senior Member


boostinfc3s's Avatar

Join Date: May 2008
Location: Alameda
Posts: 344
Likes: 0
Received 2 Likes on 2 Posts
if you're planning to run 18s on stock body with no front lip you'll still look a 4x4. Even if you get that 1" drop from your new suspension there will still be a good inch of wheel gap depending on what kind of tires you purchase. Why not just save up the money you're planning to buy rims and tires and just get a decent set of coilovers.. atleast you know that part of the car is done with, and you won't need to go back and get say another set of suspension if you ever decide to drop lower, or run more aggressive wheels where it requires negative camber to fit unrolled fenders. Patience is the key to victory, and in this case victory = slammed and flush car.
Old 02-09-09, 08:04 PM
  #22
Full Member
Thread Starter

tank060206's Avatar

Join Date: Apr 2008
Location: san diego, mission valley
Posts: 162
Likes: 0
Received 0 Likes on 0 Posts
ok i dont know why everyone thinks that i am buying wheels, just wider tires and new suspension, i would love to have some sweet *** coilover but i am going to make due with what i got. i will just get some 235/40 and see what happens with the new suspension.
