Old Jul 11, 2008 | 06:30 PM
  #3326
ARD T2's Avatar
Rotary Freak
Tenured Member 20 Years
iTrader: (22)

Joined: Mar 2001
Posts: 2,775
Likes: 17
From: Silicon Valley, CA.
Hey Joe13BT,

My emails aren't sending out so please do send me pm's for FC wheel fitments.

Rishie
Reply
Old Jul 11, 2008 | 06:31 PM
  #3327
ARD T2's Avatar
Rotary Freak
Tenured Member 20 Years
iTrader: (22)

Joined: Mar 2001
Posts: 2,775
Likes: 17
From: Silicon Valley, CA.
962 17x7 will fit the FC with your tokico suspension no problem.

Rishie
Reply
Old Jul 12, 2008 | 11:35 PM
  #3328
2Fierce's Avatar
Cautious Angel
iTrader: (7)

Joined: Jul 2003
Posts: 1,597
Likes: 2
From: toronto
Will the mazdaspeed rx8 wheels (which are 18x8 -2 i think!) fit fc's?

Do rx8 wheels in general fit on fc's?
Reply
Old Jul 13, 2008 | 12:56 AM
  #3329
Black91n/a's Avatar
Lives on the Forum
Tenured Member 10 Years

Joined: Sep 2003
Posts: 5,707
Likes: 6
From: BC, Canada
I do believe that the RX-8 wheels are a 50mm offset, so will require spacers just like FD wheels. I've seen pics of them on an FC, and I must say that they looked out of place on the car. You also can't really use the stock tires, they're too big.
Reply
Old Jul 14, 2008 | 01:13 AM
  #3330
theflatlander's Avatar
Dual Wielding DieGrinders
Tenured Member: 20 Years
iTrader: (3)

Joined: Aug 2002
Posts: 720
Likes: 2
From: Elko, NV
Fronts 17x9.5 w/ 255/40/17 tire. 30mm fender, stance coilovers, i was thinking +18offset?

Last edited by theflatlander; Jul 14, 2008 at 01:20 AM.
Reply
Old Jul 15, 2008 | 11:52 AM
  #3331
cheesebox's Avatar
Senior Member
Tenured Member: 15 Years

Joined: Oct 2006
Posts: 310
Likes: 0
From: NY
I am currently deciding with keeping stock rim size or upsizing, 16x7 +38mm offset lightweight wheees or 18x8 or 18x8.5 wheels. I want to know whats the biggest tire combo I can safely run on 16x7's with 38mm offset. I Auto-X frequently but they cant be strait slicks, Rain does happen and the car is a DD though I dont mind driving slower in the rain if the dry performance is just godly. So any tire suggestions for a 16X7 with 38 offset? Or am I better off going big

Thanks
Reply
Old Jul 15, 2008 | 12:02 PM
  #3332
BASTARD's Avatar
®
Tenured Member: 20 Years
iTrader: (4)

Joined: Dec 2003
Posts: 2,282
Likes: 3
From: NorCal
Originally Posted by theflatlander
Fronts 17x9.5 w/ 255/40/17 tire. 30mm fender, stance coilovers, i was thinking +18offset?

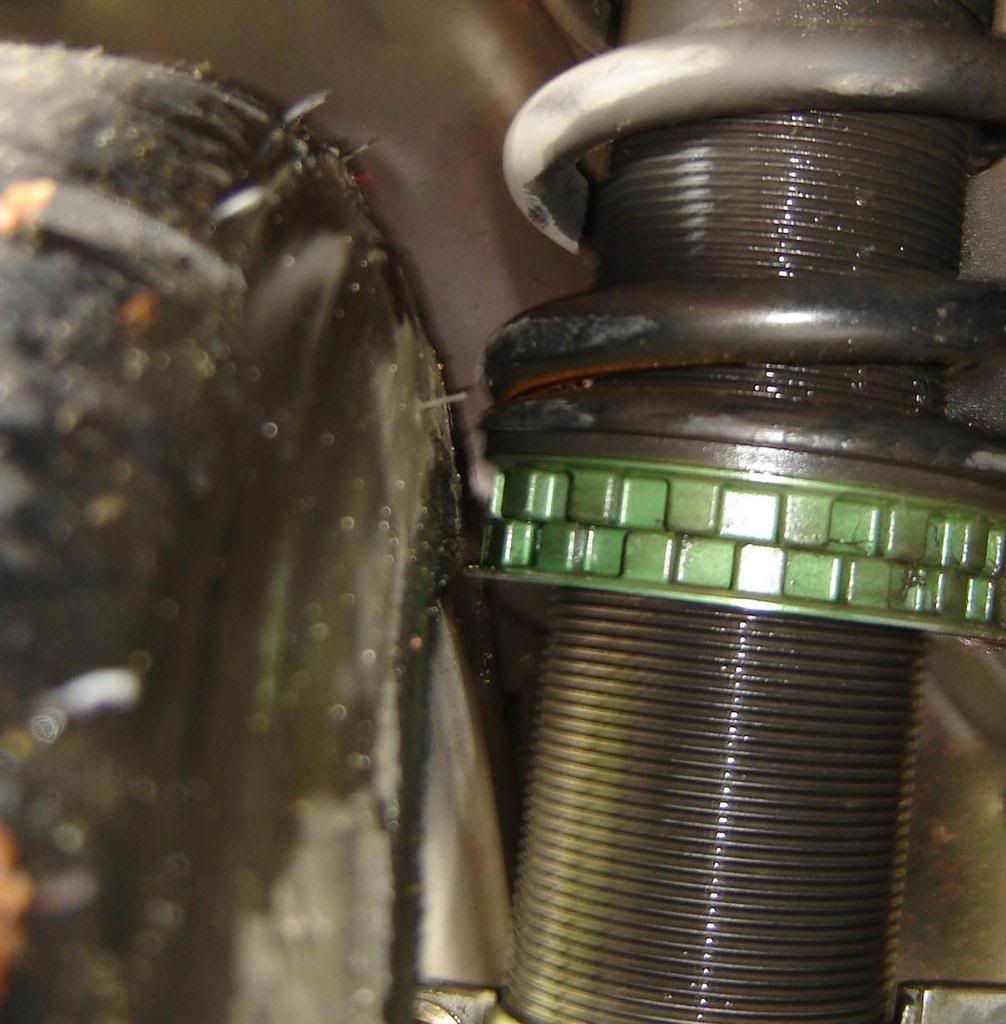

your going to have similar strut clearance to this, possibly less if your strut is bigger in diameter

Name:  DSC02605.jpg
Views: 138
Size:  101.4 KB
Reply
Old Jul 15, 2008 | 12:15 PM
  #3333
theflatlander's Avatar
Dual Wielding DieGrinders
Tenured Member: 20 Years
iTrader: (3)

Joined: Aug 2002
Posts: 720
Likes: 2
From: Elko, NV
bastard, thanks. ill go a with a little less.
Reply
Old Jul 15, 2008 | 02:57 PM
  #3334
Roen's Avatar
The Silent but Deadly Mod
Tenured Member: 20 Years
iTrader: (2)

Joined: Aug 2003
Posts: 4,047
Likes: 3
From: NYC/T.O.
Originally Posted by cheesebox
I am currently deciding with keeping stock rim size or upsizing, 16x7 +38mm offset lightweight wheees or 18x8 or 18x8.5 wheels. I want to know whats the biggest tire combo I can safely run on 16x7's with 38mm offset. I Auto-X frequently but they cant be strait slicks, Rain does happen and the car is a DD though I dont mind driving slower in the rain if the dry performance is just godly. So any tire suggestions for a 16X7 with 38 offset? Or am I better off going big

Thanks
If you have shocks/springs, a 205/55 will fit. A 225/50 will also fit with a spacer in the front.
Reply
Old Jul 17, 2008 | 08:50 PM
  #3335
jaggermouth's Avatar
Will TIG for 20b
Tenured Member 10 Years
iTrader: (1)

Joined: Mar 2008
Posts: 1,422
Likes: 3
From: Nanaimo
What's the widest Enkei RP03 17" rim I can fit on the front of an FC? Tire size too
Reply
Old Jul 18, 2008 | 07:53 PM
  #3336
eage8's Avatar
1308ccs of awesome
Tenured Member: 20 Years
iTrader: (9)

Joined: Sep 2003
Posts: 6,189
Likes: 18
From: Woodbine, MD
Originally Posted by jaggermouth
What's the widest Enkei RP03 17" rim I can fit on the front of an FC? Tire size too
you could fit an 17x8 but the only offset they offer is a +48 so you would have to get about a 15mm spacer.
Reply
Old Jul 18, 2008 | 08:09 PM
  #3337
eage8's Avatar
1308ccs of awesome
Tenured Member: 20 Years
iTrader: (9)

Joined: Sep 2003
Posts: 6,189
Likes: 18
From: Woodbine, MD
I just installed my new coil overs (JIC FLT-TARs) and am very pleased at how much the back wheels got pulled in.

My setup:
F 17x8 +35 w/ 225/45/17 Falken Azenis RT-615
R 17x10 +35 w/ 255/40/17 ""
JIC FLT-TARs

I'm thinking about going with 235s with my next set of tires, and maybe 275s in the back if I'm feeling dangerous/ after I see how it handles on the track.

pictures:




Last edited by eage8; Jul 18, 2008 at 08:15 PM.
Reply
Old Jul 18, 2008 | 08:28 PM
  #3338
eage8's Avatar
1308ccs of awesome
Tenured Member: 20 Years
iTrader: (9)

Joined: Sep 2003
Posts: 6,189
Likes: 18
From: Woodbine, MD
Originally Posted by cheesebox
I am currently deciding with keeping stock rim size or upsizing, 16x7 +38mm offset lightweight wheees or 18x8 or 18x8.5 wheels. I want to know whats the biggest tire combo I can safely run on 16x7's with 38mm offset. I Auto-X frequently but they cant be strait slicks, Rain does happen and the car is a DD though I dont mind driving slower in the rain if the dry performance is just godly. So any tire suggestions for a 16X7 with 38 offset? Or am I better off going big

Thanks
225/50/16 Falken Azenis RT-615s

They're great for autocross and my fiancee daily drives them, so they're not that bad in the rain. And they're also decently cheap for what they are (a lot less than Bridgestone RE-01Rs)

And they're not directional so you can rotate them


Last edited by eage8; Jul 18, 2008 at 08:35 PM.
Reply
Old Jul 18, 2008 | 08:54 PM
  #3339
jaggermouth's Avatar
Will TIG for 20b
Tenured Member 10 Years
iTrader: (1)

Joined: Mar 2008
Posts: 1,422
Likes: 3
From: Nanaimo
Originally Posted by eage8
you could fit an 17x8 but the only offset they offer is a +48 so you would have to get about a 15mm spacer.
damn, i was hoping to go wider...i think the 10" wide on the REAR has a +18 offset? so 8" on front with 10s on the back would look silly, eh

Oh, Im also going to be getting some wide body fenders
Reply
Old Jul 18, 2008 | 10:14 PM
  #3340
eage8's Avatar
1308ccs of awesome
Tenured Member: 20 Years
iTrader: (9)

Joined: Sep 2003
Posts: 6,189
Likes: 18
From: Woodbine, MD
Originally Posted by jaggermouth
damn, i was hoping to go wider...i think the 10" wide on the REAR has a +18 offset? so 8" on front with 10s on the back would look silly, eh

Oh, Im also going to be getting some wide body fenders
I have 17x10s on the back of mine, look at the post below my reply. Those are flush and are a +35 offset, if you're going to get wide fenders I think +18 would be fine in the back depending on how wide the fenders are.
Reply
Old Jul 21, 2008 | 10:27 PM
  #3341
fcdrifter13's Avatar
Play Well
Tenured Member: 20 Years

Joined: Feb 2005
Posts: 4,218
Likes: 0
From: We're all fine here now, thank you. How are you?
Right now i have FD wheels with spacers, my suspension at this moment is AGXs eibach springs with camber plates up front. What is the largest tire i can fit on these I dont mind rolling the fenders
Reply
Old Jul 25, 2008 | 12:50 AM
  #3342
whitelightnin's Avatar
Work in Progress..

Joined: May 2007
Posts: 97
Likes: 0
From: WV
90 gtu with JIC magic FLT-Tar Coilovers.

FRont 17x7 +40
Rear 17x9 +40

what are the fattest tires I can throw on them??? Thanks in advance

(im fine with getting spacers if needed)
Reply
Old Jul 26, 2008 | 12:19 AM
  #3343
CarzArKoo1's Avatar
Rotary Enthusiast

Joined: Jan 2007
Posts: 1,026
Likes: 0
From: California
front 215 or 225? and rear 255 or 265? thats like your range
Reply
Old Jul 26, 2008 | 05:20 AM
  #3344
whitelightnin's Avatar
Work in Progress..

Joined: May 2007
Posts: 97
Likes: 0
From: WV
well, i dont know much about tires soo..... would the larger size of each hang over the edges? would the smaller stretch a little?
Reply
Old Jul 26, 2008 | 11:10 AM
  #3345
fcdrifter13's Avatar
Play Well
Tenured Member: 20 Years

Joined: Feb 2005
Posts: 4,218
Likes: 0
From: We're all fine here now, thank you. How are you?
Originally Posted by CarzArKoo1
front 215 or 225? and rear 255 or 265? thats like your range
was this toward me or whitelightning
Reply
Old Jul 29, 2008 | 12:21 PM
  #3346
ilia's Avatar
Chicago
Tenured Member 15 Years
iTrader: (4)

Joined: May 2007
Posts: 569
Likes: 3
From: Chicago
Anyone ever run a 215/40/18 on a 18x9.5 et -10 on the REAR of an FC?

I'm looking to do 215/40/17 on the front, with a 9.5 et 15ish wheel, and a 215/40/18 on the rear, with a 18x9.5 et -10 on the rear.

Colorado? Justin? So far I've run closer to a 10"+20/+15 in the rear, but my NA is too weak to spin 235s how I want, so I'm hoping to run less tire.
Reply
Old Jul 30, 2008 | 03:58 PM
  #3347
CarzArKoo1's Avatar
Rotary Enthusiast

Joined: Jan 2007
Posts: 1,026
Likes: 0
From: California
is for whitelightning, on the 17x9 215 considering a stretch and for 17x7 is not a stretch, if you do 265 on the 9 probably will kinda go over. so here is an idea to think what you want to run, stretch tires or just fit the tires on the width you have on your wheel
Reply
Old Jul 30, 2008 | 04:14 PM
  #3348
Roen's Avatar
The Silent but Deadly Mod
Tenured Member: 20 Years
iTrader: (2)

Joined: Aug 2003
Posts: 4,047
Likes: 3
From: NYC/T.O.
I would run a 7.5" wide for a 215, instead of a 7".
Reply
Old Jul 30, 2008 | 06:08 PM
  #3349
ilia's Avatar
Chicago
Tenured Member 15 Years
iTrader: (4)

Joined: May 2007
Posts: 569
Likes: 3
From: Chicago
Nah, 215s are meant to fit on 9.5" wheels.

Hahahahaha
Reply
Old Jul 30, 2008 | 06:59 PM
  #3350
SINCITYFC's Avatar
Full Member
Tenured Member 10 Years

Joined: Oct 2004
Posts: 83
Likes: 0
From: LAS VEGAS NV
Low offset

Is +11 too low on a 17X9 wheel? or it can be fit with some fender rolling without looking ridiculously sticking out of the fenders on an FC.
