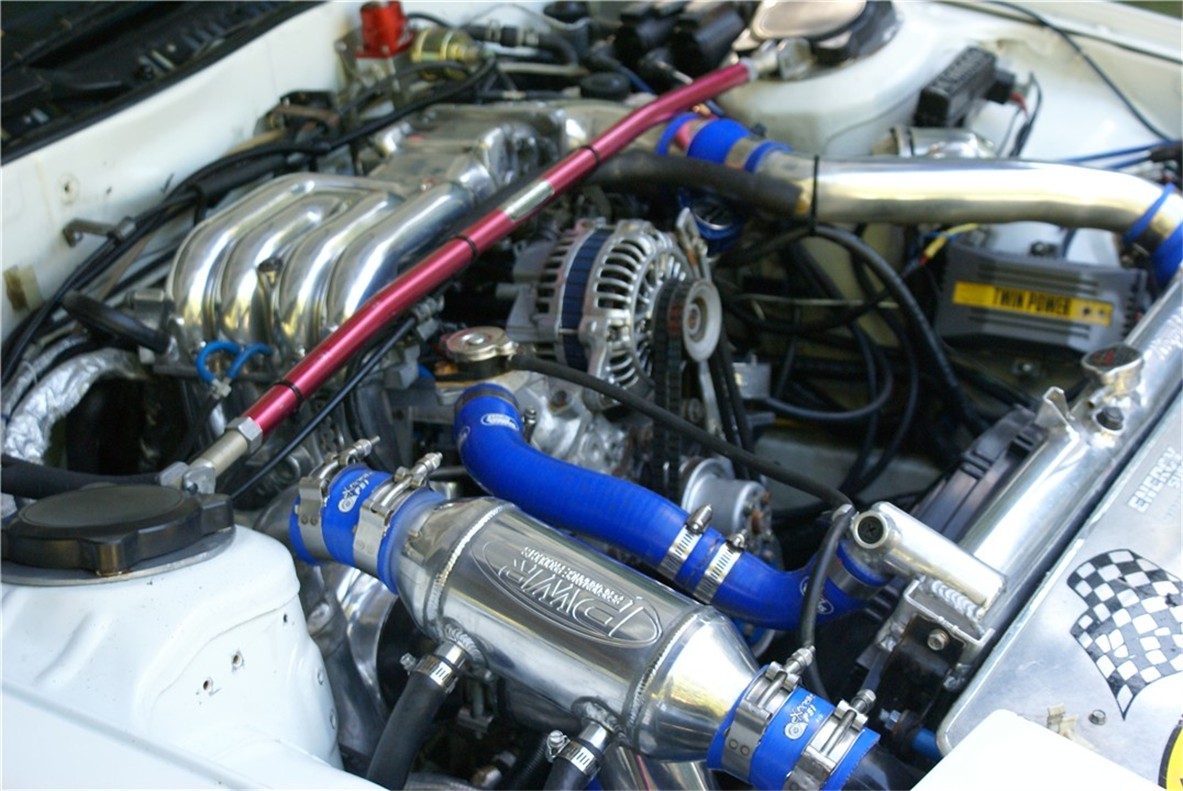

Here is a pic of water to air I/C im using it as a precooler as I have my Front mount also. I can also chill the water /glycol mix.Im using a FC oil cooler as a heat exchanger and a bssch pump. Still in process of breaking the engine in but until the temp sender gets heat soaked I rigt at ambiant temp.
Oh Its a REW in a FC lots of mods

Johny



Interesting idea....hows the pressure drop across both cores? Have you measured it?

Fairly well known across here the PWR cores are not exactly efficient in their design, a lack of turbulators, etc...(Not to mention the build quality issues they seem to be having) so would be really interested in some measurements in temps / pressure.

I am building a completely custom W2A setup for my FD..to hopefully hold temps stable with a HKS T51R running 35+psi...hence my genuine interest.



I may have to check the pressure drop. Im only 900 miles into a rebuild so I have only sporaticly boosted and still at 5k or less and yes I was under 4k for first 850 miles And I thought PWR was good stuff .
And thanks for posting



not sure wtf that thing is, but its almost as impressive looking as your avatar!



I still cannot understand why guys go through all that fuss for cooling when water or methanol injection will get it done BETTER , and also give you a lot more resistance to detonation.



Are you recommending no intercooler at all?



For the record Im running a coolingmist water /meth setup I typcally run a 50/50 mix

and its really no fuss at all

Johny



Wouldn't the water/air IC potentially work much better placed after the air/air IC? My reasoning is that the water/air IC potentially has a much higher efficiency than the air/air, so the air/air IC may actually act as a heater when you are using chilled water. Also, it would be preferable to let the air/air do most of the initial charge cooling, and let the water/air IC further cool the temps so your coolant will not get heat soaked as quickly.



And I would agree with you. It would have been optimal to install it after the air I/C. But space, angle and ease of installation, influenced my decision. Im thinking the water I/C will take the brunt of the heat off the turbo . It seems to be working well I need to get it broke in all the way and then post some numbers.
