Old Sep 25, 2006 | 09:05 AM
  #151
atihun's Avatar
Thread Starter
Rotary Enthusiast
Tenured Member 20 Years

Joined: Feb 2001
Posts: 1,094
Likes: 0
From: Orange County, CA
Originally Posted by dubulup
PAINT BLACK!! please paint it black...
Dang! I already took out the front stud!

I thought it looks good silver, and it's stainless so it won't rust... I'll spray a test piece and see what it looks like.
Reply
Old Sep 25, 2006 | 10:00 AM
  #152
dubulup's Avatar
development
Tenured Member 15 Years

Joined: Aug 2002
Posts: 5,714
Likes: 7
From: Lafayette, LA
okay sorry to be your, "GT35R Here I come!" show critic...but this is really all I see when I see see silver


well, of course your screen is way more classy...and robust.

black is just a little more stealthish

maybe test one of the oil cooler ducts...
Reply
Old Sep 25, 2006 | 10:42 AM
  #153
atihun's Avatar
Thread Starter
Rotary Enthusiast
Tenured Member 20 Years

Joined: Feb 2001
Posts: 1,094
Likes: 0
From: Orange County, CA
Originally Posted by dubulup
maybe test one of the oil cooler ducts...
I'll try that out and see what it looks like. I don't want the car to look like a mobile chicken coupe!

Last edited by atihun; Sep 25, 2006 at 10:49 AM.
Reply
Old Sep 25, 2006 | 01:01 PM
  #154
charlies7's Avatar
3rd rotors a charm
Tenured Member: 20 Years
iTrader: (4)

Joined: Nov 2003
Posts: 3,331
Likes: 1
From: NW of windy city
this is probably a stupid question but are you running a vented hood?? I was planning on doing a vmount but dont want a vented hood and i know a vmount without a vented is kinda pointless or am i wrong?
Reply
Old Sep 25, 2006 | 01:22 PM
  #155
atihun's Avatar
Thread Starter
Rotary Enthusiast
Tenured Member 20 Years

Joined: Feb 2001
Posts: 1,094
Likes: 0
From: Orange County, CA
I will eventually run one of our vented hoods, but even without one it still better than the stock setup or a front mount.

With a stock setup or front mount the air is going into the engine bay. At least with a v-mount setup, both IC and radiator get cold air, instead of first passing through the IC then to the radiator. Plus the radiator has the fans pointing downwards so the hot air will be directed to the underside of the car instead of the engine bay.

I won't know for sure until I drive the car, but I'm confident it will work.

Last edited by atihun; Sep 25, 2006 at 01:24 PM.
Reply
Old Sep 25, 2006 | 04:44 PM
  #156
Eggie's Avatar
Rotary Enthusiast
Tenured Member 10 Years

Joined: Jan 2002
Posts: 859
Likes: 0
From: 15143
Originally Posted by atihun
McMaster Carr is the shiznit! I found some welded stainless mesh that works great for the front bumper.
Any chance you could post a part number and/or pics of how you installed it?
Reply
Old Sep 25, 2006 | 05:16 PM
  #157
atihun's Avatar
Thread Starter
Rotary Enthusiast
Tenured Member 20 Years

Joined: Feb 2001
Posts: 1,094
Likes: 0
From: Orange County, CA
http://www.mcmaster.com/nav/enter.as...12&pagenum=361

It's 9322T12.

I'll take a pic of the backside, but it was just a matter of cutting at a diagonal a piece that was 8.5 inches by 35 inches.

Then I just cut the ends to flap, put it between two pieces of straight aluminum along the lines I marked and put that in a vice and bent it along the lines.
Reply
Old Sep 25, 2006 | 06:33 PM
  #158
CrispyRX7's Avatar
Polishing Fiend
Tenured Member: 20 Years
Liked
Loved
iTrader: (139)

Joined: Apr 2001
Posts: 3,391
Likes: 48
From: MD
I love it when someone sets a new standard. The bar keeps getting higehr and higher. My hat's off to you sir.

2 opinions if'n I may be so bold:

1) paint the mesh satin black. Use Bulldog adhesion proimotor and a flexible satin black bumper/plastic paint. It's less likely to chip, and

2) let the oil t-stat float. Use at most some *eek* zip ties. Even the slightest flex between engine and t'stat will either fatigue the fitting or work the threads loose over time. Even with solid motor mounts there will be movement between the front steering rack bracket you made and the engine front cover. The other option is simply to remove the t'stat altogther if you live in a warmer southern clime. Just takes a few more minutes to warm up is all

Keep it up and I'm just sad I'll probably never get to see the car in person.
Regards,
Crispy
Reply
Old Sep 26, 2006 | 09:26 AM
  #159
Eggie's Avatar
Rotary Enthusiast
Tenured Member 10 Years

Joined: Jan 2002
Posts: 859
Likes: 0
From: 15143
Thanks for the info.
Reply
Old Sep 26, 2006 | 09:50 PM
  #160
palsor1's Avatar
Senior Member
Tenured Member 05 Years
iTrader: (2)

Joined: Apr 2006
Posts: 355
Likes: 0
From: Austin, TX
Noooo! I just read all 11 pages of this thread and then it suddenly ended. It's like reading a book with the last chapter missing... Where's the end!!!

Heh, great work. I'm just pulling the engine out of my car with plans for a lot of work and now I've got all kinds of ideas floating in my head.
Reply
Old Sep 29, 2006 | 04:44 PM
  #161
atihun's Avatar
Thread Starter
Rotary Enthusiast
Tenured Member 20 Years

Joined: Feb 2001
Posts: 1,094
Likes: 0
From: Orange County, CA
Thanks everyone to the input and props!

I ended up painting the mesh black, so we'll see what it looks like mounted this weekend.

(Crispy) The bracket I made for the oil t-stat is very flexible (it's 1/16 thin aluminum), almost like using zip ties . It's mounted so to move with the engine. I will probably end up making a bracket that holds it directly to the engine, or relocate it to the frame rail and make some lines with a little slack. I didn't think that running without a t-stat was an option; that might work also since it's normally warm here in SoCal.

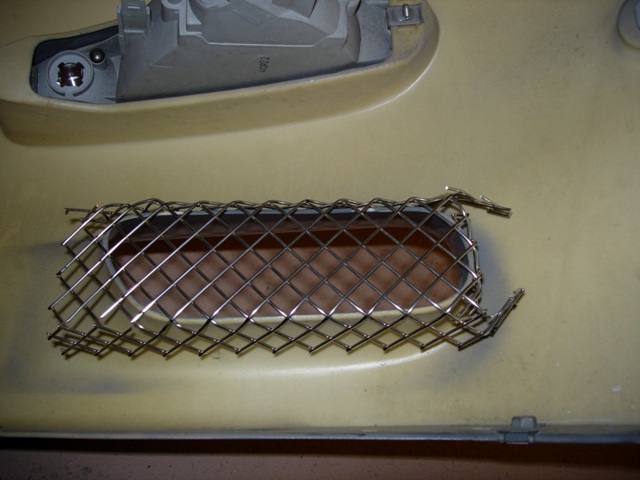

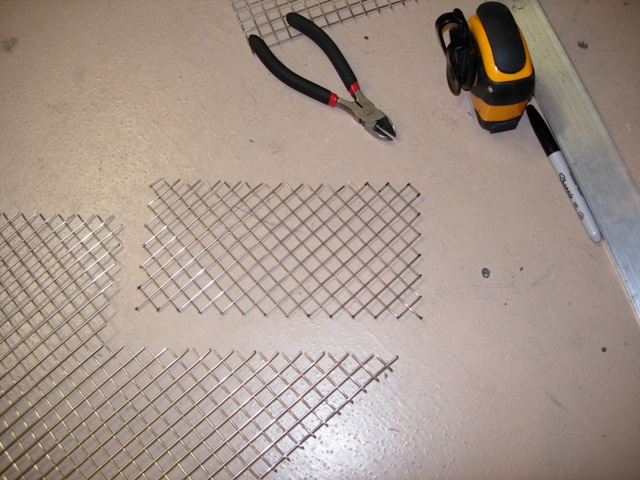

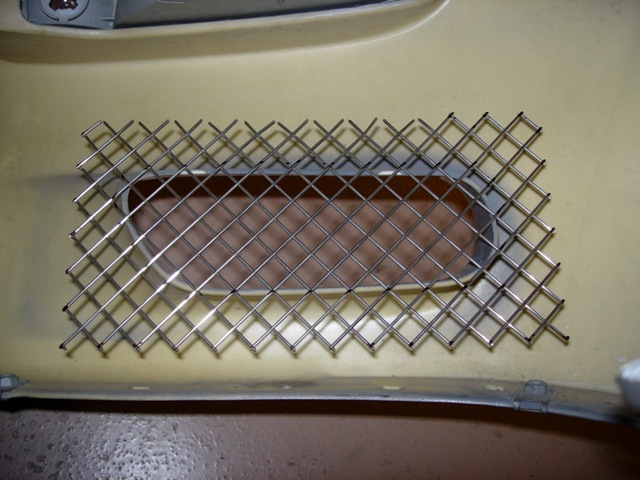

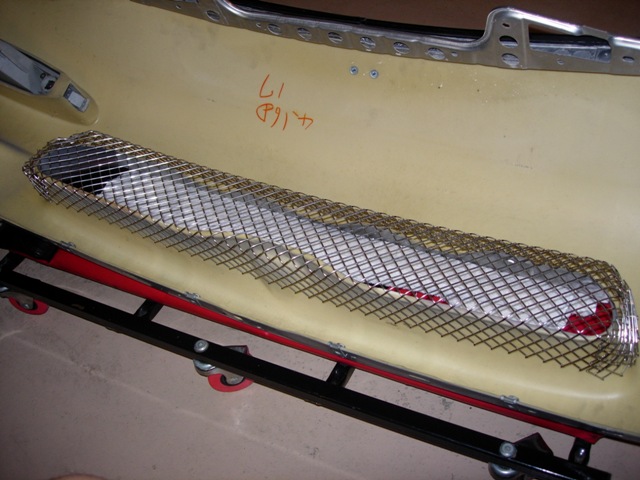

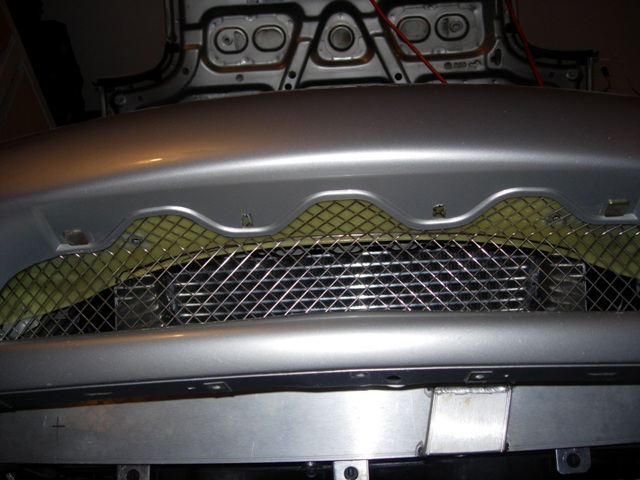

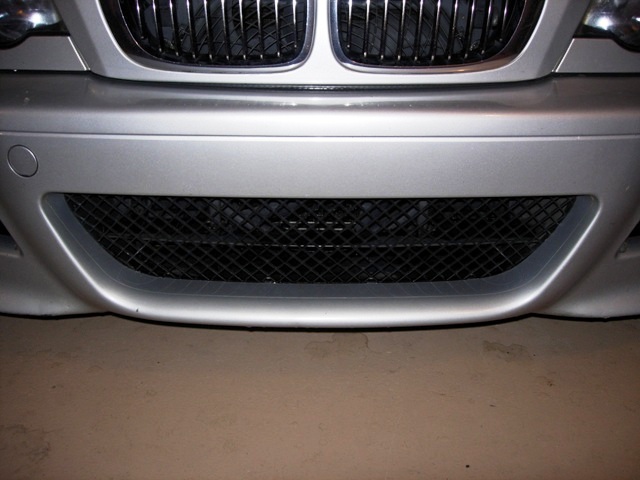

Here's some pics of the mesh install as requested:









For the center grill, the way I cut and formed the mesh, I will use the 4 holes in the bumper support to mount it. The mesh will fit underneath the bumper skin and the bolts will go through and hold everything in place. As for the oil cooler mesh, well I haven't figured out how to mount them yet...



My wife says that I'm trying to copy her car; I told her it was the peer pressure!


Last edited by atihun; Sep 29, 2006 at 04:47 PM.
Reply
Old Sep 30, 2006 | 05:43 AM
  #162
1FooknTiteFD's Avatar
Ghost Ride the Whip
Tenured Member 20 Years

Joined: Mar 2001
Posts: 1,467
Likes: 1
From: Foster City, CA
It's the fitting between the thermostat and front cover. It broke on me twice! Spilled oil all over the track and had to get my car towed, pos. I just extended the oil cooler line from the front cover so that there is a line instead of just a fitting. IMO, the design was terrible. Just pay attention to see if there are any cracks or leaks coming from there. I'll try to get pics later


Originally Posted by atihun
Thanks for the heads up!

Is it the fitting between the thermostat and front cover, or the actual fitting on the thermostat?

I know that the fitment wasn't the best designed as the tstat is floating, so when I installed it, I made a bracket that is flexible and bolted it to the tstat bracket and the steering rack bolt. Since I have solid motor mounts, I think the bracket will help, maybe...

Can you post a pic of how you re-mounted yours?
Reply
Old Oct 5, 2006 | 04:26 PM
  #163
rotarypower101's Avatar
sdrawkcab
Tenured Member: 20 Years
Liked
Loved
iTrader: (1)

Joined: Mar 2002
Posts: 1,922
Likes: 1
From: Portland Oregon
I think he is referring to the 90* fitting that comes from the cover to the thermostat.

It seems to me if it were solid, it would work stress and fail just from looking at it.

If you just replace the SOLID 90* fitting with a flexible joint (ie length of hose), there shouldn’t be any problem. Though it may not be as clean looking as the stock setup, durability comes first!

Looking good ! get those wheels on the ground and rolling and start enjoying your hard work
Reply
Old Oct 5, 2006 | 05:46 PM
  #164
Komodo1982's Avatar
7-Style
Tenured Member 05 Years
iTrader: (4)

Joined: Apr 2004
Posts: 750
Likes: 0
From: Lemoore, Ca
Attilla,
Good m,eeting you last night. It looks even more impressive in person. just recieved my Koyo today so we'll get started on the cutting and welding. could you send me some detailed picts of the new placements.

Thanks,
Ken
Reply
Old Oct 13, 2006 | 08:18 PM
  #165
oo7arkman's Avatar
In the Garage
Tenured Member 05 Years
iTrader: (2)

Joined: Mar 2006
Posts: 1,406
Likes: 1
From: Central FL
Ok, I have been following this thread for months now. I know numberous others have said "WOW" and I have to say the same. Your attention to detail and extreme patience with every small piece have me very impressed. I do not come close to possessing the patience that you do. This looks so clean... again....wow....

I am looking forward to hearing how break-in went as well as how it performs.
Reply
Old Oct 14, 2006 | 04:38 PM
  #166
atihun's Avatar
Thread Starter
Rotary Enthusiast
Tenured Member 20 Years

Joined: Feb 2001
Posts: 1,094
Likes: 0
From: Orange County, CA
Thanks guys...

I need some input.

Here's the vacuum/pressure routing that I'm doing:



I would like some input on the following:

1. Wastegate... I didn't tap the turbo housing for a pressure port, but I do have two ports on the tubing that comes from the turbo outlet and I'm going to use them for the pressure lines needed for the wastegate and Blitz SBCID boost controller. Is it okay to have both seeing the same pressure?

2. I don't have room for an oil catch can. I do have two ports that are going into the tubing right after the intake filter. The oil injectors and oil filler tube will be connected like stock. Any issues doing this for the oil filler neck to avoid oil blowby and allow crankcase ventilation instead of using an oil catch can?

Thanks!
Reply
Old Oct 14, 2006 | 08:01 PM
  #167
Asleep's Avatar
7 Rx-7s since 1980
Tenured Member 15 Years

Joined: Mar 2004
Posts: 438
Likes: 1
From: oHIo
Originally Posted by atihun
Thanks guys...

I need some input.

Here's the vacuum/pressure routing that I'm doing:



I would like some input on the following:

1. Wastegate... I didn't tap the turbo housing for a pressure port, but I do have two ports on the tubing that comes from the turbo outlet and I'm going to use them for the pressure lines needed for the wastegate and Blitz SBCID boost controller. Is it okay to have both seeing the same pressure?

2. I don't have room for an oil catch can. I do have two ports that are going into the tubing right after the intake filter. The oil injectors and oil filler tube will be connected like stock. Any issues doing this for the oil filler neck to avoid oil blowby and allow crankcase ventilation instead of using an oil catch can?

Thanks!
Both the WG and the boost control solenoid should see the same source. Some install diagrams even show them both tee'ed into the same line. I do seperate.

You know you're going to suck in heavy vapor (fuel/air with suspended oil) into the intake tract with/or without the catch can sucking back into the intake? There is room for a catch can...in front of the radiator.
Reply
Old Oct 14, 2006 | 09:13 PM
  #168
phinsn98's Avatar
Rotary Enthusiast
Tenured Member 20 Years
iTrader: (2)

Joined: Mar 2001
Posts: 845
Likes: 1
From: Virginia Beach
nothing like paying attention to detail..congrats you have a piece of art there, with your signature all over it.
Reply
Old Oct 16, 2006 | 11:12 AM
  #169
atihun's Avatar
Thread Starter
Rotary Enthusiast
Tenured Member 20 Years

Joined: Feb 2001
Posts: 1,094
Likes: 0
From: Orange County, CA
Thanks for the info. I will give it a try with the vacuum line to the intake first. I tee'd a really small line so that may just reduce the pressurization without pulling too much of the vapor / oil. We'll see.

I've finished pulling the battery cabling and the engine bay is 'ready'!

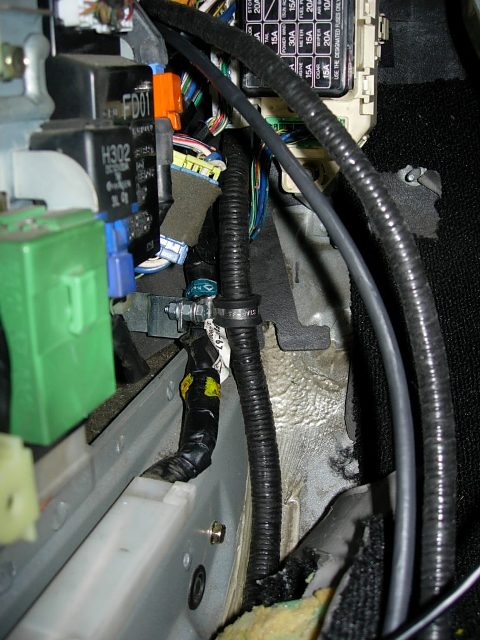

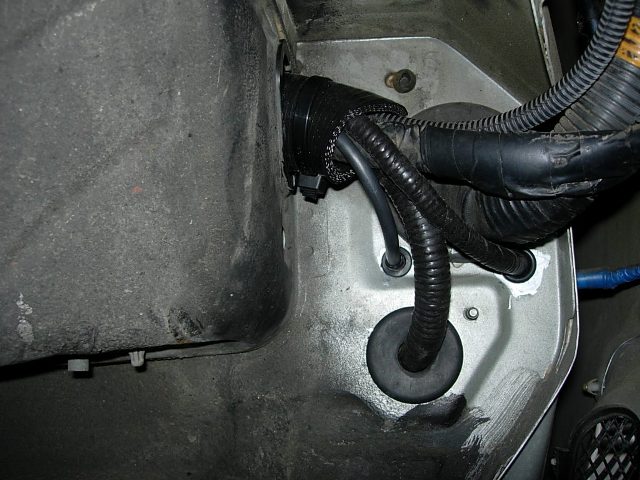

Here's the cabling run through the firewall (Battery and the Defi stuff). I found a nice grommet at McMaster that fits the large hole that was already there.



I was able to hold down the battery cable in the cabin so it doesn't rub / move around:



Here's the latest on the bay:



All I have to do now is a few minor things, mount and wire the battery, and wire up the WBO2 and other stuff, and I should be able to get into the PFC and configure everything to start it.
Reply
Old Oct 16, 2006 | 11:21 AM
  #170
Asleep's Avatar
7 Rx-7s since 1980
Tenured Member 15 Years

Joined: Mar 2004
Posts: 438
Likes: 1
From: oHIo
Very nice! Better than ****!
Tony
Reply
Old Oct 16, 2006 | 02:05 PM
  #171
CrispyRX7's Avatar
Polishing Fiend
Tenured Member: 20 Years
Liked
Loved
iTrader: (139)

Joined: Apr 2001
Posts: 3,391
Likes: 48
From: MD
Originally Posted by atihun
Thanks guys...

I need some input.

Here's the vacuum/pressure routing that I'm doing:



I would like some input on the following:

1. Wastegate... I didn't tap the turbo housing for a pressure port, but I do have two ports on the tubing that comes from the turbo outlet and I'm going to use them for the pressure lines needed for the wastegate and Blitz SBCID boost controller. Is it okay to have both seeing the same pressure?

2. I don't have room for an oil catch can. I do have two ports that are going into the tubing right after the intake filter. The oil injectors and oil filler tube will be connected like stock. Any issues doing this for the oil filler neck to avoid oil blowby and allow crankcase ventilation instead of using an oil catch can?

Thanks!
The way I routed my vac lines...FWIW. Seems to control boost well enough.
http://www.negative-camber.org/crisp...glevachose.jpg
Regards,
Crispy
Reply
Old Oct 18, 2006 | 09:24 PM
  #172
RX7KING3's Avatar
Junior Member
Tenured Member 05 Years

Joined: Sep 2004
Posts: 47
Likes: 0
From: Southern California
Very Nice!!
Reply
Old Oct 23, 2006 | 09:30 AM
  #173
palsor1's Avatar
Senior Member
Tenured Member 05 Years
iTrader: (2)

Joined: Apr 2006
Posts: 355
Likes: 0
From: Austin, TX
Atilla,

In the two pics I copied below, it looksl like you replaced your oil injector lines with stainless lines. Any chance I can get some more details on how you did that?

1. How did you connect the lines to the injectors?
2. How did you connect the lines at the other end?
3. Where did you get that little bracket that's holding the lines?
4. Where did you get the sleeves that are over the lines?

- Andy

Originally Posted by atihun
...




Reply
Old Oct 23, 2006 | 09:47 AM
  #174
GoodfellaFD3S's Avatar
Original Gangster/Rotary!
Veteran: Army
Tenured Member: 25 Years
Liked
Loved
iTrader: (213)

Joined: Mar 2001
Posts: 30,818
Likes: 656
From: FL-->NJ/NYC again!
Originally Posted by palsor1
Atilla,

In the two pics I copied below, it looksl like you replaced your oil injector lines with stainless lines. Any chance I can get some more details on how you did that?

1. How did you connect the lines to the injectors?
2. How did you connect the lines at the other end?
3. Where did you get that little bracket that's holding the lines?
4. Where did you get the sleeves that are over the lines?

- Andy
Hey Andy,

here is one source for the lines:

http://www.gothamracing.com/catalog/...roducts_id=857

Looks like he fabbed the bracker himself, and those sleeves are most likely hose that he slit and held in place with zip ties.
Reply
Old Oct 23, 2006 | 01:57 PM
  #175
atihun's Avatar
Thread Starter
Rotary Enthusiast
Tenured Member 20 Years

Joined: Feb 2001
Posts: 1,094
Likes: 0
From: Orange County, CA
Originally Posted by GoodfellaFD3S
Hey Andy,

here is one source for the lines:

http://www.gothamracing.com/catalog/...roducts_id=857

Looks like he fabbed the bracker himself, and those sleeves are most likely hose that he slit and held in place with zip ties.
Yep, I got them from Gotham; they were here in a few days.

Yep, the bracket was just a piece of aluminum I bent up into a 'W' and used to mounting hole on top of the rotor housing.

As for the sleeves, they were actually Sumitomo Shrink tubes. I think they were 1/2 inch (barely made it over the fittings), and I used a micro torch to apply the heat necessary to shrink them onto the ss lines.

Once they shrink, they are about 1/16 thick, are tight against the ss line, and do not wear easily.

Reply
