Forum Member DJF(NJ)'s car. Installed by IRP and Tuned by Dave @ KDR

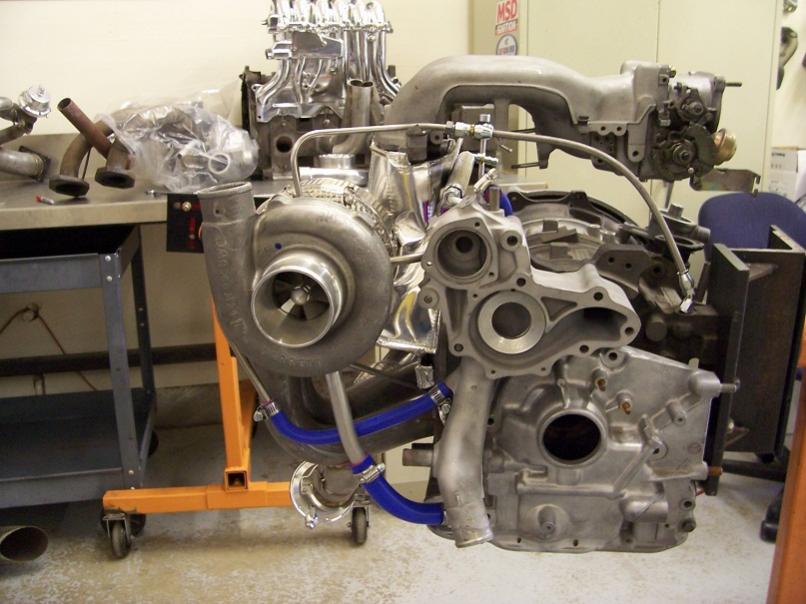

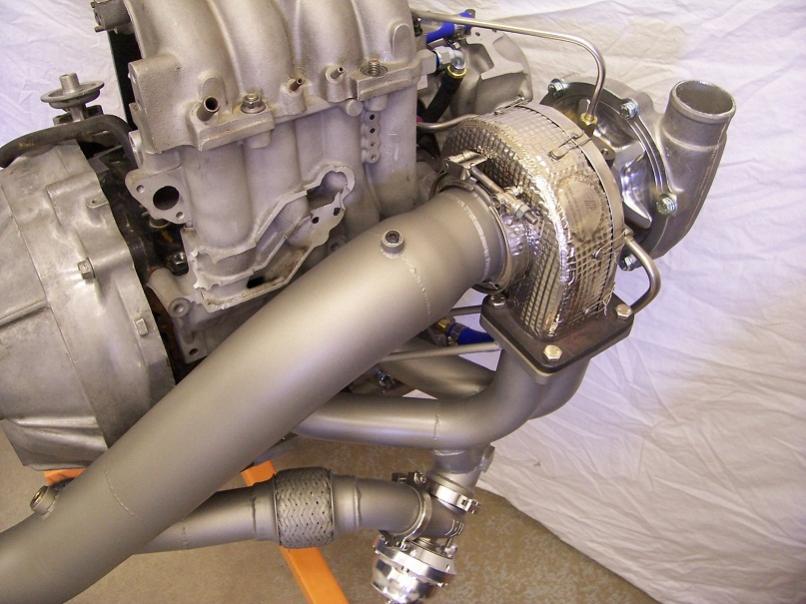

Our BB to4E 60 trim street turbo kit & ID2000 fuel system
Stock Port FD @ 15psi
I was told it hit 405rwhp @ 16psi

http://www.youtube.com/watch?v=fm3Nz...layer_embedded



So what RPM is full boost at? I can't watch the vid from here (work) but 405 on a stock port? Why does it seem FD blocks flow more than FC? I always see similar setups on FCs/FDs but it SEEMS like FDs always tend to make more power. Is there any truth to this?



I am not sure at what RPM his setup sees full boost. On the FDs we have done in house with a stock location intercooler we usually see positive pressure by 1400rpms and 1 bar by 3000rpms in 4th gear.

FD(s) have higher compression, bigger port runners and a better upper intake manifold compared to the FC(s).



That sounds pretty awesome.

So FD's have higher than 9.4:1? I thought S5 and S6 were same compression numbers (or were you referring to S4?) And thanks for clearing that up, I knew about the intake being better (hence why so many people with FC's run them) and I thought the larger port runners only applied to 13b-re blocks.

Again, thanks for the clarification.



Sorry I was referring to S4 T2(s) which are 8.5:1, vs S5/S6 being 9.0:1

The FD primary and secondary intake runners are quite large compared to S4 T2, and still even a lot bigger than S5 T2..



Hmmm interesting, that is about the same HP i made with a similar turbo on my old S6 street port engine with the same turbo. It was also at 15 psi of boost

So that is a pretty good number then.

Looks good

JT



thats exactly what im looking for, thanks for the info



any dyno graph?
