Pics of parallel pumps

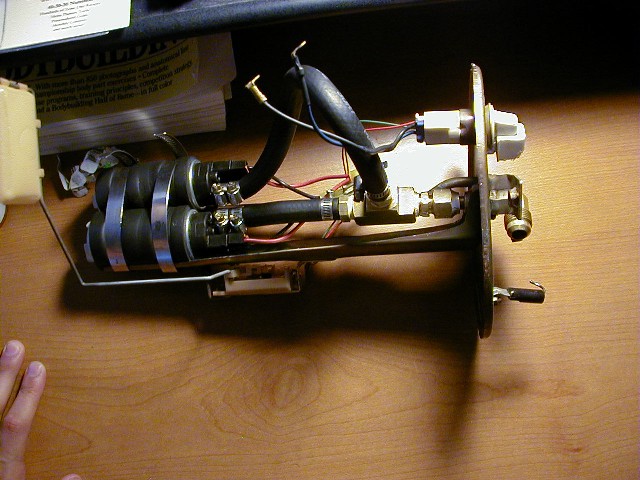

Here is what i did just to let people know! But the stock wiring wont run 2 pumps, so i need to run some new wire! enjoy
mmonaco is offline
Old 07-02-03, 07:21 PM
  #2
Part out my Car
10 Year Member
Thread Starter

mmonaco's Avatar

Join Date: Feb 2002
Location: Denver, Colorado
Posts: 1,762
Likes: 0
Received 0 Likes on 0 Posts
,.,
mmonaco is offline
Old 07-02-03, 10:13 PM
  #3
Rotary Freak
10 Year Member

setzep's Avatar

Join Date: Feb 2001
Location: MN
Posts: 2,524
Likes: 0
Received 0 Likes on 0 Posts
Hmm, looks like you are using 45deg fittings on it? Do you plan on running 45deg stuff all the way to the rails?
setzep is offline
Old 07-02-03, 10:31 PM
  #4
Part out my Car
10 Year Member
Thread Starter

mmonaco's Avatar

Join Date: Feb 2002
Location: Denver, Colorado
Posts: 1,762
Likes: 0
Received 0 Likes on 0 Posts
no thats 90 deg on the top to a converter to make it 3/8ths than a backwords t and barb fittings all picked up at mcguckens hardware store! I think im gonna get a 90 deg barb and it will amke it look nicer!
mmonaco is offline
Old 07-02-03, 11:08 PM
  #5
I can has a Hemi? Yes...
10 Year Member
iTrader: (2)

Directfreak's Avatar

Join Date: Dec 2001
Location: 3OH5
Posts: 9,372
Likes: 0
Received 0 Likes on 0 Posts


I would weld another -AN fitting to the top, and the 2nd Pump directly to it. Then run both -6AN fees to a "Y" AN fitting (-10AN or -8AN line) to run the fuel to the front.

That 90' fitting you have on is too abrupt. A 45' would be smoother.

Otherwise - Nice Job.

I did something similar:

-10AN Feed, -8AN Return.
Directfreak is offline
Old 07-03-03, 12:53 AM
  #6
Part out my Car
10 Year Member
Thread Starter

mmonaco's Avatar

Join Date: Feb 2002
Location: Denver, Colorado
Posts: 1,762
Likes: 0
Received 0 Likes on 0 Posts
thanks for the input! I am gonna get a 90 deg barb and replace that crazy *** hose! Is it the same with fuel every 90 deg bend you lose 1% flow? thanks
Marc
mmonaco is offline
Old 07-03-03, 10:02 AM
  #7
Rotary Freak
10 Year Member

setzep's Avatar

Join Date: Feb 2001
Location: MN
Posts: 2,524
Likes: 0
Received 0 Likes on 0 Posts
I mean 45deg flare opposed to 37 deg flare you see on all AN fittings.
setzep is offline
Old 07-04-03, 04:06 PM
  #8
nyt
Rotary Enthusiast
iTrader: (1)

nyt's Avatar

Join Date: Feb 2001
Location: long island
Posts: 1,222
Received 0 Likes on 0 Posts






=] thas how ya do it =]
nyt is offline
Old 07-04-03, 04:29 PM
  #9
Just Call Me Terminator!
15 Year Member
iTrader: (4)

vosko's Avatar

Join Date: Feb 2001
Location: NJ
Posts: 7,848
Likes: 0
Received 0 Likes on 0 Posts
one day i'll switch to dual pumps
vosko is offline
Old 07-04-03, 06:34 PM
  #10
W. TX chirpin Monkey
10 Year Member

fastrotaries's Avatar

Join Date: Sep 2001
Location: Mesquite, TX
Posts: 2,684
Likes: 0
Received 0 Likes on 0 Posts
man NYT is not ******* around!
fastrotaries is offline
Old 07-04-03, 10:00 PM
  #11
Part out my Car
10 Year Member
Thread Starter

mmonaco's Avatar

Join Date: Feb 2002
Location: Denver, Colorado
Posts: 1,762
Likes: 0
Received 0 Likes on 0 Posts
Why do you still have the stock hard pipes lines?? But still very nice job! Ill take some more pics of the whole deal! Fastrotaries im not ******* around eithor!!
mmonaco is offline
Old 07-04-03, 11:06 PM
  #12
Part out my Car
10 Year Member
Thread Starter

mmonaco's Avatar

Join Date: Feb 2002
Location: Denver, Colorado
Posts: 1,762
Likes: 0
Received 0 Likes on 0 Posts
What should be the presure i get with 2 pumps?
mmonaco is offline
Old 07-05-03, 01:03 AM
  #13
Got Boost?

fatboy7's Avatar

Join Date: Feb 2002
Location: Watertown, MA
Posts: 1,066
Likes: 0
Received 0 Likes on 0 Posts
If your regulator is good for the flow, the pressure should be the same as before, only it will maintain it when you demand the extra fuel.
fatboy7 is offline
Old 07-05-03, 08:40 PM
  #14
nyt
Rotary Enthusiast
iTrader: (1)

nyt's Avatar

Join Date: Feb 2001
Location: long island
Posts: 1,222
Received 0 Likes on 0 Posts
Originally posted by mmonaco
Why do you still have the stock hard pipes lines?? But still very nice job! Ill take some more pics of the whole deal! Fastrotaries im not ******* around eithor!!
i use a stock return.
nyt is offline
Old 07-05-03, 09:05 PM
  #15
Part out my Car
10 Year Member
Thread Starter

mmonaco's Avatar

Join Date: Feb 2002
Location: Denver, Colorado
Posts: 1,762
Likes: 0
Received 0 Likes on 0 Posts
damn you did all that and now run stock return lines!! Did you end up keeping the charcoal canister?
mmonaco is offline
Old 07-06-03, 01:56 AM
  #16
nyt
Rotary Enthusiast
iTrader: (1)

nyt's Avatar

Join Date: Feb 2001
Location: long island
Posts: 1,222
Received 0 Likes on 0 Posts
dear god no. the stock return is fine. stock tank, etc... i run -8(?) or was it -6? from my regulator to one of the stock lines right below...
nyt is offline
Old 07-06-03, 02:39 PM
  #17
no
10 Year Member

suganuma's Avatar

Join Date: Apr 2001
Location: Dallas, TX / Tokyo, Japan currently
Posts: 2,295
Likes: 0
Received 0 Likes on 0 Posts
what's the reason everyone is switching to dual pumps instead of just one large on like the aeromotive i have seen on other applications??

I mean, i could see dual pumps if you have a dedicated line to the primary and another to the secondary....but what's the reason if you're just going to y them together anyways. then if one pump fails you get half the fuel, motor still runs, and then blows. with one pump, if it fails then the motor still might blow, but you also have a good chance of it all just dying and only having that one point of failure.

maybe it's just me??.....
suganuma is offline
Old 07-06-03, 06:28 PM
  #18
Bann3d. I got OWNED!!!
iTrader: (20)

RX7 RAGE's Avatar

Join Date: Feb 2001
Location: San Diego, CA
Posts: 4,974
Received 4 Likes on 3 Posts
What pumps are you using direct freak?
RX7 RAGE is offline
Old 07-06-03, 09:19 PM
  #19
Rotary Freak
10 Year Member

setzep's Avatar

Join Date: Feb 2001
Location: MN
Posts: 2,524
Likes: 0
Received 0 Likes on 0 Posts
he's got an aeromotive
setzep is offline
Old 07-06-03, 11:32 PM
  #20
I can has a Hemi? Yes...
10 Year Member
iTrader: (2)

Directfreak's Avatar

Join Date: Dec 2001
Location: 3OH5
Posts: 9,372
Likes: 0
Received 0 Likes on 0 Posts
Yeah, Aeromotive 1000. My whole fuel system was documented HERE, if anybody cares.



I agree with Suganama though, the only advantage I see for dual pumps (instead of a single large pump) is to have less noise.

Then you could run one all the time, and the 2nd under boost, staged with a good ECU. Although at higher boost pressures, I have seen this kind of setup have fuel pressure drops.
Directfreak is offline
Old 07-07-03, 01:06 AM
  #21
Just Call Me Terminator!
15 Year Member
iTrader: (4)

vosko's Avatar

Join Date: Feb 2001
Location: NJ
Posts: 7,848
Likes: 0
Received 0 Likes on 0 Posts
the other advantage to dual pumps is if one fails you still have something to drive on
vosko is offline
Old 07-07-03, 01:31 AM
  #22
nyt
Rotary Enthusiast
iTrader: (1)

nyt's Avatar

Join Date: Feb 2001
Location: long island
Posts: 1,222
Received 0 Likes on 0 Posts
my pumps are quiet
and they flow A LOT of fuel.

ive seen aeromotives drop pressure on high end.

i run LOTS of boost.. and now im building a half-bridge port motor.
nyt is offline
Old 07-07-03, 01:33 AM
  #23
nyt
Rotary Enthusiast
iTrader: (1)

nyt's Avatar

Join Date: Feb 2001
Location: long island
Posts: 1,222
Received 0 Likes on 0 Posts
and its not like im y'ing -8 and -8 to -8, its -10 feeds to the pumps, -8 from the pumps to the Y, then -10 to the secondary rail
nyt is offline
Old 07-07-03, 01:27 PM
  #24
no
10 Year Member

suganuma's Avatar

Join Date: Apr 2001
Location: Dallas, TX / Tokyo, Japan currently
Posts: 2,295
Likes: 0
Received 0 Likes on 0 Posts
Originally posted by Directfreak
Yeah, Aeromotive 1000.

I agree with Suganama though, the only advantage I see for dual pumps (instead of a single large pump) is to have less noise.

Then you could run one all the time, and the 2nd under boost, staged with a good ECU. Although at higher boost pressures, I have seen this kind of setup have fuel pressure drops.
i guess that's an advantage....if your exhaust is quiet enough to hear a fuel pump over it, but i've also never heard how loud the aeromotive is.

nyt - I haven't ever read of anyone having problems with the larger aeromotive or paxton models of pumps - can you please point me in the direction for some threads either on this forum or elsewhere where someone documents a case where pressure was falling off on the top end or if they had any other problems with the pump??

i guess i just subscribe to the KISS philosophy.
suganuma is offline
Old 07-07-03, 02:26 PM
  #25
nyt
Rotary Enthusiast
iTrader: (1)

nyt's Avatar

Join Date: Feb 2001
Location: long island
Posts: 1,222
Received 0 Likes on 0 Posts
T&R used to use aeromotive pumps...

but they couldnt support too much past 500 rwhp safely..

then we tried the SX 1000 pump..

which i had on my car and caused a blown motor when it died ..

yeah its a nice race pump, loud as ****, but doesnt like being daily driven as we found out

now im running dual bosch pumps.... its beautiful =]
