Ford 3.7L V6 fc
08-06-17, 03:06 PM
#351
Junior Member
Thank you 30mpgfc and mach.80 for your help so far. I'm getting very close to starting on my swap. I have my engine, and transmission already. Just need some more supporting parts. Can't wait to see how your swaps go as well as mine.
08-06-17, 03:25 PM
#352
Full Member
Thread Starter
out of curiosity which motor did you go with the fwd 3.7 or rwd 3.7?
08-06-17, 03:59 PM
#353
Junior Member
08-06-17, 04:10 PM
#354
Full Member
Thread Starter
08-07-17, 11:52 AM
#357
Junior Member
Already ahead of you. I'm using a SPEC Stage 1 clutch and SPEC aluminum coyote (5.0 V8 Mustang) flywheel and a slave cylinder spacer to make it reach. Not interested in the crappy dual mass haha.
Last edited by PerroCaliente; 08-07-17 at 11:54 AM.
08-20-17, 12:05 PM
#361
Full Member
Thread Starter
Unfortunately my other phone broke so my picture quality has dropped from 20mp to 13mp 😥
Got a good check last week and another one coming this week so I'm out of the hole that the shitty weather threw me into. Rain + no $ = plenty of free time but no new car parts.
I found a 6' piece of 1 and ½ inch box steel at work that I think imma fabricate into my front motor mount w00t w00t.
-stay tuned
09-07-17, 04:44 PM
#363

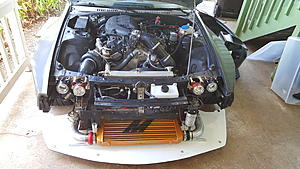

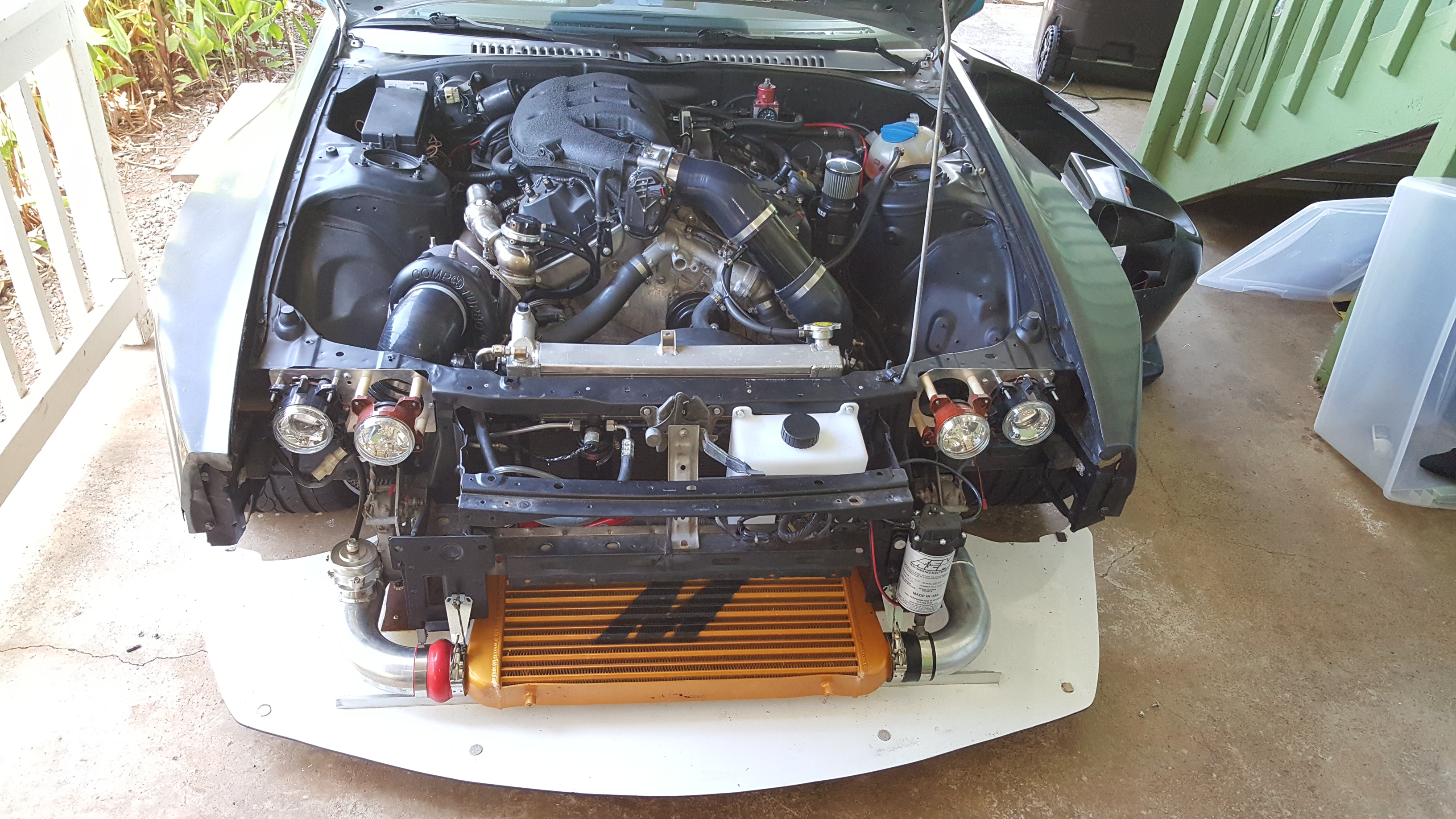

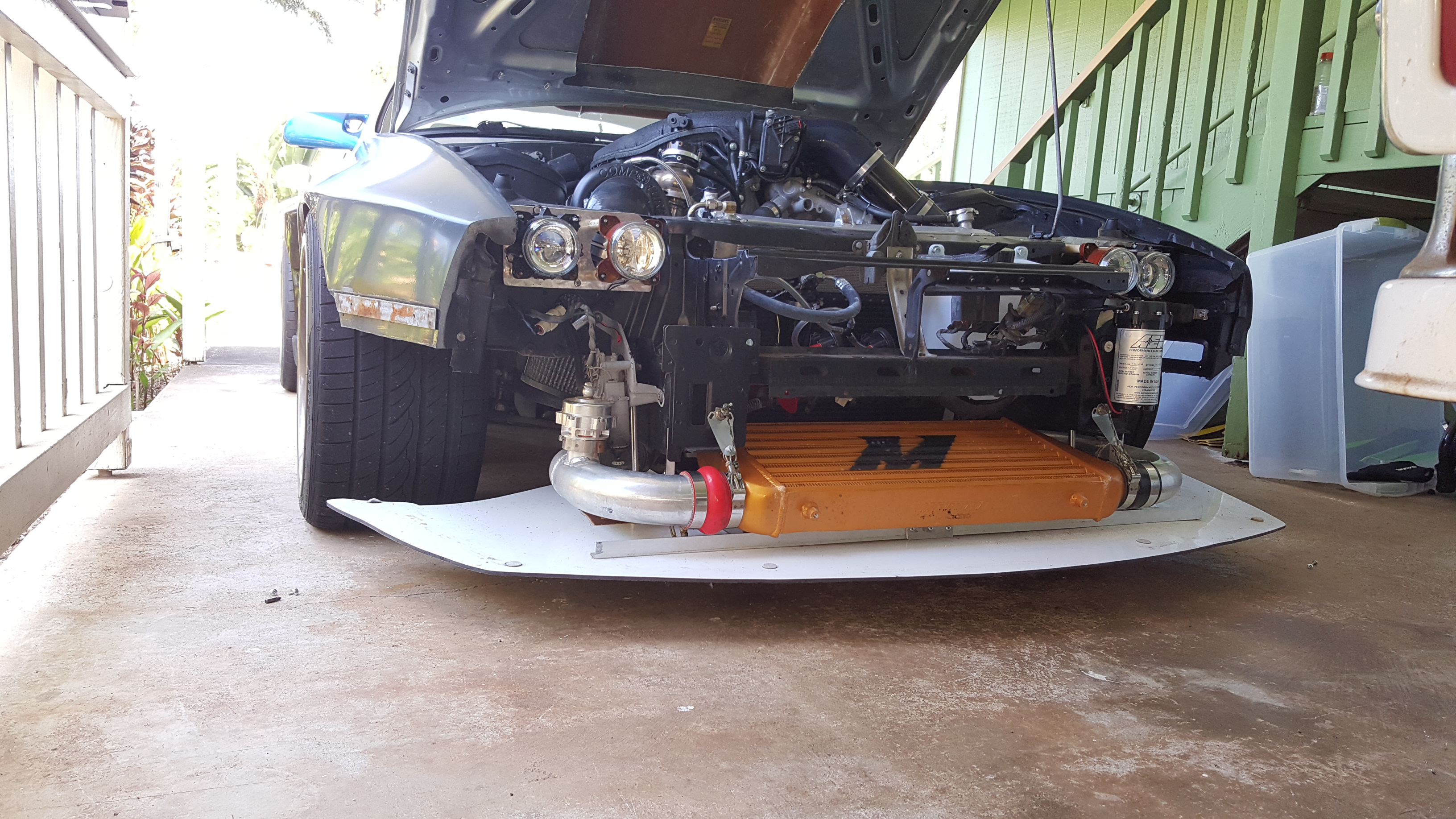

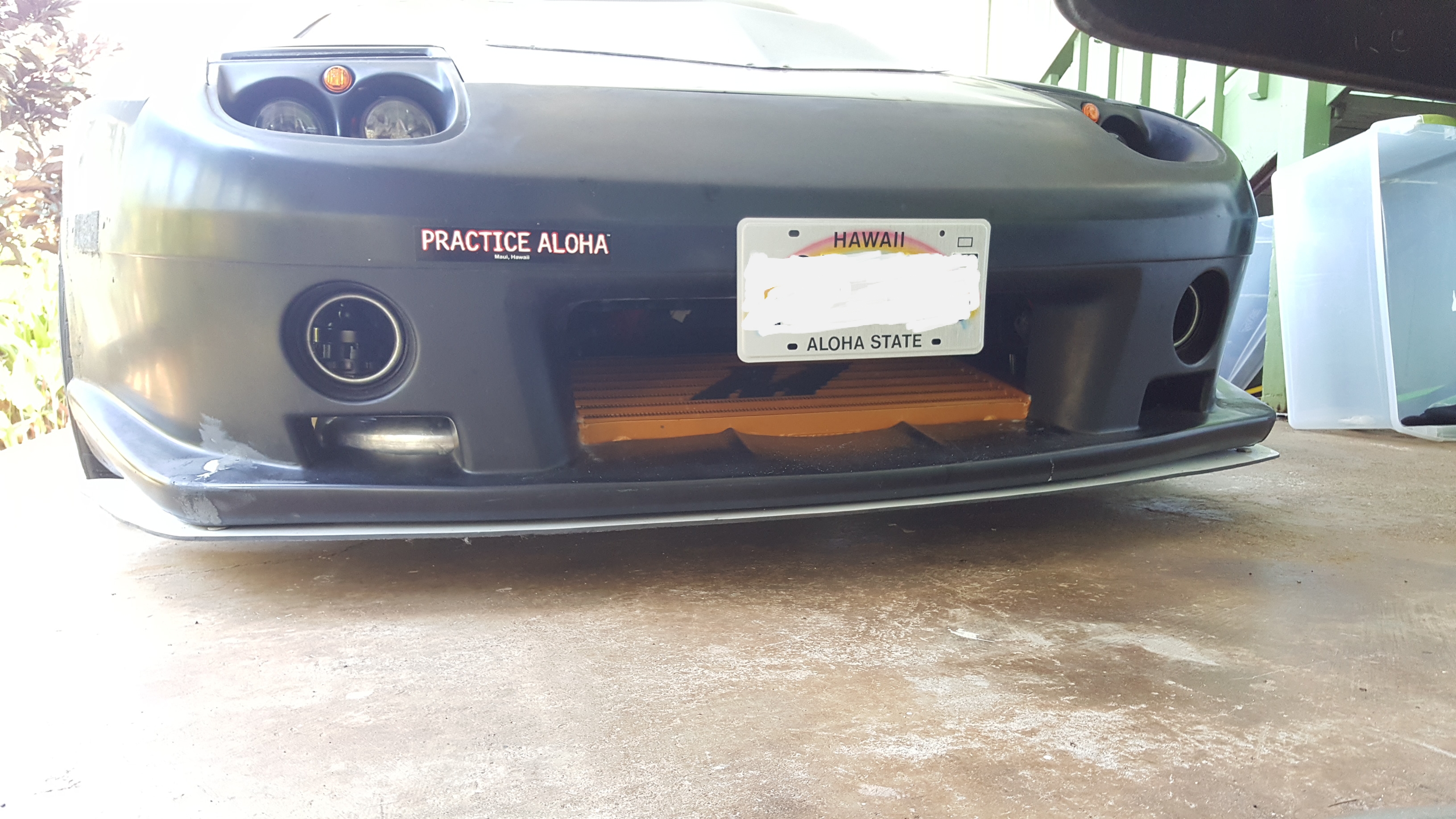

New V-Mount setup. The car was getting hot driving up the 15 minute hill.
My guess was the front mount was blocking the radiator, the condenser was blocking the radiator and with NO foam around the condenser, the air was simply going around the radiator all together. I installed foam around the radiator and around the condenser.
Then, I lowered the top of the intercooler with the intercooler pipes and couplers in the same location and the top of the intercooler conveniently aligned with the former oil cooler brackets. I made brackets for the front of the intercooler and plan on making ducting on the sides for proper forced air flow.
Hopefully this will keep it cool.
Oh, as a side note, the car only got hot after exceeding 45mph. So, I summarized that aerodynamic compression was causing all the air to go around the car instead of through the intercooler. But I digress. After all I'm a simple pilot not a Time Attack aero guy. I wish!
My guess was the front mount was blocking the radiator, the condenser was blocking the radiator and with NO foam around the condenser, the air was simply going around the radiator all together. I installed foam around the radiator and around the condenser.
Then, I lowered the top of the intercooler with the intercooler pipes and couplers in the same location and the top of the intercooler conveniently aligned with the former oil cooler brackets. I made brackets for the front of the intercooler and plan on making ducting on the sides for proper forced air flow.
Hopefully this will keep it cool.
Oh, as a side note, the car only got hot after exceeding 45mph. So, I summarized that aerodynamic compression was causing all the air to go around the car instead of through the intercooler. But I digress. After all I'm a simple pilot not a Time Attack aero guy. I wish!
Last edited by mach.80; 09-07-17 at 04:50 PM.
09-07-17, 04:59 PM
#364
Full Member
Thread Starter
Good to hear Harvey didn't get the best of ya. Irma is on her way to try and **** with my corn flakes. I'll take note on your cooling issue and go ahead and plan accordingly. My build I on hold as my work is weather permitting.
09-07-17, 11:50 PM
#365
...I made the move. That plus getting the new job is why my project halted this past year, but now I'm up and running again. It feels good to be working on her again.
That being said, a lot of my friends were affected, but their recovering well. That's one good thing about Texas.
09-10-17, 12:49 PM
#367
Full Member
Thread Starter
welp I'm in Gainesville now cuz my sister freaks out in bad weather. I'm not too fond of the area because it has a lot of low areas that are prone to flooding. Where I was was surrounded by lakes that are damn near empty.
09-10-17, 01:06 PM
#369
Full Member
Thread Starter
09-11-17, 05:11 PM
#373
Full Member
Thread Starter
09-13-17, 03:18 PM
#374
Full Member
Thread Starter
All is well, literally no effects from Irma except money. I'm not going back to work till Monday 9/18, totally screwed out of a whole week of $. Might have $300 to last me till 2 weeks from now. Gotta do extra paper work associated with hurricane damage to the jobsite. Really starting to rethink my job. As far as the car is concerned I'm due to oil the 3.7 motor up to prevent rusting etc. I bought an air compressor a couple weeks ago and did a leak down test on my 325kmi corolla. Lost 10% psi through the rings and valves. I might consider leak down testing the 3.7 tomorrow. Only issue with that is I can't get the rings up to normal operating temperature so that the expansion will effect #s. basically the #s will be skewed a little lower. If I don't like the numbers I will be waiting on buying a salvage flood block from South Florida or Texas. I'll use my current block for fabrication purposes till a replacement is needed/bought. On the bright side having 2 blocks would allow me to build 1 while I drive the other, lol.
