86 fc ignition coil wiring
Hello, this is my first post hope everyone is doing fine
i bought an 86 fc last weekend and im trying to get it running but im really bad with wires and i have some problems with the ignition coils and 2 lose plugs i cant find anything in other treads or on youtube
Were does this green plug belong to ? Am i missing something

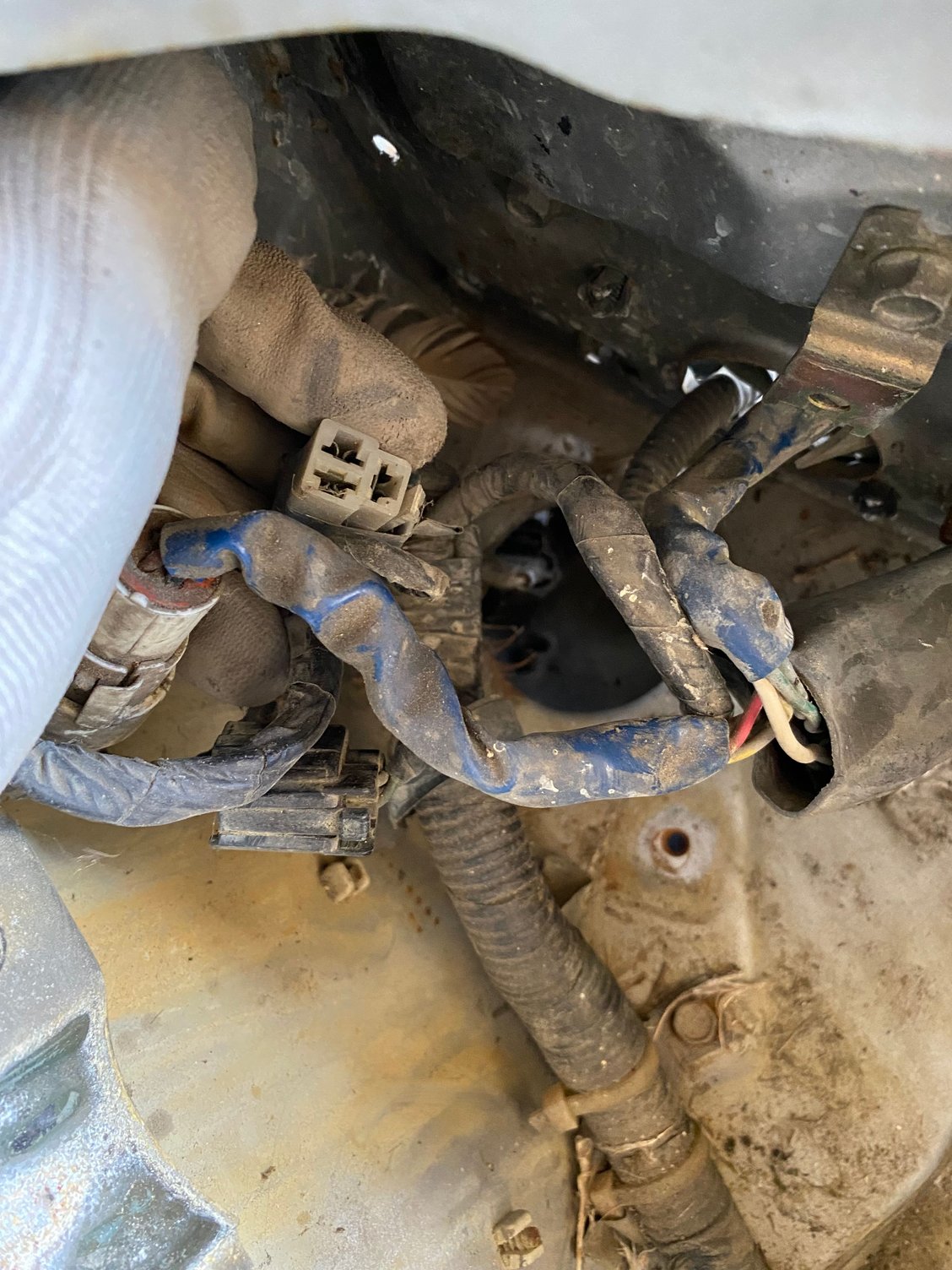

This one is located behind the left headlight
This one is also behind the left hl
Anything helps thanks
i bought an 86 fc last weekend and im trying to get it running but im really bad with wires and i have some problems with the ignition coils and 2 lose plugs i cant find anything in other treads or on youtube
Were does this green plug belong to ? Am i missing something
This one is located behind the left headlight
This one is also behind the left hl
Anything helps thanks
#2
Rotary Enthusiast
iTrader: (23)
Sure it’s an 86, a fc? The coil looks it came out of a fb, so it’s probably a 1984-85, fb body style, gsl-se with the 1.3liter fuel injected engine. Not trying to be rude or nitpicky just trying to help identify the car in case we start giving wrong information.
Below is the link to all your answers, the full service manuals.
Being a fc guy, I’d “assume” the green connector doesn’t get plugged into anything and actually serves as a test connector or a jumper to bypass the fuel pump relay or something. But the wiring manuals tell the whole story.
Rx7 foxed service manuals
Below is the link to all your answers, the full service manuals.
Being a fc guy, I’d “assume” the green connector doesn’t get plugged into anything and actually serves as a test connector or a jumper to bypass the fuel pump relay or something. But the wiring manuals tell the whole story.
Rx7 foxed service manuals
The following users liked this post:
Dqvxe (02-01-23)
#3
Newbie
Thread Starter
[QUOTE=DR_Knight;12547998]Sure it’s an 86, a fc? The coil looks it came out of a fb, so it’s probably a 1984-85, fb body style, gsl-se with the 1.3liter fuel injected engine. Not trying to be rude or nitpicky just trying to help identify the car in case we start giving wrong information.
Below is the link to all your answers, the full service manuals.
Being a fc guy, I’d “assume” the green connector doesn’t get plugged into anything and actually serves as a test connector or a jumper to bypass the fuel pump relay or something. But the wiring manuals tell the whole story.
Rx7 foxed service manuals
i just found out that it is infact an gslse engine so you are completely correct thank you appreciate it
Below is the link to all your answers, the full service manuals.
Being a fc guy, I’d “assume” the green connector doesn’t get plugged into anything and actually serves as a test connector or a jumper to bypass the fuel pump relay or something. But the wiring manuals tell the whole story.
Rx7 foxed service manuals
i just found out that it is infact an gslse engine so you are completely correct thank you appreciate it
Last edited by Dqvxe; 02-01-23 at 03:42 PM. Reason: Figured it out what exactly it is
#4
Hey...Cut it out!
iTrader: (4)
Before this gets out of hand with unintended misinformation, I'm gonna stop everyone right here.
This is a European-spec Series 4 NA. Therefore, the North American diagrams and manuals do not apply to this. Same with the Japanese ones, different setup. Euro-spec Series 4 NA cars have the N323 ECU, which uses a Distributor and Coils similar to the GSL-SE. All other FCs have a Crank Angle Sensor and the Coil/Igniter setup found in the North American/Japanese manuals.
HIGGI is our resident Euro-spec guru and would be the go-to person to ask. I believe he has the proper Euro-spec wiring diagram, but it's been awhile since I talked to him.
This is a European-spec Series 4 NA. Therefore, the North American diagrams and manuals do not apply to this. Same with the Japanese ones, different setup. Euro-spec Series 4 NA cars have the N323 ECU, which uses a Distributor and Coils similar to the GSL-SE. All other FCs have a Crank Angle Sensor and the Coil/Igniter setup found in the North American/Japanese manuals.
HIGGI is our resident Euro-spec guru and would be the go-to person to ask. I believe he has the proper Euro-spec wiring diagram, but it's been awhile since I talked to him.
The following users liked this post:
Dqvxe (02-01-23)
