General Rotary Tech Support Use this forum for tech questions not specific to a certain model year

what goes here?

Old 04-06-18, 03:13 PM
  #1
Junior Member
Thread Starter

Join Date: Mar 2018
Location: Texas
Posts: 39
Received 0 Likes on 0 Posts
what goes here?

13b rotary intake of some sort?
https://www.rx7club.com/g/album/9486688
check the picture, its circled in red.
cocopuffsman is offline
Old 04-06-18, 04:53 PM
  #2
Rotary Enthusiast
iTrader: (2)

j_tso's Avatar

Join Date: Dec 2004
Location: Austin, TX
Posts: 1,208
Likes: 0
Received 10 Likes on 10 Posts
It's a coolant outlet to the heater core.

Why am I seeing 4 spark plugs per rotor?

Nevermind found a thread with that pic:
"While they look like spark plugs, they don't function like them. They are basically just elaborate grounds for dual post coils used on each plug or something to that effect."

Last edited by j_tso; 04-06-18 at 04:58 PM.
j_tso is offline
Old 04-07-18, 06:15 PM
  #3
Junior Member
Thread Starter

Join Date: Mar 2018
Location: Texas
Posts: 39
Received 0 Likes on 0 Posts
Originally Posted by j_tso View Post
It's a coolant outlet to the heater core.

Why am I seeing 4 spark plugs per rotor?

Nevermind found a thread with that pic:
"While they look like spark plugs, they don't function like them. They are basically just elaborate grounds for dual post coils used on each plug or something to that effect."
is the heater core separate from the radiator? im doing an engine swap and dont know much about the engine outlets, cant seem to find a diagram
cocopuffsman is offline
Old 04-07-18, 07:59 PM
  #4
Rotary Enthusiast
iTrader: (2)

j_tso's Avatar

Join Date: Dec 2004
Location: Austin, TX
Posts: 1,208
Likes: 0
Received 10 Likes on 10 Posts
Yep, the heater core is essentially a separate radiator that sits inside the car.

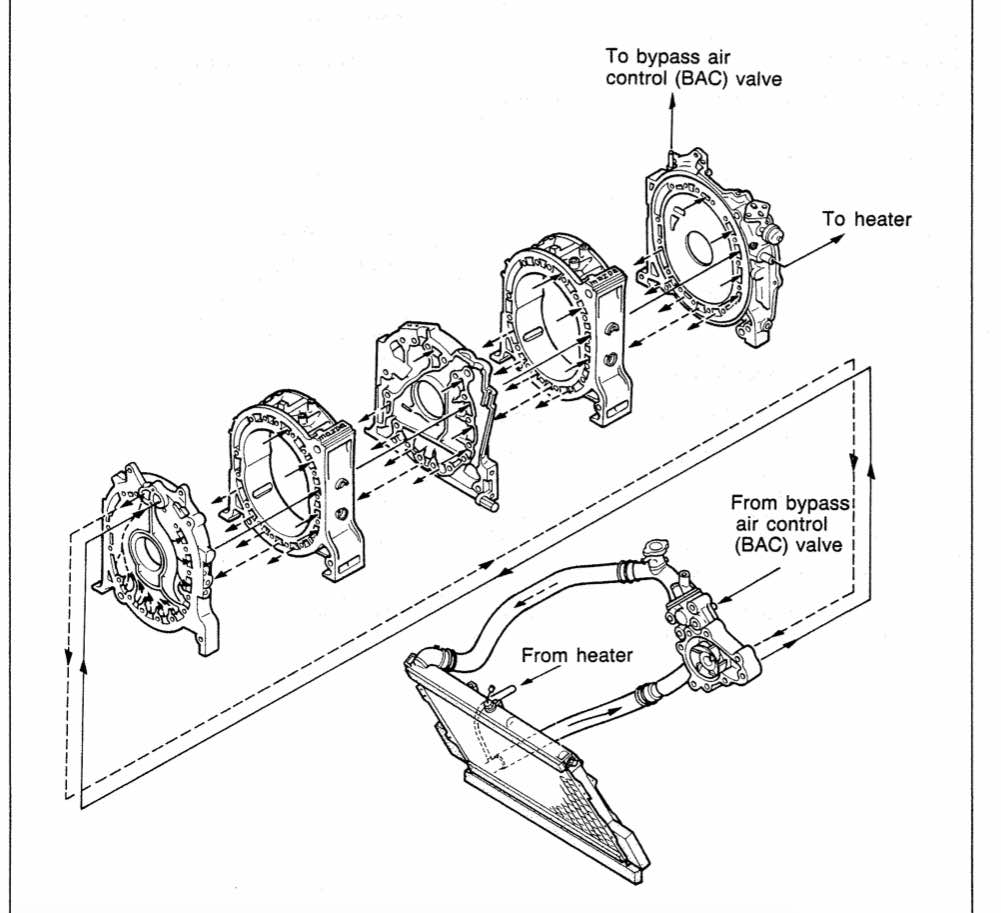

See attached pic for the coolant flow path.

I got that from one of the Training Manuals for the 2nd gen RX-7 on Foxed.ca

Also note 2nd and 3rd gen engines also have another outlet on top of the rear iron.
Attached Thumbnails what goes here?-coolantflow.jpg

Last edited by j_tso; 04-07-18 at 08:03 PM.
j_tso is offline
